Features/Product Advantages
User-friendly design – Ergonomic handle; lightweight; "Plug & Pump" operation
Safe operation – Stainless steel encapsulated motor featuring surface cooling, a mechanical seal, and a seal chamber
Drain TMR with shallow suction capability – Minimum residual water level of 2 mm
Construction

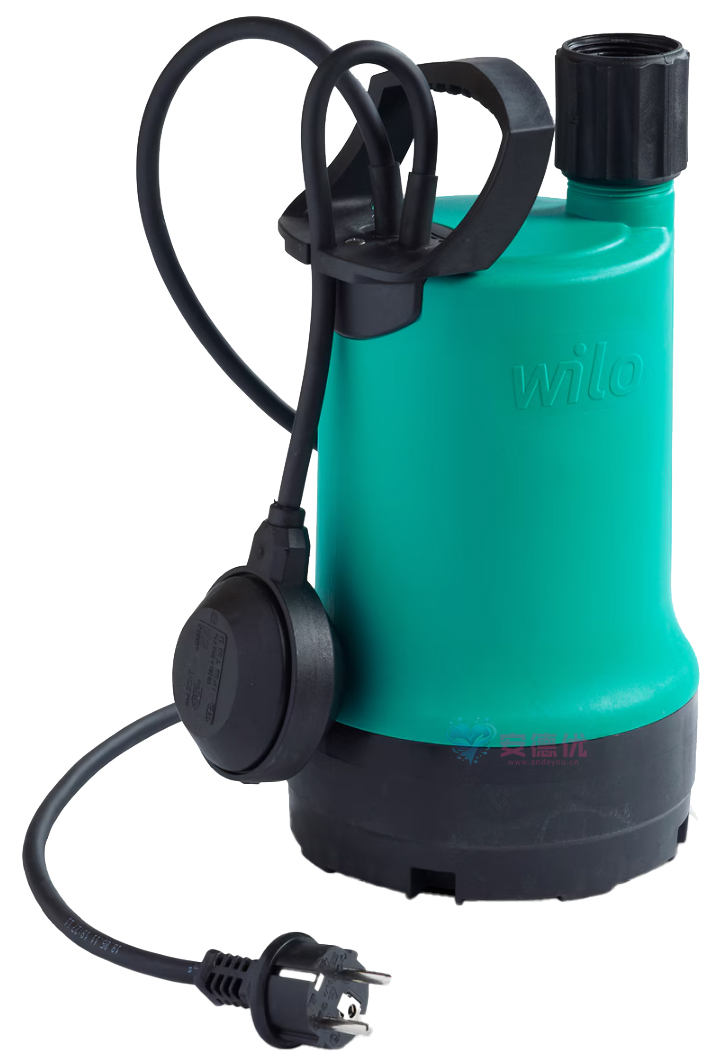

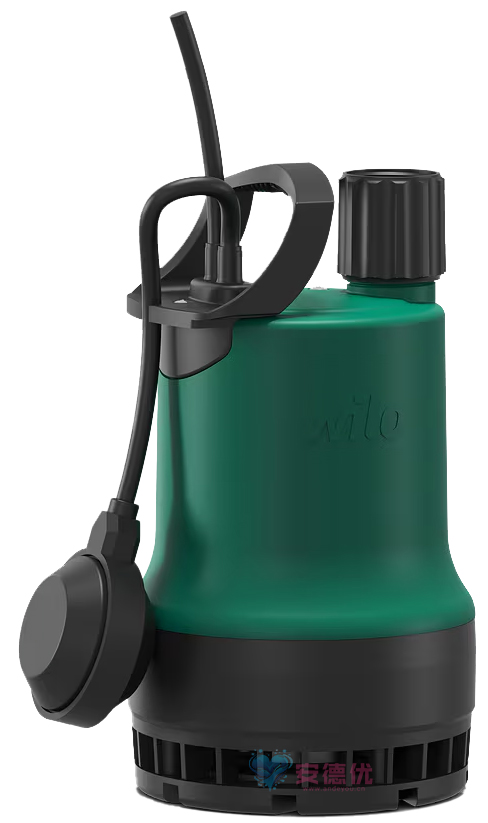

Submersible pump suitable for stationary and portable wet-well installation. Equipped with a float switch for fully automatic operation.
Fluids
For pumping in residential areas:
Sewage without faeces
Wastewater (containing small amounts of sand and grit)
Equipment/Functions
Motor with automatic thermal overload protection
Integrated capacitor
Attached float switch
Model code
|
Example: |
Drain TMW 32/11HD-10M |
|
TM |
Product Series |
|
W |
Specifications: None = Standard |
|
32 |
Nominal diameter of pressure connection |
|
11 |
Maximum head, in meters |
|
HD |
Specifications for corrosive liquids (AISI 316L) |
|
10M |
Different cable lengths: None = 4 m (13 ft) connection cable |
Technical data
Mains connection: 1~230 V, 50 Hz
Operating mode (immersed): S1
Operating mode (non-immersed): S3 25%
Protection class: IP68
Insulation class: F
Fluid temperature: 3 ... 40 °C (37 ... 104 °F)
Materials
Hydraulic housing: PP-GF30
Impeller: PPE/PS-GF20
Strainer: Composite material
Motor housing: 1.4301 (AISI 304) (HD version: AISI 316L)
Seals:
Pump side: C/SiC (BQ1PFF)
Motor side: NBR
Static: NBR
Shaft end: 1.4104 (AISI 430F) (HD version: AISI 316L)
Type
Drain TM
Wastewater pump with open multi-channel impeller and vertical threaded connection. The pump housing, strainer, and impeller are made of composite material. Single-phase motor (surface-cooled) with an integrated run capacitor and automatic thermal overload protection. The motor housing is made of stainless steel. The oil-filled seal chamber features a double seal system: a shaft seal ring on the motor side and a mechanical seal on the pump side. The power cable is equipped with a float switch and a plug (CEE 7/7).
Drain TMW
Wastewater pump with an integrated turbulator (Twister function), an open multi-channel impeller, and a vertical threaded connection. The pump housing, strainer, and impeller are made of composite material. Single-phase motor (surface-cooled) with an integrated run capacitor and automatic thermal overload protection. The motor housing is made of stainless steel. The oil-filled seal chamber features a double seal system: a shaft seal ring on the motor side and a mechanical seal on the pump side. The power cable is equipped with a float switch and a plug (CEE 7/7).
The Twister function ensures continuous turbulence in the pump's suction area. This turbulence prevents sediments from settling and adhering, thereby keeping the pump sump clean and preventing the formation of odors.
Drain TMW ...HD
Wastewater pump with an integrated turbulator (Twister function), an open multi-channel impeller, and a vertical threaded connection. The pump housing, strainer, and impeller are made of composite material. Single-phase motor (surface-cooled) with an integrated run capacitor and automatic thermal overload protection. The motor housing and shaft are made of high-quality stainless steel (AISI 316L). The oil-filled seal chamber features a double seal system: a shaft seal ring on the motor side and a mechanical seal on the pump side. The power cable is equipped with a float switch and a plug (CEE 7/7).
The Twister function ensures continuous turbulence in the pump's suction area. This turbulence prevents sediments from settling and adhering, thereby keeping the pump sump clean and preventing the formation of odors.
Drain TMR
Wastewater pump with a sludge removal device (capable of pumping down to a residual water level of 2 mm), an open multi-channel impeller, and a vertical threaded connection. The pump housing, strainer, and impeller are made of composite material. Single-phase motor (surface-cooled) with an integrated run capacitor and automatic thermal motor protection. Motor housing made of stainless steel. Oil-filled sealing chamber with double sealing: a shaft seal on the motor side and a mechanical seal on the pump side. Power cable with float switch and plug (CEE 7/7).
Drain TM 32/8-10M
Wastewater pump with an open multi-channel impeller and a vertical threaded connection. The pump housing, strainer, and impeller are made of composite material. Single-phase motor (surface-cooled) with an integrated run capacitor and automatic thermal motor protection. Motor housing made of stainless steel. Oil-filled sealing chamber with double sealing: a shaft seal on the motor side and a mechanical seal on the pump side. Power cable with plug (CEE 7/7); no float switch.
Scope of delivery
Drain TM 32
Pump
Hose connection (attached)
Installation and operating instructions
Drain TMW 32
Pump
Pre-installed non-return valve
Installation and operating instructions
Drain TMR 32
Pump
Pre-installed non-return valve
Installation and operating instructions
