Features/Product Advantages
Easy to operate – lightweight, Plug & Pump
Especially suitable for portable applications – robust, impact-resistant stainless steel housing
Safe operation – stainless steel encapsulated motor equipped with surface cooling, mechanical seal, and seal chamber
Construction

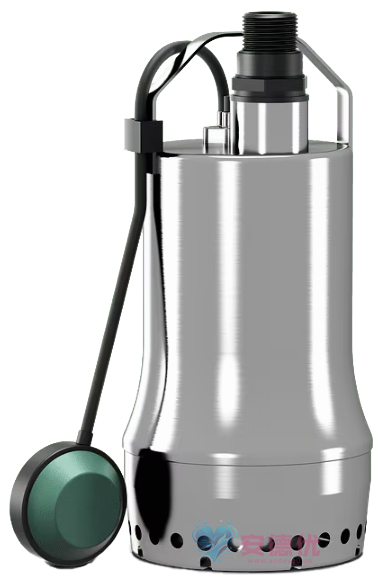

Submersible pump suitable for stationary and portable wet-well installation. Pump equipped with a float switch for fully automatic operation.
Fluids
For pumping in residential areas:
Fecal-free wastewater
Wastewater (containing small amounts of sand and grit)
Equipment/Functions
Automatic motor thermal protection
Integrated capacitor
Attached float switch
Model Code
|
Example: |
Drain TSW 32/8-A/B 10M KA |
|
TS |
Product Series |
|
W |
Specifications: TS = Without Twister swirl function |
|
32 |
Nominal diameter of pressure connection |
|
8 |
Maximum head, in meters |
|
A |
Specifications with float switch and plug |
|
B |
Revision Number |
|
10M KA |
Wiring cable length |
Technical Data
Mains connection: 1~230 V, 50 Hz
Duty type (immersed): S1
Duty type (non-immersed): S3 25%
Protection class: IP68
Insulation class: F
Fluid temperature: 3 ... 40 °C (37 ... 104 °F)
Materials
Pump housing: 1.4301 (AISI 304)
Impeller: PCL
Strainer: Stainless steel
Motor housing: 1.4301 (AISI 304)
Seals:
Pump side: C/SiC (BQ1PFF)
Motor side: NBR
Static: NBR
Shaft end: 1.4301 (AISI 304)
Type
Drain TS
Wastewater pump with open multi-channel impeller and vertical threaded connection. Pump housing and strainer made of stainless steel; impeller made of composite material. Single-phase motor (surface-cooled) with integrated run capacitor and self-resetting thermal overload protection. Motor housing made of stainless steel. Oil-filled seal chamber with double seal: shaft seal ring on the motor side and mechanical seal on the pump side. Power cable with float switch and plug (CEE 7/7).
Drain TSW
Wastewater pump with integrated "Twister" function (swirl action), open multi-channel impeller, and vertical threaded connection. Pump housing and strainer made of stainless steel; impeller made of composite material. Single-phase motor (surface-cooled) with integrated run capacitor and self-resetting thermal overload protection. Motor housing made of stainless steel. Oil-filled seal chamber with double seal: shaft seal ring on the motor side and mechanical seal on the pump side. Power cable with float switch and plug (CEE 7/7).
The "Twister" function ensures continuous turbulence in the pump's suction area. This turbulence prevents sediments from settling and adhering, thereby keeping the pump sump clean and preventing the formation of unpleasant odors.
Scope of delivery
Pump
Pre-installed non-return valve
Hose connection (attached)
Installation and operating instructions
