Features/Product Advantages

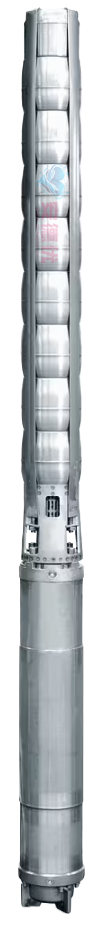

The Wilo-TWS series stainless steel submersible deep-well pumps feature a compact design, excellent performance, high efficiency and energy savings, a small footprint, and light weight; they operate smoothly and are easy to install. The pumps are equipped with an internal elastic spherical check valve to prevent damage caused by backflow or pipeline water hammer upon shutdown. They can be installed either vertically or horizontally.

Construction

Multi-stage submersible pumps (4", 6", and 8") feature NEMA-standard connections, axial impellers, and an integrated check valve design. All components are made from corrosion-resistant materials.

Applications

· Booster pumps for water supply networks

· Water supply plants

· Irrigation and sprinkler systems

· Circulation pumps for HVAC and industrial systems

· Firefighting and sprinkler systems

· Groundwater lowering or control in mining and civil engineering

· Geothermal applications

· Fountains and water features

· Artificial snowmaking for ski resorts

· Offshore drilling platforms

Model Code

Technical Data

Power supply: 3~380V, 50Hz; 1~220V, 50Hz

Duty cycle: S1

Protection class: IP 68

Liquid temperature: 1~40°C

Liquid pH value: 6.5~8

Minimum flow velocity: 0.1–0.5 m/s

Solids content: ≤0.01%

Maximum particle diameter: ≤0.2mm

Maximum submersion depth: 70m

Starts per hour: Max. 20
