Features/Product Advantages

Corrosion-resistant wetted parts
Integrated non-return valve
Rewindable, easy-maintenance motor

Construction

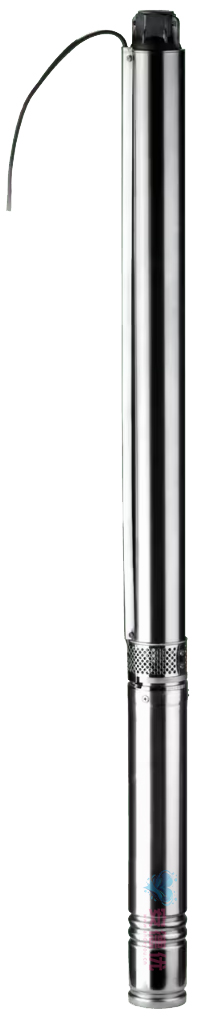

Multistage 3" submersible pump with jacketed design; suitable for vertical or horizontal installation

Applications

Pumping rainwater and industrial water from boreholes and wells for sprinkling, irrigation, and water supply.

Equipment/Functions

Integrated non-return valve
Single-phase AC motor; capacitor box includes built-in thermal motor protection and On/Off switch

Model Code

Technical Data

Power connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz
Operation mode (submerged): S1
Fluid temperature: 3 ... 35 °C
Minimum flow velocity at motor: 0.08 m/s
Max. sand content: 50 g/m³
Max. starts per hour: 30/h
Max. immersion depth: 150 m
Protection class: IP58
Pressure connection: Rp1

Materials

Hydraulics housing: 1.4301
Impeller: Polycarbonate
Hydraulics shaft: 1.4104
Motor housing: 1.4301
Motor shaft: 1.4305

Type

Submersible pump suitable for vertical or horizontal installation.

Hydraulics

Multistage submersible pump with sectional construction, featuring radial impellers and an integrated non-return valve. Pressure connection with threaded flange and internal thread. All wetted parts are made of corrosion-resistant materials.

Motor

Single-phase or three-phase AC motor for direct-on-line starting. The oil-filled motor is rewindable and equipped with self-lubricating bearings.

Cooling

The motor is cooled by the surrounding fluid. The pump must operate fully submerged.
Vertical installation is possible with or without a cooling shroud.
Horizontal installation requires the use of a cooling shroud.

Scope of delivery

Hydraulic unit + motor (ready-to-install)
1.8 m power cable
Control box (capacitor box) for single-phase AC models
Installation and operating instructions

Accessories

Cooling shroud
Diaphragm pressure vessel
Gate valve
Float switch
Pressure switch
Electrodes
Switchgear
Alarm device
Cast-resin kit
Power cable
