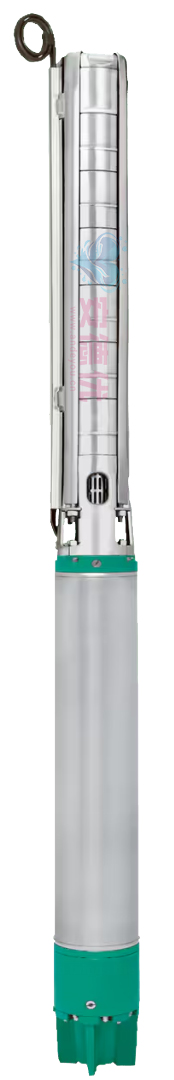

  • 产品图片

Wilo Xiro SPI Segmental Stainless Steel Multistage Submersible Deep-Well Pump (6/8/10-inch)

Xiro SPI 6.10-08-A1/XI6-4,0-B1、Xiro SPI 6.10-09-A1/XI6-4,0-B1、Xiro SPI 6.10-10-A1/XI6-4,0-B1、Xiro SPI 6.10-11-A1/XI6-4,0-B1、Xiro SPI 6.10-12-A1/XI6-5,5-B1、Xiro SPI 6.10-13-A1/XI6-5,5-B1、Xiro SPI 6.10-14-A1/XI6-5,5-B1、Xiro SPI 6.10-15-A1/XI6-5,5-B1、Xiro SPI 6.10-16-A1/XI6-7,5-B1、Xiro SPI 6.10-17-A1/XI6-7,5-B1、Xiro SPI 6.10-18-A1/XI6-7,5-B1、Xiro SPI 6.10-19-A1/XI6-7,5-B1、Xiro SPI 6.10-20-A1/XI6-7,5-B1

The Wilo Xiro SPI sectional stainless steel multistage submersible deep-well pump is engineered for demanding water quality conditions and high-performance water supply applications.Constructed entirely from stainless steel,the pump offers exceptional corrosion resistance and durability,and is compatible with well diameters of 6,8,and 10 inches.Its high-efficiency hydraulic design and sectional structure ensure stable operation and robust flow output
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

Features/Product Advantages

Corrosion-resistant hydraulic components made of stainless steel ensure a long service life
Wide performance range allows for versatile application
Equipped with a check valve for easy installation
Rewindable motor facilitates maintenance and repair

Construction

Multistage stainless steel submersible pump (radial or mixed-flow design) suitable for vertical or horizontal installation

Applications

Water supply from boreholes and water towers/reservoirs
Sprinkling and irrigation
Water level lowering
Pumping of water free from long fibers and abrasive particles

Equipment/Functions

Multistage hydraulic section with radial or mixed-flow impellers
Integrated check valve
NEMA coupling for 6" and 8" hydraulic sections
Rewindable three-phase AC motor

Model Code

Example:

Xiro SPI 6.30-11-A1/XI6-9.3-B1

SPI

The submersible pump is made of stainless steel plate.

6

Hydraulic equipment diameter, inches ["]

30

Rated flow rate at peak efficiency, m³/h

11

Number of hydraulic stages

A1

Key technical data for hydraulic components

X

Motor construction type: Pre-filled with water-glycol mixture, rewindable.

I

Motor material code: I = Final part made of stainless steel; C = Final part made of cast iron.

6

Motor diameter, inches ["]

9.3

Rated motor power P2, kW

B1

Key technical data of the motor

Technical Data

Mains connection: 3~400 V, 50 Hz
Operation mode (submerged): S1
Fluid temperature: 3 – 30 °C
Minimum flow velocity at motor: 0.2 m/s or 0.5 m/s (depending on power)
Max. sand content: 50 g/m³
Max. number of starts: 10 – 20/h (depending on power)
Max. submersion depth: 200 m m
Protection class: IP68
Pressure connection: Rp 2½ to Rp 6

Materials

Hydraulic casing: Stainless steel AISI 304L (1.4307)
Impeller: Stainless steel AISI 304L (1.4307)
Hydraulic shaft: Stainless steel AISI 420 (1.4021)
Motor housing: Stainless steel AISI 304 (1.4301)
Motor shaft: Stainless steel AISI 304 (1.4301)

Type

Submersible pump suitable for vertical or horizontal installation.

Hydraulics

Multistage submersible pump featuring a sectional design with NEMA (6" and 8") or standard (10") connections and radial or mixed-flow impellers. Integrated non-return valve. All parts in contact with the medium are made of corrosion-resistant materials.

Motor

Rewindable three-phase AC motor with PE2/PA insulated windings and water-glycol fill; suitable for direct-on-line starting. Hydraulic connection available as NEMA (6" and 8") or standard (10") interface. Motor shaft sealed with a carbon/ceramic mechanical seal. Self-lubricating motor bearings. Tilting-pad thrust bearing to absorb high axial thrust loads. Rotating seal bearing absorbs negative axial thrust.

Cooling

Motor cooled by the pumped fluid. Motor must remain submerged at all times during operation. Limits for maximum fluid temperature and minimum flow velocity must be observed. Vertical installation possible with or without cooling shroud. Horizontal installation requires the use of a cooling shroud.

Scope of delivery

Hydraulics and motor ready for installation
4.3 m connection cable
Installation and operating instructions

Options

Hydraulics made of stainless steel 1.4401
Motor made of grey cast iron or stainless steel 1.4401
Winding temperature monitoring via Pt100 sensor
Pressure shroud installation
Star-delta starting

Parameters

model Voltage
(V)		 Flow rate
(m³/h)		 Head
(m)		 Power
(kW)		 Motor diameter (mm) caliber
Xiro SPI 6.10-08-A1/XI6-4,0-B1 380V 12.4 57.21 4 142 NPT2 1/2
Xiro SPI 6.10-09-A1/XI6-4,0-B1 380V 12.4 64.37 4 142 Rp 2 1/2
Xiro SPI 6.10-10-A1/XI6-4,0-B1 380V 12.4 71.52 4 142 Rp 2 1/2
Xiro SPI 6.10-11-A1/XI6-4,0-B1 380V 12.4 78.68 4 142 Rp 2 1/2
Xiro SPI 6.10-12-A1/XI6-5,5-B1 380V 12.4 85.83 5.5 142 Rp 2 1/2
Xiro SPI 6.10-13-A1/XI6-5,5-B1 380V 12.4 92.98 5.5 142 Rp 2 1/2
Xiro SPI 6.10-14-A1/XI6-5,5-B1 380V 12.4 100.1 5.5 142 Rp 2 1/2
Xiro SPI 6.10-15-A1/XI6-5,5-B1 380V 12.4 107.3 5.5 142 Rp 2 1/2
Xiro SPI 6.10-16-A1/XI6-7,5-B1 380V 12.4 114.4 7.5 142 Rp 2 1/2
Xiro SPI 6.10-17-A1/XI6-7,5-B1 380V 12.4 121.6 7.5 142 Rp 2 1/2
Xiro SPI 6.10-18-A1/XI6-7,5-B1 380V 12.4 128.7 7.5 142 Rp 2 1/2
Xiro SPI 6.10-19-A1/XI6-7,5-B1 380V 12.4 135.9 7.5 142 Rp 2 1/2
Xiro SPI 6.10-20-A1/XI6-7,5-B1 380V 12.4 143 7.5 142 Rp 2 1/2
Xiro SPI 6.10-21-A1/XI6-7,5-B1 380V 12.4 150.2 7.5 142 Rp 2 1/2
Xiro SPI 6.10-22-A1/XI6-9,3-B1 380V 12.4 157.4 9.3 142 Rp 2 1/2
Xiro SPI 6.10-23-A1/XI6-9,3-B1 380V 12.4 164.5 9.3 142 Rp 2 1/2
Xiro SPI 6.10-24-A1/XI6-9,3-B1 380V 12.4 171.7 9.3 142 Rp 2 1/2
Xiro SPI 6.10-25-A1/XI6-9,3-B1 380V 12.4 178.8 9.3 142 Rp 2 1/2
Xiro SPI 6.10-26-A1/XI6-9,3-B1 380V 12.4 186 9.3 142 Rp 2 1/2
Xiro SPI 6.10-27-A1/XI6-11-B1 380V 12.4 193.1 11 142 Rp 2 1/2
Xiro SPI 6.10-28-A1/XI6-11-B1 380V 12.4 200.3 11 142 Rp 2 1/2
Xiro SPI 6.10-29-A1/XI6-11-B1 380V 12.4 207.4 11 142 Rp 2 1/2
Xiro SPI 6.10-30-A1/XI6-11-B1 380V 12.4 214.6 11 142 Rp 2 1/2
Xiro SPI 6.10-31-A1/XI6-13-B1 380V 12.4 221.7 13 142 Rp 2 1/2
Xiro SPI 6.10-32-A1/XI6-13-B1 380V 12.4 228.9 13 142 Rp 2 1/2
Xiro SPI 6.10-33-A1/XI6-13-B1 380V 12.4 236 13 142 Rp 2 1/2
Xiro SPI 6.10-34-A1/XI6-13-B1 380V 12.4 243.2 13 142 Rp 2 1/2
Xiro SPI 6.10-35-A1/XI6-13-B1 380V 12.4 250.3 13 142 Rp 2 1/2
Xiro SPI 6.10-36-A1/XI6-13-B1 380V 12.4 257.5 13 142 Rp 2 1/2
Xiro SPI 6.10-37-A1/XI6-13-B1 380V 12.4 264.6 13 142 Rp 2 1/2
Xiro SPI 6.10-38-A1/XI6-15-B1 380V 12.4 271.8 15 142 Rp 2 1/2
Xiro SPI 6.10-39-A1/XI6-15-B1 380V 12.4 278.9 15 142 Rp 2 1/2
Xiro SPI 6.10-40-A1/XI6-15-B1 380V 12.4 286.1 15 142 Rp 2 1/2
Xiro SPI 6.10-41-A1/XI6-15-B1 380V 12.4 293.2 15 142 Rp 2 1/2
Xiro SPI 6.10-42-A1/XI6-18,5-B1 380V 12.4 300.4 18.5 142 Rp 2 1/2
Xiro SPI 6.10-52-A1/XI6-22-B1 380V 12.4 371.9 22 142 Rp 2 1/2
Xiro SPI 6.17-07-A1/XI6-4,0-B1 380V 14.8 63.12 4 142 Rp 2 1/2
Xiro SPI 6.17-08-A1/XI6-5,5-B1 380V 14.8 72.14 5.5 142 Rp 2 1/2
Xiro SPI 6.17-09-A1/XI6-5,5-B1 380V 14.8 81.16 5.5 142 Rp 2 1/2
Xiro SPI 6.17-10-A1/XI6-5,5-B1 380V 14.8 90.17 5.5 142 Rp 2 1/2
Xiro SPI 6.17-11-A1/XI6-7,5-B1 380V 14.8 99.19 7.5 142 Rp 2 1/2
Xiro SPI 6.17-12-A1/XI6-7,5-B1 380V 14.8 108.2 7.5 142 Rp 2 1/2
Xiro SPI 6.17-13-A1/XI6-7,5-B1 380V 14.8 117.2 7.5 142 Rp 2 1/2
Xiro SPI 6.17-14-A1/XI6-7,5-B1 380V 14.8 126.2 7.5 142 Rp 2 1/2
Xiro SPI 6.17-15-A1/XI6-9,3-B1 380V 14.8 135.3 9.3 142 Rp 2 1/2
Xiro SPI 6.17-16-A1/XI6-9,3-B1 380V 14.8 144.3 9.3 142 Rp 2 1/2
Xiro SPI 6.17-17-A1/XI6-9,3-B1 380V 14.8 153.3 9.3 142 Rp 2 1/2
Xiro SPI 6.17-18-A1/XI6-11-B1 380V 14.8 162.3 9.3 142 Rp 2 1/2
Xiro SPI 6.17-19-A1/XI6-11-B1 380V 14.8 171.3 11 142 Rp 2 1/2
Xiro SPI 6.17-20-A1/XI6-11-B1 380V 14.8 180.3 11 142 Rp 2 1/2
Xiro SPI 6.17-21-A1/XI6-13-B1 380V 14.8 189.4 13 142 Rp 2 1/2
Xiro SPI 6.17-22-A1/XI6-13-B1 380V 14.8 198.4 13 142 Rp 2 1/2
Xiro SPI 6.17-23-A1/XI6-13-B1 380V 14.8 207.4 13 142 Rp 2 1/2
Xiro SPI 6.17-24-A1/XI6-13-B1 380V 14.8 216.4 13 142 Rp 2 1/2
Xiro SPI 6.17-25-A1/XI6-15-B1 380V 14.8 225.4 15 142 Rp 2 1/2
Xiro SPI 6.17-26-A1/XI6-15-B1 380V 14.8 234.5 15 142 Rp 2 1/2
Xiro SPI 6.17-27-A1/XI6-15-B1 380V 14.8 243.5 15 142 Rp 2 1/2
Xiro SPI 6.17-28-A1/XI6-15-B1 380V 14.8 252.5 15 142 Rp 2 1/2
Xiro SPI 6.17-29-A1/XI6-18,5-B1 380V 14.8 261.5 18.5 142 Rp 2 1/2
Xiro SPI 6.17-30-A1/XI6-18,5-B1 380V 14.8 270.5 18.5 142 Rp 2 1/2
Xiro SPI 6.17-31-A1/XI6-18,5-B1 380V 14.8 279.5 18.5 142 Rp 2 1/2
Xiro SPI 6.17-32-A1/XI6-18,5-B1 380V 14.8 288.6 18.5 142 Rp 2 1/2
Xiro SPI 6.17-33-A1/XI6-18,5-B1 380V 14.8 297.6 18.5 142 Rp 2 1/2
Xiro SPI 6.17-34-A1/XI6-18,5-B1 380V 14.8 306.6 18.5 142 Rp 2 1/2
Xiro SPI 6.17-35-A1/XI6-22-B1 380V 14.8 315.6 18.5 142 Rp 2 1/2
Xiro SPI 6.17-59-A1/XI6-37-B1 380V 14.8 532 37 142 Rp 2 1/2
Xiro SPI 6.30-04-A1/XI6-4,0-B1 380V 25.9 33.98 4 142 Rp 3
Xiro SPI 6.30-05-A1/XI6-5,5-B1 380V 25.9 42.47 5.5 142 Rp 3
Xiro SPI 6.30-06-A1/XI6-5,5-B1 380V 25.9 50.96 5.5 142 Rp 3
Xiro SPI 6.30-07-A1/XI6-7,5-B1 380V 25.9 59.46 7.5 142 Rp 3
Xiro SPI 6.30-08-A1/XI6-7,5-B1 380V 25.9 67.96 7.5 142 Rp 3
Xiro SPI 6.30-09-A1/XI6-9,3-B1 380V 25.9 76.45 9.3 142 Rp 3
Xiro SPI 6.30-10-A1/XI6-9,3-B1 380V 25.9 84.94 9.3 142 Rp 3
Xiro SPI 6.30-11-A1/XI6-9,3-B1 380V 25.9 93.44 9.3 142 Rp 3
Xiro SPI 6.30-12-A1/XI6-11-B1 380V 25.9 101.9 11 142 Rp 3
Xiro SPI 6.30-13-A1/XI6-11-B1 380V 25.9 110.4 11 142 Rp 3
Xiro SPI 6.30-14-A1/XI6-13-B1 380V 25.9 118.9 13 142 Rp 3
Xiro SPI 6.30-15-A1/XI6-13-B1 380V 25.9 127.4 13 142 Rp 3
Xiro SPI 6.30-16-A1/XI6-15-B1 380V 25.9 135.9 15 142 Rp 3
Xiro SPI 6.30-17-A1/XI6-15-B1 380V 25.9 144.4 15 142 Rp 3
Xiro SPI 6.30-18-A1/XI6-18,5-B1 380V 25.9 152.9 18.5 142 Rp 3
Xiro SPI 6.30-19-A1/XI6-18,5-B1 380V 25.9 161.4 18.5 142 Rp 3
Xiro SPI 6.30-20-A1/XI6-18,5-B1 380V 25.9 169.9 18.5 142 Rp 3
Xiro SPI 6.30-21-A1/XI6-18,5-B1 380V 25.9 178.4 18.5 142 Rp 3
Xiro SPI 6.30-22-A1/XI6-22-B1 380V 25.9 186.9 22 142 Rp 3
Xiro SPI 6.30-23-A1/XI6-22-B1 380V 25.9 195.4 22 142 Rp 3
Xiro SPI 6.30-24-A1/XI6-22-B1 380V 25.9 203.9 22 142 Rp 3
Xiro SPI 6.30-25-A1/XI6-22-B1 380V 25.9 212.4 22 142 Rp 3
Xiro SPI 6.30-26-A1/XI6-22-B1 380V 25.9 220.9 22 142 Rp 3
Xiro SPI 6.30-27-A1/XI6-26,5-B1 380V 25.9 229.4 26.5 142 Rp 3
Xiro SPI 6.30-28-A1/XI6-26,5-B1 380V 25.9 237.8 26.5 142 Rp 3
Xiro SPI 6.30-29-A1/XI6-26,5-B1 380V 25.9 246.3 26.5 142 Rp 3
Xiro SPI 6.30-30-A1/XI6-26,5-B1 380V 25.9 254.8 26.5 142 Rp 3
Xiro SPI 6.30-31-A1/XI6-30-B1 380V 25.9 263.3 30 142 Rp 3
Xiro SPI 6.30-32-A1/XI6-30-B1 380V 25.9 271.8 30 142 Rp 3
Xiro SPI 6.30-33-A1/XI6-30-B1 380V 25.9 280.3 30 142 Rp 3
Xiro SPI 6.30-34-A1/XI6-30-B1 380V 25.9 288.8 30 142 Rp 3
Xiro SPI 6.30-35-A1/XI6-30-B1 380V 25.9 297.3 30 142 Rp 3
Xiro SPI 6.30-42-A1/XI6-37-B1 380V 25.9 356.8 37 142 Rp 3
Xiro SPI 6.30-49-A1/XI7-45-B1 380V 25.9 416.2 45 142 Rp 3
Xiro SPI 6.45-03-A1/XI6-5,5-B1 380V 45.6 26.06 5.5 142 Rp 4
Xiro SPI 6.45-04-A1/XI6-7,5-B1 380V 45.6 34.75 7.5 142 Rp 4
Xiro SPI 6.45-05-A1/XI6-7,5-B1 380V 45.6 43.43 7.5 142 Rp 4
Xiro SPI 6.45-06-A1/XI6-9,3-B1 380V 45.6 60.8 11 142 Rp 4
Xiro SPI 6.45-07-A1/XI6-11-B1 380V 45.6 60.8 11 142 Rp 4
Xiro SPI 6.45-08-A1/XI6-13-B1 380V 45.6 69.49 13 142 Rp 4
Xiro SPI 6.45-09-A1/XI6-15-B1 380V 45.6 78.18 15 142 Rp 4
Xiro SPI 6.45-10-A1/XI6-18,5-B1 380V 45.6 86.86 18.5 142 Rp 4
Xiro SPI 6.45-11-A1/XI6-18,5-B1 380V 45.6 95.55 18.5 142 Rp 4
Xiro SPI 6.45-12-A1/XI6-22-B1 380V 45.6 104.2 22 142 Rp 4
Xiro SPI 6.45-13-A1/XI6-22-B1 380V 45.6 112.9 22 142 Rp 4
Xiro SPI 6.45-14-A1/XI6-22-B1 380V 45.6 121.6 22 142 Rp 4
Xiro SPI 6.45-15-A1/XI6-26,5-B1 380V 45.6 130.3 26.5 142 Rp 4
Xiro SPI 6.45-16-A1/XI6-26,5-B1 380V 45.6 139 26.5 142 Rp 4
Xiro SPI 6.45-17-A1/XI6-30-B1 380V 45.6 147.7 30 142 Rp 4
Xiro SPI 6.45-18-A1/XI6-30-B1 380V 45.6 156.4 30 142 Rp 4
Xiro SPI 6.45-19-A1/XI6-37-B1 380V 45.6 165 37 142 Rp 4
Xiro SPI 6.45-20-A1/XI6-37-B1 380V 45.6 173.7 37 142 Rp 4
Xiro SPI 6.45-21-A1/XI6-37-B1 380V 45.6 182.4 37 142 Rp 4
Xiro SPI 6.45-22-A1/XI6-37-B1 380V 45.6 191.1 37 142 Rp 4
Xiro SPI 6.45-23-A1/XI6-37-B1 380V 45.6 199.8 37 142 Rp 4
Xiro SPI 6.45-24-A1/XI7-45-B1 380V 45.6 208.5 45 178 Rp 4
Xiro SPI 6.45-25-A1/XI7-45-B1 380V 45.6 217.2 45 178 Rp 4
Xiro SPI 6.45-26-A1/XI7-45-B1 380V 45.6 225.8 45 178 Rp 4
Xiro SPI 6.45-27-A1/XI7-45-B1 380V 45.6 234.5 45 178 Rp 4
Xiro SPI 6.45-28-A1/XI7-45-B1 380V 45.6 243.2 45 178 Rp 4
Xiro SPI 6.60-02-A1/XI6-4-B1 380V 60.3 16.67 4 142 Rp 4
Xiro SPI 6.60-03-A1/XI6-5,5-B1 380V 60.3 25.01 5.5 142 Rp 4
Xiro SPI 6.60-04-A1/XI6-7,5-B1 380V 60.3 33.35 7.5 142 Rp 4
Xiro SPI 6.60-05-A1/XI6-9,3-B1 380V 60.3 41.69 9.3 142 Rp 4
Xiro SPI 6.60-06-A1/XI6-11-B1 380V 60.3 50.02 11 142 Rp 4
Xiro SPI 6.60-07-A1/XI6-13-B1 380V 60.3 58.37 13 142 Rp 4
Xiro SPI 6.60-08-A1/XI6-15-B1 380V 60.3 66.7 15 142 Rp 4
Xiro SPI 6.60-09-A1/XI6-18,5-B1 380V 60.3 75.04 18.5 142 Rp 4
Xiro SPI 6.60-10-A1/XI6-18,5-B1 380V 60.3 83.38 18.5 142 Rp 4
Xiro SPI 6.60-11-A1/XI6-22-B1 380V 60.3 91.71 22 142 Rp 4
Xiro SPI 6.60-12-A1/XI6-22-B1 380V 60.3 100.1 22 142 Rp 4
Xiro SPI 6.60-13-A1/XI6-26,5-B1 380V 60.3 108.4 26.5 142 Rp 4
Xiro SPI 6.60-14-A1/XI6-26,5-B1 380V 60.3 116.7 26.5 142 Rp 4
Xiro SPI 6.60-15-A1/XI6-30-B1 380V 60.3 125.1 30 142 Rp 4
Xiro SPI 6.60-16-A1/XI6-30-B1 380V 60.3 133.4 30 142 Rp 4
Xiro SPI 6.60-17-A1/XI6-30-B1 380V 60.3 141.7 30 142 Rp 4
Xiro SPI 6.60-18-A1/XI6-37-B1 380V 60.3 150.1 37 142 Rp 4
Xiro SPI 6.60-19-A1/XI6-37-B1 380V 60.3 158.4 37 142 Rp 4
Xiro SPI 6.60-20-A1/XI6-37-B1 380V 60.3 166.8 37 142 Rp 4
Xiro SPI 6.60-21-A1/XI6-37-B1 380V 60.3 175.1 37 142 Rp 4
Xiro SPI 6.60-22-A1/XI7-45-B1 380V 60.3 183.4 45 178 Rp 4
Xiro SPI 6.60-23-A1/XI7-45-B1 380V 60.3 191.8 45 178 Rp 4
Xiro SPI 6.60-24-A1/XI7-45-B1 380V 60.3 200.1 45 178 Rp 4
Xiro SPI 6.60-25-A1/XI7-52-B1 380V 60.3 208.4 52 178 Rp 4
Xiro SPI 6.60-26-A1/XI7-52-B1 380V 60.3 216.8 52 178 Rp 4
Xiro SPI6.90-01-A1-4 380V 84 8.44     Rp 4
Xiro SPI6.90-01-A1/XI6-4-B1 380V 84 8.44 4 142 Rp 4
Xiro SPI6.90-02-A1-7,5 380V 84 16.87     Rp 4
Xiro SPI6.90-02-A1/XI6-7,5-B1 380V 84 16.87 7.5 142 Rp 4
Xiro SPI6.90-03-A1-11 380V 84 25.31     Rp 4
Xiro SPI6.90-03-A1/XI6-11-B1 380V 84 25.31 11 142 Rp 4
Xiro SPI6.90-04-A1-15 380V 84 33.75     Rp 4
Xiro SPI6.90-04-A1/XI6-15-B1 380V 84 33.75 15 142 Rp 4
Xiro SPI6.90-05-A1-18,5 380V 84 42.19     Rp 4
Xiro SPI6.90-05-A1/XI6-18,5-B1 380V 84 42.19 18.5 142 Rp 4
Xiro SPI6.90-06-A1-22 380V 84 50.62     Rp 4
Xiro SPI6.90-06-A1/XI6-22-B1 380V 84 50.62 22 142 Rp 4
Xiro SPI6.90-07-A1-30 380V 84 59.06     Rp 4
Xiro SPI6.90-07-A1/XI6-30-B1 380V 84 59.06 30 142 Rp 4
Xiro SPI6.90-08-A1-30 380V 83.4 67.8     Rp 4
Xiro SPI6.90-08-A1/XI6-30-B1 380V 83.4 67.8 30 142 Rp 4
Xiro SPI6.90-09-A1-37 380V 83.4 76.28     Rp 4
Xiro SPI6.90-09-A1/XI6-37-B1 380V 83.4 76.7 37 142 Rp 4
Xiro SPI6.90-10-A1-37 380V 83.4 84.75     Rp 4
Xiro SPI6.90-10-A1/XI6-37-B1 380V 83.4 84.75 37 142 Rp 4
Xiro SPI6.90-11-A1-45 380V 83.4 93.23     Rp 4
Xiro SPI6.90-11-A1/XI6-45-B1 380V 83.4 93.23 45 142 Rp 4
Xiro SPI6.90-12-A1-45 380V 83.4 101.7     Rp 4
Xiro SPI6.90-12-A1/XI6-45-B1 380V 83.4 101.7 45 142 Rp 4
Xiro SPI6.90-13-A1-45 380V 83.4 110.2     Rp 4
Xiro SPI6.90-13-A1/XI6-45-B1 380V 83.4 110.2 45 142 Rp 4
Xiro SPI 7.75-01-A1/XI6-4-B1 380V 74.7 13.21 4 142 Rp 5
Xiro SPI 7.75-02-A1/XI6-7,5-B1 380V 74.7 26.42 7.5 142 Rp 5
Xiro SPI 7.75-03-A1/XI6-11-B1 380V 74.7 39.63 11 142 Rp 5
Xiro SPI 7.75-04-A1/XI6-15-B1 380V 74.7 52.85 15 142 Rp 5
Xiro SPI 7.75-05-A1/XI6-18,5-B1 380V 74.7 66.06 18.5 142 Rp 5
Xiro SPI 7.75-06-A1/XI6-22-B1 380V 74.7 79.27 22 142 Rp 5
Xiro SPI 7.75-07-A1/XI6-26,5-B1 380V 74.7 92.48 26.5 142 Rp 5
Xiro SPI 7.75-08-A1/XI6-30-B1 380V 74.7 105.7 30 142 Rp 5
Xiro SPI 7.75-09-A1/XI6-37-B1 380V 74.7 118.9 37 142 Rp 5
Xiro SPI 7.75-10-A1/XI6-37-B1 380V 74.7 132.1 37 142 Rp 5
Xiro SPI 7.75-11-A1/XI7-45-B1 380V 74.7 145.3 45 178 Rp 5
Xiro SPI 7.75-12-A1/XI7-45-B1 380V 74.7 158.5 45 178 Rp 5
Xiro SPI 7.75-13-A1/XI7-52-B1 380V 74.7 171.8 52 178 Rp 5
Xiro SPI 7.75-14-A1/XI7-52-B1 380V 74.7 185 52 178 Rp 5
Xiro SPI 7.75-15-A1/XI7-55-B1 380V 74.7 198.2 55 178 Rp 5
Xiro SPI 7.75-16-A1/XI8-60-B1 380V 74.7 211.4 60 203 Rp 5
Xiro SPI 7.75-17-A1/XI8-67-B1 380V 74.7 224.6 67 203 Rp 5
Xiro SPI 7.75-18-A1/XI8-67-B1 380V 74.7 237.8 67 203 Rp 5
Xiro SPI 7.75-19-A1/XI8-67-B1 380V 74.7 251 67 203 Rp 5
Xiro SPI 7.75-20-A1/XI8-75-B1 380V 74.7 264.2 75 203 Rp 5
Xiro SPI 7.95-01-A1/XI6-5,5-B1 380V 88.6 16 5.5 142 Rp 5
Xiro SPI 7.95-02-A1/XI6-11-B1 380V 88.6 32 11 142 Rp 5
Xiro SPI 7.95-03-A1/XI6-15-B1 380V 88.6 48 15 142 Rp 5
Xiro SPI 7.95-04-A1/XI6-22-B1 380V 88.6 64.01 22 142 Rp 5
Xiro SPI 7.95-05-A1/XI6-30-B1 380V 88.6 80 30 142 Rp 5
Xiro SPI 7.95-06-A1/XI6-37-B1 380V 88.6 96 37 142 Rp 5
Xiro SPI 7.95-07-A1/XI6-37-B1 380V 88.6 112 37 142 Rp 5
Xiro SPI 7.95-08-A1/XI7-45-B1 380V 88.6 128 45 178 Rp 5
Xiro SPI 7.95-09-A1/XI7-45-B1 380V 88.6 144 45 178 Rp 5
Xiro SPI 7.95-10-A1/XI7-55-B1 380V 88.6 160 55 178 Rp 5
Xiro SPI 7.95-11-A1/XI8-60-B1 380V 88.6 176 60 203 Rp 5
Xiro SPI 7.95-12-A1/XI8-67-B1 380V 88.6 192 67 203 Rp 5
Xiro SPI 7.95-13-A1/XI8-75-B1 380V 88.6 208 75 203 Rp 5
Xiro SPI 7.95-14-A1/XI8-75-B1 380V 88.6 224 75 203 Rp 5
Xiro SPI 7.95-15-A1/XI8-81-B1 380V 88.6 240 81 203 Rp 5
Xiro SPI 7.95-16-A1/XI8-92-B1 380V 88.6 256 92 203 Rp 5
Xiro SPI 7.95-17-A1/XI8-92-B1 380V 88.6 272 92 203 Rp 5
Xiro SPI 7.95-18-A1/XC10-110-A1 380V 88.6 288 110 254 Rp 5
Xiro SPI 8.110-01-A1/XI6-7,5-B1 380V 104.8 18.93 7.5 142 Rp 6
Xiro SPI 8.110-02-A1/XI6-15-B1 380V 104.8 37.86 15 142 Rp 6
Xiro SPI 8.110-03-A1/XI6-22-B1 380V 104.8 56.79 22 142 Rp 6
Xiro SPI 8.110-04-A1/XI6-30-B1 380V 104.8 75.71 30 142 Rp 6
Xiro SPI 8.110-05-A1/XI6-37-B1 380V 104.8 94.65 37 142 Rp 6
Xiro SPI 8.110-06-A1/XI7-45-B1 380V 104.8 113.6 45 142 Rp 6
Xiro SPI 8.110-07-A1/XI7-52-B1 380V 104.8 132.5 52 178 Rp 6
Xiro SPI 8.110-08-A1/XI8-60-B1 380V 104.8 151.4 60 203 Rp 6
Xiro SPI 8.110-09-A1/XI8-67-B1 380V 104.8 170.4 67 203 Rp 6
Xiro SPI 8.110-10-A1/XI8-75-B1 380V 104.8 189.3 75 203 Rp 6
Xiro SPI 8.110-11-A1/XI8-81-B1 380V 104.8 208.2 81 203 Rp 6
Xiro SPI 8.110-12-A1/XI8-92-B1 380V 104.8 227.2 92 203 Rp 6
Xiro SPI 8.110-13-A1/XI8-92-B1 380V 104.8 246.1 92 203 Rp 6
Xiro SPI 8.110-14-A1/XC10-110-A1 380V 104.8 265 110 254 Rp 6
Xiro SPI 8.125-01-A1/XI6-11-B1 380V 128.4 22.72 11 142 Rp 6
Xiro SPI 8.125-01B-A1/XI6-9,3-B1 380V 128.4 18.63 9.3 142 Rp 6
Xiro SPI 8.125-02-A1/XI6-22-B1 380V 128.4 45.44 22 142 Rp 6
Xiro SPI 8.125-02B-A1/XI6-18,5-B1 380V 128.4 37.26 18.5 142 Rp 6
Xiro SPI 8.125-03-A1/XI6-37-B1 380V 128.4 68.16 37 142 Rp 6
Xiro SPI 8.125-03B-A1/XI6-30-B1 380V 128.4 55.89 30 142 Rp 6
Xiro SPI 8.125-04-A1/XI7-45-B1 380V 128.4 90.88 45 178 Rp 6
Xiro SPI 8.125-05-A1/XI7-55-B1 380V 128.4 113.6 55 178 Rp 6
Xiro SPI 8.125-05B-A1/XI7-52-B1 380V 128.4 101.3 52 178 Rp 6
Xiro SPI 8.125-06-A1/XI8-67-B1 380V 128.4 136.3 67 178 Rp 6
Xiro SPI 8.125-07-A1/XI8-75-B1 380V 128.4 159.1 75 203 Rp 6
Xiro SPI 8.125-08-A1/XI8-92-B1 380V 128.4 181.8 92 203 Rp 6
Xiro SPI 8.125-09-A1/XC10-110-A1 380V 128.4 204.5 110 254 Rp 6
Xiro SPI 8.125-10-A1/XC10-110-A1 380V 128.4 227.2 110 254 Rp 6
Xiro SPI 8.125-11-A1/XC10-129-A1 380V 128.4 249.9 129 254 Rp 6
Xiro SPI 8.125-12-A1/XC10-129-A1 380V 128.4 272.7 129 254 Rp 6
Xiro SPI 8.160-01-A1/XI6-9,3-B1 380V 156.8 15.36 9.3 142 Rp 6
Xiro SPI 8.160-01-A1/XI6-11-B1 380V 156.8 19.2 11 142 Rp 6
Xiro SPI 8.160-02-A1/XI6-18,5-B1 380V 156.8 30.73 18.5 142 Rp 6
Xiro SPI 8.160-02-A1/XI6-22-B1 380V 156.8 38.41 22 142 Rp 6
Xiro SPI 8.160-03-A1/XI6-30-B1 380V 156.8 49.93 30 142 Rp 6
Xiro SPI 8.160-03-A1/XI6-37-B1 380V 156.8 57.61 37 142 Rp 6
Xiro SPI 8.160-04-A1/XI7-45-B1 380V 156.8 76.81 45 178 Rp 6
Xiro SPI 8.160-05-A1/XI7-55-B1 380V 156.8 96.01 55 178 Rp 6
Xiro SPI 8.160-06-A1/XI8-60-B1 380V 156.8 103.7 60 203 Rp 6
Xiro SPI 8.160-06-A1/XI8-67-B1 380V 156.8 115.2 67 203 Rp 6
Xiro SPI 8.160-07-A1/XI8-75-B1 380V 156.8 122.9 75 203 Rp 6
Xiro SPI 8.160-07-A1/XI8-81-B1 380V 156.8 134.4 81 203 Rp 6
Xiro SPI 8.160-08-A1/XI8-92-B1 380V 156.8 153.6 92 203 Rp 6
Xiro SPI 8.160-09-A1/XC10-110-A1 380V 156.8 172.8 110 254 Rp 6
Xiro SPI 8.160-10-A1/XC10-110-A1 380V 156.8 192 110 254 Rp 6
Xiro SPI 8.160-11-A1/XC10-129-A1 380V 156.8 211.2 129 254 Rp 6
Xiro SPI 8.160-12-A1/XC10-147-A1 380V 156.8 230.4 147 254 Rp 6
Xiro SPI 8.160-13-A1/XC10-147-A1 380V 156.8 249.6 147 154 Rp 6
Xiro SPI 10.210-01-A1/XI6-18,5-B1 380V 229.2 22.8 18.5 142 Rp 6
Xiro SPI 10.210-02-A1/XI6-37-B1 380V 229.2 45.59 37 142 Rp 6
Xiro SPI 10.210-03-A1/XI8-60-B1 380V 229.2 68.39 60 203 Rp 6
Xiro SPI 10.210-04-A1/XI8-75-B1 380V 229.2 91.19 75 203 Rp 6
Xiro SPI 10.210-05-A1/XI8-92-B1 380V 229.2 114 92 203 Rp 6
Xiro SPI 10.210-06-A1/XC10-110-A1 380V 229.2 136.79 110 254 Rp 6
Xiro SPI 10.210-07-A1/XC10-129-A1 380V 229.2 159.6 129 254 Rp 6
Xiro SPI 10.210-08-A1/XC10-147-A1 380V 229.2 182.4 147 254 Rp 6
Xiro SPI 10.210-09-A1/XC10-166-A1 380V 229.2 205.2 166 254 Rp 6
Xiro SPI 10.210-1B-A1/XI6-15-B1 380V 229.2 16.98 15 142 Rp 6
Xiro SPI 10.210-2B-A1/XI6-30-B1 380V 229.2 33.96 30 142 Rp 6
Xiro SPI 10.210-3B-A1/XI7-55-B1 380V 229.2 62.58 55 178 Rp 6
Xiro SPI 10.210-3C-A1/XI7-45-B1 380V 229.2 50.95 45 178 Rp 6
Xiro SPI 10.210-4B-A1/XI8-67-B1 380V 229.2 79.56 67 203 Rp 6
Xiro SPI 10.210-10-A1/XC10-185-A1 380V 229.2 228 185 254 Rp 6

Size

Video Introduction

Message Inquiry

*
*
*
*
*
Submit
