Features/Product Advantages

Heavy-duty models made of cast iron
Wide performance range, ensuring universal applicability
Equipped with a non-return valve; easy to install
Uses a rewindable motor; easy to maintain and repair

Construction

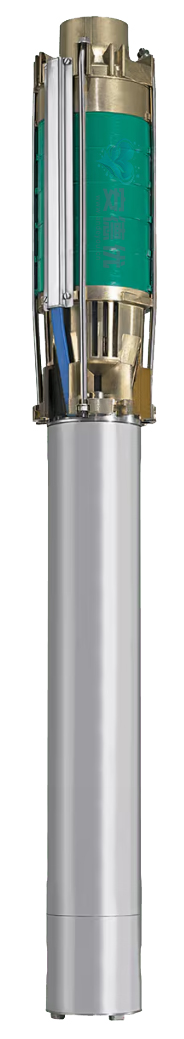

Multistage submersible pump made of grey cast iron; suitable for vertical or horizontal installation

Applications

Water supply from boreholes and water towers/reservoirs
Sprinkling and irrigation
Water level lowering
Pumping of water free from long fibers and abrasive components

Equipment/Functions

Multistage hydraulic section with radial or mixed-flow impellers
Integrated non-return valve
NEMA coupling for 6" and 8" hydraulic sections
Rewindable three-phase AC motor

Model Code

Technical Data

Mains connection: 3~400 V, 50 Hz
Operation mode (submerged): S1
Fluid temperature: 3 – 30 °C
Minimum flow velocity at motor: 0.2 m/s or 0.5 m/s (depending on power)
Max. sand content: 50 g/m³
Max. number of starts: 10 – 20/h (depending on power)
Max. submersion depth: 200 m m
Protection class: IP68
Pressure connection: NPT 3 to NPT 6

Materials

Hydraulic casing: EN-GJL-200
Impeller: ASTM B145 (bronze)
Hydraulic shaft: Stainless steel ASTM A582 (AISI 303)
Motor housing: Stainless steel AISI 304 (1.4301), with end components made of EN-GJL-200
Motor shaft: Stainless steel AISI 304 (1.4301)

Type

Submersible pump suitable for vertical or horizontal installation.

Hydraulics

Multistage submersible pump featuring NEMA (6" and 8") or standard (10") connections and radial or mixed-flow impellers; sectional construction. Integrated non-return valve. All parts in contact with the medium are made of corrosion-resistant materials.

Motor

Rewindable three-phase AC motor with PE2/PA insulated windings and water-glycol fill; suitable for direct-on-line starting. Hydraulic connection via NEMA (6" and 8") or standard (10") interface. Motor shaft sealed with a carbon/ceramic mechanical seal. Self-lubricating motor bearings. Thrust bearing equipped with tilting pads to absorb high axial thrust. Counter-thrust bearing absorbs negative axial thrust.

Cooling

Motor cooled by the pumped fluid. Motor must remain submerged during operation. Limits for maximum fluid temperature and minimum flow velocity must be observed. Vertical installation possible with or without cooling shroud. Horizontal installation requires the use of a cooling shroud.

Scope of delivery

Hydraulics and motor ready for installation
4.3 m connection cable
Installation and operating instructions

Options

Winding temperature monitoring via Pt100 sensor
Pressure shroud installation
Star-delta starting
