Features/Product Advantages

Corrosion-resistant stainless steel ensures a long service life; V4A grade available as an option
Individually configurable motors and materials ensure reliable operation in any application
Drinking water models feature ACS certification
High flexibility through a wide range of models (4, 6, 8, and 10 inches)
Flow rate range: 1 to 250 m³/h

Construction

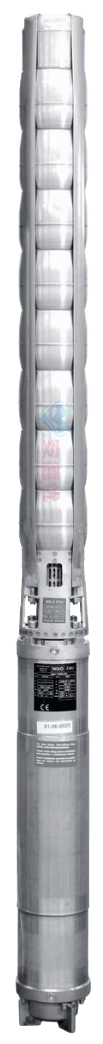

Multistage 8" submersible pump (tie-rod design) suitable for vertical or horizontal installation

Applications

Pumping of drinking water (ACS and RI.SE certified) and industrial water from wells and reservoirs with a sand content of less than 50 g/m³, for the following uses:

Water supply
Pressure boosting
Groundwater drainage and lowering

Equipment/Functions

Integrated non-return valve
NEMA pressure connection

Model Code

Technical Data

Mains connection: 3~400 V, 50 Hz
Submerged operating mode: S1
Fluid temperature: 3 – 20°C or 3 – 30°C (depending on motor)
Minimum motor flow velocity: 0.1 – 0.5 m/s (depending on motor)
Max. sand content: 50 g/m³
Max. starts per hour: 10/h or 20/h (depending on motor)
Max. submersion depth: 100 m or 350 m (depending on motor)
Protection class: IP68
Pressure connection: Rp 5

Materials

Hydraulic housing: 1.4301 (AISI 304)
Impeller: 1.4301 (AISI 304)
Hydraulic shaft: 1.4057 (AISI 431)
Motor housing: EN-GJL-250 (ASTM A48 Class 35/40B) and 1.4301 (AISI 304)
Motor shaft: 1.4021 (AISI 420), 1.4301 (AISI 304), or 1.4305 (AISI 303)

Type

Submersible pump suitable for vertical or horizontal installation.

Hydraulics

Multistage submersible pump featuring a strap-design construction, semi-axial impellers, a built-in check valve, and a standard connection:

6" connection: NEMA standard
8" connection: NEMA connection

Discharge outlet with threaded flange and internal thread. All parts in contact with the pumped medium are made of corrosion-resistant materials.

Motor

Three-phase AC motor suitable for direct-on-line or star-delta starting:

Encapsulated motor with resin-impregnated windings and water-glycol fill.
Rewindable motor with PVC-insulated windings and water-glycol fill.

Motor bearings are self-lubricating.

Cooling

The motor is cooled by the pumped fluid. The pump must operate fully submerged.
Vertical installation is possible with or without a cooling shroud.
Horizontal installation requires the use of a cooling shroud. As-delivered condition
Hydraulic unit + motor (plug-and-play)
Drinking water-certified connecting cable (4 m, 8 m, or 10 m)
Installation and operating instructions

Options

Hydraulic unit made of stainless steel 1.4401
Motor material: stainless steel 1.4401 or 1.4571
60 Hz version
Star-delta starting
Rewindable motor
Rewindable motor with drinking water filling
Pump configured for special specifications

Accessories

Cooling shroud
Pressure shroud
Diaphragm pressure vessel
Gate valve
Float switch
Pressure switch
Electrodes
Switchgear
Alarm device
Cast-resin kit
Connecting cable
