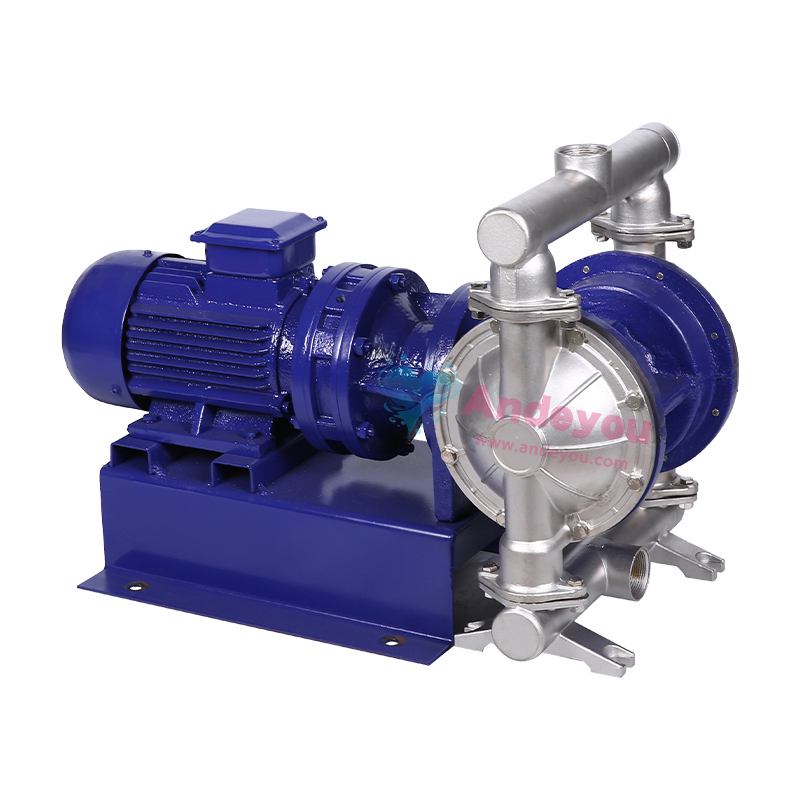

The DBY stainless steel electric diaphragm pump is a high-efficiency, versatile industrial fluid transfer device featuring the following notable characteristics:

**Exceptional Self-Priming Capability**

Starts without the need for priming water; self-priming lift reaches 3–7 meters.

Selected second-generation models offer improved self-priming capabilities (up to 5 meters) and greater operational tolerance.

**Excellent Solids-Handling Performance**

Easily handles high-viscosity media, including slurries and fluids containing particles up to 10 mm in diameter.

Superior solids-handling performance compared to traditional centrifugal and screw pumps.

**Leak-Free Design**

Utilizes diaphragm isolation technology to completely separate the pumped medium from the drive components.

Seal-less design eliminates leakage risks, making it ideal for transporting hazardous chemicals.

**Diverse Material Options**

Wetted parts (flow-path components) are constructed from high-quality stainless steel.

Optional materials—such as cast iron, rubber lining, aluminum alloy, and fluoroplastic lining—are available to meet specific operating requirements.

Diaphragm materials include Neoprene, Viton (FKM), Nitrile (NBR), PTFE, and F46 (Teflon).

**Compact and Efficient Structure**

Features a planetary cycloidal drive mechanism, reducing the unit size by 50% compared to similar products.

Second-generation models are lighter in weight, with some models offering more energy-efficient power configurations.

**Flexible Motor Configuration**

Available with standard, explosion-proof, gear-reduction, and electromagnetic variable-speed motors.

Adapts to various operating environments and flow rate adjustment needs.

**Long Service Life**

Advanced diaphragm materials and manufacturing processes significantly extend service life.

Capable of dry running, minimizing equipment damage caused by operational errors.

**Broad Applicability**

Suitable for industries such as chemicals, petrochemicals, pharmaceuticals, food processing, ceramics, and metallurgy.

Capable of handling hazardous media, including strong acids, strong alkalis, highly toxic substances, and flammable or explosive fluids.

Wide operating temperature range; specific models can handle high-temperature media.
