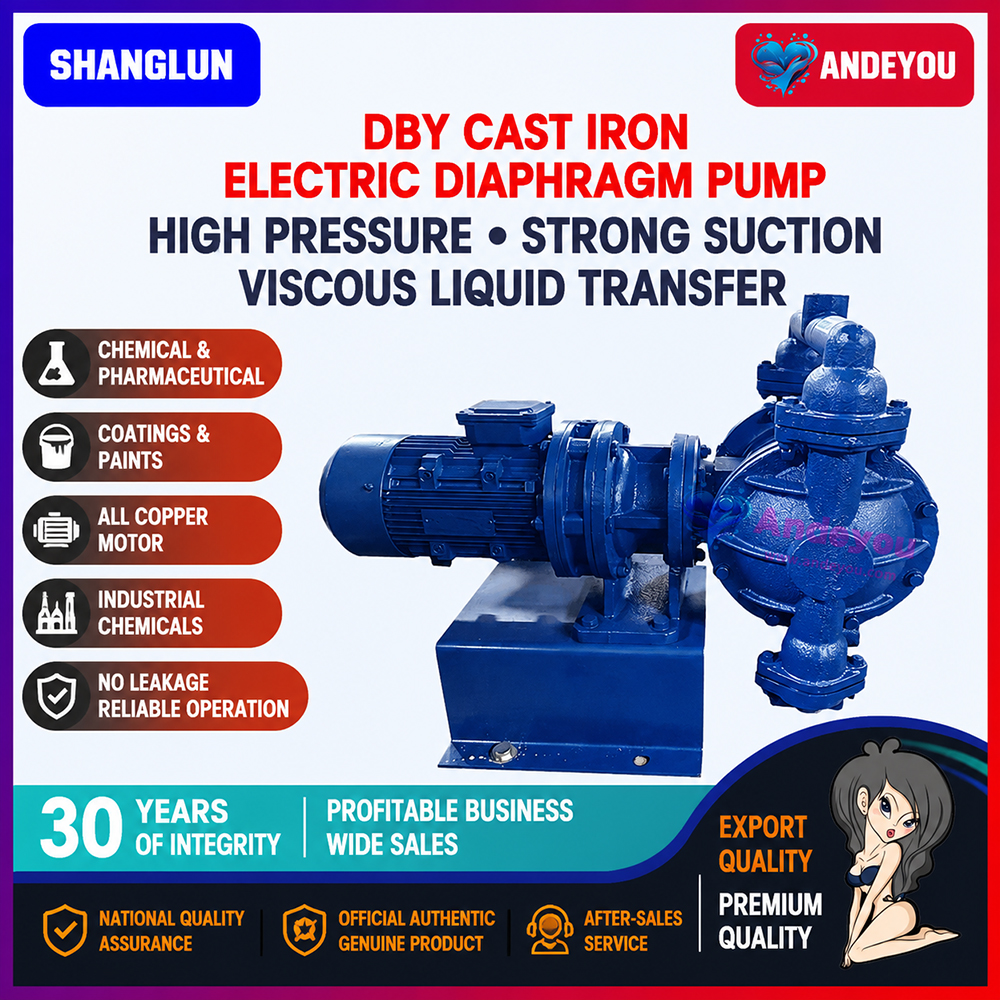

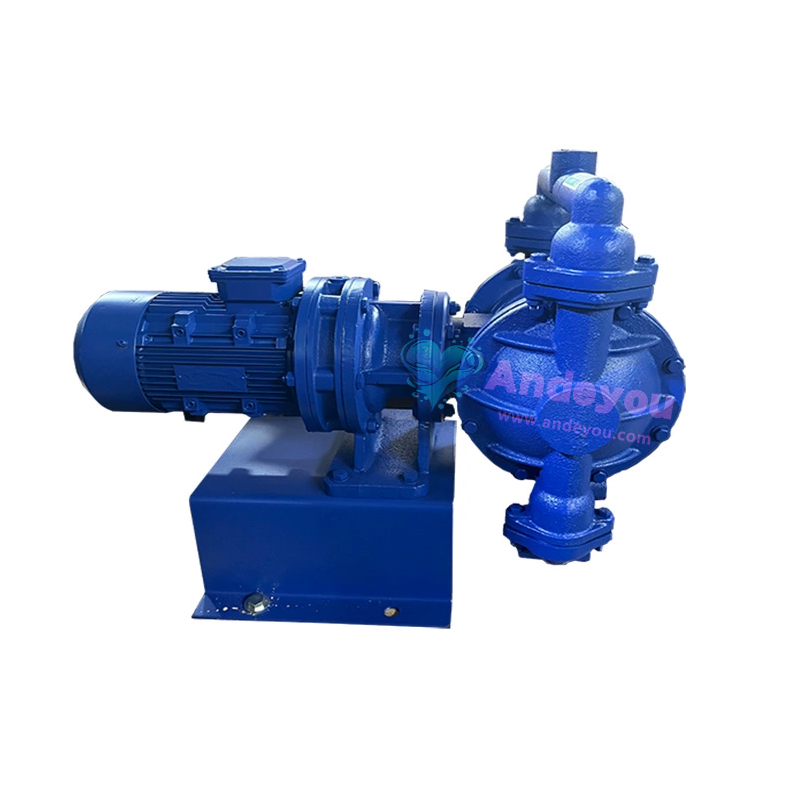

I. Product Overview
The DBY cast iron electric diaphragm pump is an industrial fluid transfer device constructed from high-strength cast iron, characterized by a robust structure, wear resistance, and high-pressure capability. Driven by an electric motor and utilizing a diaphragm design, it effectively handles media containing particles, high-viscosity fluids, or corrosive substances, making it widely applicable in industries such as chemicals, mining, wastewater treatment, petroleum, and metallurgy.
II. Key Performance Features
High-strength cast iron construction; robust and durable
Pump body made of premium cast iron, offering excellent mechanical strength and impact resistance
Suitable for harsh operating conditions, such as high-wear environments in mining and metallurgy
Corrosion resistance superior to standard cast iron; suitable for handling weak acids, weak alkalis, and saline media

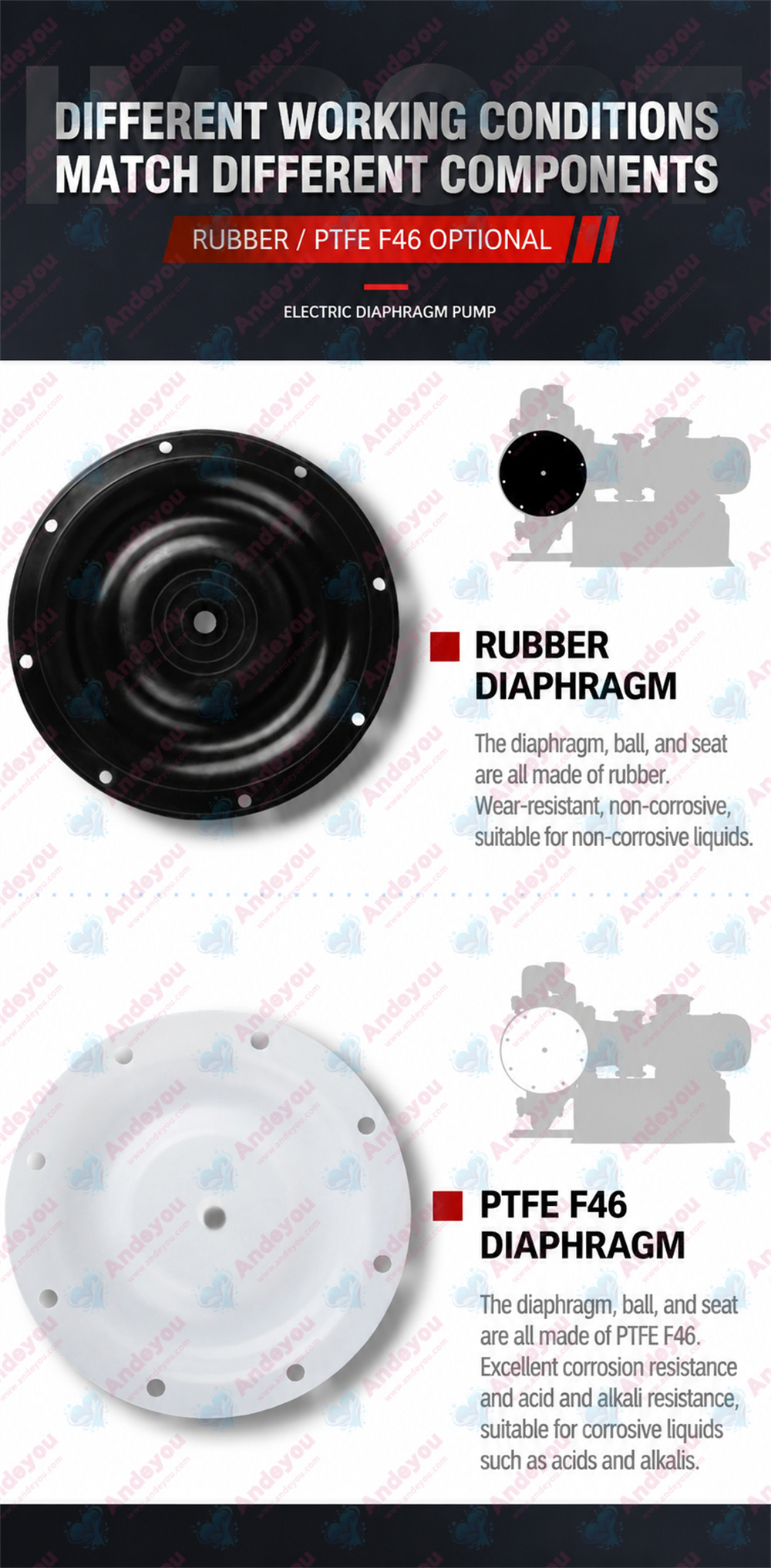

Diaphragm design; leak-free, safe, and reliable
Utilizes an elastic diaphragm structure for a complete seal, preventing media leakage
Ideally suited for transporting toxic, flammable, explosive, or highly polluting media
Complies with environmental regulations, minimizing the risk of environmental pollution
Strong self-priming capability; adaptable to complex operating conditions
Self-priming lift of 5–7 meters; rapid startup without the need for priming the pump
Capable of handling liquids containing solid particles (up to 10mm in diameter), such as sludge and mineral slurries
Good dry-running performance; short periods of idling will not damage the pump body
High efficiency, energy savings, and stable operation
Optimized flow path design reduces energy loss, increasing efficiency by over 20%
Low noise and low vibration; suitable for continuous operation
Optional variable frequency control allows for precise flow rate adjustment
III. Structural Features and Technical Innovations
Modular design; easy maintenance

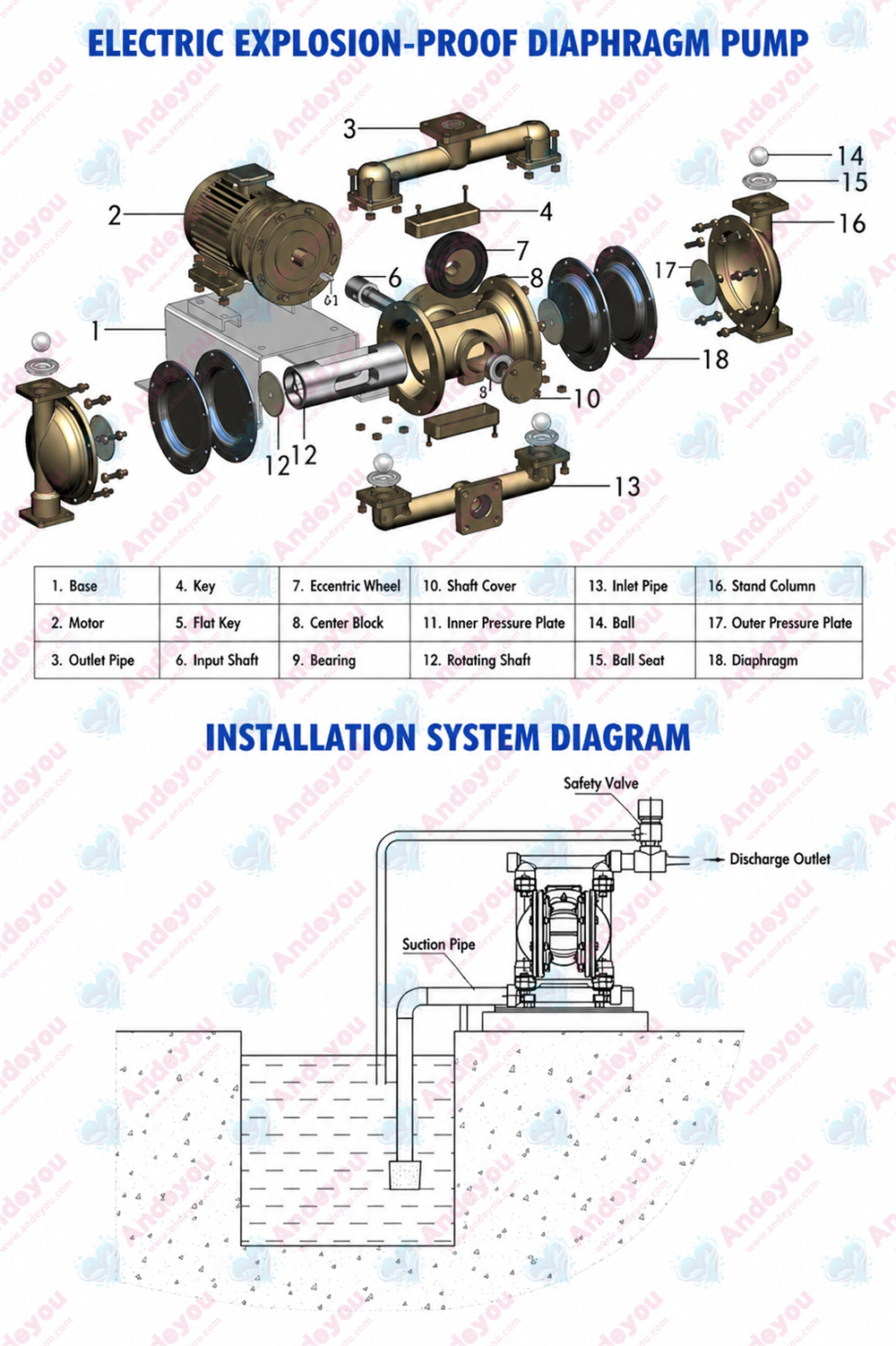

Key components feature a quick-release structure, allowing for the replacement of wear parts (such as diaphragms and valve balls) without specialized tools
Low maintenance costs and reduced downtime lead to higher production efficiency
Wear-resistant and high-pressure design
Valve seats and valve balls made of wear-resistant alloys or... Constructed from engineering plastics for extended service life
Maximum operating pressure of up to 0.8 MPa, suitable for high-pressure transfer requirements
Multiple sealing options available
Choice of mechanical seals or gland packing based on operating conditions to accommodate various media
IV. Typical Application Areas
Chemical Industry
Transfer of acids, alkalis, organic solvents, and corrosive chemicals
Circulation, metering, and dosing during chemical production processes
Mining and Metallurgy
Transport of slurry, tailings, and mud
Media circulation during mineral processing and smelting
Sewage Treatment and Environmental Engineering
Transport of sludge, wastewater, and flocculants
Processes such as acid-base neutralization and chemical dosing
Petroleum and Energy
Transport of oil-water mixtures and drilling fluids
Media transfer in refineries and chemical plants
Food and Pharmaceuticals (Food-grade configuration available)
Suitable for high-viscosity liquids such as food-grade lubricants and syrups
Raw material transfer in the pharmaceutical industry
V. Maintenance and Service Advantages
Simple maintenance, reliable operation
Routine checks limited to wear parts like diaphragms and valve balls; no complex maintenance required
Low failure rate, minimizing downtime losses
Long-life design, economical and durable
Key components made from wear-resistant and corrosion-resistant materials; normal service life of 5–8 years
Stable overall structure, reducing the frequency of replacements

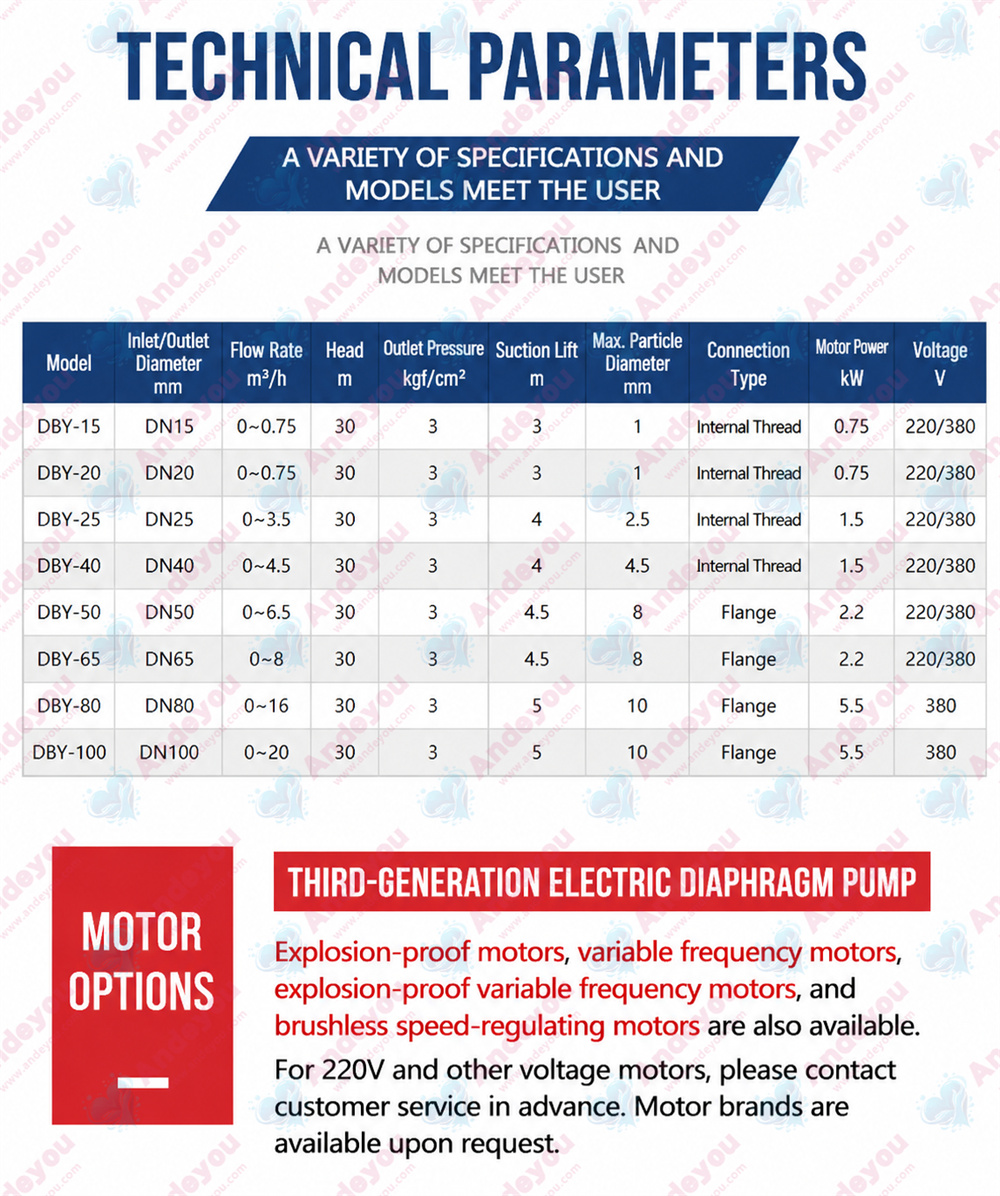

Specific parameters may vary by model; it is recommended to select the appropriate model based on actual operating conditions. Customized solutions are available for special requirements (e.g., food-grade, explosion-proof).
With its rugged cast-iron construction, leak-free diaphragm design, and energy-efficient operation, the DBY cast-iron electric diaphragm pump is an ideal choice for industrial fluid transfer. Whether in the chemical, mining, sewage treatment, or petroleum industries, this pump delivers stable and reliable transfer solutions, helping users boost production efficiency and reduce maintenance costs.
