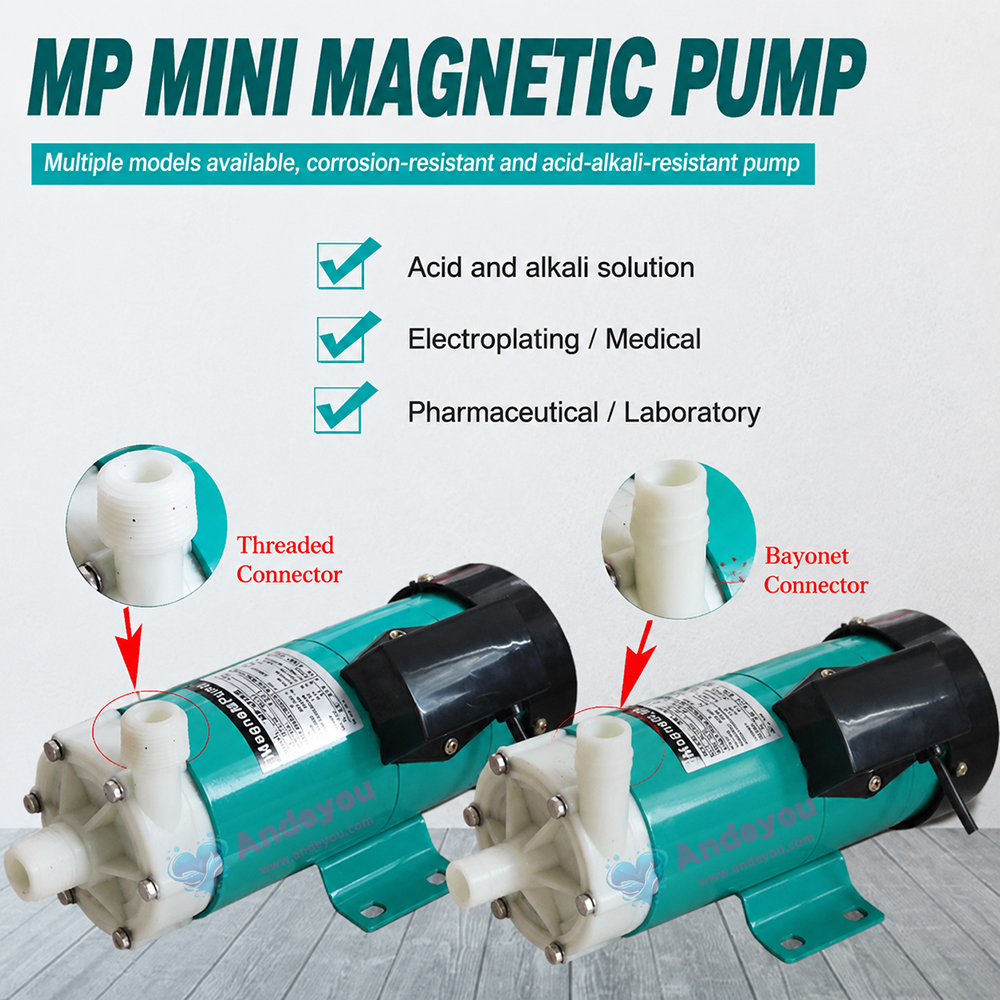

I. Product Overview

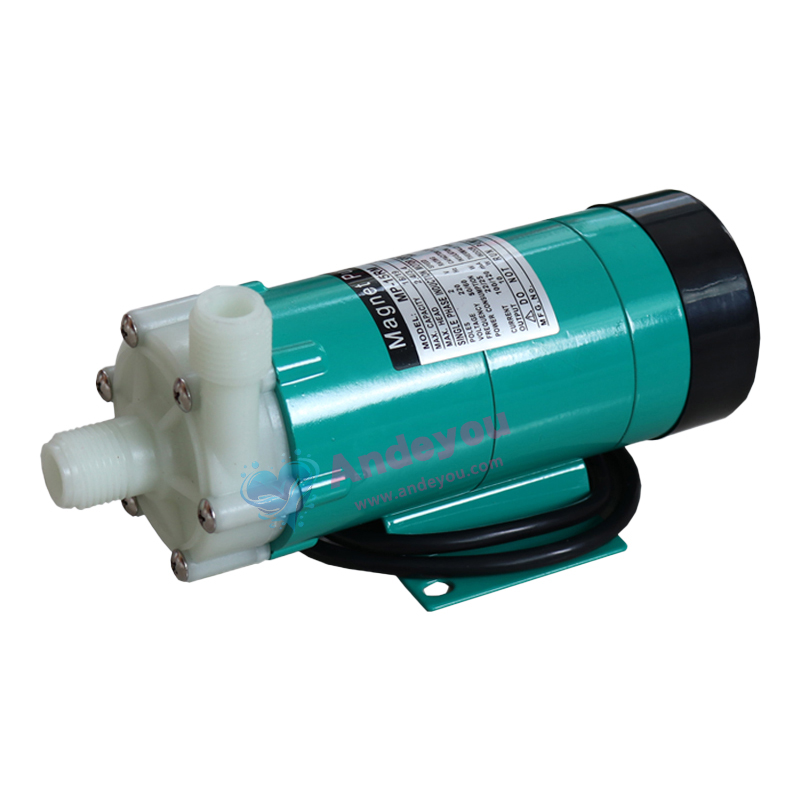

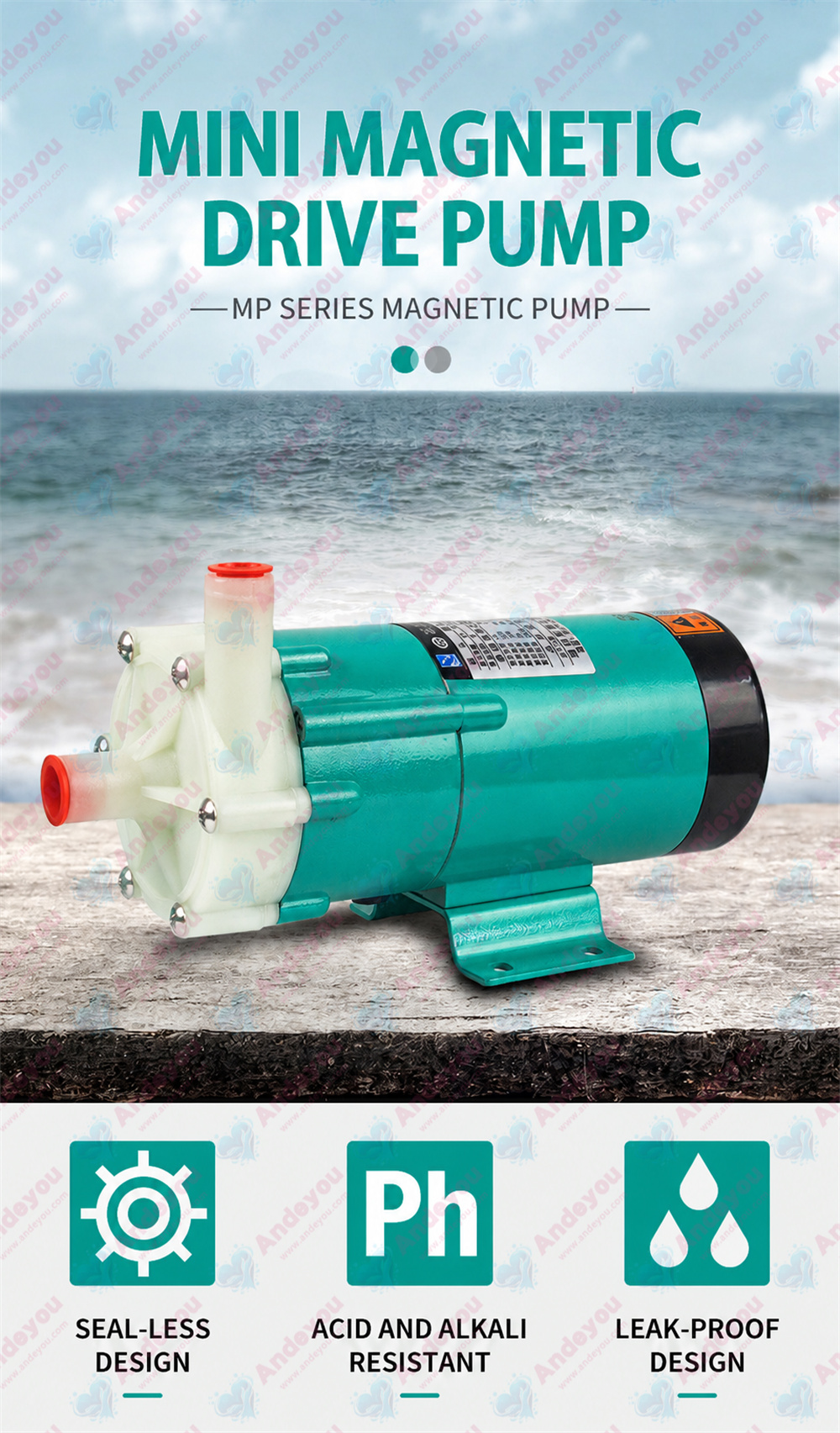

The Jiaxing MP miniature magnetic drive pump is a compact fluid transfer device utilizing advanced magnetic drive technology, specifically designed to meet the precision fluid transfer requirements of sectors such as laboratories, medical facilities, and the chemical industry. Featuring a seal-less design, it completely eliminates the leakage issues associated with traditional pumps using mechanical seals, making it particularly suitable for handling corrosive, high-purity, or valuable media. Its compact form factor and outstanding performance make it an ideal choice for precision fluid control applications.
II. Key Performance Features
(1) Innovative Magnetic Drive Technology
● Utilizes high-performance permanent magnet materials for completely non-contact power transmission
● Isolation shell for inner and outer magnets made from special materials to minimize eddy current losses
● Transmission efficiency exceeds 85%, offering significant energy savings
● Eliminates shaft seal leakage risks, achieving 100% leak-free operation
(2) Precision Fluid Control Capabilities
● Flow rate range of 0.1–1380 L/min; discharge head up to 18 meters
● Precision-machined impeller ensures stable flow with minimal pulsation
● Flow rate controllable within a ±2% margin of error
● Ideally suited for micro-dosing and metering applications

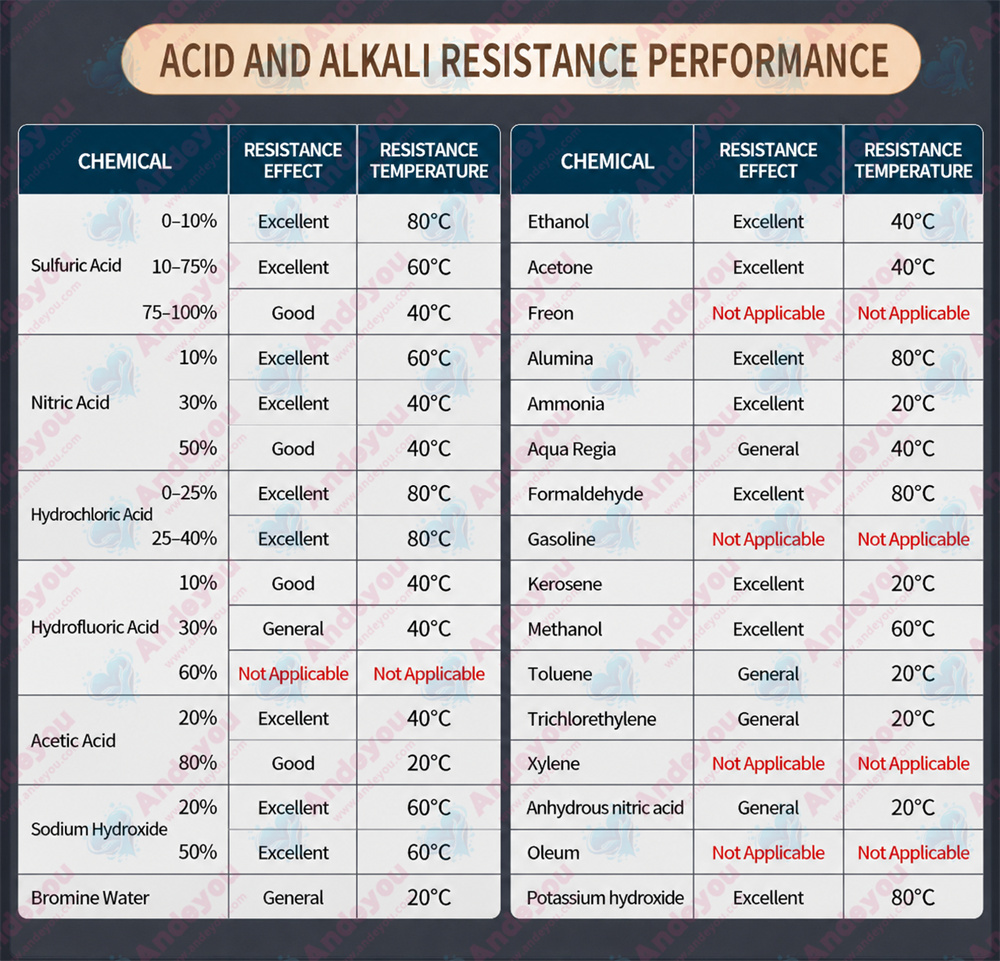

(3) Superior Corrosion Resistance
● Wetted parts available in various materials, including PP, PVDF, and stainless steel
● Resistant to most corrosive media, such as acids, alkalis, and organic solvents
● Special coating treatments further enhance corrosion resistance
● GMP compliant; suitable for pharmaceutical and food industries
(4) Ultra-Quiet, Low-Vibration Design
● Low operating noise, suitable for laboratory environments
● Precision dynamic balancing ensures minimal vibration
● Smooth operation does not interfere with precision instruments
● Low temperature rise during prolonged operation ensures high reliability

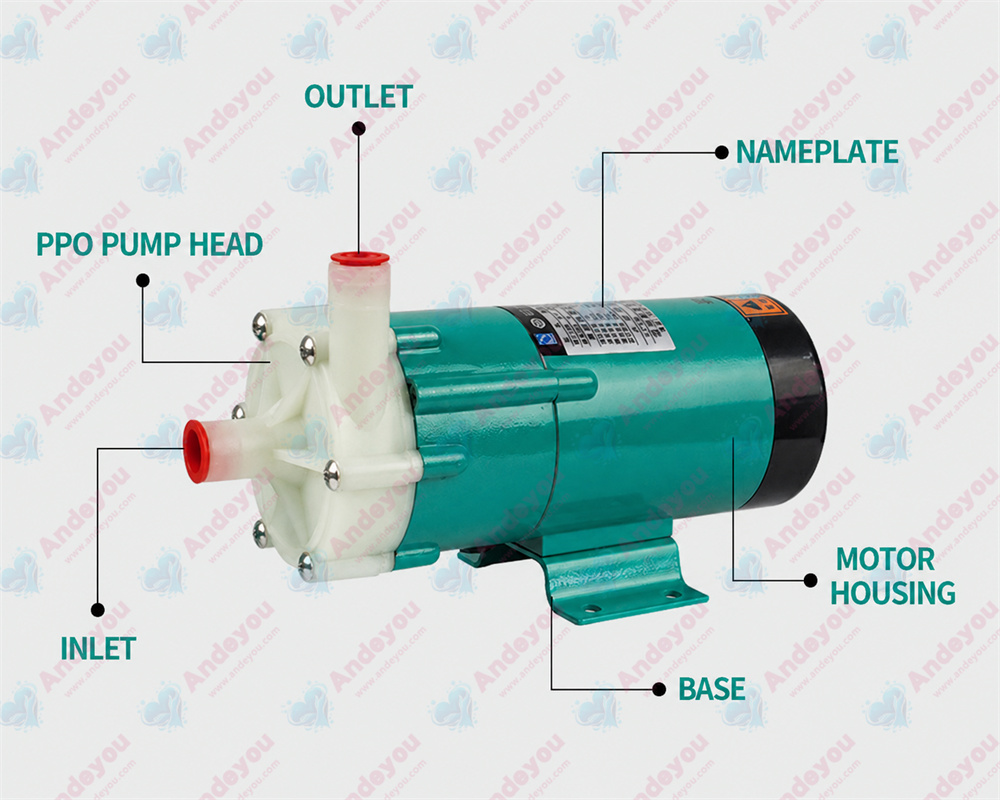

III. Structural Features and Technical Innovations
(1) Compact, Modular Design
● Compact unit size and lightweight (smallest model weighs only 0.8 kg)
● Quick-release structure facilitates easy maintenance

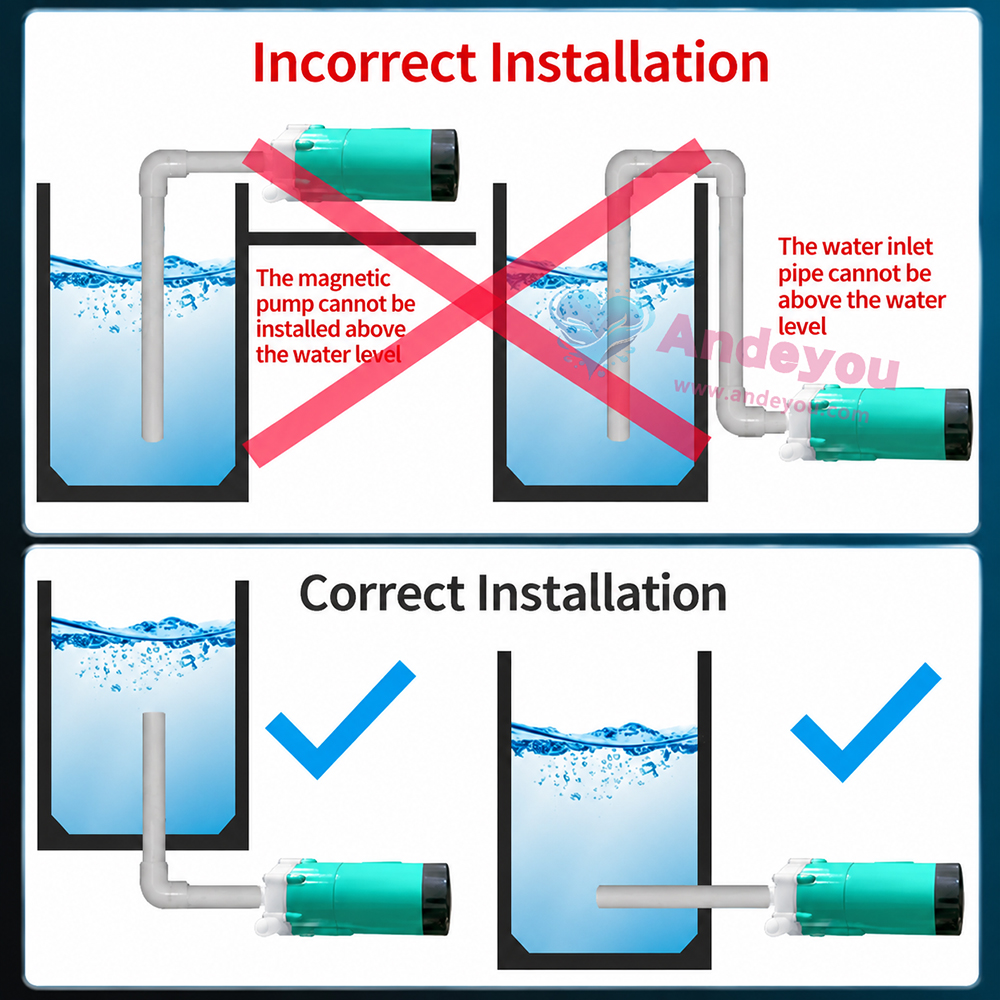

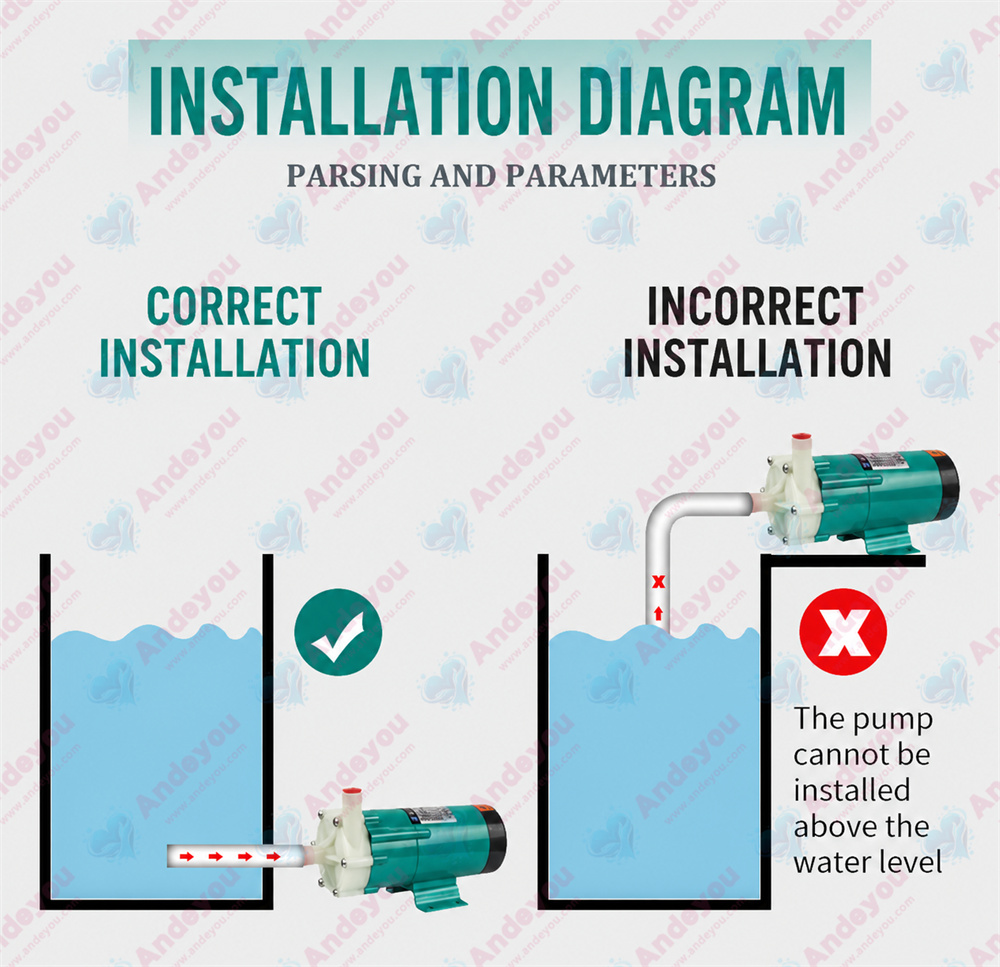

● Multi-angle installation capability adapts to various spatial constraints

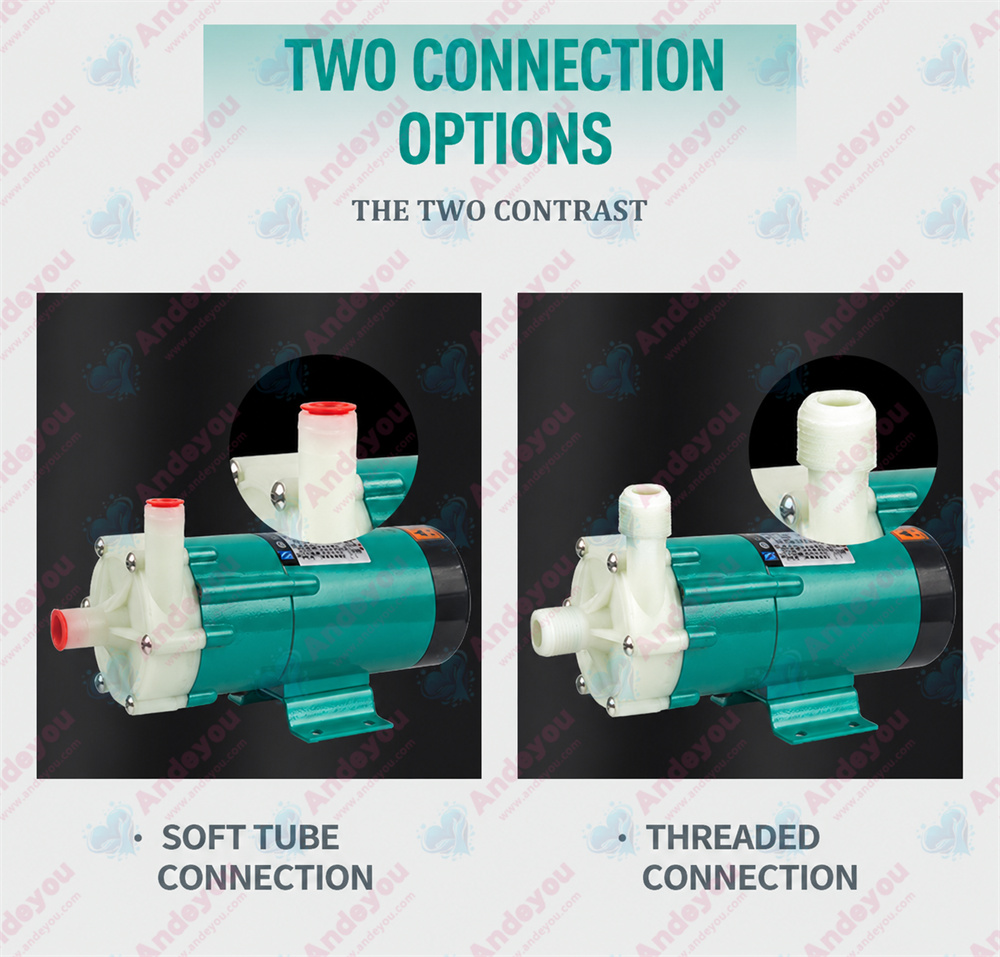

● Standardized interfaces for easy system integration
(2) Intelligent Control Functions
● Optional variable-speed controller enables stepless speed adjustment
● Supports RS485 communication for remote monitoring
● Includes dry-run protection
● Programmable control enables automation of complex processes
(3) Designs for Specialized Applications
● High-purity versions suitable for the semiconductor industry
● Explosion-proof models available for hazardous environments
● High-temperature models withstand media temperatures up to 80°C
● Customization services available to meet specific requirements

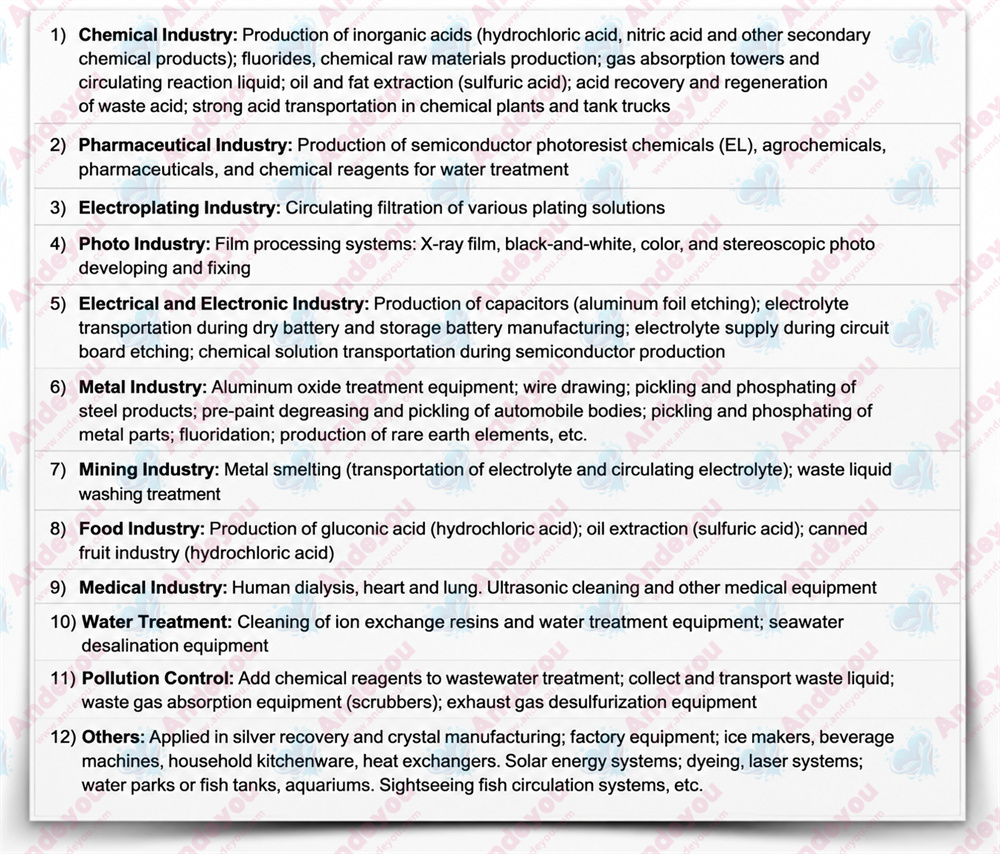

IV. Typical Application Areas
(1) Laboratory Applications
● Fluid transfer for analytical instruments
● Precision metering of laboratory reagents
● Circulating cooling systems
● Fore-line pumps for vacuum systems
(2) Medical & Pharmaceutical
● Fluid transfer in medical equipment
● Media transfer in pharmaceutical processes
● Biopharmaceutical production
● Disinfectant delivery systems
(3) Chemical & Electronics
● Micro-scale process fluid control
● Electroplating solution circulation and treatment
● Semiconductor cleaning systems
● Chemical delivery in the photovoltaic industry
(4) Environmental Protection & Water Treatment
● Small-scale water treatment units
● Environmental monitoring and sampling
● Laboratory wastewater treatment
● Ultrapure water circulation systems
V. Maintenance and Operational Advantages
(1) Extra-long Service Life
● No mechanical wear parts; long service life
● Magnet assembly features special protective treatment to prevent demagnetization
● Service life warning function for critical components
(2) Minimalist Maintenance Design
● No lubrication or routine maintenance required
● Quick and easy replacement of wear parts
● Online maintenance without interrupting system operation
● Maintenance interval of over one year
(3) Economic Advantages
● Energy consumption is only 70% of comparable products
● Maintenance costs reduced by 60%
● Significant advantage in total cost of ownership

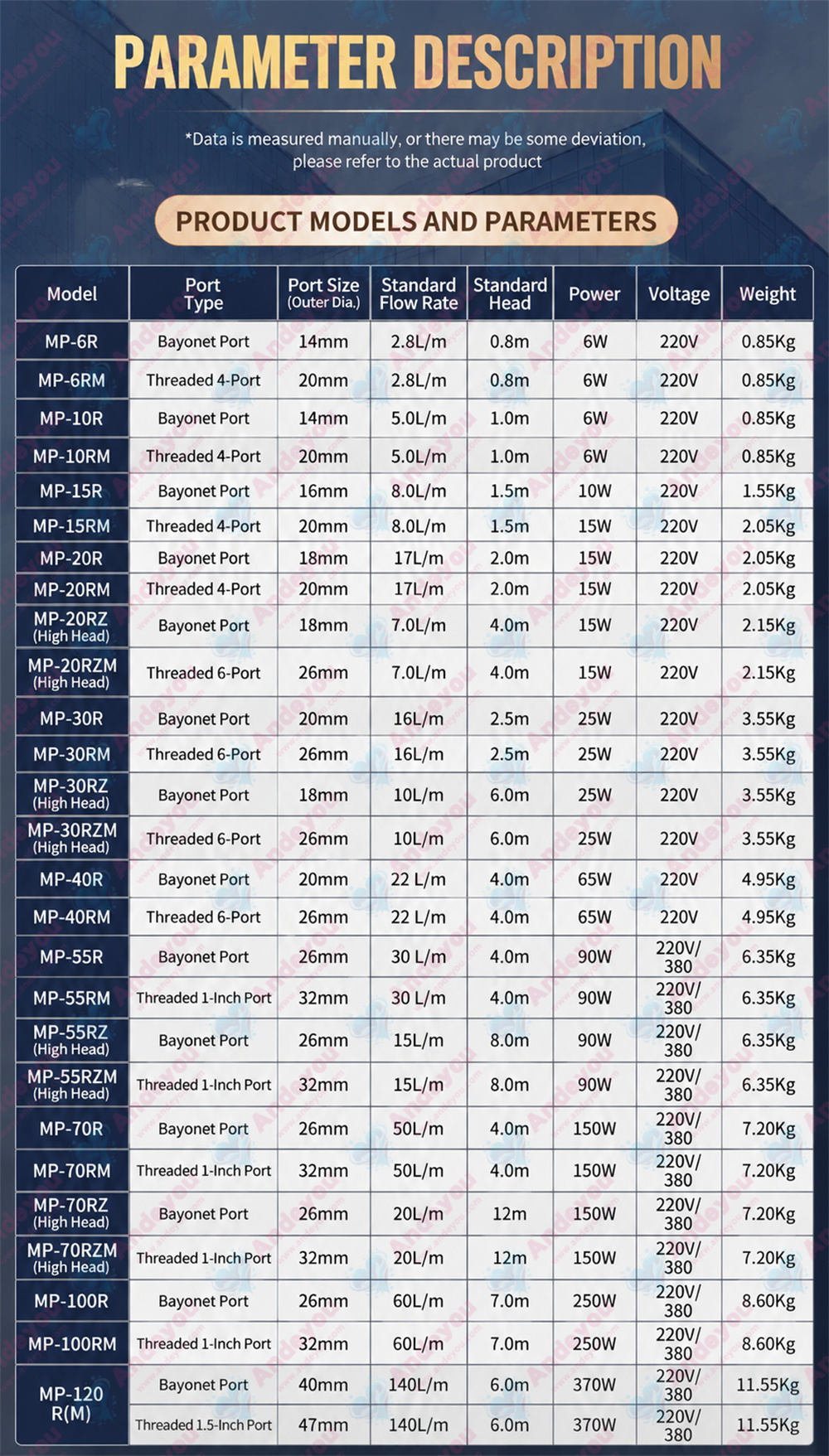

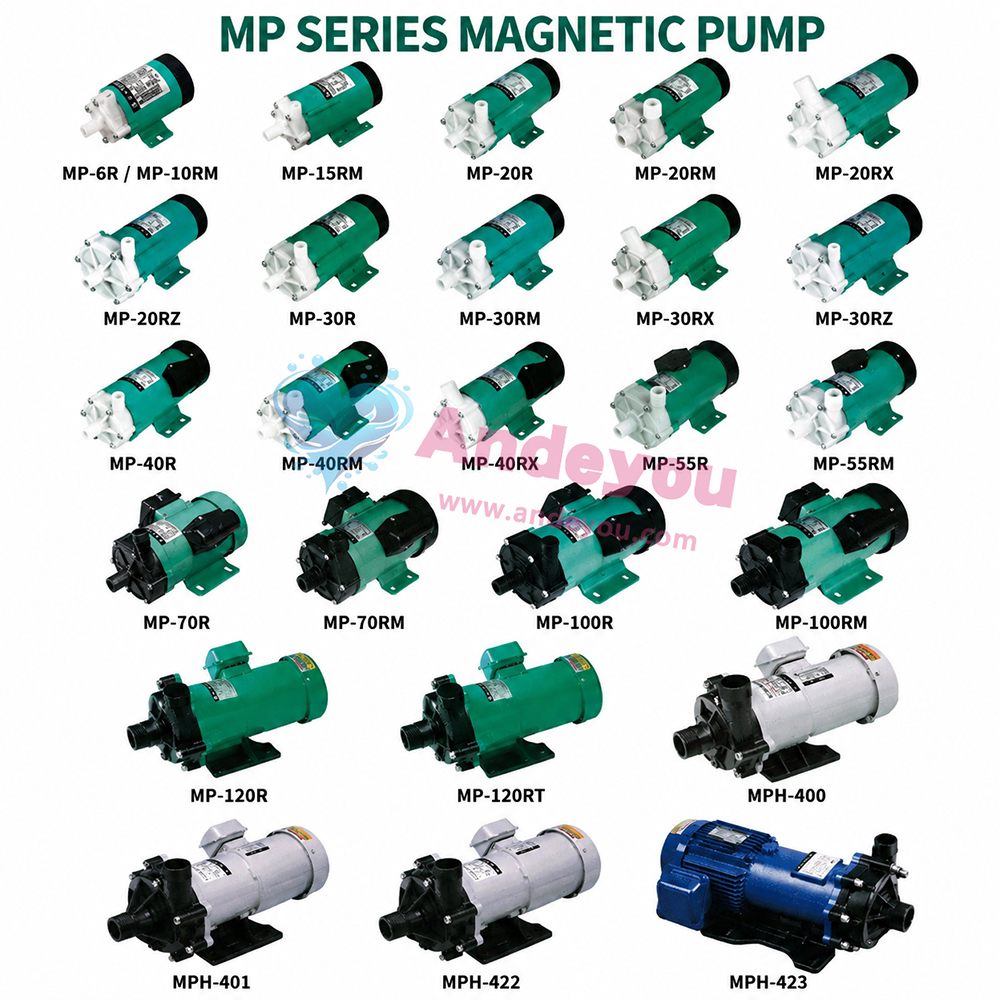

VI. Product Selection Guide
(1) Basic Parameter Range
● Flow rate: 0.1–1380 L/min
● Head: 0.8–18 m
● Power: 6–2200 W
● Inlet/Outlet diameter: 6–50 mm
(2) Material Selection
● Pump body: PP, PVDF, 304/316 stainless steel
● Magnet assembly: NdFeB (Neodymium Iron Boron), SmCo (Samarium Cobalt)
● Containment shell: Ceramic, PFA
(3) Special Feature Options
● Speed control
● Flow rate display
● Communication interface
● Explosion-proof certification
With its innovative magnetic drive technology, superior sealing performance, precise fluid control capabilities, and broad application adaptability, the Jiaxing MP micro magnetic pump has established itself as a benchmark product in the high-end micro-fluid transfer sector. Whether in harsh industrial environments or precision laboratory settings, it delivers reliable, efficient, and safe fluid transfer solutions. Its modular design and intelligent features make it an ideal choice for modern fluid system integration, generating significant economic benefits and operational value for users.
