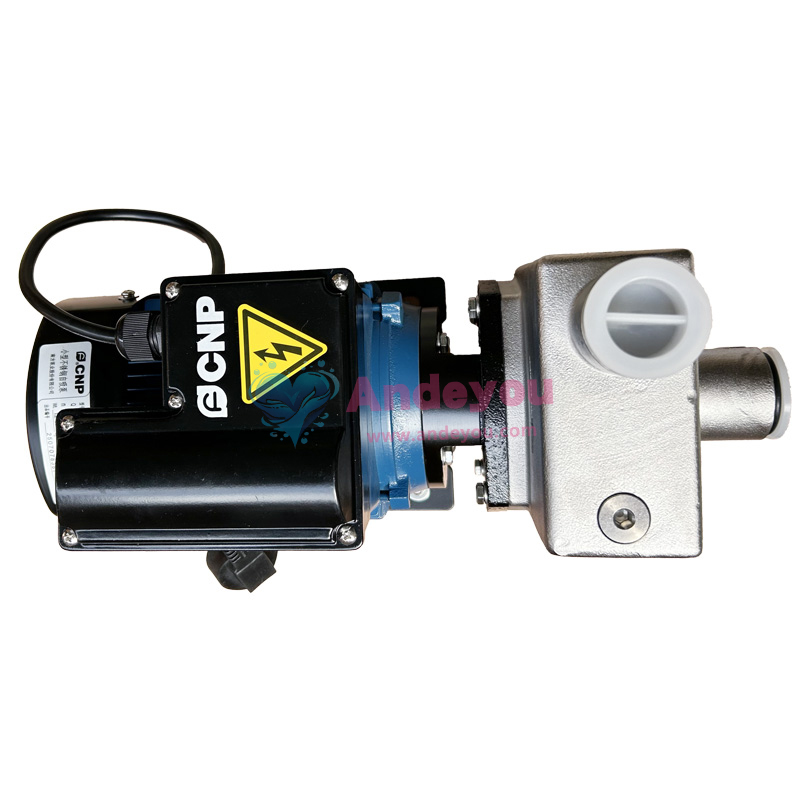

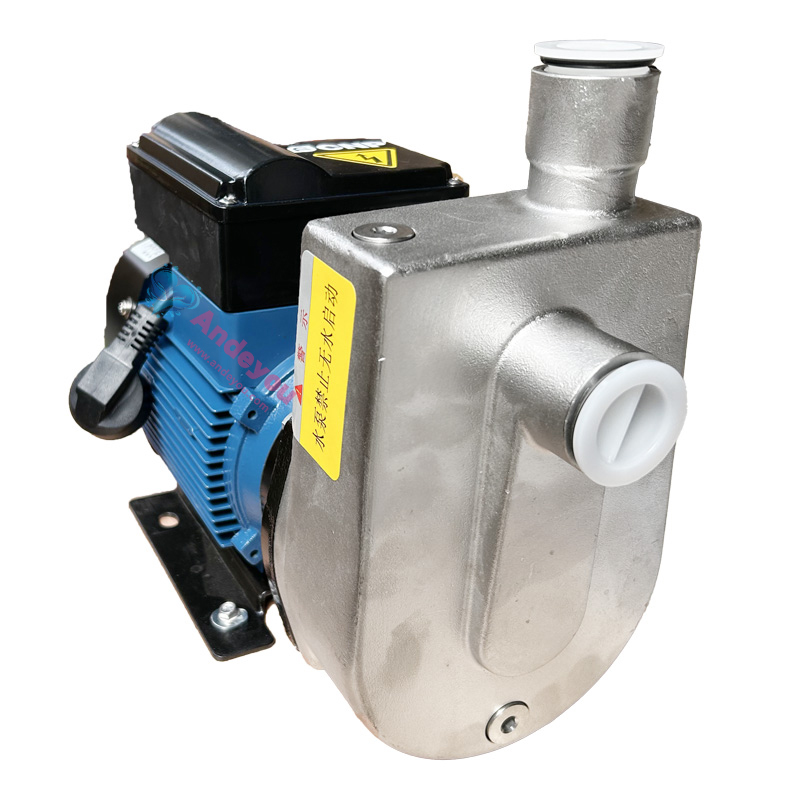

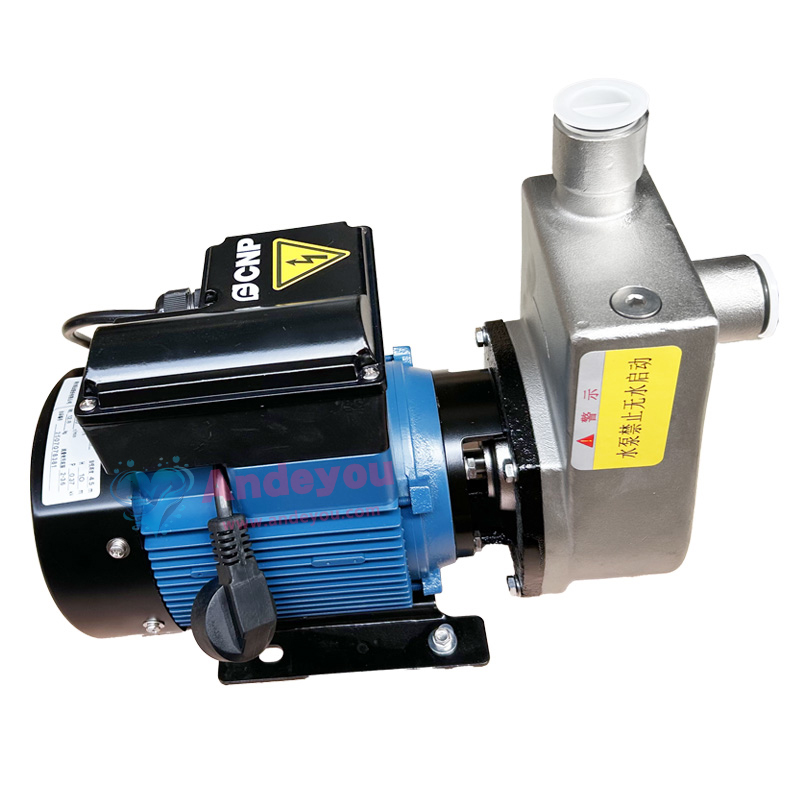

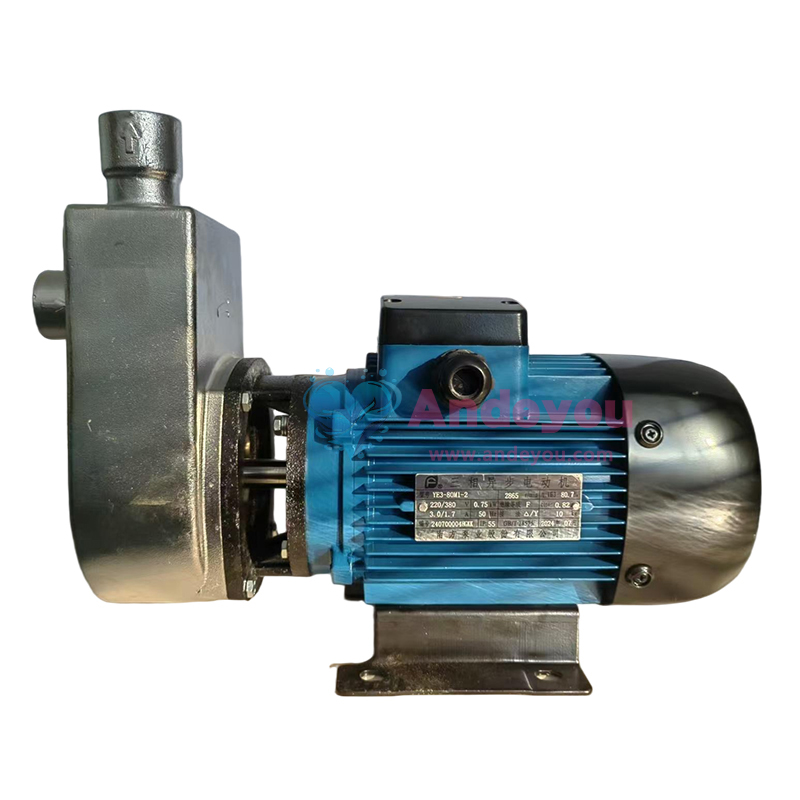

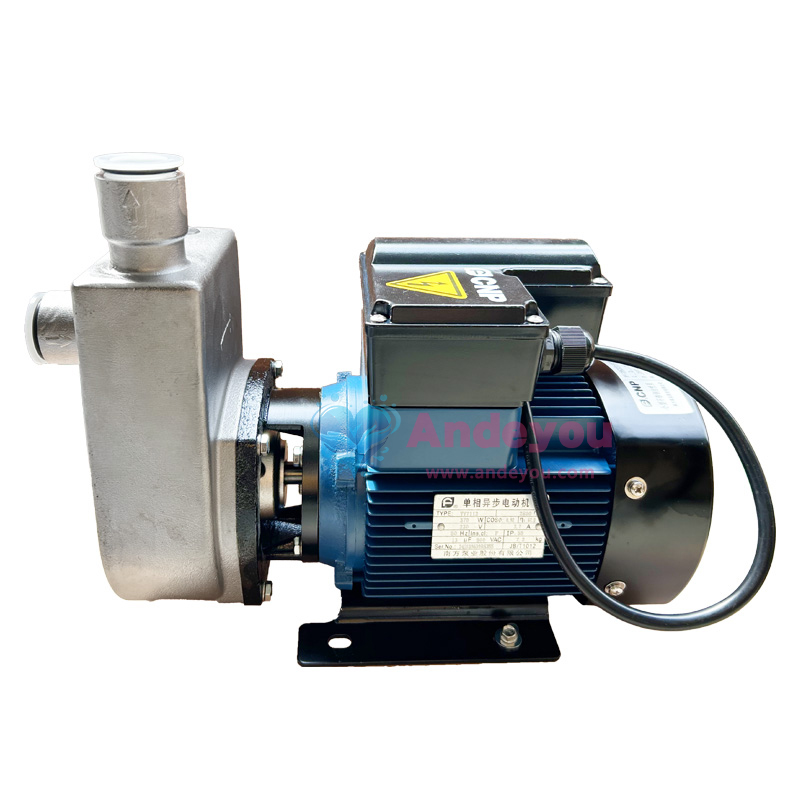

Nanfang NZXF Small Stainless Steel Self-Priming Pump

25NZXF3-10 25NZXF3-15 25NZXF3-20 25NZXF5-18 40NZXF10-15 40NZXF10-20 50NZXF15-15 50NZXF15-20 50NZXF20-15 50NZXF20-20 50NZXF25-20 50NZXF30-18

The Nanfang NZXF series compact stainless steel self-priming pumps are constructed from high-quality 304/316 stainless steel,offering excellent corrosion and high-temperature resistance,they are specifically designed for industries such as chemical processing,electroplating,environmental protection,and food production.Featuring rapid self-priming (≤5 seconds) and a compact design
Function
Parameters
Size
Video Introduction

Function

1. Material and Durability

Cast from 304/316 stainless steel, offering excellent corrosion and high-temperature resistance; suitable for transporting corrosive media such as acidic/alkaline liquids and cleaning agents.

2. Self-Priming Capability

Rapid self-priming: Achieves a suction lift of up to 5 meters and completes priming within 5 seconds of startup, ensuring high efficiency.
Dry-running protection: Supports short-term dry running, preventing pump damage caused by idling.

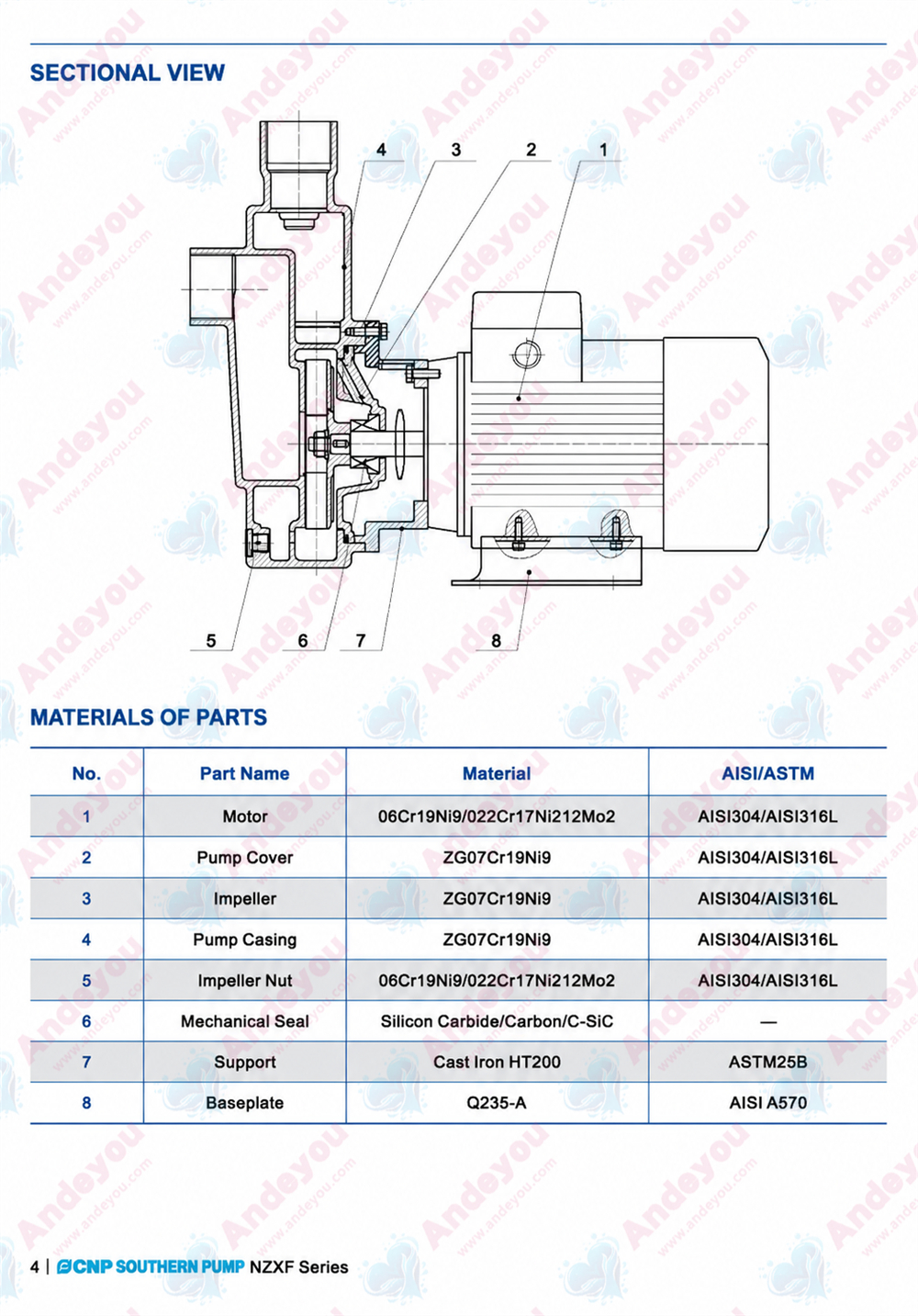

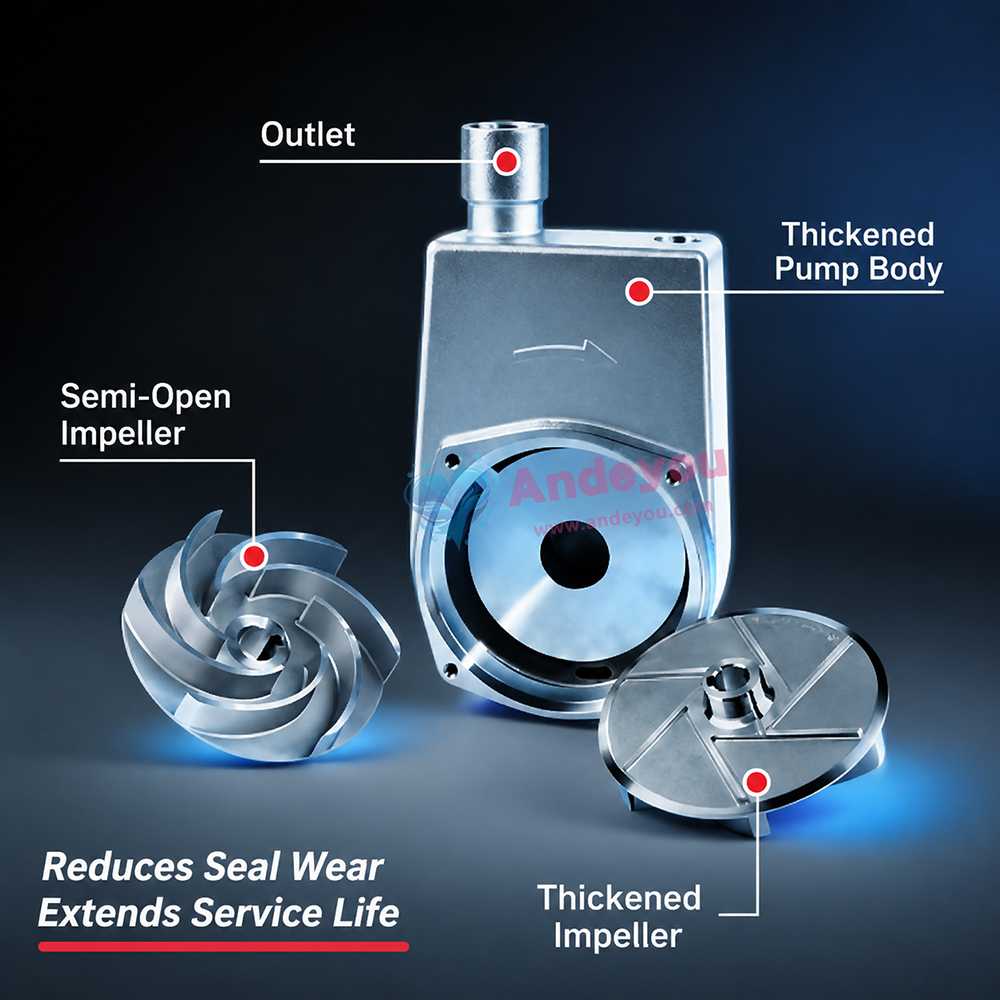

3. Structural Design

Compact and lightweight: Space-saving, miniaturized design facilitates easy portability and system integration.
Easy maintenance: Modular structure allows for convenient disassembly and cleaning, ensuring a long service life.

4. Application Scenarios

Widely used in industries such as chemicals, electroplating, environmental protection, and food processing; meets sanitary standards and is suitable for transporting high-purity media.

5. Sales Agent

Andeyou Commercial Co., Ltd.

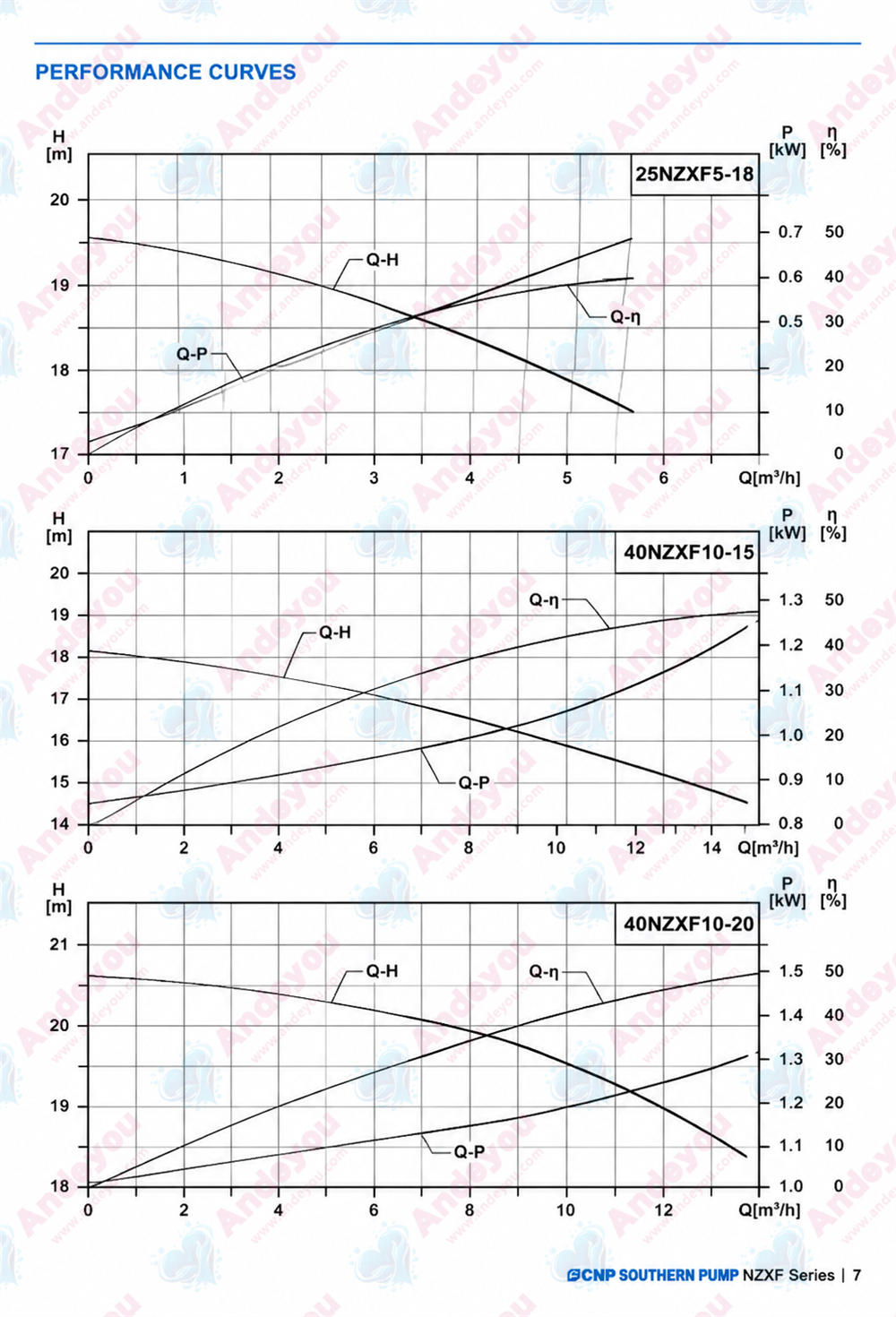

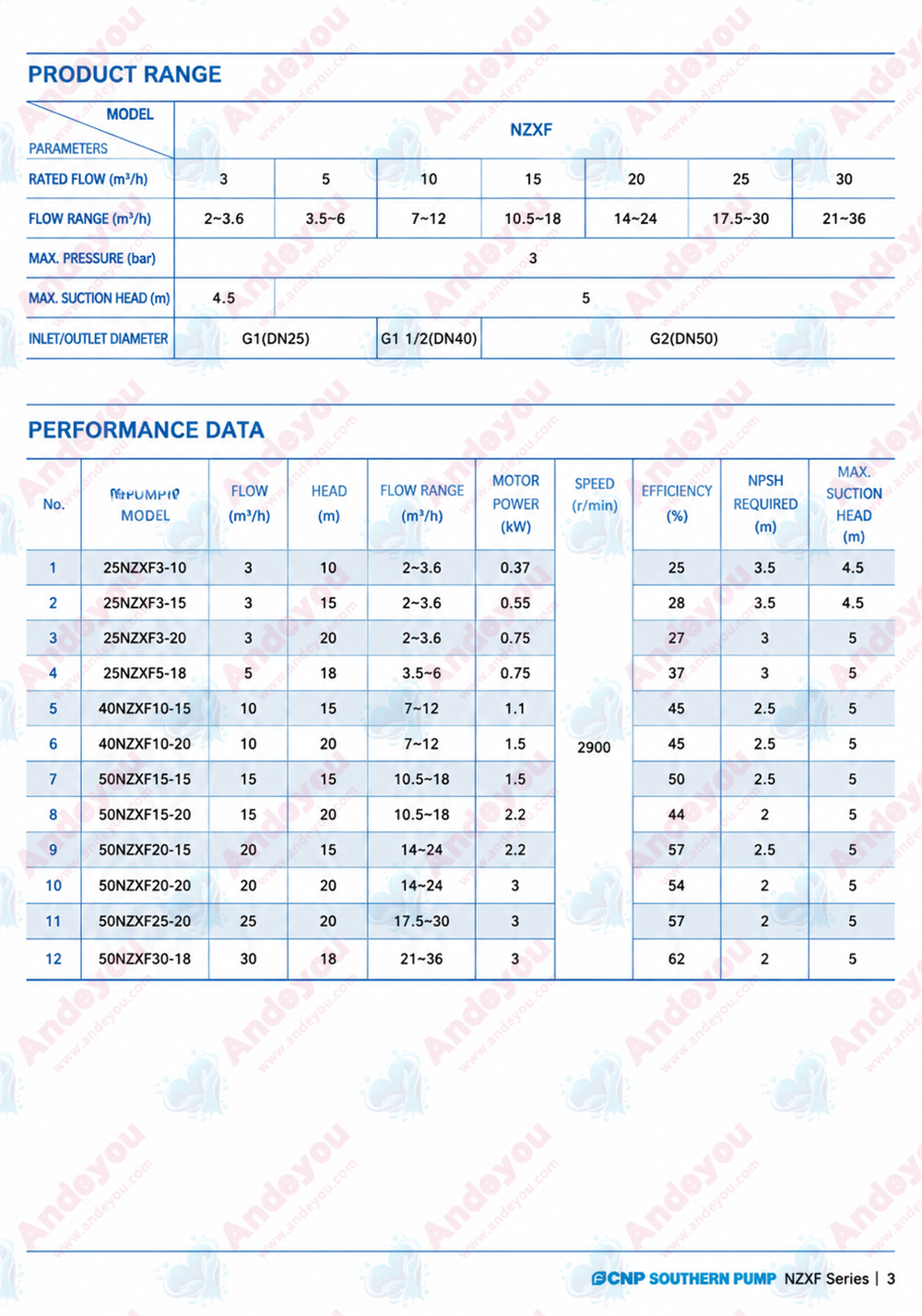

Parameters

model Flow rate (m³/h) Head (m) Power (kW) Voltage (V) caliber
25NZXF3-10 3 10 0.37 220V G1×G1
25NZXF3-15 3 15 0.55 220V G1×G1
25NZXF3-20 3 20 0.75 220V G1×G1
25NZXF5-18 5 18 0.75 220V G1×G1
40NZXF10-15 10 15 1.1 220V G1 1/2×G1 1/2
40NZXF10-20 10 20 1.5 220V G1 1/2×G1 1/2
50NZXF15-15 15 15 1.5 220V G2×G2
50NZXF15-20 15 20 2.2 220V G2×G2
50NZXF20-15 20 15 2.2 220V G2×G2
50NZXF20-20 20 20 3 380V G2×G2
50NZXF25-20 25 20 3 380V G2×G2
50NZXF30-18 30 18 3 380V G2×G2

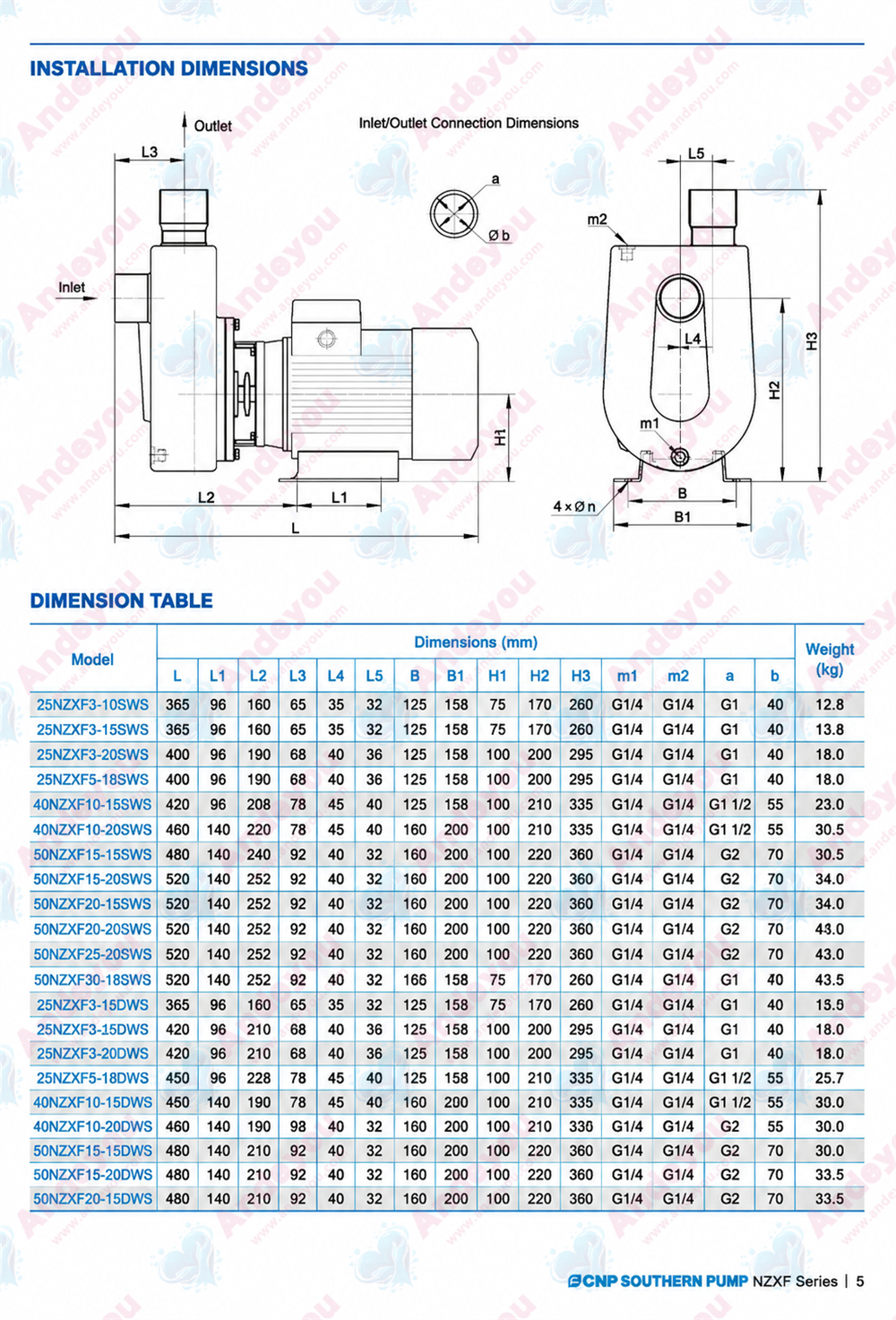

Size
