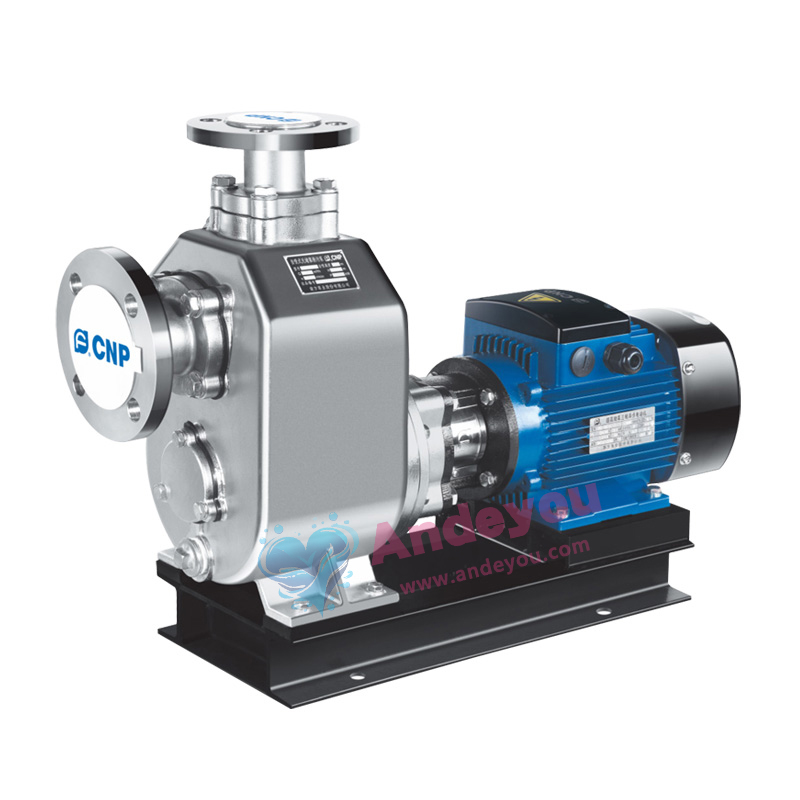

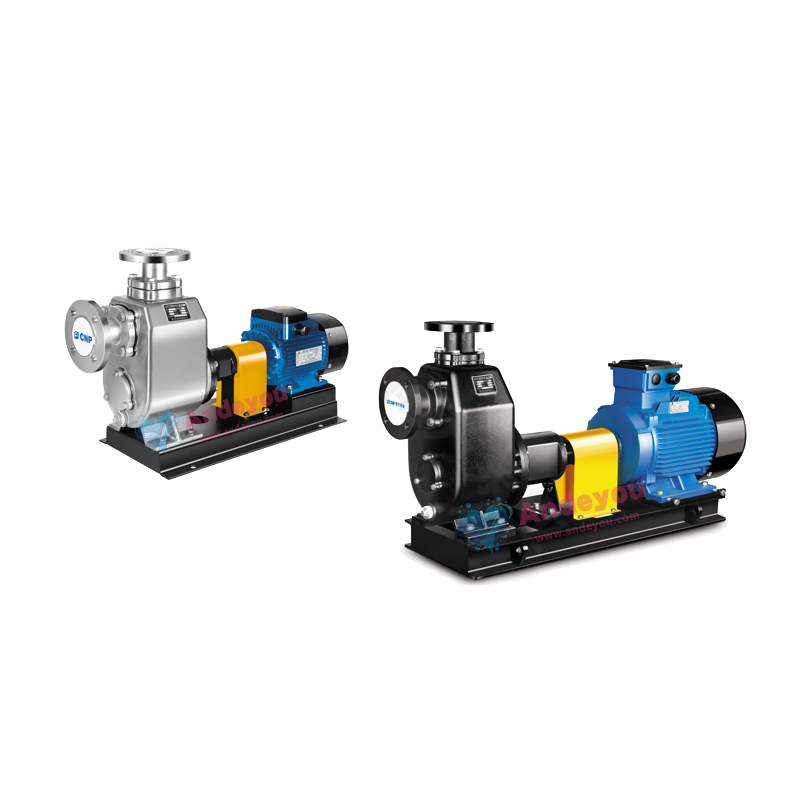

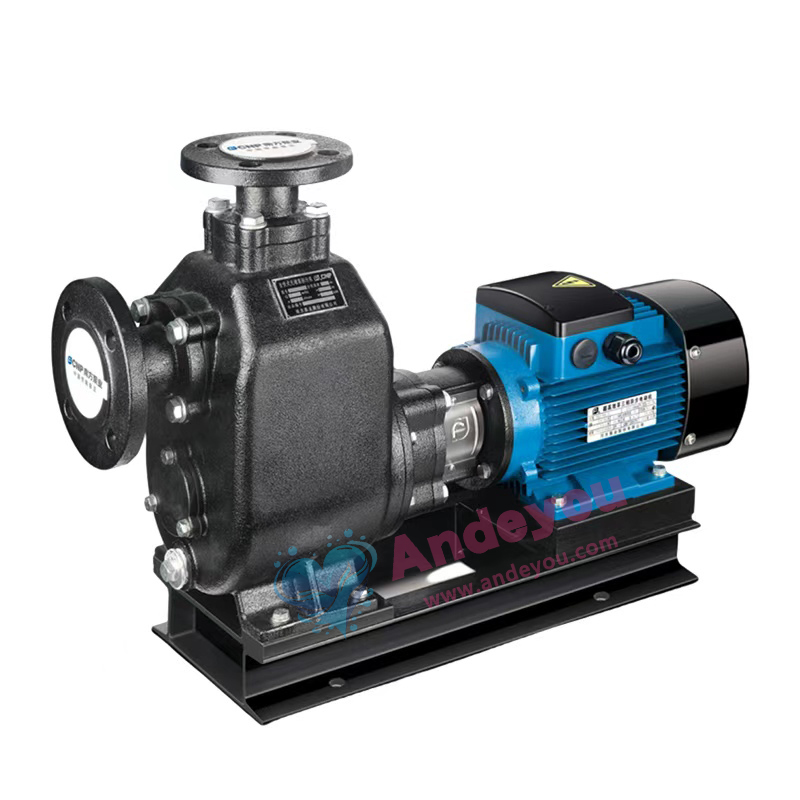

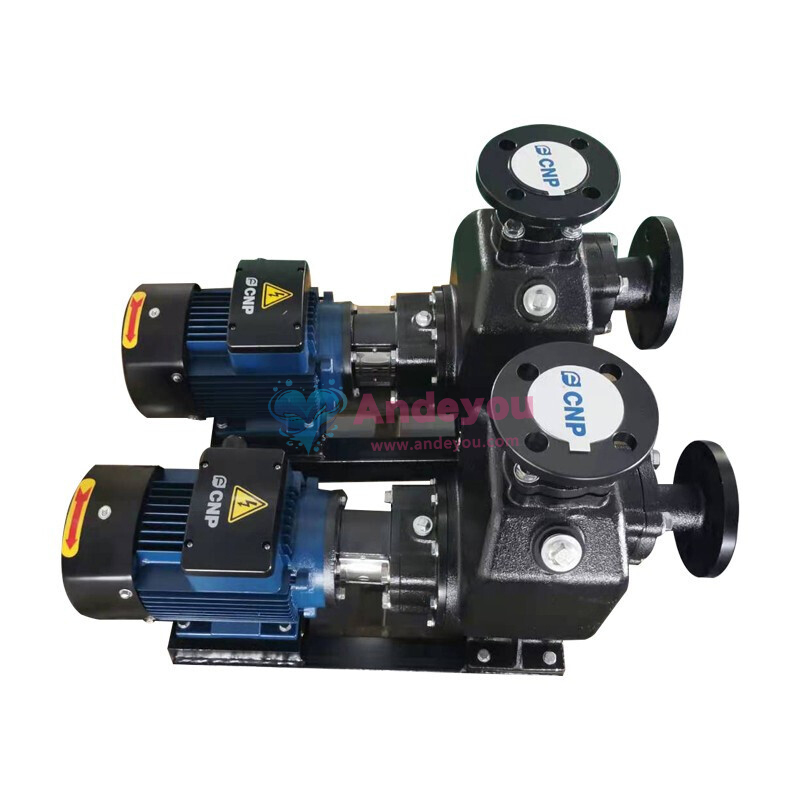

Nanfang ZWL(F) Non-clogging Self-priming Sewage Pump

25ZWL(F)5-12 25ZWL(F)8-18 32ZWL(F)5-12 32ZWL(F)5-20 32ZWL(F)8-18 32ZWL(F)10-10 32ZWL(F)10-20 32ZWL(F)10-30 40ZWL(F)10-10 40ZWL(F)10-20 40ZWL(F)15-10 40ZWL(F)15-18 40ZWL(F)15-28 40ZWL(F)20-13 50ZWL(F)10-20 50ZWL(F)15-10 50ZWL(F)15-18 50ZWL(F)15-28 50ZWL(F)20-13 50ZWL(F)20-40 50ZWL(F)20-50 65ZWL(F)25-30 65ZWL(F)25-40 65ZWL(F)30-20 65ZWL(F)30-50 65ZWL(F)40-25 80ZWL(F)40-16 80ZWL(F)40-25 80ZWL(F)45-15 80ZWL(F)50-55 80ZWL(F)50-60

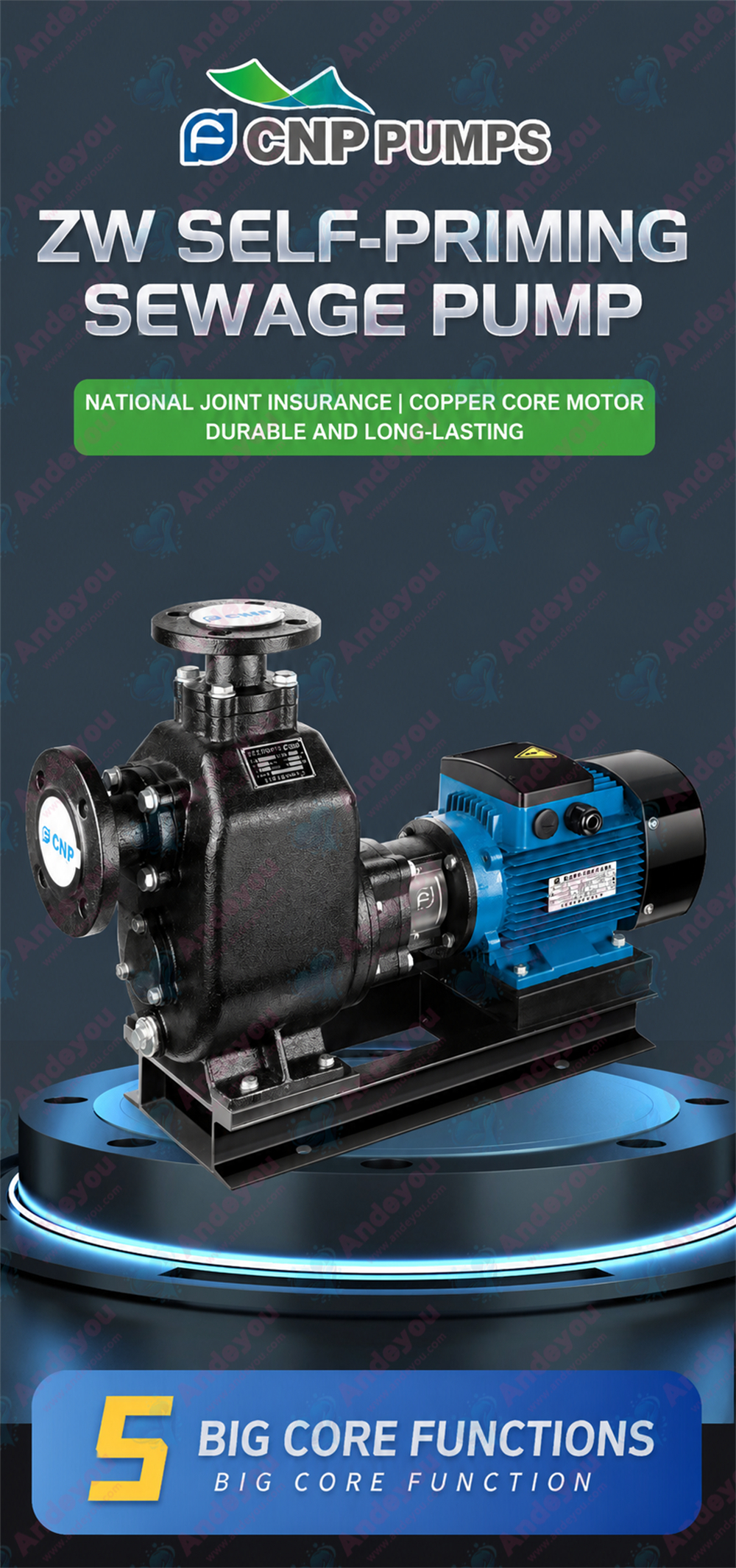

The CNP South ZWL(F) non-clogging self-priming sewage pump is a high-efficiency unit designed for discharging industrial wastewater and liquids containing solid particles or fibrous impurities.Featuring a non-clogging impeller design,it effectively handles complex media and offers a 5-meter self-priming lift,enabling rapid startup without the need for manual priming.Constructed from corrosion-resistant materials

Product Consultation By telephone

Function

Parameters

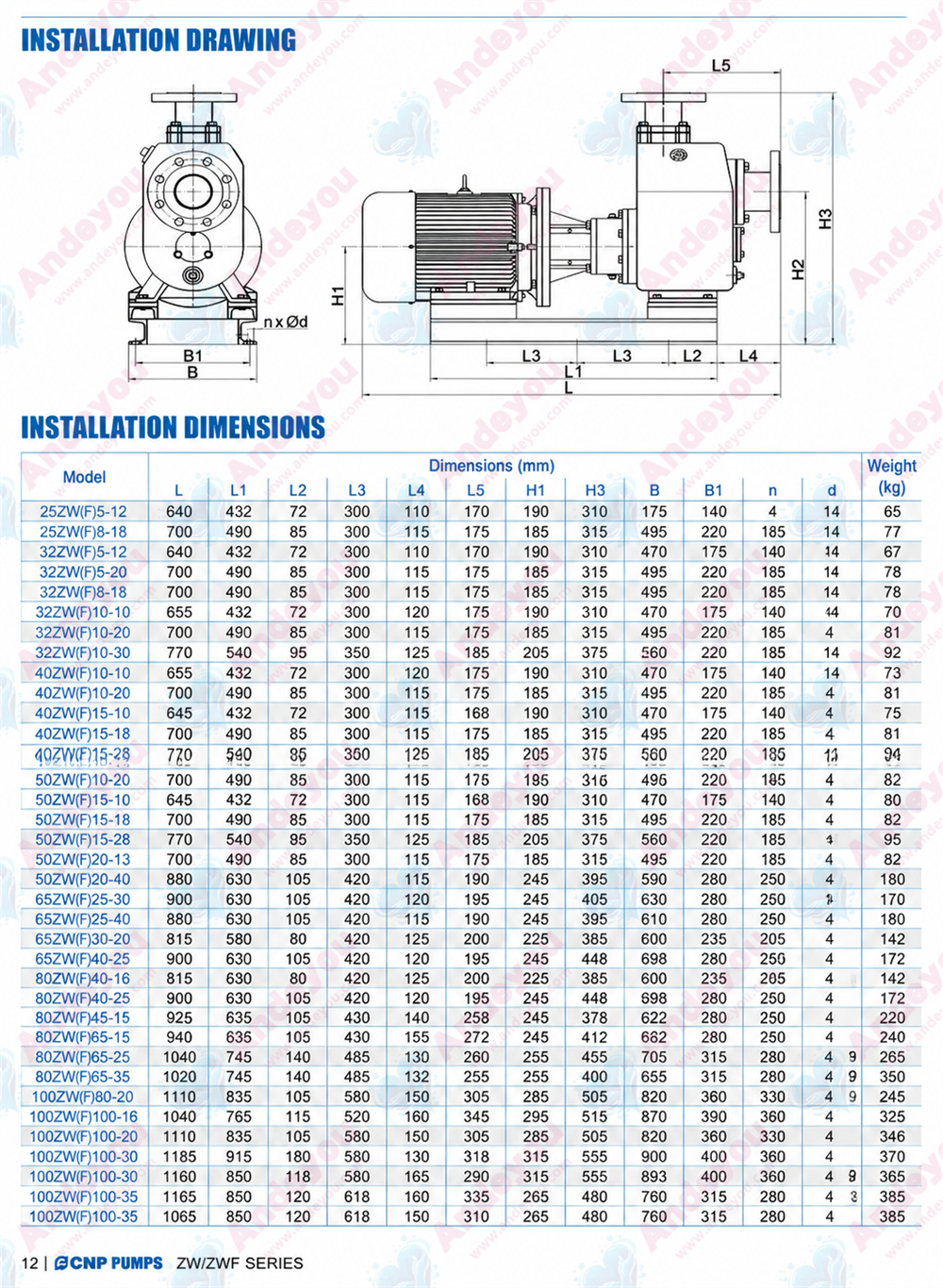

Size

Video Introduction

Function

1. High-Efficiency Self-Priming Capability

5-meter self-priming lift
Rapid startup without the need for priming water
Short self-priming time and high efficiency

2. Non-Clogging Design

Large-passage impeller structure
Handles sewage containing solid particles and fibrous impurities
Effectively prevents pump clogging

3. Corrosion Resistance

Corrosion-resistant materials for wetted parts
Suitable for highly corrosive environments such as chemical processing and electroplating
Extends equipment service life

4. Reliable Sealing System

Mechanical seal design
Excellent leak-proof performance
Supports dry running

5. Low-Maintenance Design

Simple and reliable structure
Easy maintenance and servicing
Low operating costs

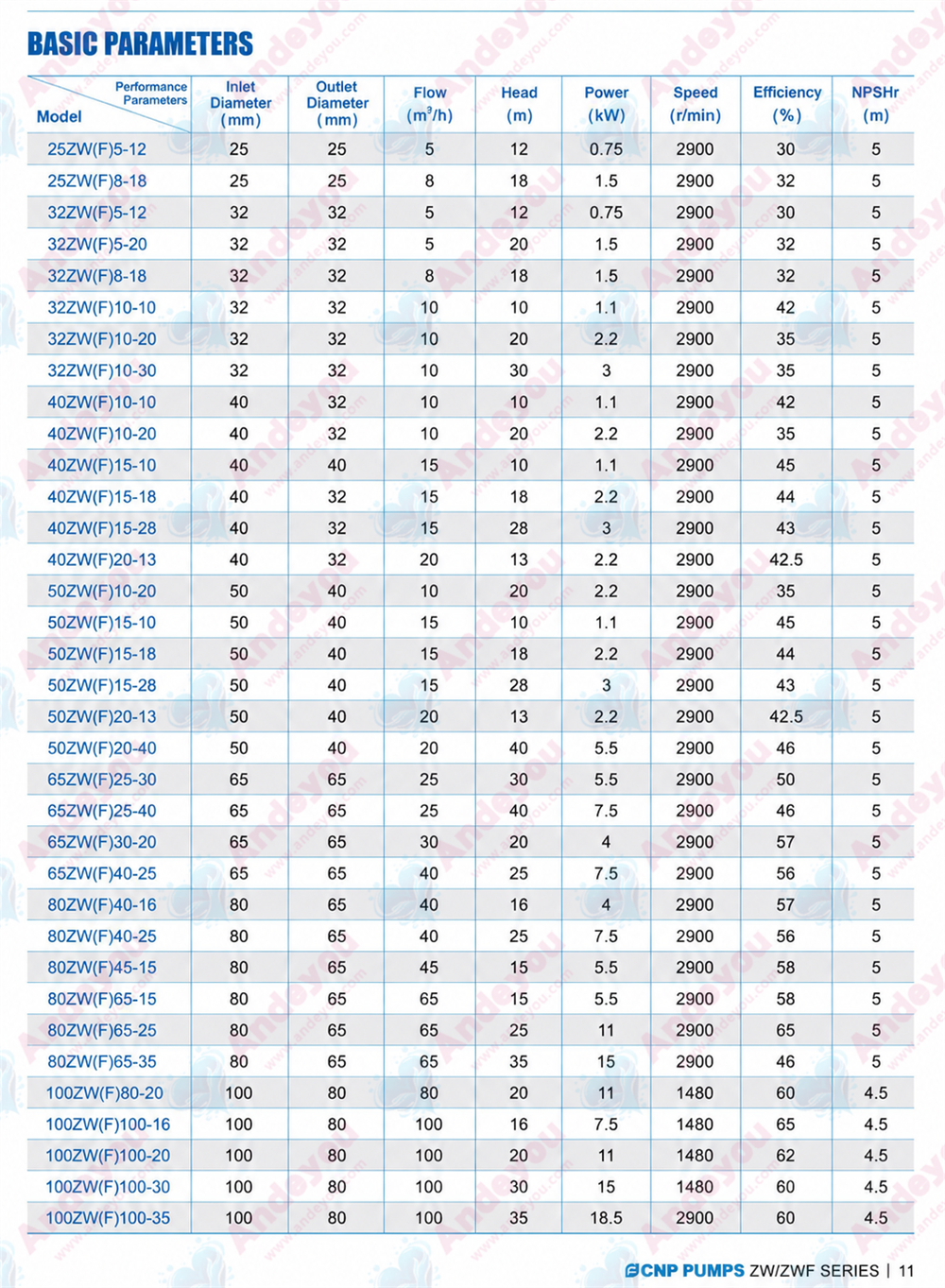

Parameters

model	Flow rate (m³/h)	Head (m)	Suction lift (m)	Power (kW)	Maximum particle size for passage	caliber
25ZWL(F)5-12	5	12	5	0.75kW	5	25×25
25ZWL(F)8-18	8	18	5	1.5kW	5	25×25
32ZWL(F)5-12	5	12	5	0.75kW	6	32×32
32ZWL(F)5-20	5	20	5	1.5kW	6	32×32
32ZWL(F)8-18	8	18	5	1.5kW	6	32×32
32ZWL(F)10-10	10	10	5	1.1kW	6	32×32
32ZWL(F)10-20	10	20	5	2.2kW	6	32×32
32ZWL(F)10-30	10	30	5	3kW	6	32×32
40ZWL(F)10-10	10	10	5	1.1kW	8	40×32
40ZWL(F)10-20	10	20	5	2.2kW	8	40×32
40ZWL(F)15-10	15	10	5	1.1kW	8	40×32
40ZWL(F)15-18	15	18	5	2.2kW	8	40×32
40ZWL(F)15-28	15	28	5	3kW	8	40×32
40ZWL(F)20-13	20	13	5	2.2kW	8	40×32
50ZWL(F)10-20	10	20	5	2.2kW	10	50×40
50ZWL(F)15-10	15	10	5	1.1kW	10	50×40
50ZWL(F)15-18	15	18	5	2.2kW	10	50×40
50ZWL(F)15-28	15	28	5	3kW	10	50×40
50ZWL(F)20-13	20	13	5	2.2kW	10	50×40
50ZWL(F)20-40	20	40	5	5.5kW	10	50×40
50ZWL(F)20-50	20	50	5	7.5kW	10	50×40
65ZWL(F)25-30	25	30	5	5.5kW	15	65×65
65ZWL(F)25-40	25	40	5	7.5kW	15	65×65
65ZWL(F)30-20	30	20	5	4kW	15	65×65
65ZWL(F)30-50	30	50	5	11kW	15	65×65
65ZWL(F)40-25	40	25	5	7.5kW	15	65×65
80ZWL(F)40-16	40	16	5	4kW	18	80×65
80ZWL(F)40-25	40	25	5	7.5kW	18	80×65
80ZWL(F)45-15	45	15	5	5.5kW	18	80×65
80ZWL(F)50-55	50	55	5	15kW	18	80×65
80ZWL(F)50-60	50	60	5	18.5kW	18	80×65
80ZWL(F)65-15	65	15	5	5.5kW	18	80×65
80ZWL(F)65-25	65	25	5	11kW	18	80×65
80ZWL(F)65-35	65	35	5	15kW	18	80×65
80ZWL(F)65-50	65	50	5	18.5kW	18	80×65
80ZWL(F)80-50	80	50	5	22kW	18	80×65
100ZWL(F)80-20	80	20	4.5	11kW	20	100×80
100ZWL(F)80-45	80	45	4.5	18.5kW	20	100×80
100ZWL(F)100-16	100	16	4.5	7.5kW	20	100×80
100ZWL(F)100-20	100	20	4.5	11kW	20	100×80
100ZWL(F)100-30	100	30	4.5	15kW	20	100×80
100ZWL(F)100-35	100	35	4.5	18.5kW	20	100×80
100ZWL(F)100-45	100	45	4.5	22kW	20	100×80
150ZWL(F)150-15	150	15	4.5	11kW	32	150×125
150ZWL(F)150-20	150	20	4.5	15kW	32	150×125
150ZWL(F)200-15	200	15	4.5	15kW	40	150×150
150ZWL(F)200-20	200	20	4.5	22kW	40	150×150
150ZWL(F)200-30	200	30	4.5	30kW	40	150×150
200ZWL(F)300-15	300	15	4.5	22kW	45	200×150
200ZWL(F)300-20	300	20	4.5	30kW	45	200×150
