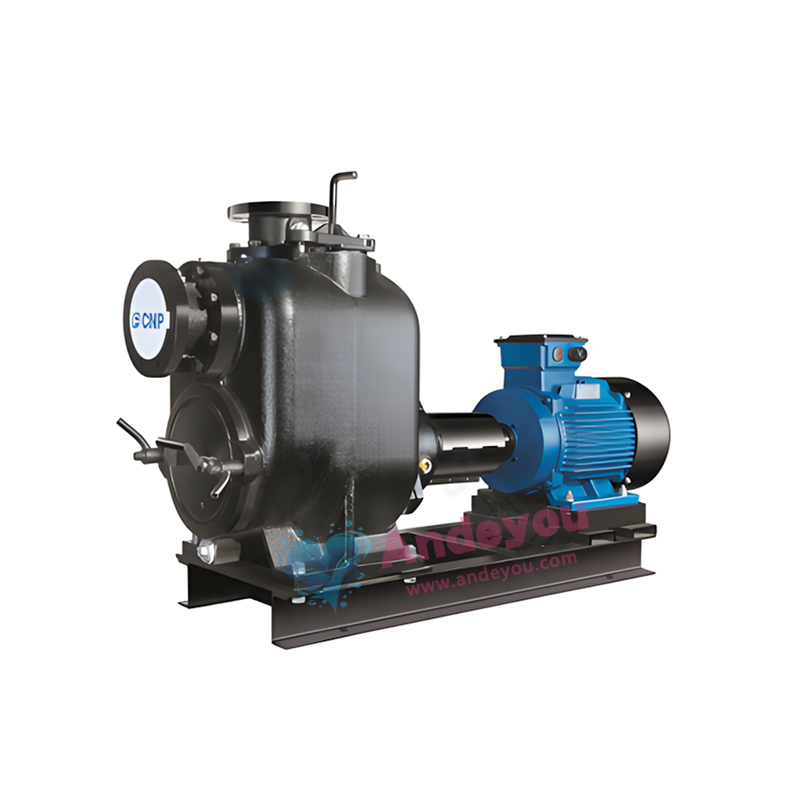

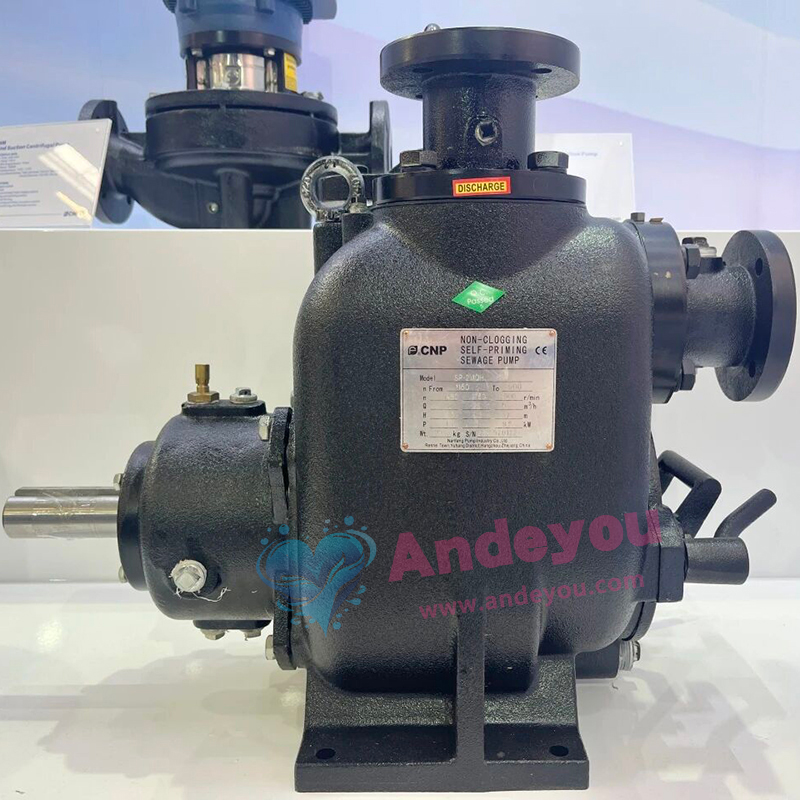

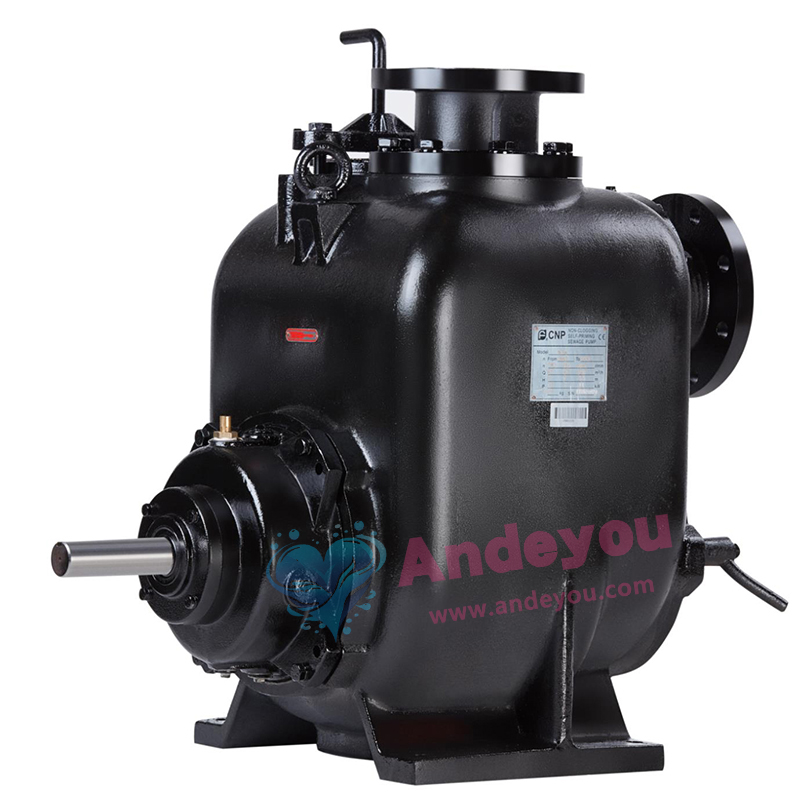

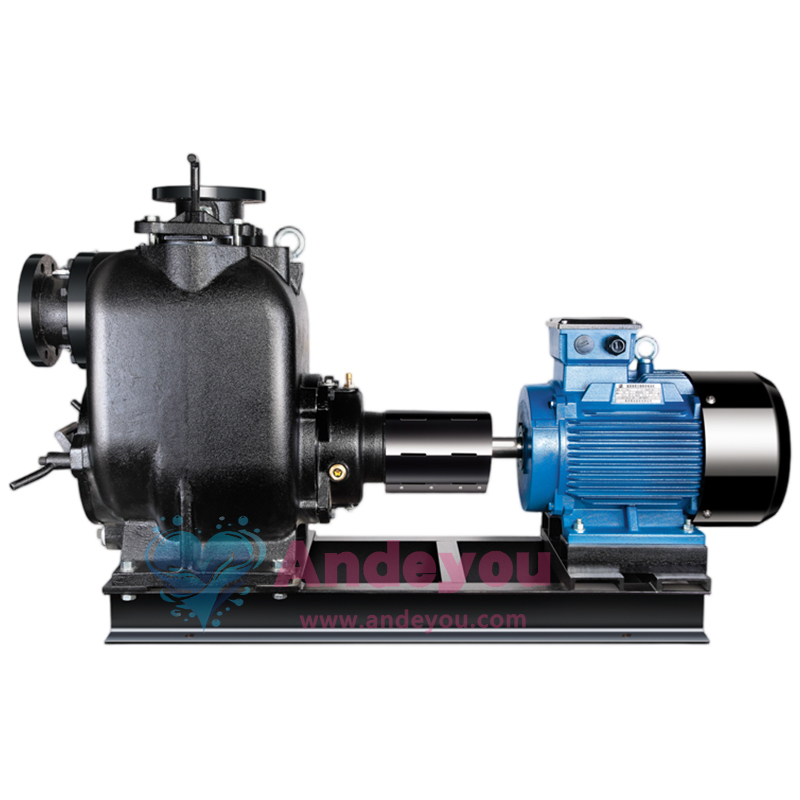

Nanfang SP Non-Clogging Self-Priming Sewage Pump

SP-2(1150) SP-2(1450) SP-2(1750) SP-2(2050) SP-2(2350) SP-2(2650) SP-2(2900) SP-3(650) SP-3(750) SP-3(850) SP-3(950) SP-3(1050) SP-3(1150) SP-3(1250) SP-3(1350) SP-3(1450) SP-3(1550) SP-3(1650) SP-3(1750) SP-3(1850) SP-3(1950) SP-3(2050) SP-3(2150) SP-4(650) SP-4(750) SP-4(850) SP-4(950) SP-4(1050) SP-4(1150) SP-4(1250) SP-4(1350) SP-4(1450) SP-4(1550) SP-4(1650) SP-4(1750) SP-4(1850) SP-4(1950) SP-6(650)

The CNP Southern SP non-clogging self-priming sewage pump is a high-performance wastewater treatment unit featuring a unique large-flow-passage impeller design that effectively prevents clogging by fibers and solid particles.It offers a self-priming lift of 5–8 meters,automatically priming after the initial fill without the need for a foot valve.With a flow rate range of 5–100 m³/h and a head of 12–50 meters,it is suitable for handling municipal sewage,industrial wastewater

Product Consultation By telephone

Function

Parameters

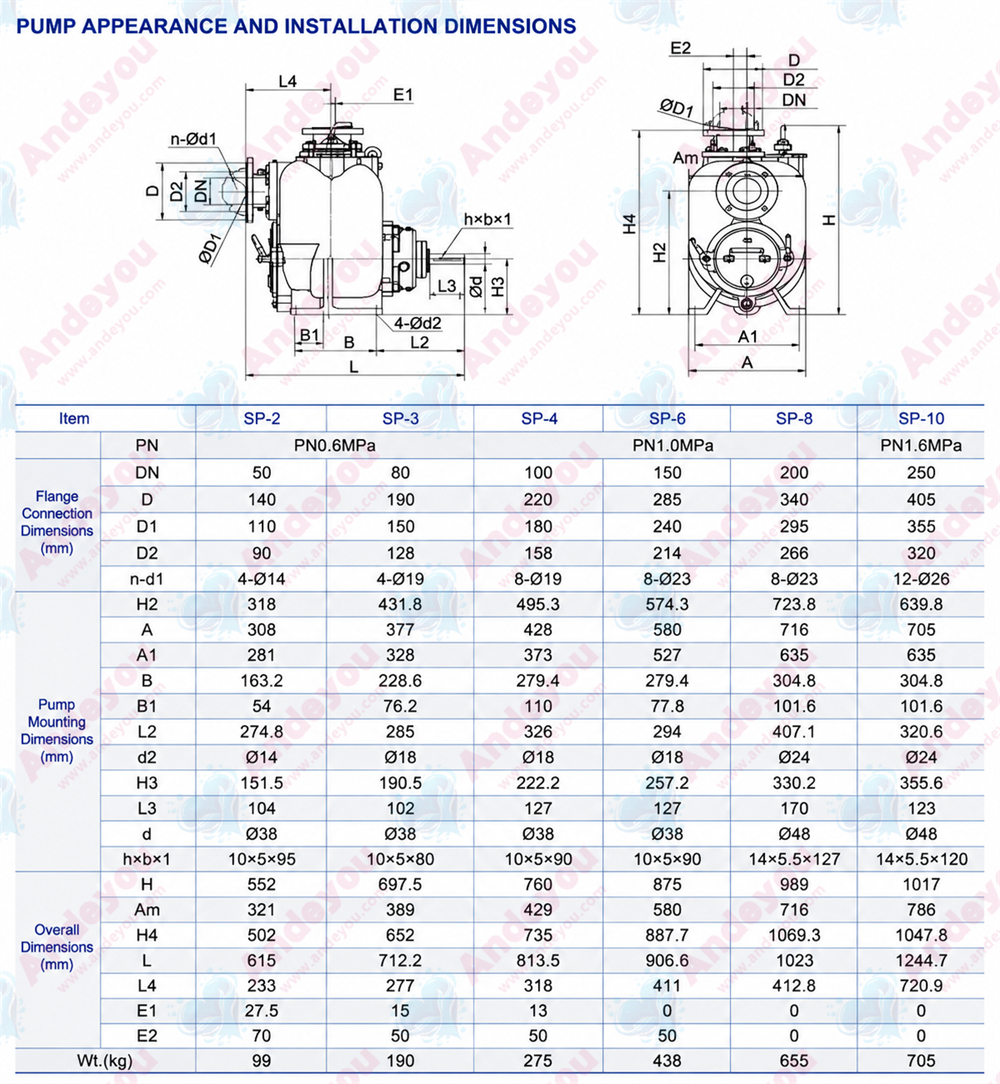

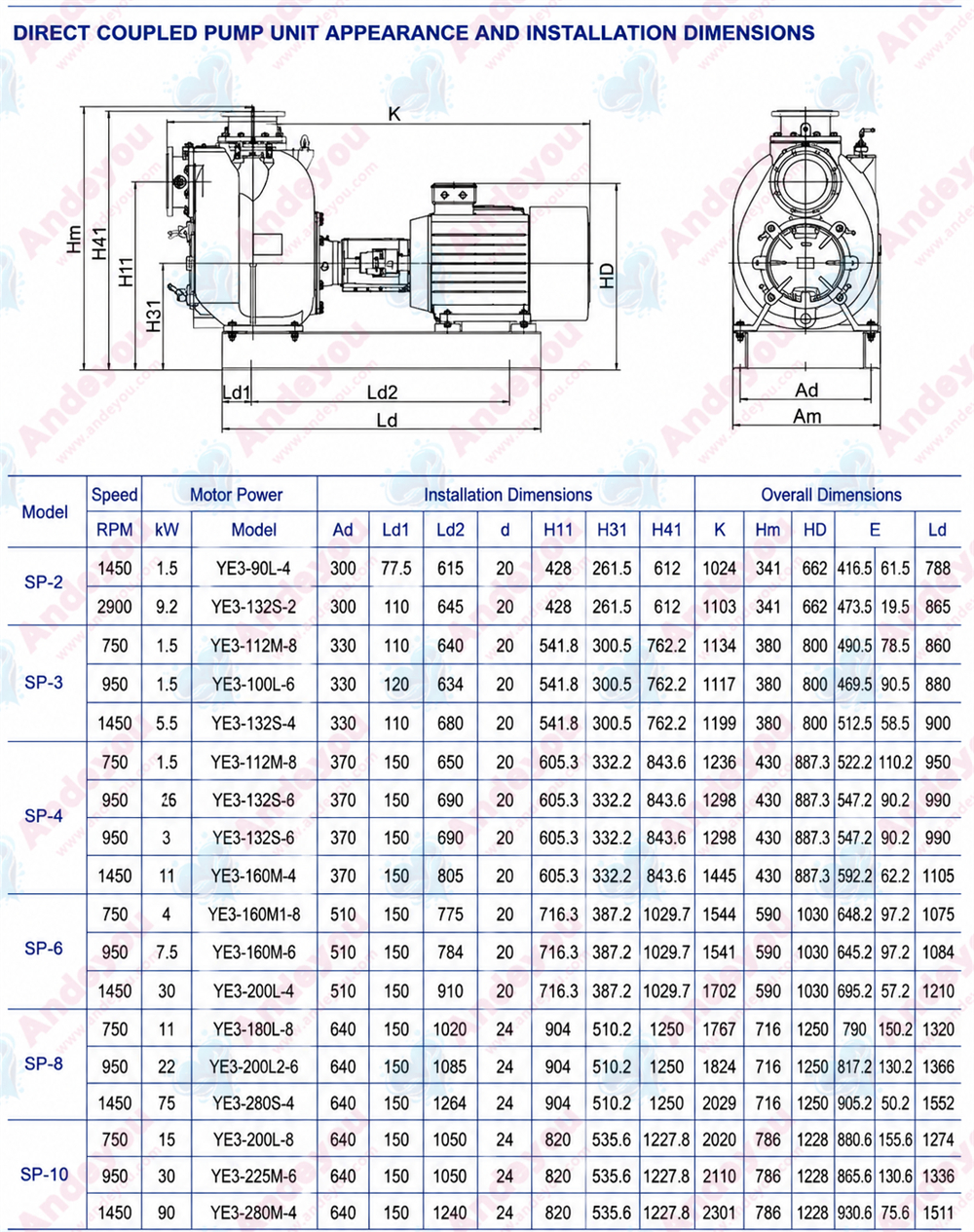

Size

Video Introduction

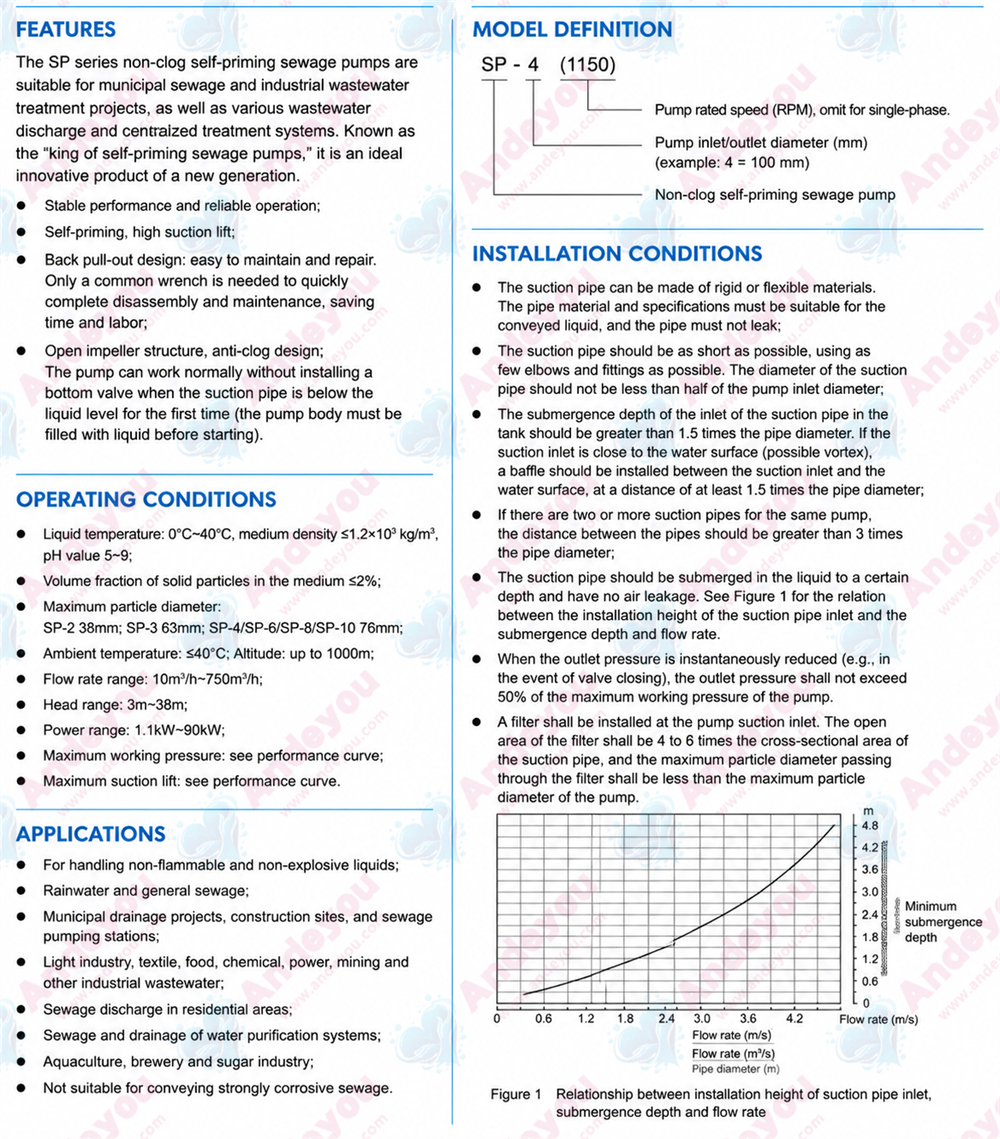

Function

1. Non-clogging Design

Features a large-passage impeller and volute casing, enabling efficient handling of high-viscosity media containing solid particles, fibers, and sludge. It accommodates particle diameters up to 50mm, effectively eliminating the clogging issues common in traditional sewage pumps.

2. High-Efficiency Self-Priming Capability

Automatically generates a vacuum after the initial priming; offers a self-priming lift of 5–8 meters (depending on the model). Eliminates the need for foot valves or priming devices, allowing for rapid startup in emergency drainage situations.

3. Corrosion and Wear Resistance

Flow-path components are available in cast iron or stainless steel (304/316L), with impellers treated with wear-resistant alloy coatings. Suitable for handling corrosive media such as chemical wastewater and seawater.

4. Energy Efficiency and Low Consumption

Optimized hydraulic design improves efficiency by 15–20% compared to standard sewage pumps. Equipped with motors meeting IE3 energy efficiency standards, ensuring lower long-term operating costs.

5. Intelligent Protection Features

Select models feature dry-run protection and overload alarms. Motors are rated Class F insulation with an IP68 waterproof design, ensuring reliability in harsh operating conditions.

6. Versatile Applications

Covers a flow rate range of 5–100 m³/h and supports both stationary and mobile installations. Widely used in municipal pipe networks, construction excavation sites, aquaculture farms, industrial parks, and more.

Parameters

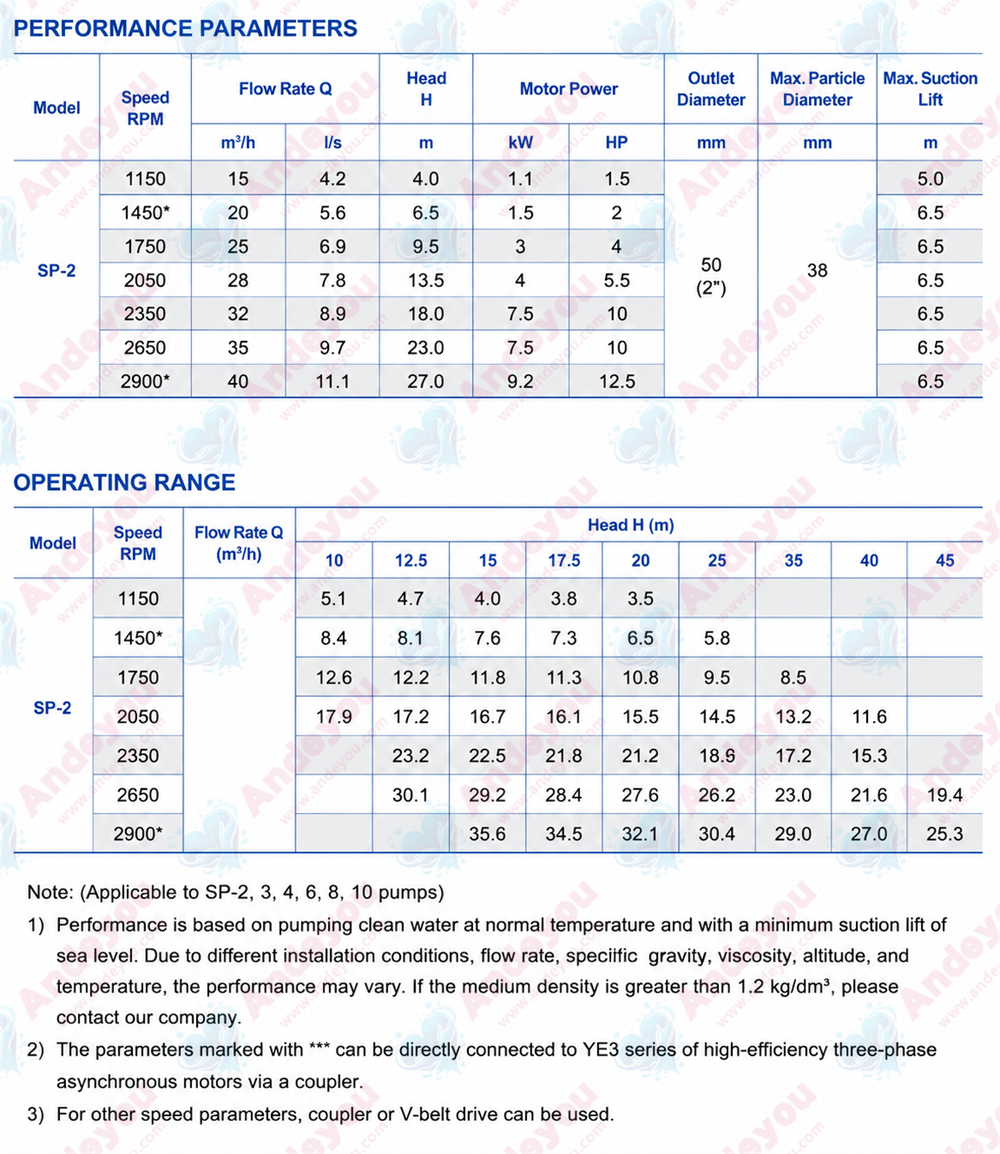

model	Flow rate (m³/h)	Head (m)	Suction lift (m)	Power (kW)	Rotational speed	Maximum particle size for passage	caliber

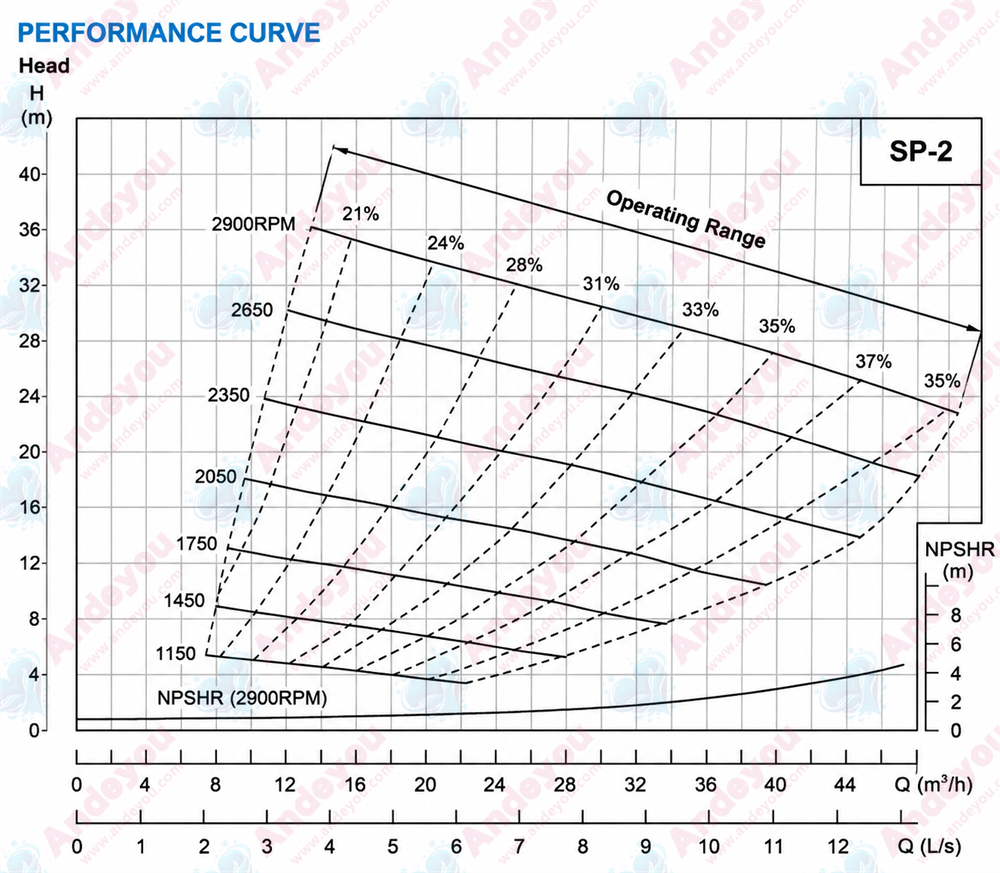

SP-2(1150)	15	4	5	1.1	1150	38	50×50
SP-2(1450)	20	6.5	6.5	1.5	1450	38	50×50
SP-2(1750)	25	9.5	6.5	3	1750	38	50×50
SP-2(2050)	28	13.5	6.5	4	2050	38	50×50
SP-2(2350)	32	18	6.5	7.5	2350	38	50×50
SP-2(2650)	35	23	6.5	7.5	2650	38	50×50
SP-2(2900)	40	27	6.5	9.2	2900	38	50×50

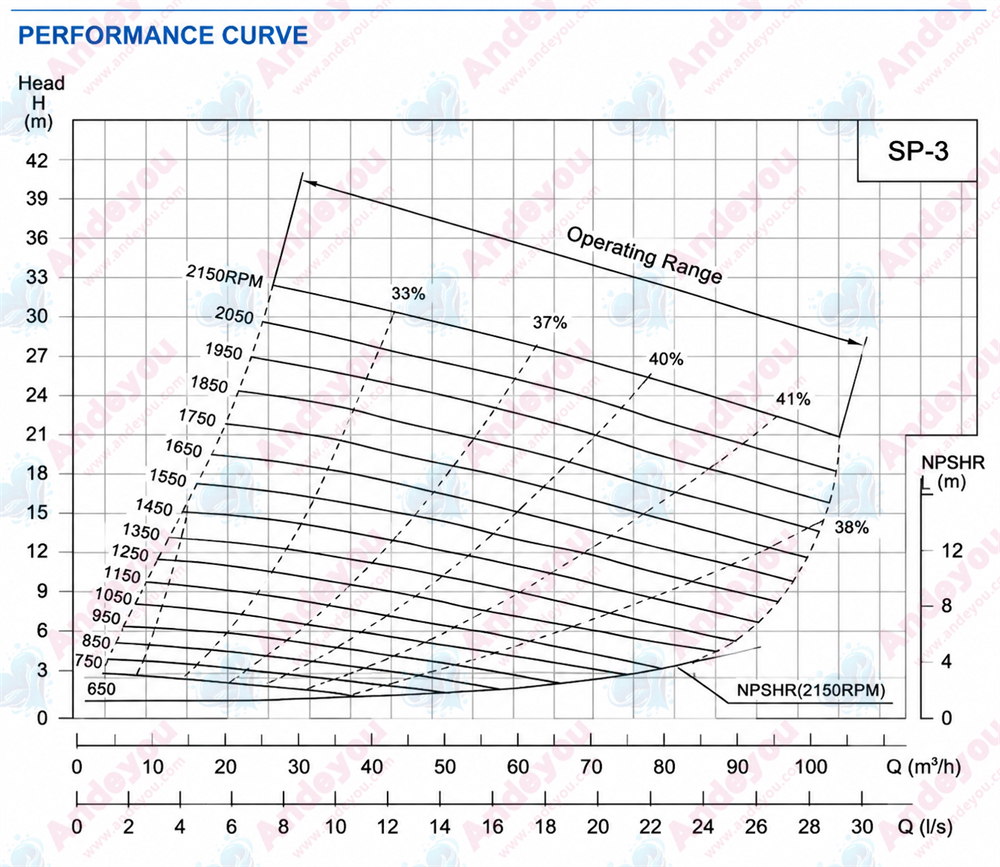

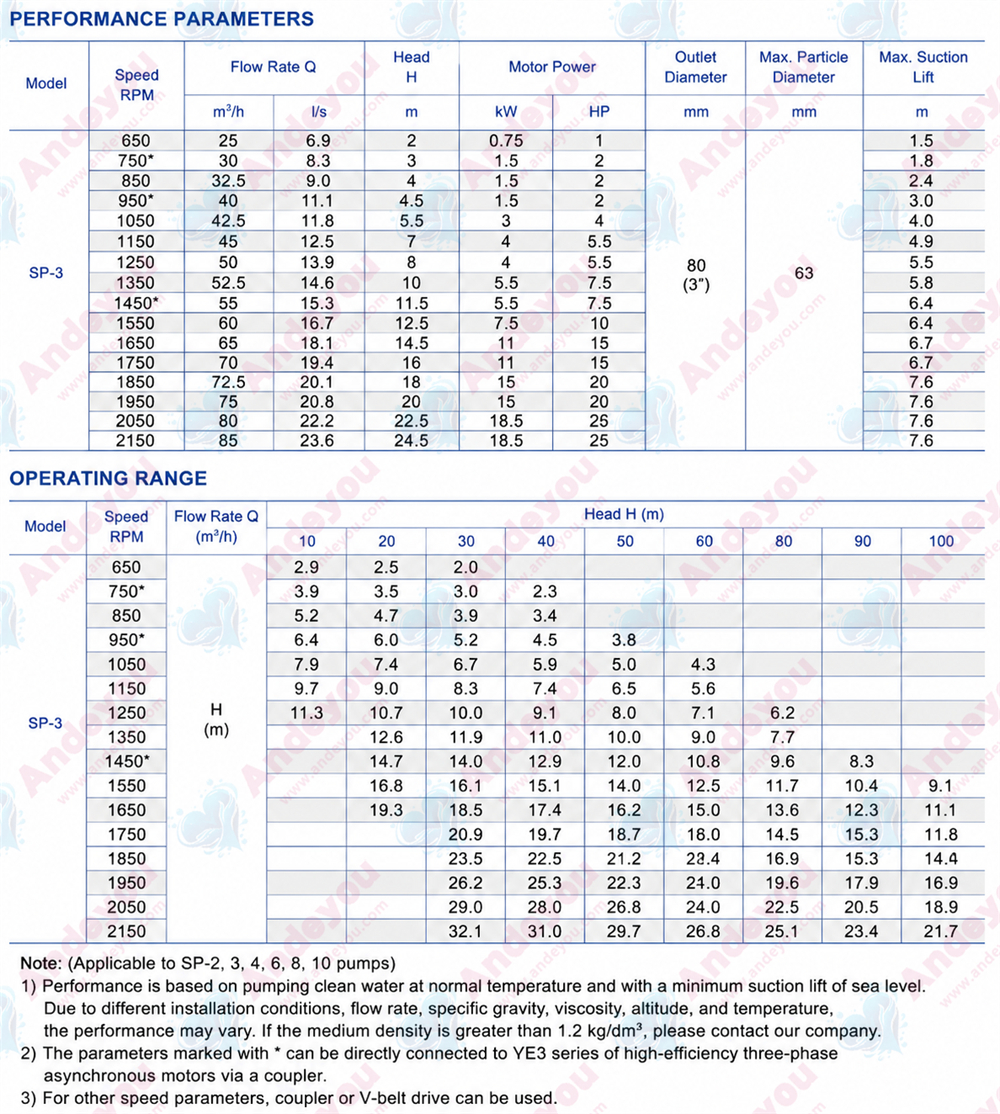

SP-3(650)	25	2	1.5	0.75	650	63	80×80
SP-3(750)	30	3	1.8	1.5	750	63	80×80
SP-3(850)	32.5	4	2.4	1.5	850	63	80×80
SP-3(950)	40	4.5	3	1.5	950	63	80×80
SP-3(1050)	42.5	5.5	4	3	1050	63	80×80
SP-3(1150)	45	7	4.9	4	1150	63	80×80
SP-3(1250)	50	8	5.5	4	1250	63	80×80
SP-3(1350)	52.5	10	5.8	5.5	1350	63	80×80
SP-3(1450)	55	11.5	6.4	5.5	1450	63	80×80
SP-3(1550)	60	12.5	6.4	7.5	1550	63	80×80
SP-3(1650)	65	14.5	6.7	11	1650	63	80×80
SP-3(1750)	70	16	6.7	11	1750	63	80×80
SP-3(1850)	72.5	18	7.6	15	1850	63	80×80
SP-3(1950)	75	20	7.6	15	1950	63	80×80
SP-3(2050)	80	22.5	7.6	18.5	2050	63	80×80
SP-3(2150)	85	24.5	7.6	18.5	2150	63	80×80

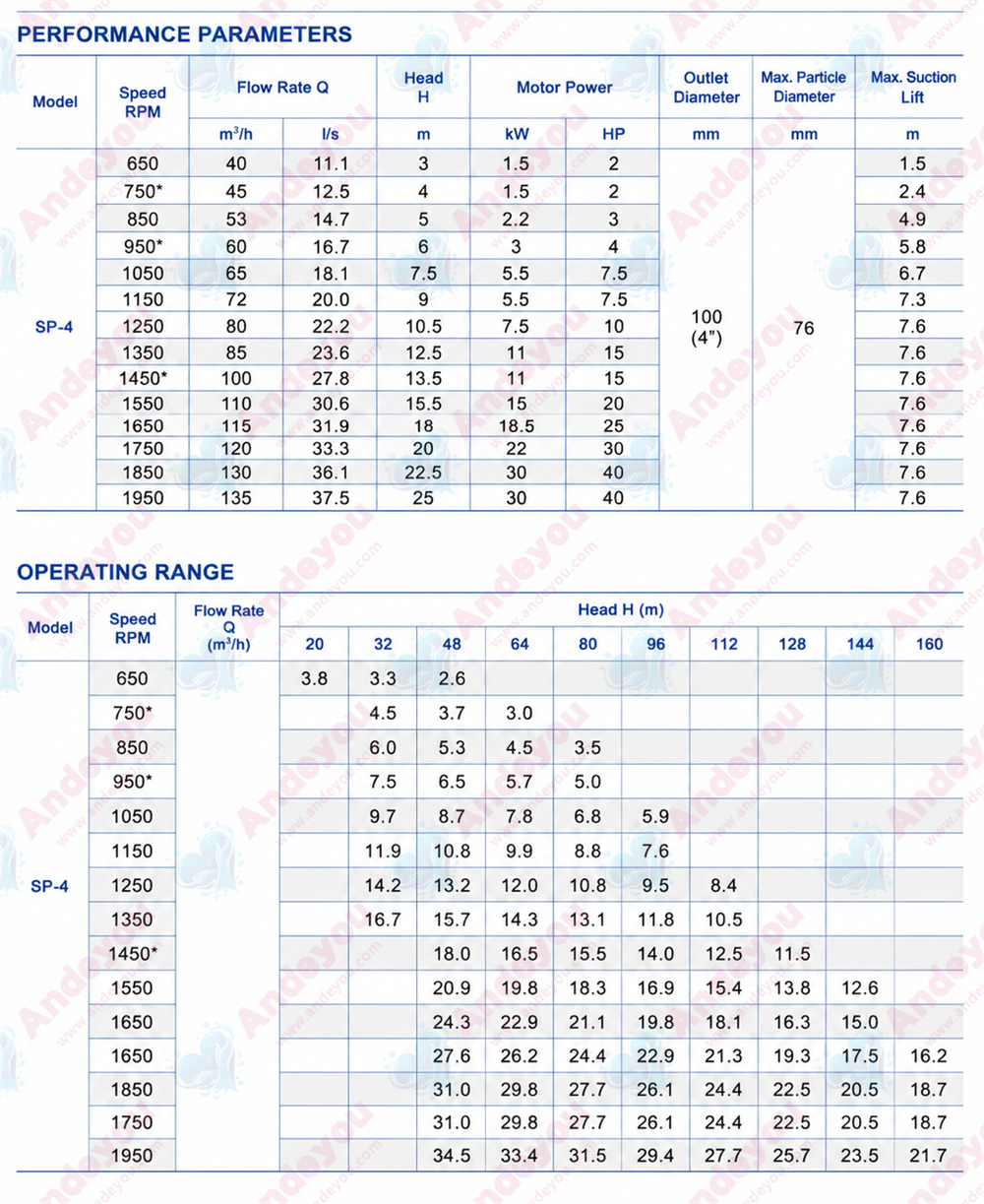

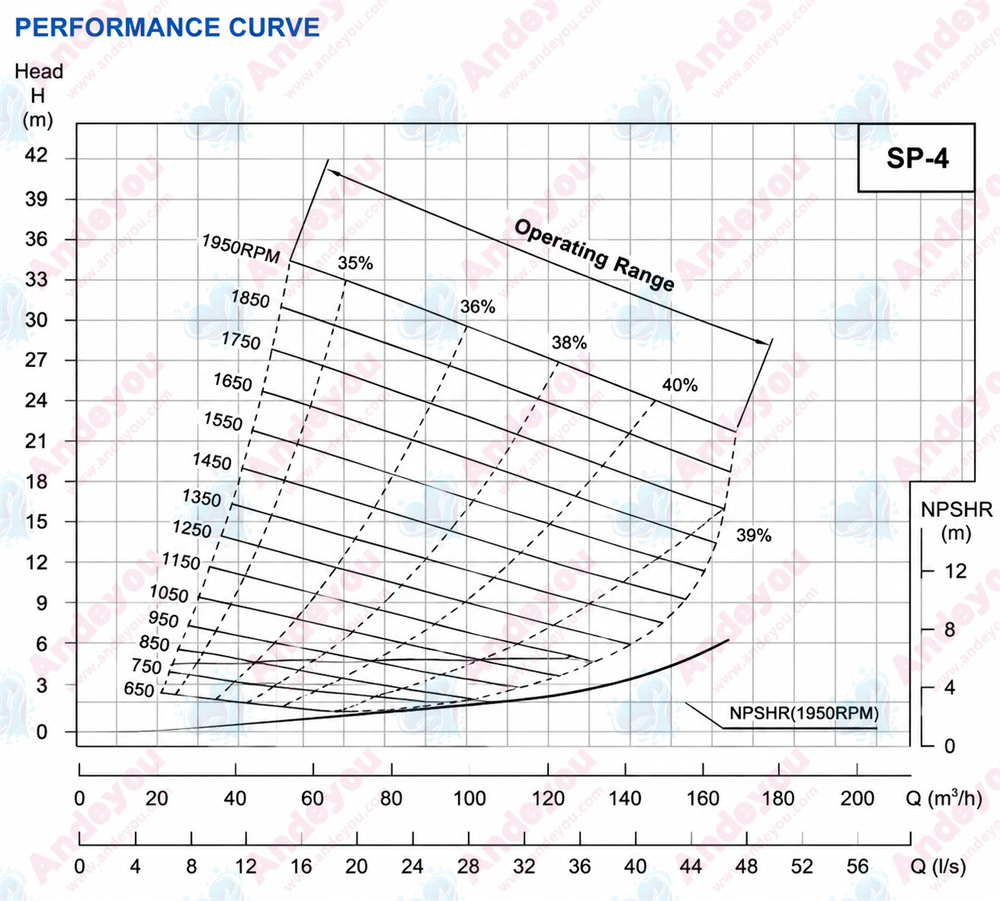

SP-4(650)	40	3	1.5	1.5	650	76	100×100
SP-4(750)	45	4	2.4	1.5	750	76	100×100
SP-4(850)	53	5	4.9	2.2	850	76	100×100
SP-4(950)	60	6	5.8	3	950	76	100×100
SP-4(1050)	65	7.5	6.7	5.5	1050	76	100×100
SP-4(1150)	72	9	7.3	5.5	1150	76	100×100
SP-4(1250)	80	10.5	7.6	7.5	1250	76	100×100
SP-4(1350)	85	12.5	7.6	11	1350	76	100×100
SP-4(1450)	100	13.5	7.6	11	1450	76	100×100
SP-4(1550)	110	15.5	7.6	15	1550	76	100×100
SP-4(1650)	115	18	7.6	18.5	1650	76	100×100
SP-4(1750)	120	20	7.6	22	1750	76	100×100
SP-4(1850)	130	22.5	7.6	30	1850	76	100×100
SP-4(1950)	135	25	7.6	30	1950	76	100×100

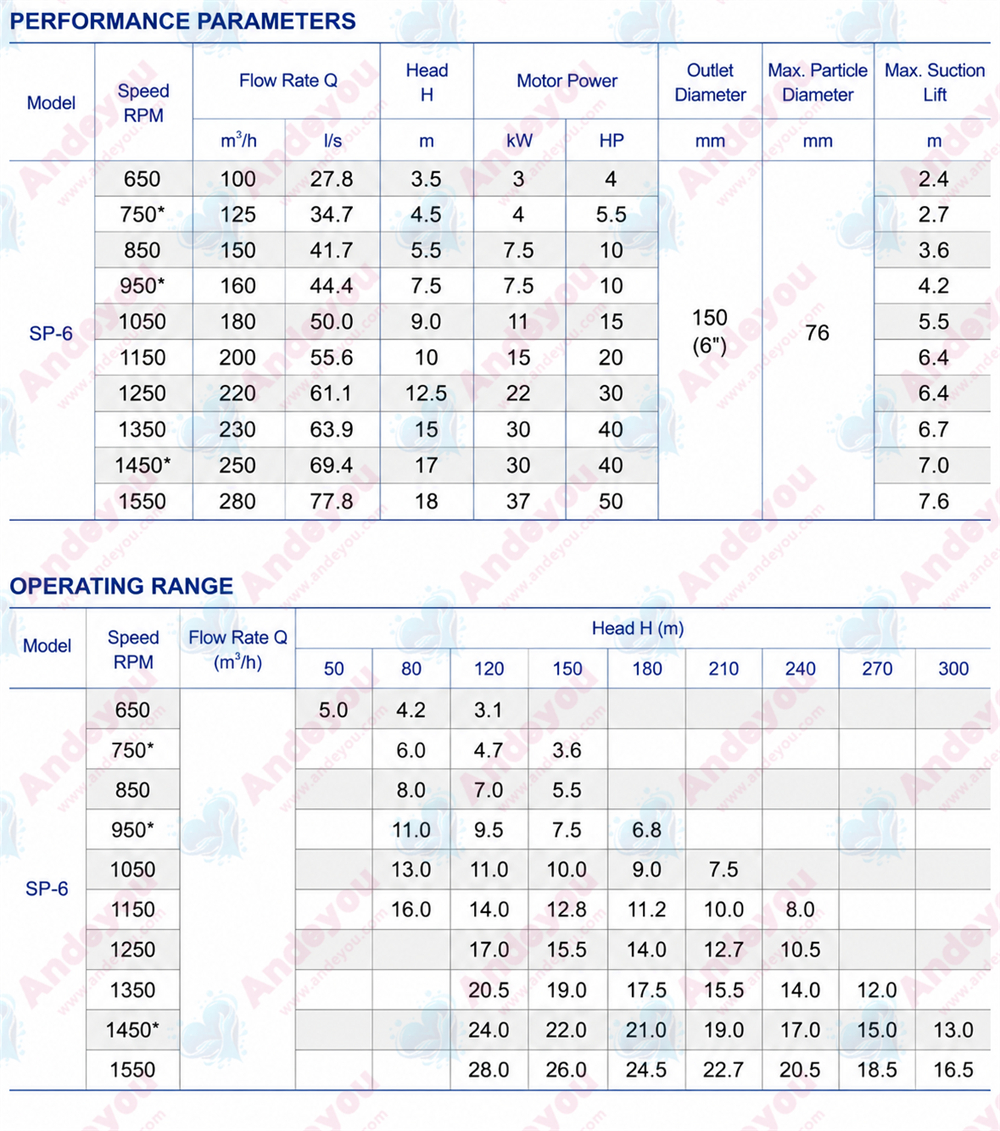

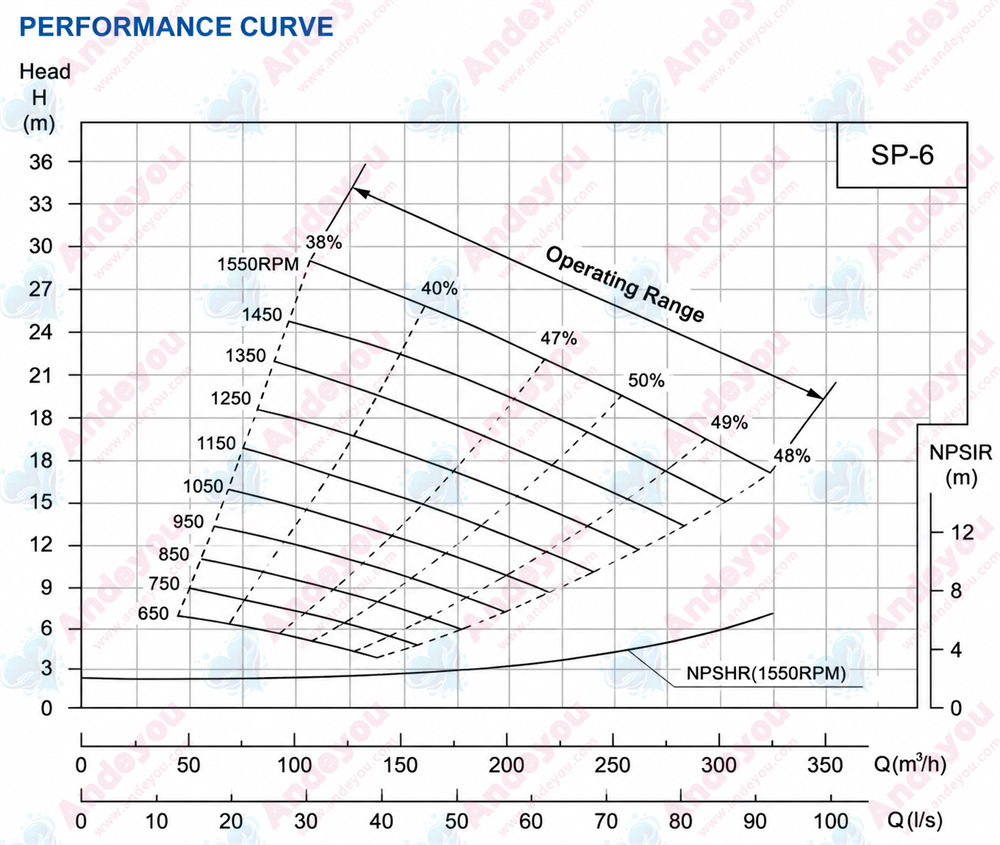

SP-6(650)	100	3.5	2.4	3	650	76	150×150
SP-6(750)	125	4.5	2.7	4	750	76	150×150
SP-6(850)	150	5.5	3.6	7.5	850	76	150×150
SP-6(950)	160	7.5	4.2	7.5	950	76	150×150
SP-6(1050)	180	9	5.5	11	1050	76	150×150
SP-6(1150)	200	10	6.4	15	1150	76	150×150
SP-6(1250)	220	12.5	6.4	22	1250	76	150×150
SP-6(1350)	230	15	6.7	30	1350	76	150×150
SP-6(1450)	250	17	7	30	1450	76	150×150
SP-6(1550)	280	18	7.6	37	1550	76	150×150

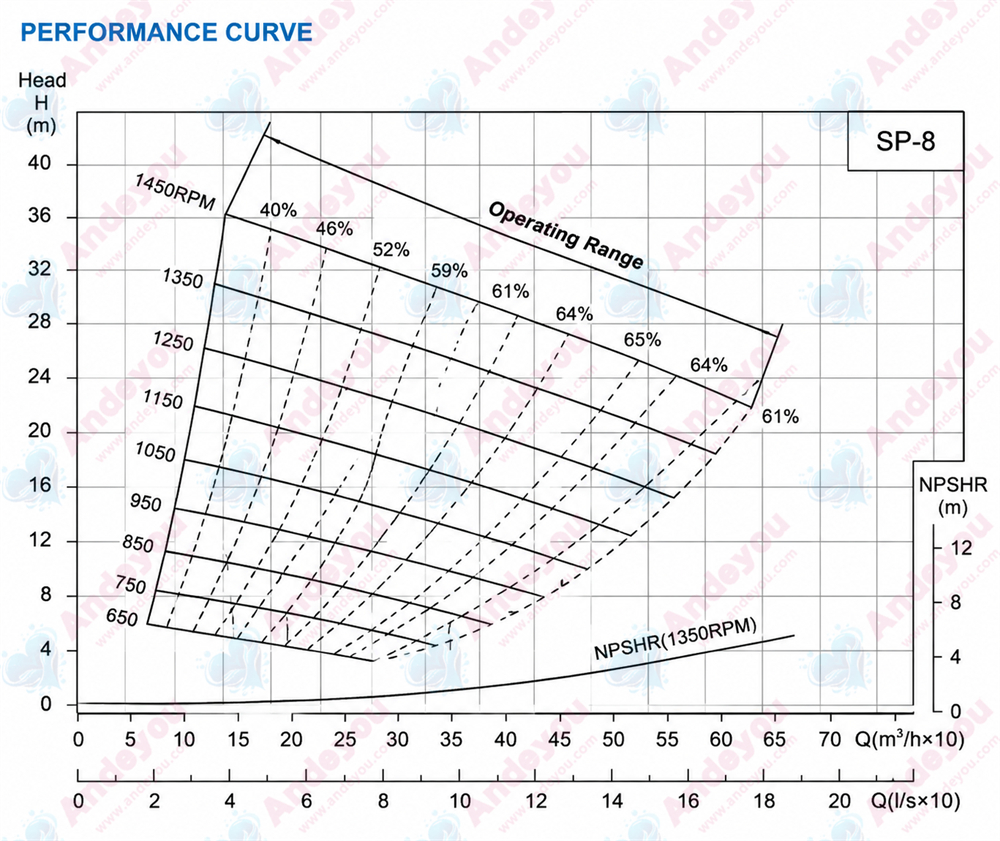

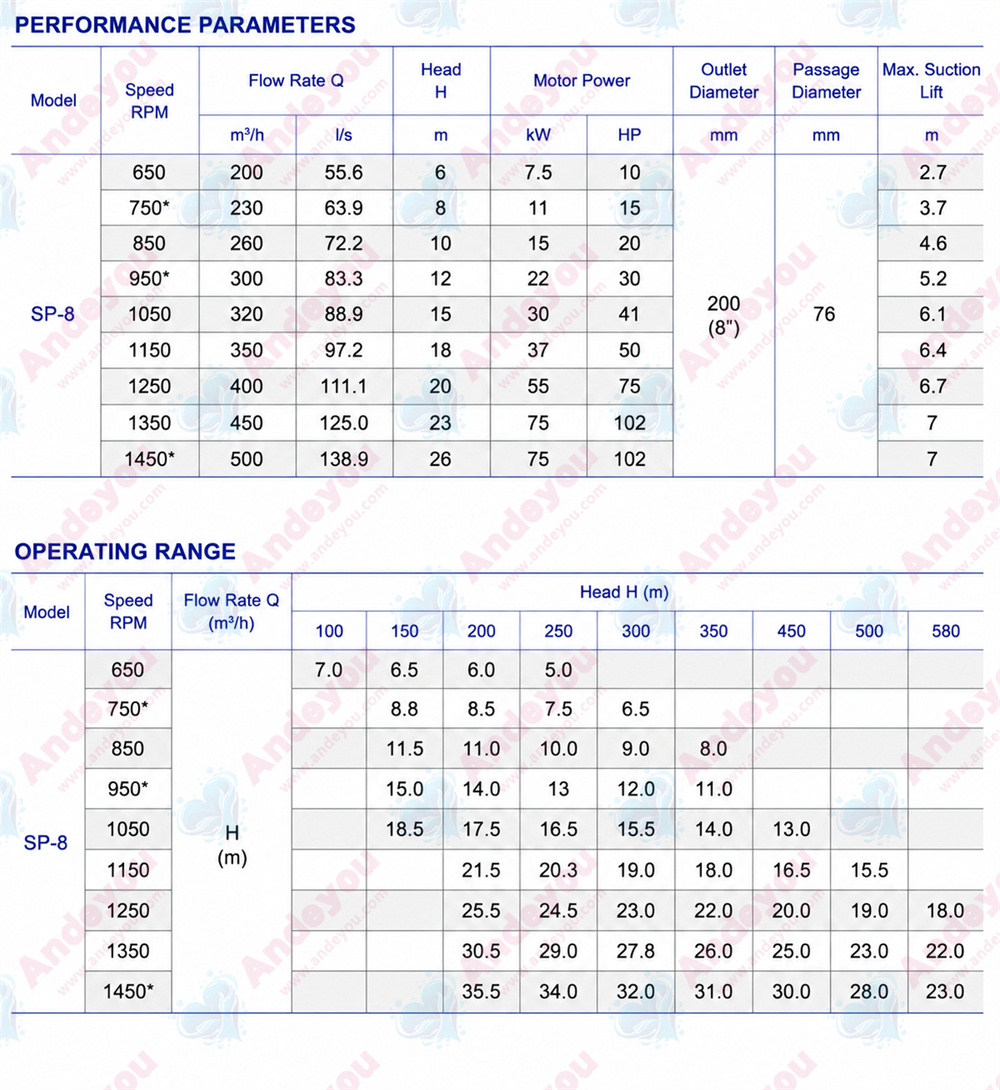

SP-8(650)	200	6	2.7	7.5	650	76	200×200
SP-8(750)	230	8	3.7	11	750	76	200×200
SP-8(850)	260	10	4.6	15	850	76	200×200
SP-8(950)	300	12	5.2	22	950	76	200×200
SP-8(1050)	320	15	6.1	30	1050	76	200×200
SP-8(1150)	350	18	6.4	37	1150	76	200×200
SP-8(1250)	400	20	6.7	55	1250	76	200×200
SP-8(1350)	450	23	7	75	1350	76	200×200
SP-8(1450)	500	26	7	75	1450	76	200×200

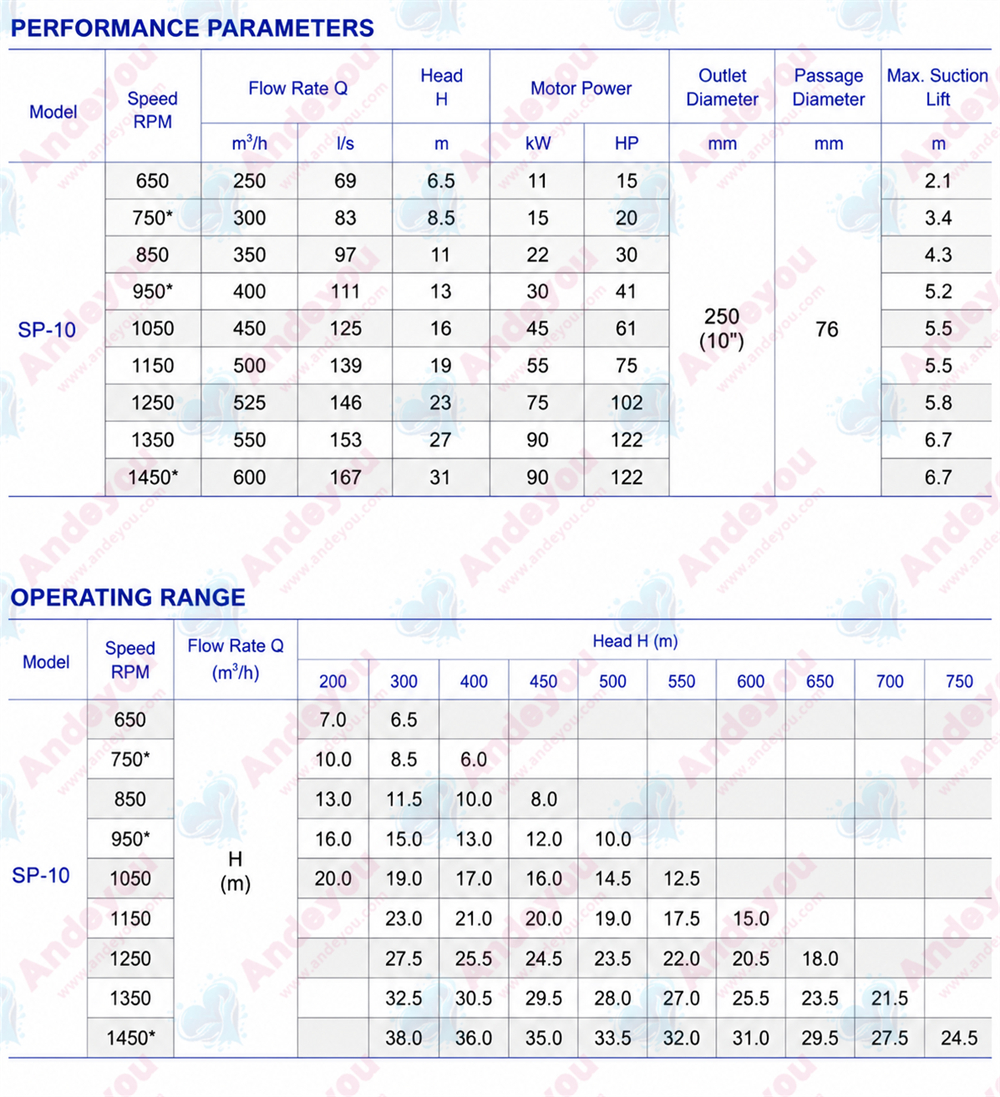

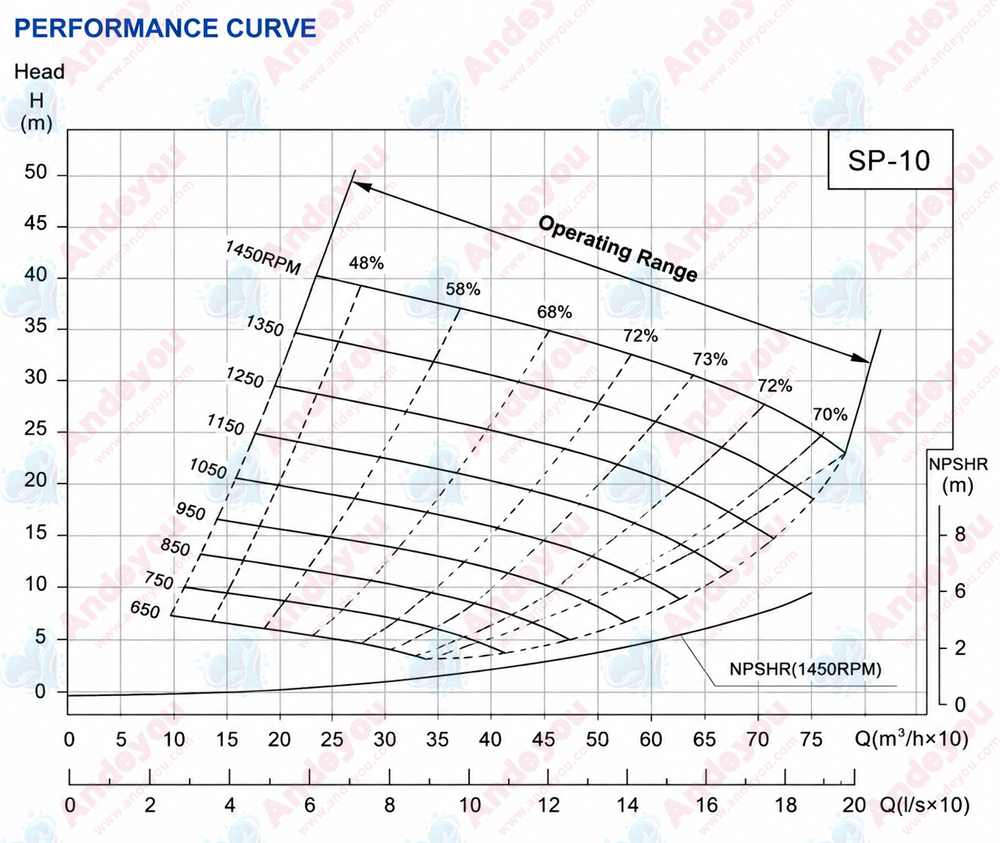

SP-10(650)	250	6.5	2.1	11	650	76	250×250
SP-10(750)	300	8.5	3.4	15	750	76	250×250
SP-10(850)	350	11	4.3	22	850	76	250×250
SP-10(950)	400	13	5.2	30	950	76	250×250
SP-10(1050)	450	16	5.5	45	1050	76	250×250
SP-10(1150)	500	19	5.5	55	1150	76	250×250
SP-10(1250)	525	23	5.8	75	1250	76	250×250
SP-10(1350)	550	27	6.7	90	1350	76	250×250
SP-10(1450)	600	31	6.7	90	1450	76	250×250
