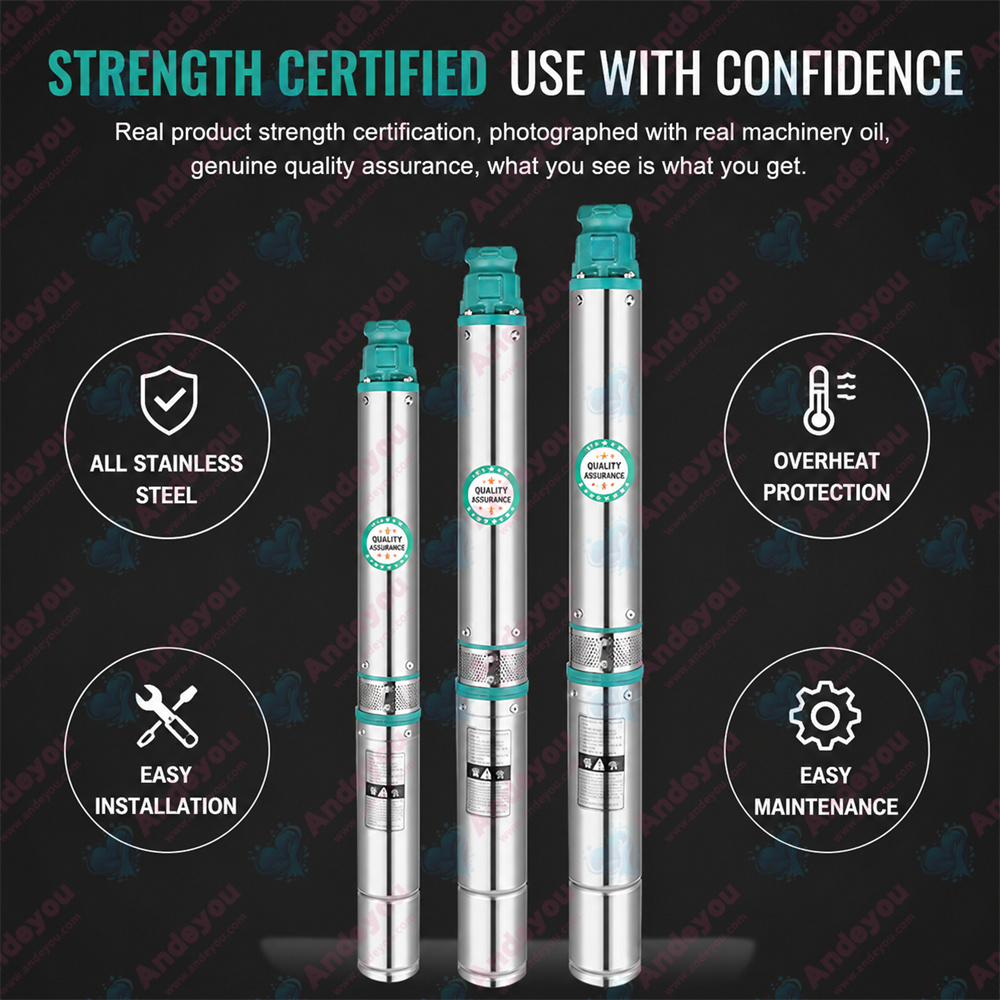

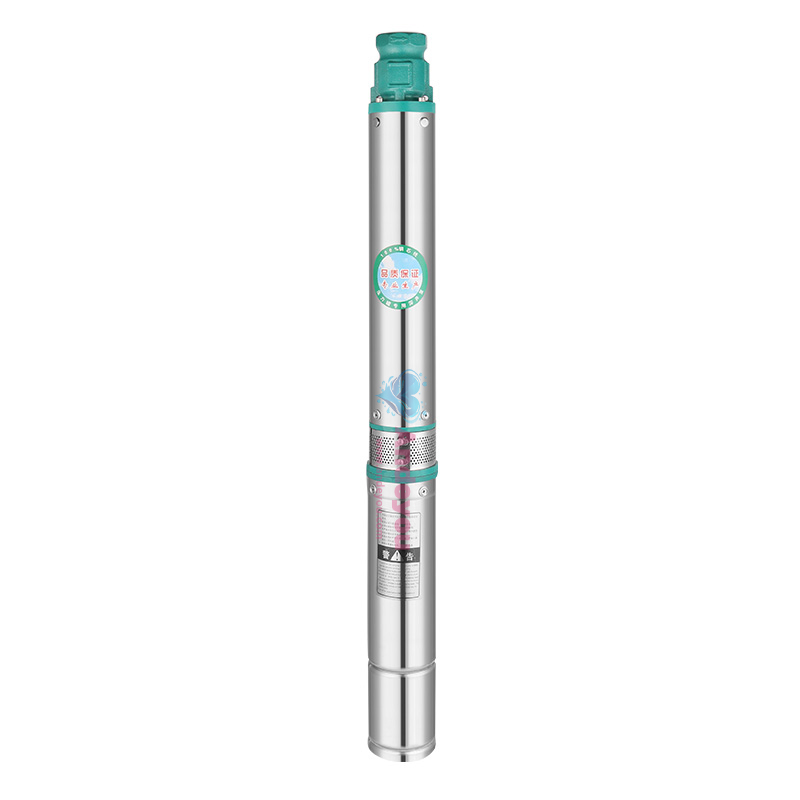

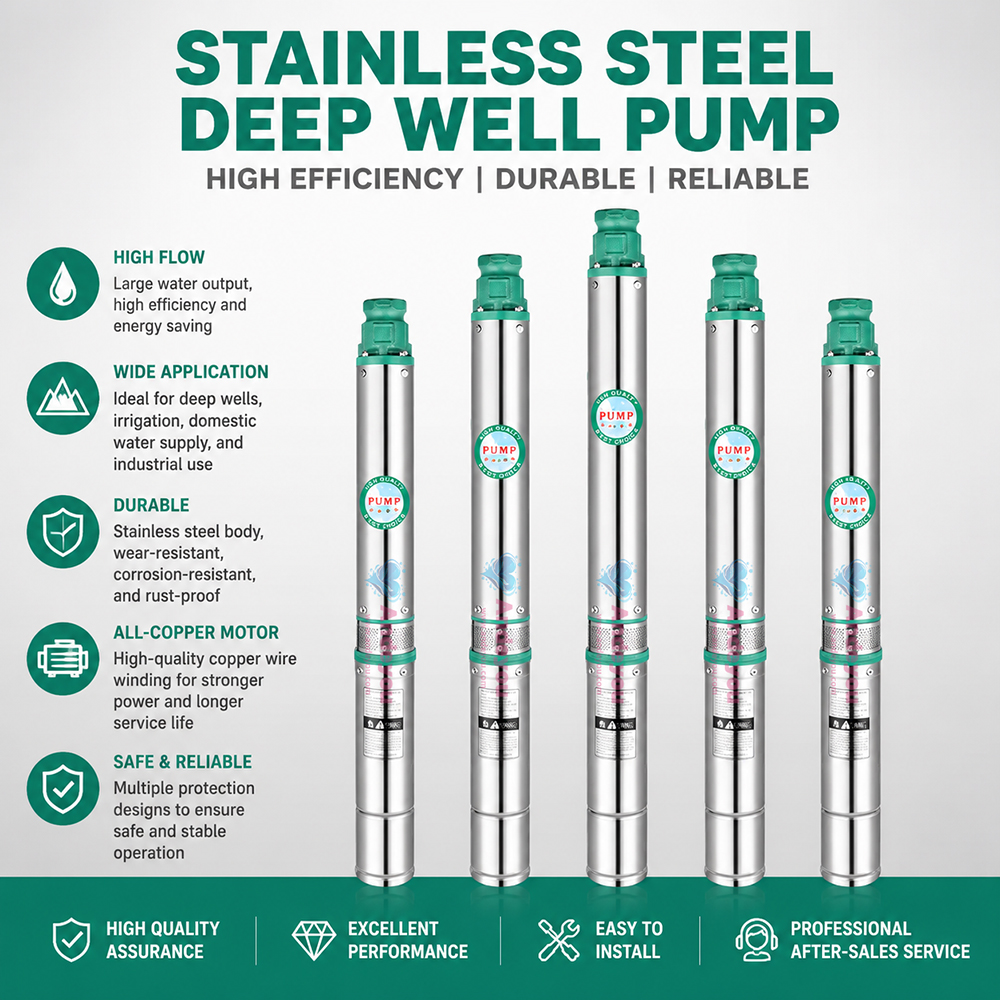

Samsung QJ Stainless Steel High-Pressure Deep-Well Pump

100QJD3-42/7-0.55、100QJ3-42/7-0.55、100QJD5-80/10-0.75、100QJ5-80/10-0.75、100QJD5-120/12-1.1、100QJ5-120/15-1.1、100QJD5-160/16-1.5、100QJ5-160/16-1.5、100QJD5-180/22-2.2、100QJ5-180/22-2.2、100QJD5-240/25-3、100QJ5-240/25-3

The Samsung QJ stainless steel high-pressure deep-well pump is constructed from high-quality stainless steel,offering superior corrosion resistance suitable for harsh environments,including water with high salinity or acidic/alkaline properties.Its high-pressure multistage centrifugal design meets the demands of deep-well water extraction,agricultural irrigation,and industrial water supply.The high-efficiency,energy-saving motor ensures stable operation,
Function
Parameters
Size
Video Introduction

Function

The Sanxing QJ stainless steel high-pressure deep-well pump is a premium piece of equipment designed specifically for deep-well water extraction, boasting significant advantages in materials, performance, and adaptability.

I. Superior Materials for Lasting Durability

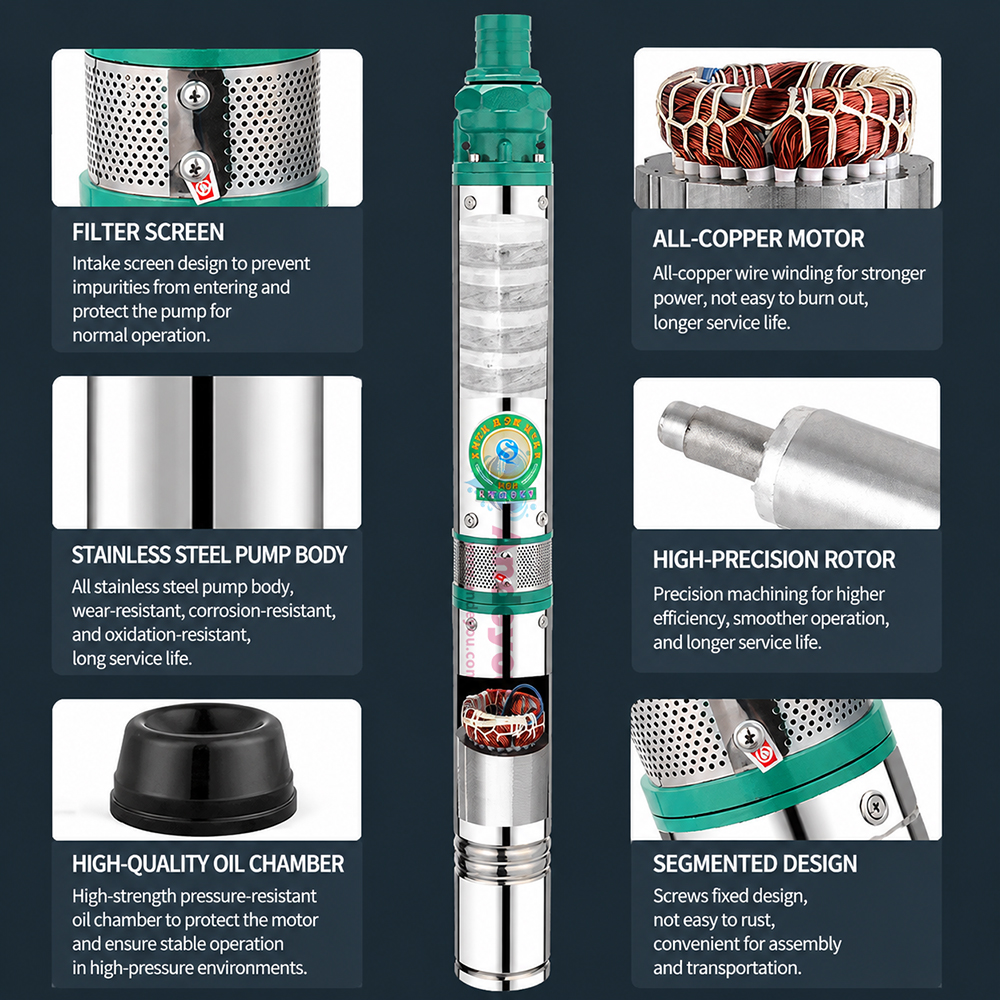

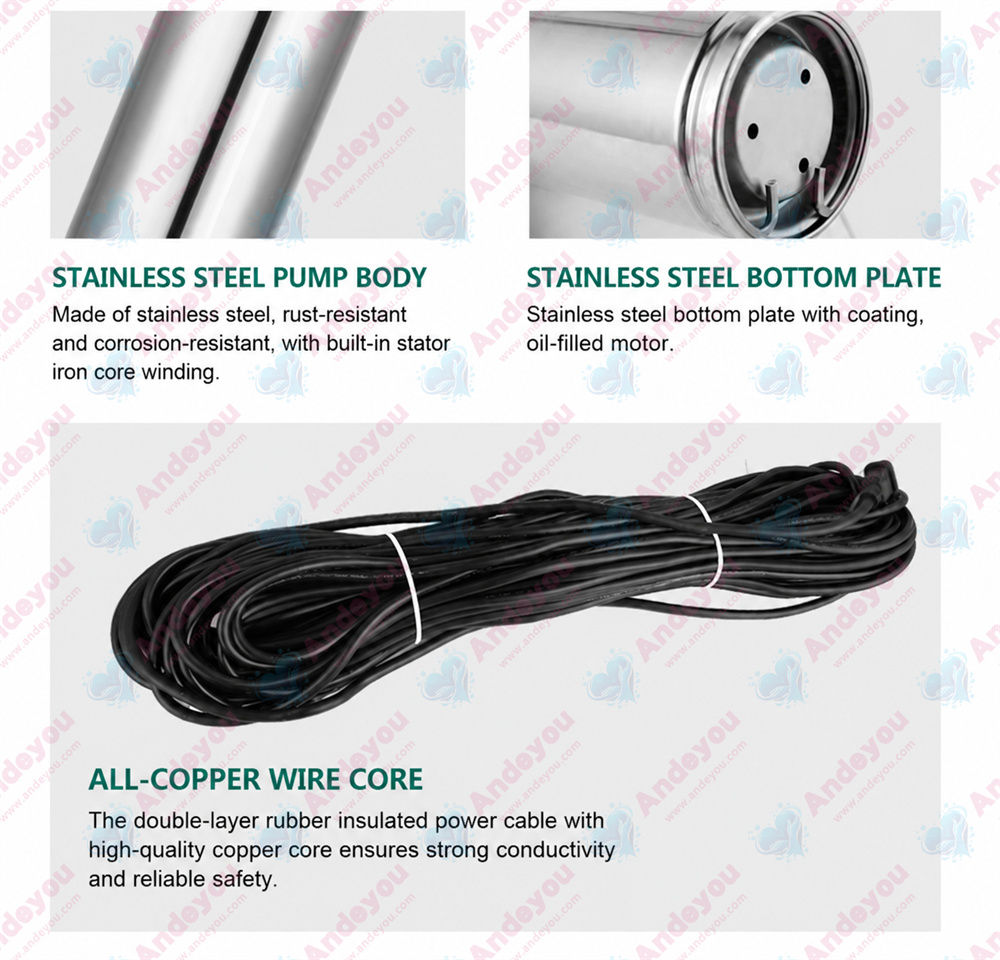

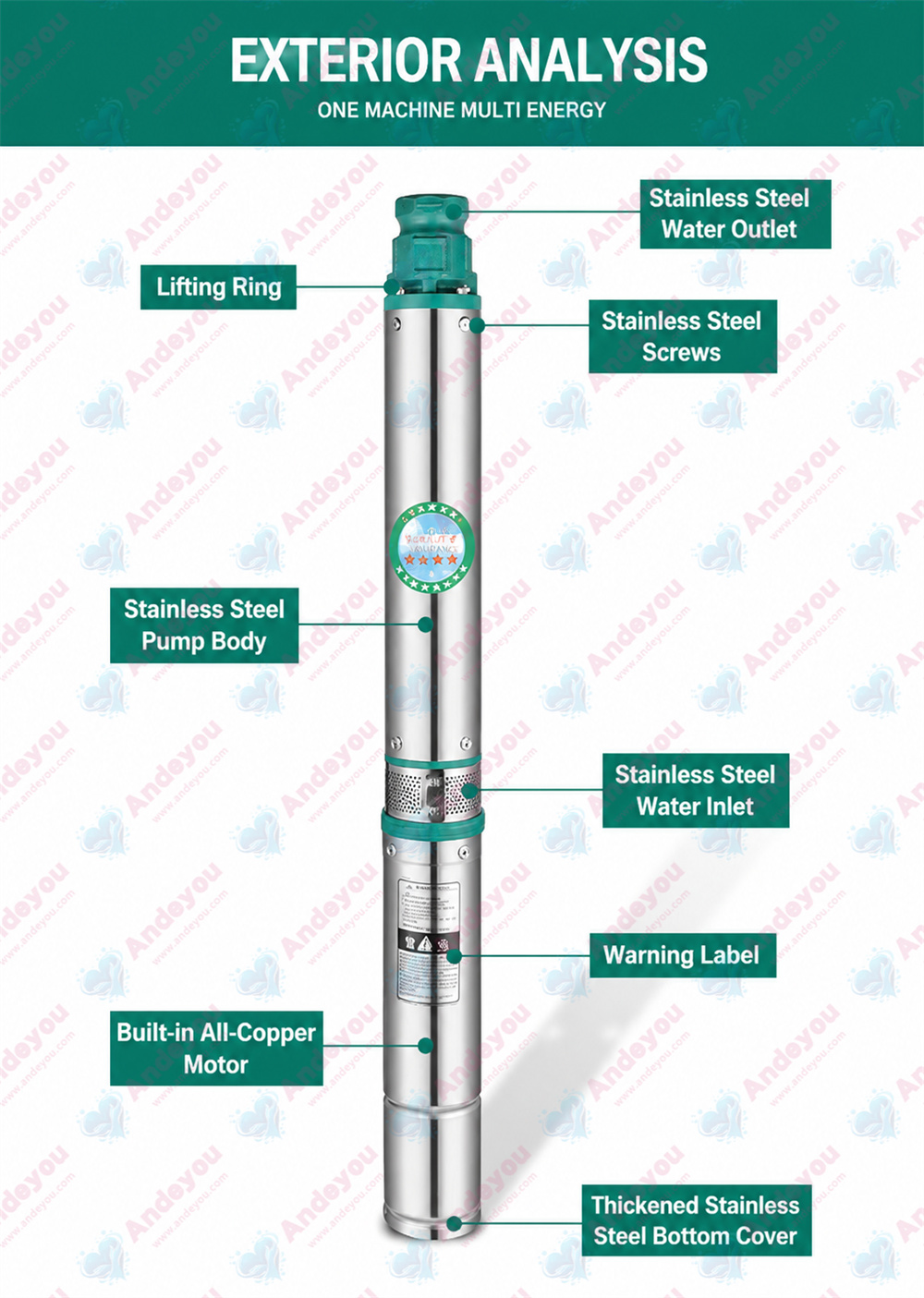

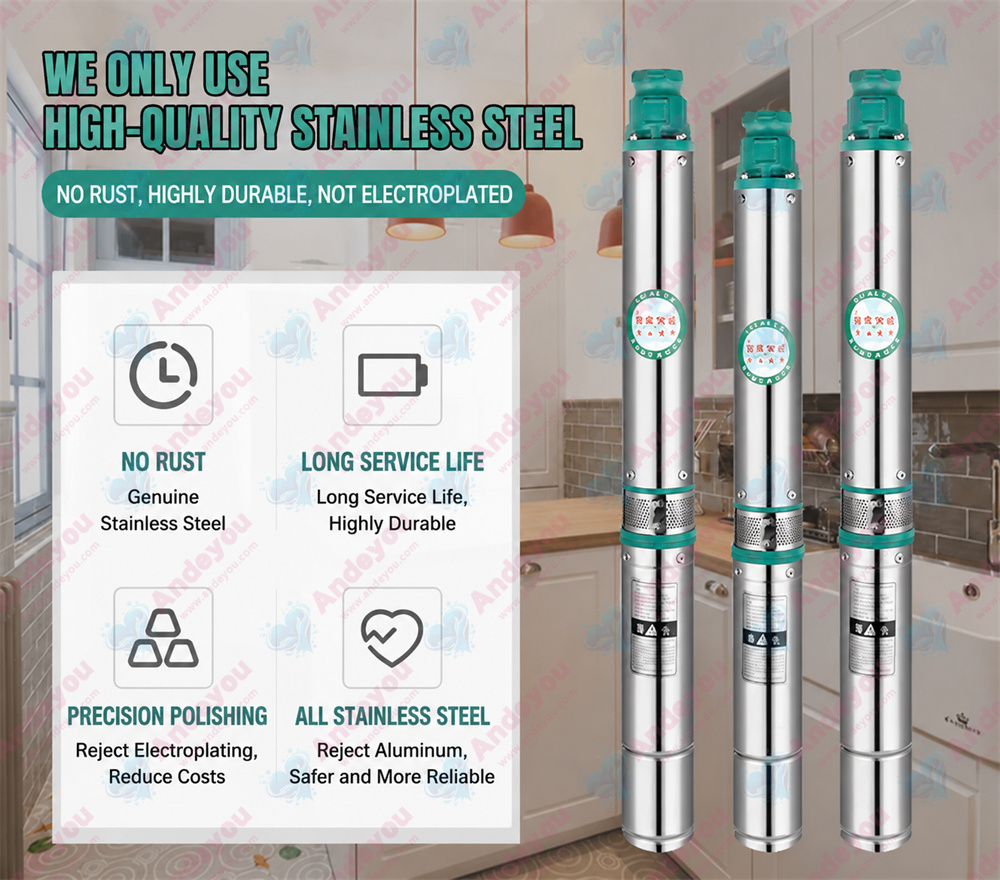

Key components of the Sanxing QJ pump—such as the pump body and shaft—are constructed from high-quality stainless steel. This material offers excellent corrosion resistance and effectively withstands abrasion from impurities in the water, making it suitable for complex water quality environments. The use of stainless steel significantly extends the pump's service life while reducing the frequency and cost of maintenance.

II. High-Pressure Design to Meet Diverse Extraction Needs

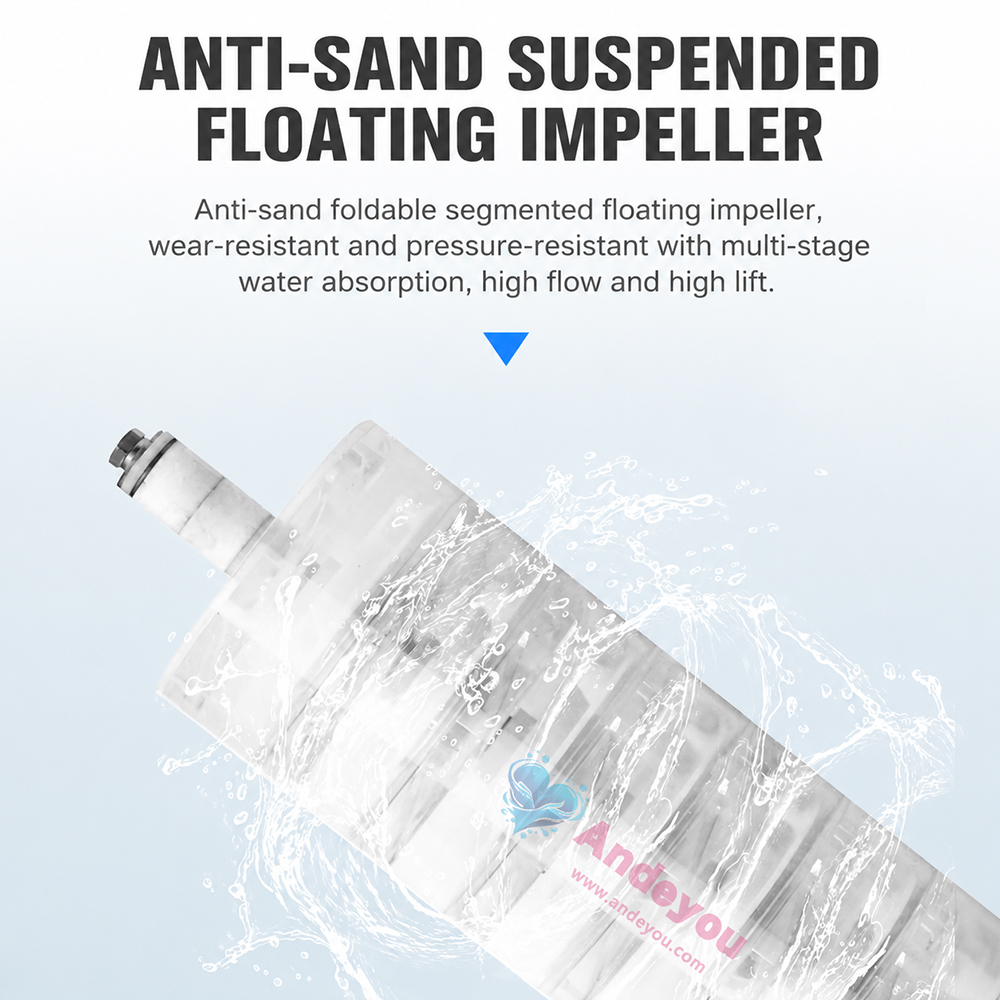

Featuring a high-pressure design and powerful lift capabilities, this pump meets water extraction requirements across various depths. It handles tasks with ease, ranging from agricultural irrigation and municipal water supply to mine dewatering and industrial water usage. Its high-pressure performance ensures stable water delivery to the surface or elevated locations—even from deep wells—guaranteeing a continuous and steady water supply. Additionally, the pump offers a wide flow rate range, allowing users to flexibly select the appropriate model for diverse application scenarios.

III. High Efficiency and Energy Savings to Reduce Operating Costs

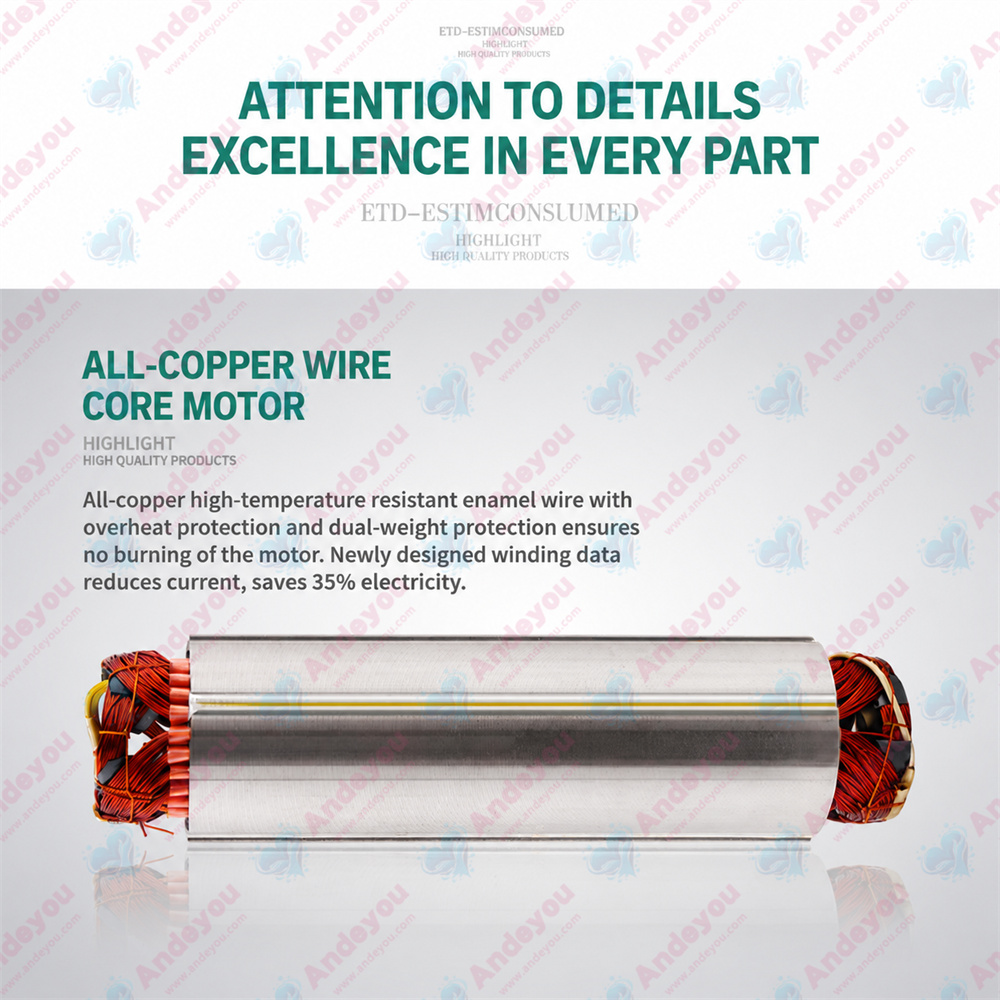

Equipped with a high-efficiency, energy-saving motor and an advanced hydraulic model design, the Sanxing QJ pump achieves efficient energy conversion and minimizes energy loss during operation. Compared to traditional deep-well pumps, it offers significantly higher operating efficiency, effectively lowering energy consumption and electricity costs. This energy-saving advantage becomes even more pronounced during long-term operation, delivering substantial economic benefits to users while aligning with trends toward energy conservation and environmental protection.

IV. Stability and Reliability for Continuous Operation

Manufactured using precision techniques and strict quality control standards, the pump ensures exceptional stability and reliability. Its well-engineered structure minimizes vibration and noise during operation, reducing the impact on the surrounding environment. Even in harsh working conditions, it maintains continuous, efficient operation, providing users with a reliable water supply.


With its superior materials, high-pressure performance, energy efficiency, reliability, and ease of installation and maintenance, the Sanxing QJ stainless steel high-pressure deep-well pump is an excellent choice for deep-well water extraction, offering users an efficient, reliable, and cost-effective water supply solution.

Parameters

Product Model Voltage Rated flow rate (m³/h) Rated head (m) Power (kW) caliber Rotational speed (r/min)
100QJD3-42/7-0.55 220 3 42 0.55 1寸2 2860
100QJ3-42/7-0.55 380 3 42 0.55 1寸2 2860
100QJD5-80/10-0.75 220 5 80 0.75 1寸2 2860
100QJ5-80/10-0.75 380 5 80 0.75 1寸2 2860
100QJD5-120/12-1.1 220 5 120 1.1 1寸2 2860
100QJ5-120/15-1.1 380 5 120 1.1 1寸2 2860
100QJD5-160/16-1.5 220 5 160 1.5 1寸2 2860
100QJ5-160/16-1.5 380 5 160 1.5 1寸2 2860
100QJD5-180/22-2.2 220 5 180 2.2 1寸2 2860
100QJ5-180/22-2.2 380 5 180 2.2 1寸2 2860
100QJD5-240/25-3 220 5 240 3 1寸2 2860
100QJ5-240/25-3 380 5 240 3 1寸2 2860
