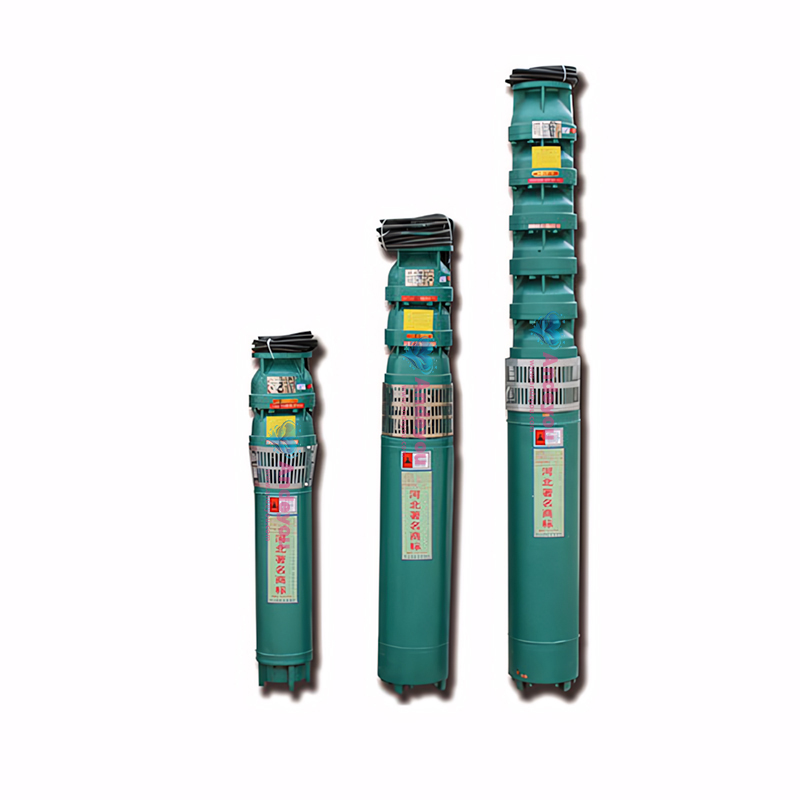

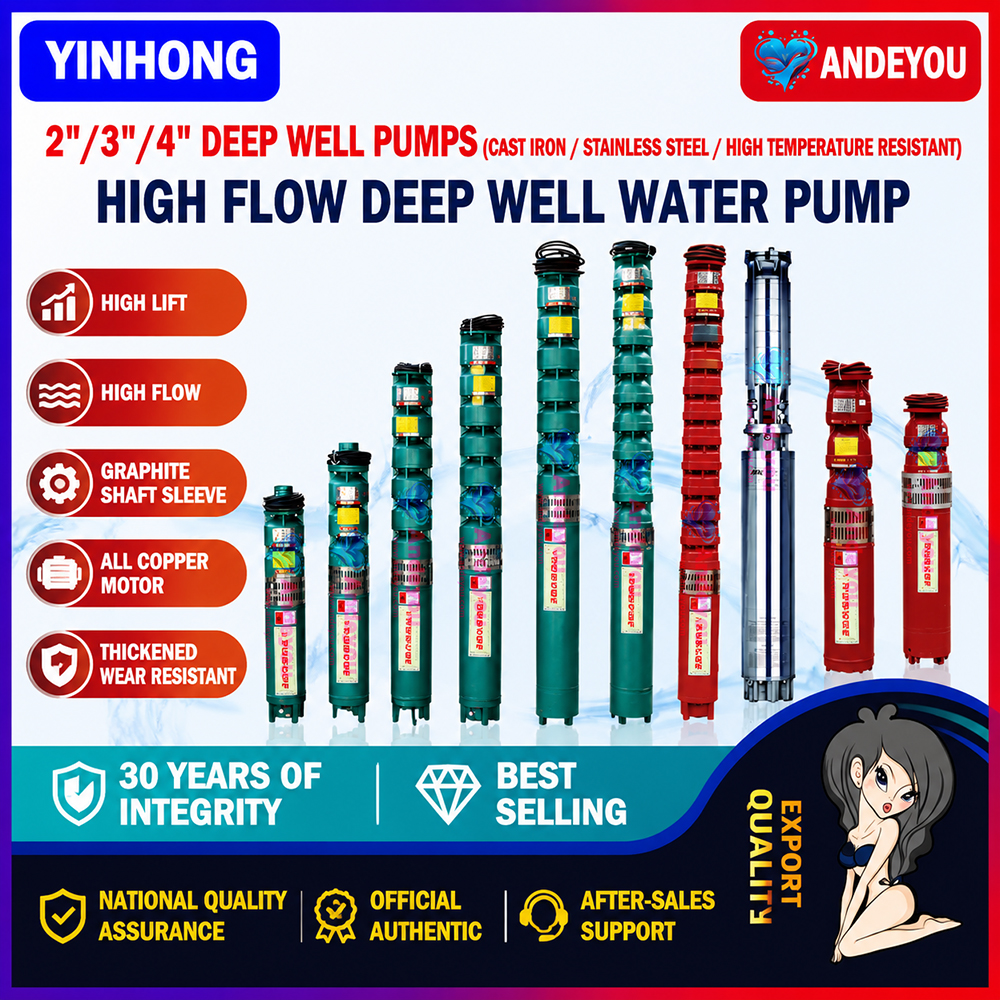

Yinhong QJ Cast Iron Deep-Well Pump

175QJ10-90-6、175QJ10-120-8、175QJ10-165、175QJ20-30-2、175QJ20-52-4、175QJ20-78-6、175QJ50-26-2、175QJ50-39-3、200QJ20-52-4、200QJ20-78-6、200QJ40-95-5、200QJ50-39-3、200QJ50-52-4、200QJ50-65-5、200QJ50-78-6、200QJ50-104-8、200QJ80-44-4、200QJ80-66-6、200QJ80-77-7、200QJ80-88-8、200QJ80-99-9、250QJ100-18-1、250QJ200-40-2

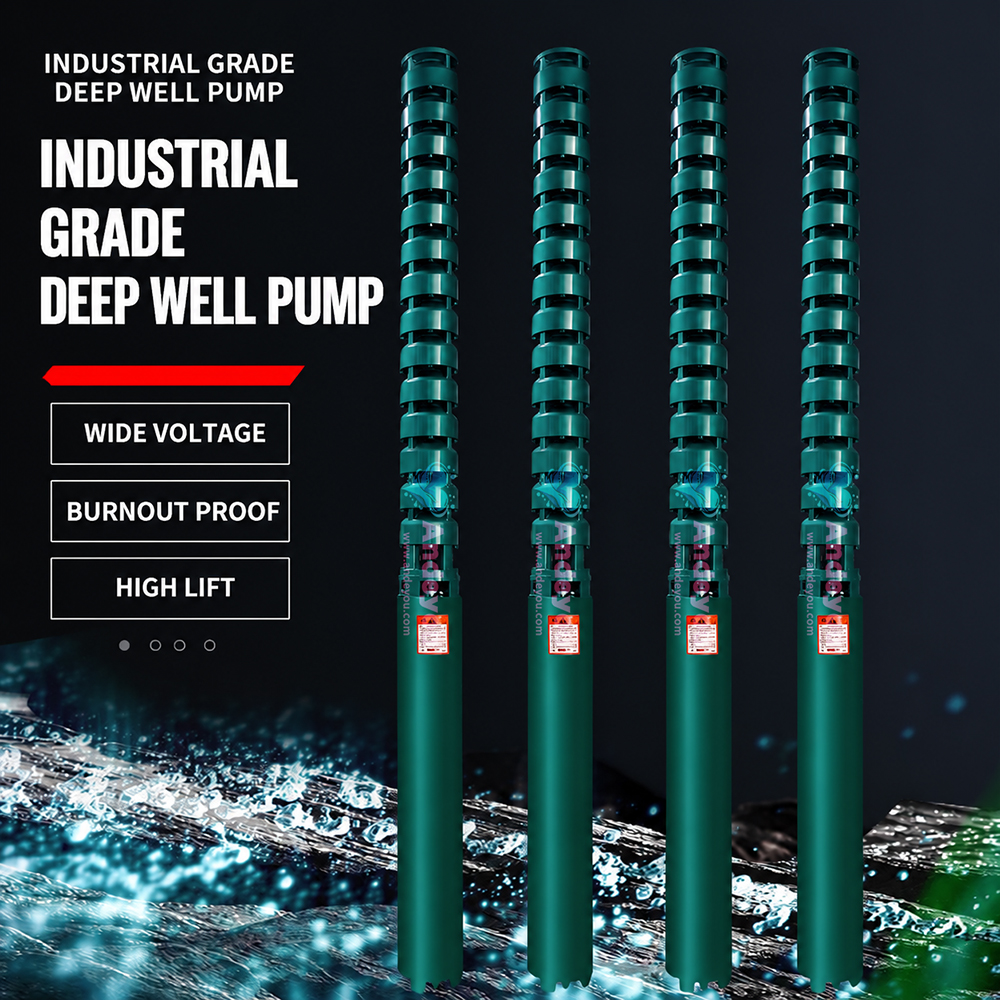

The Yinhong QJ cast-iron deep-well pump is constructed from high-strength cast iron,ensuring rugged durability,it is suitable for deep-well water extraction,agricultural irrigation,and industrial water supply.Featuring a multi-stage centrifugal design,it offers a delivery head of up to 220 meters and a flow rate of 5–10 m³/h,combining high efficiency and energy savings with stable operation.Resistant to wear and corrosion,it adapts to diverse water quality conditions

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

The Yinhong QJ cast-iron deep-well pump series (including models such as 125QJ, 150QJ, 175QJ, 200QJ, 250QJ, and 300QJ) is high-efficiency water-lifting equipment designed specifically for extracting water from deep wells.

Customization is available to meet specific needs (options include all-stainless steel 316/304 construction, hot-water pumps for temperatures up to 200°C, and pumps for shallow-water applications).

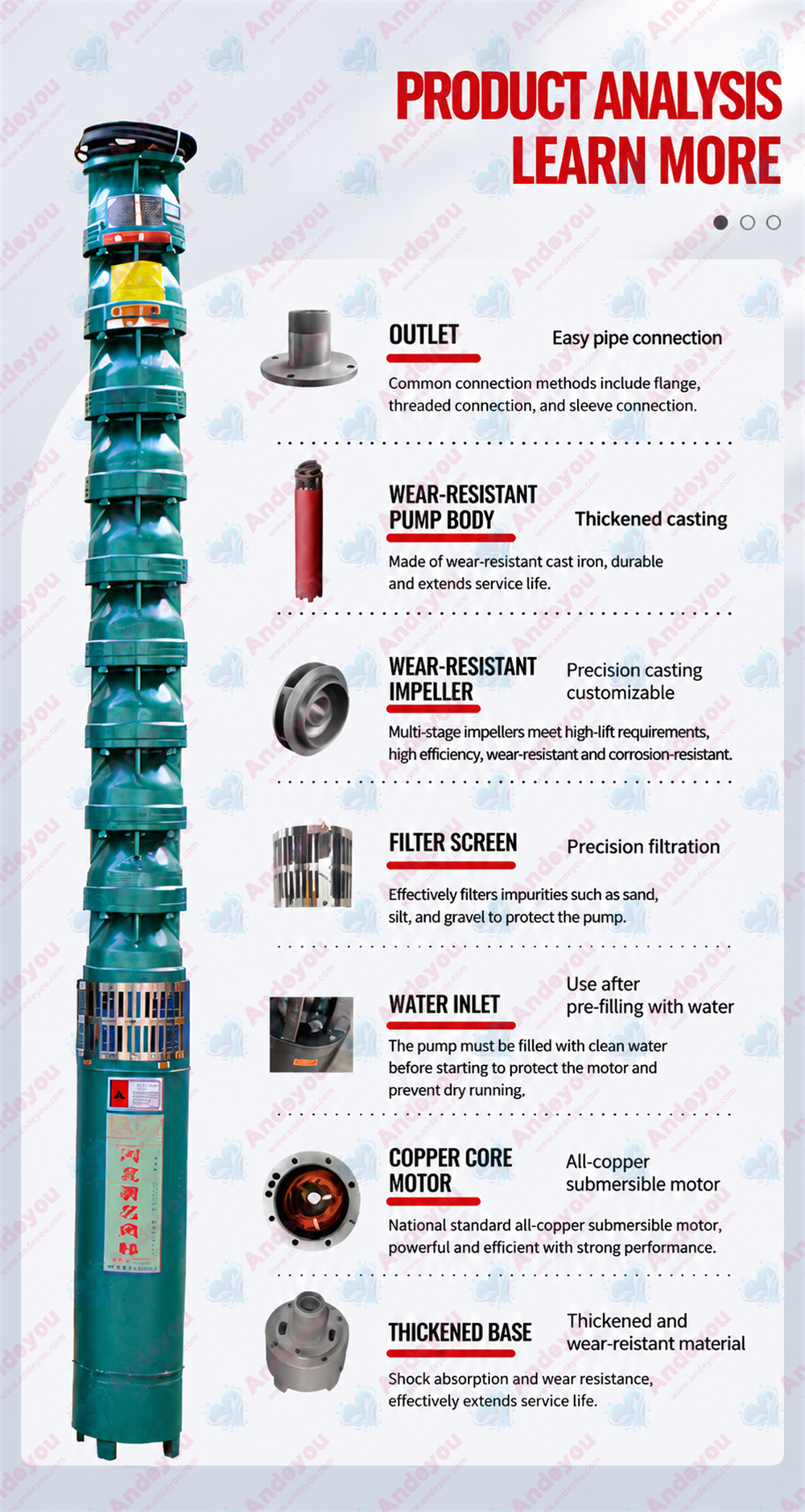

I. Structural Design Advantages

Features an integrated, direct-coupled motor and pump design; the entire unit operates submerged, offering a compact structure and easy installation and maintenance.

Constructed from high-strength cast iron, providing both corrosion and wear resistance; particularly suitable for water sources with high sand content.

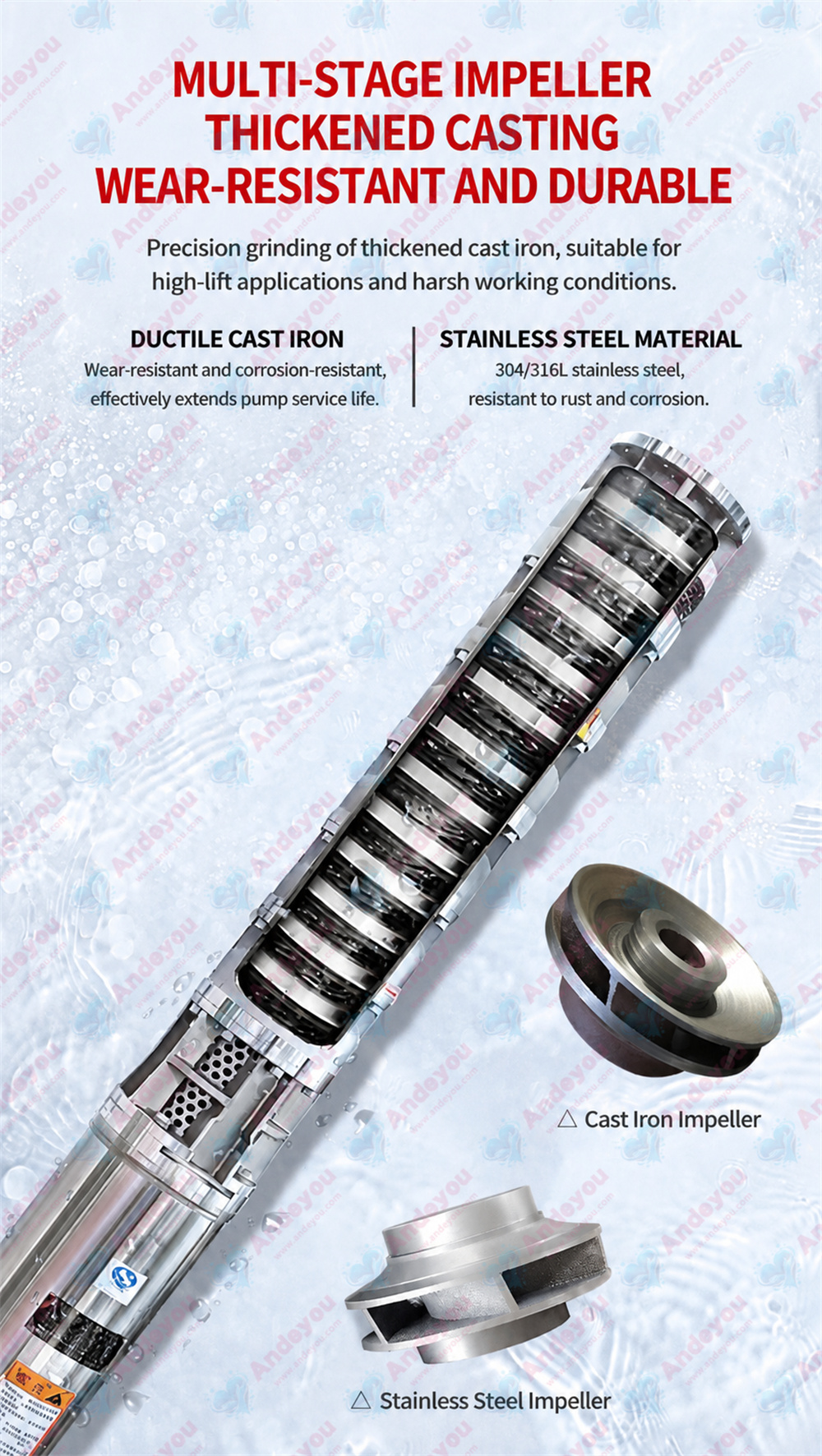

Utilizes a multi-stage centrifugal impeller structure; the 175QJ model offers a head of up to 500 meters, while the 300QJ model delivers a maximum flow rate of 300 m³/h.

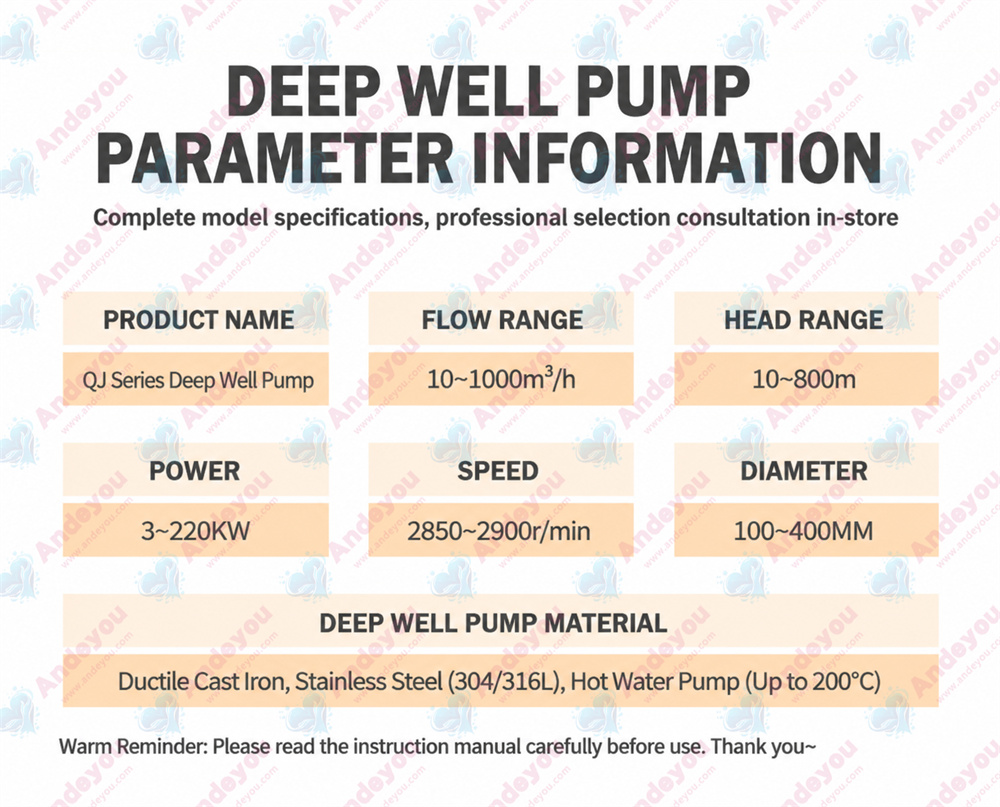

II. Performance Parameters and Features

Wide flow rate range:

125QJ Series: 5–32 m³/h

150QJ Series: 5–63 m³/h

175QJ Series: 5–50 m³/h

200QJ Series: 20–100 m³/h

250QJ Series: 40–240 m³/h

300QJ Series: 100–370 m³/h

Compatible with various well diameters:

125QJ model fits a minimum well diameter of 125 mm. The 300QJ unit has a maximum outer diameter of 184 mm.

It operates at a stable speed of 2850–2920 rpm, with compatible motor power options ranging from 3 kW to 185 kW.

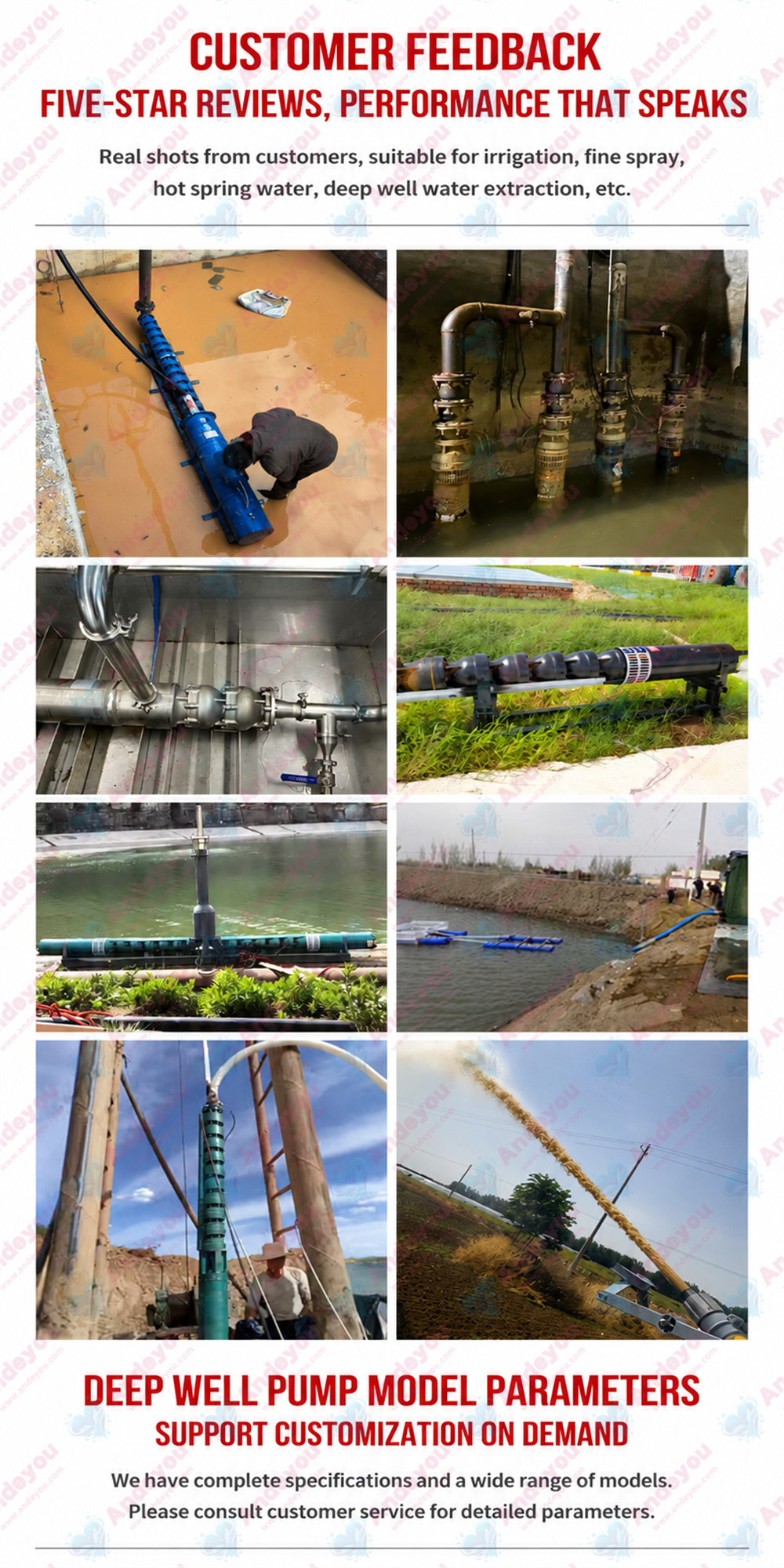

III. Application Characteristics

Agricultural sector: Meets water requirements for farmland irrigation and sprinkler systems; the 175QJ model is particularly suitable for irrigating large crop areas.
Industrial sector: Models 200QJ and above are suitable for industrial applications such as mine dewatering and petrochemical processing; the 250QJ model offers a maximum single-unit flow rate of 240 m³/h.
Civil sector: The 150QJ series is suitable for rural well-water supply, while the 300QJ series provides stable water pressure for high-rise buildings.

IV. Operational and Maintenance Advantages

No special requirements for well casings; standard water delivery pipes suffice to meet pressure needs.
No need to construct a dedicated pump house, saving on infrastructure costs.

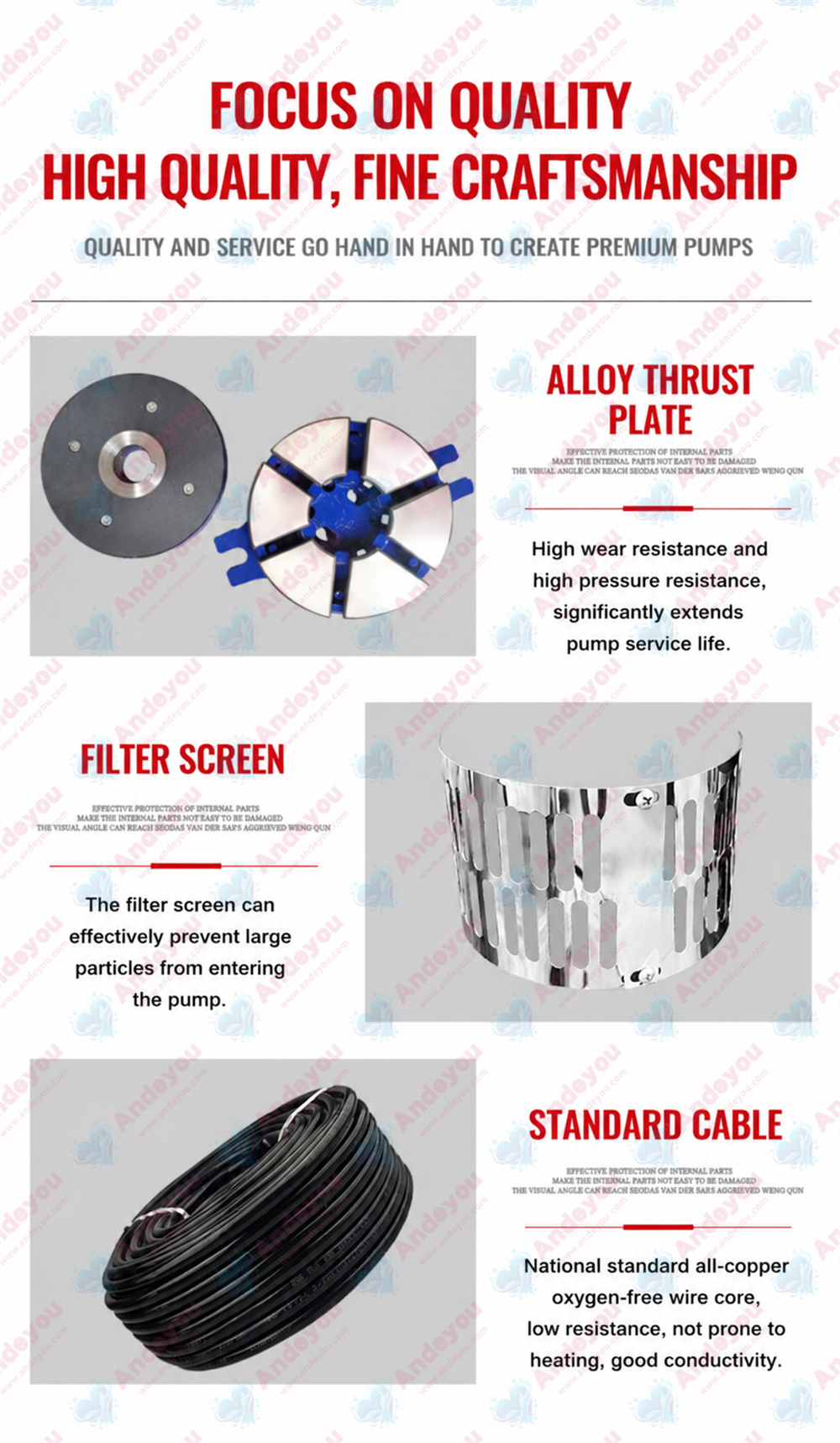

Features a sand-resistant seal design to extend bearing service life.

This product series utilizes a modular design to offer a wide range of models, forming a comprehensive lineup from 150QJ to 300QJ; users can select the appropriate model based on actual well depth (50–600 meters) and flow rate requirements. Notably, the 200QJ series—with a flow range of 20–80 m³/h and a head range of 10–400 meters—has become the flagship model with the highest market demand. All models are equipped with overheat protection devices to ensure reliability during prolonged, continuous operation.

Parameters

Model	Voltage	Rated flow rate (m³/h)	Rated head (m)	Power (kW)	caliber
125QJ5-81	380	5	81	3	40
125QJ5-108	380	5	108	4	40
125QJ5-153	380	5	153	5.5	40
125QJ5-216	380	5	216	7.5	40
125QJ5-261	380	5	261	9.2	40
125QJ5-315	380	5	315	11	40
125QJ5-369	380	5	369	13	40
125QJ10-48	380	10	48	3	50
125QJ10-64	380	10	64	4	50
125QJ10-88	380	10	88	5.5	50
125QJ10-128	380	10	128	7.5	50
125QJ10-160	380	10	160	9.2	50
125QJ10-184	380	10	184	11	50
125QJ10-216	380	10	216	13	50
125QJ15-48	380	15	48	4	50
125QJ15-64	380	15	64	5.5	50
125QJ15-88	380	15	88	7.5	50
125QJ15-112	380	15	112	9.2	50
125QJ15-128	380	15	128	11	50
125QJ15-160	380	15	160	13	50
125QJ20-35	380	20	35	4	50
125QJ20-49	380	20	49	5.5	50
125QJ20-70	380	20	70	7.5	50
125QJ20-84	380	20	84	9.2	50
125QJ20-105	380	20	105	11	50
125QJ20-119	380	20	119	13	50
125QJ20-140	380	20	140	15	50
125QJ32-36	380	32	36	5.5	60
125QJ32-48	380	32	48	7.5	60
125QJ32-60	380	32	60	9.2	60
125QJ32-66	380	32	66	11	60
125QJ32-78	380	32	78	13	60
150QJ5-100	380	5	100	3	40
150QJ5-150	380	5	150	4	40
150QJ5-200	380	5	200	5.5	40
150QJ5-250	380	5	250	7.5	40
150QJ5-300	380	5	300	9.2	40
150QJ10-50	380	10	50	3	50
150QJ10-70	380	10	70	4	50
150QJ10-80	380	10	80	4	50
150QJ10-100	380	10	100	5.5	50
150QJ10-150	380	10	150	7.5	50
150QJ10-180	380	10	180	9.2	50
150QJ10-200	380	10	200	11	50
150QJ10-250	380	10	250	13	50
150QJ10-300	380	10	300	15	50
150QJ15-36	380	15	36	3	50
150QJ15-54	380	15	54	4	50
150QJ15-72	380	15	72	5.5	50
150QJ15-81	380	15	81	7.5	50
150QJ15-99	380	15	99	7.5	50
150QJ15-108	380	15	108	9.2	50
150QJ15-117	380	15	117	9.2	50
150QJ15-135	380	15	135	11	50
150QJ15-153	380	15	153	11	50
150QJ15-180	380	15	180	15	50
150QJ15-198	380	15	198	15	50
150QJ15-216	380	15	216	18.5	50
150QJ15-234	380	15	234	18.5	50
150QJ20-26	380	20	26	3	50
150QJ20-33	380	20	33	3	50
150QJ20-39	380	20	39	4	50
150QJ20-52	380	20	52	5.5	50
150QJ20-72	380	20	72	7.5	50
150QJ20-78	380	20	78	7.5	50
150QJ20-85	380	20	85	9.2	50
150QJ20-98	380	20	98	9.2	50
150QJ20-104	380	20	104	11	50
150QJ20-111	380	20	111	11	50
150QJ20-137	380	20	137	15	50
150QJ20-143	380	20	143	15	50
150QJ20-156	380	20	156	15	50
150QJ20-176	380	20	176	18.5	50
150QJ20-182	380	20	182	18.5	50
150QJ32-18	380	32	18	3	65
150QJ32-24	380	32	24	4	65
150QJ32-30	380	32	30	5.5	65
150QJ32-36	380	32	36	5.5	65
150QJ32-42	380	32	42	7.5	65
150QJ32-54	380	32	54	9.2	65
150QJ32-66	380	32	66	11	65
150QJ32-72	380	32	72	13	65
150QJ32-84	380	32	84	13	65
150QJ32-90	380	32	90	15	65
150QJ32-96	380	32	96	15	65
150QJ32-108	380	32	108	18.5	65
150QJ32-130	380	32	130	22	65
150QJ40-36	380	40	36	7.5	65
150QJ40-42	380	40	42	9.2	65
150QJ40-54	380	40	54	11	65
150QJ40-72	380	40	72	13	65
150QJ40-84	380	40	84	15	65
150QJ40-96	380	40	96	18.5	65
150QJ40-108	380	40	108	22	65
150QJ50-32	380	50	32	7.5	80
150QJ50-39	380	50	39	9.2	80
150QJ50-45	380	50	45	11	80
150QJ50-52	380	50	52	13	80
150QJ50-65	380	50	65	15	80
150QJ50-78	380	50	78	18.5	80
150QJ50-91	380	50	91	22	80
150QJ63-12	380	63	12	4	80
150QJ63-18	380	63	18	7.5	80
150QJ63-30	380	63	30	9.2	80
150QJ63-36	380	63	36	11	80
150QJ63-42	380	63	42	13	80
150QJ63-48	380	63	48	15	80
150QJ63-54	380	63	54	18.5	80
150QJ63-60	380	63	60	22	80
175QJ5-26/2	380	5	26	3	60
175QJ5-39/3	380	5	39	3	60
175QJ5-52/4	380	5	52	3	60
175QJ5-65/5	380	5	65	3	60
175QJ5-78/6	380	5	78	3	60
175QJ5-91/7	380	5	91	4	60
175QJ5-104/8	380	5	104	4	60
175QJ5-117/9	380	5	117	5.5	60
175QJ5-130/10	380	5	130	5.5	60
175QJ5-143	380	5	173	5.5	60
175QJ5-156	380	5	156	5.5	60
175QJ5-169	380	5	169	7.5	60
175QJ5-182	380	5	182	7.5	60
175QJ5-195	380	5	195	7.5	60
175QJ5-208	380	5	208	7.5	60
175QJ5-221	380	5	221	9.2	60
175QJ5-234	380	5	234	9.2	60
175QJ5-247/19	380	5	247	9.2	60
175QJ5-260/20	380	5	260	9.2	60
175QJ5-273/21	380	5	273	11	60
175QJ5-286/22	380	5	286	11	60
175QJ5-299/23	380	5	299	11	60
175QJ10-45/3	380	10	45	3	60
175QJ10-60/4	380	10	60	4	60
175QJ10-75/5	380	10	75	5.5	60
175QJ10-90/6	380	10	90	5.5	60
175QJ10-105/7	380	10	105	7.5	60
175QJ10-120/8	380	10	120	7.5	60
175QJ10-135	380	10	135	9.2	60
175QJ10-150	380	10	150	9.2	60
175QJ10-165	380	10	165	11	60
175QJ10-180	380	10	180	11	60
175QJ10-195	380	10	195	13	60
175QJ10-210	380	10	210	13	60
175QJ10-225	380	10	225	13	60
175QJ10-240	380	10	240	15	60
175QJ10-255	380	10	255	15	60
175QJ10-270	380	10	270	18.5	60
175QJ10-285	380	10	285	18.5	60
175QJ10-300	380	10	300	18.5	60
175QJ10-315	380	10	315	18.5	60
175QJ10-330	380	10	330	22	60
175QJ10-345	380	10	345	22	60
175QJ10-360	380	10	360	22	60
175QJ10-375	380	10	375	22	60
175QJ10-390	380	10	390	25	60
175QJ10-405	380	10	405	25	60
175QJ10-420	380	10	420	25	60
175QJ10-435	380	10	435	25	60
175QJ10-450	380	10	450	30	60
175QJ10-465	380	10	465	30	60
175QJ10-480	380	10	480	30	60
175QJ10-495	380	10	495	30	60
175QJ15-45/3	380	15	45	4	60
175QJ15-60/3	380	15	60	5.5	60
175QJ15-75/5	380	15	75	7.5	60
175QJ15-90/6	380	15	90	7.5	60
175QJ15-105/7	380	15	105	9.2	60
175QJ15-120/8	380	15	120	11	60
175QJ15-135/9	380	15	135	13	60
175QJ15-150	380	15	150	13	60
175QJ15-165	380	15	165	15	60
175QJ15-180	380	15	180	15	60
175QJ15-195	380	15	195	18.5	60
175QJ15-210	380	15	210	18.5	60
175QJ15-225	380	15	225	18.5	60
175QJ15-240	380	15	240	22	60
175QJ15-255	380	15	255	22	60
175QJ15-270	380	15	270	25	60
175QJ15-285	380	15	285	25	60
175QJ15-300	380	15	300	25	60
175QJ15-315	380	15	315	30	60
175QJ15-330	380	15	330	30	60
175QJ15-345	380	15	345	30	60
175QJ20-30/2	380	20	30	3	60
175QJ20-40/3	380	20	40	4	60
175QJ20-52/4	380	20	52	5.5	60
175QJ20-78/6	380	20	78	7.5	60
175QJ20-91/7	380	20	91	9.2	60
175QJ20-104/8	380	20	104	11	60
175QJ20-117/9	380	20	117	13	60
175QJ20-130/10	380	20	130	15	60
175QJ20-143	380	20	143	15	60
175QJ20-156	380	20	156	18.5	60
175QJ20-169	380	20	169	18.5	60
175QJ20-182	380	20	182	18.5	60
175QJ20-195	380	20	195	22	60
175QJ20-208	380	20	208	22	60
175QJ20-221	380	20	221	25	60
175QJ20-234	380	20	234	25	60
175QJ20-247	380	20	247	30	60
175QJ20-260	380	20	260	30	60
175QJ20-273	380	20	273	30	60
175QJ25-30/2	380	25	30	4	76
175QJ25-45/3	380	25	45	5.5	76
175QJ25-60/4	380	25	60	7.5	76
175QJ25-75/5	380	25	75	9.2	76
175QJ25-90/6	380	25	90	11	76
175QJ25-105/7	380	25	105	13	76
175QJ25/120/8	380	25	120	15	76
175QJ25-135/9	380	25	135	18.5	76
175QJ25-150	380	25	150	18.5	76
175QJ25-165	380	25	165	22	76
175QJ25-180	380	25	180	22	76
175QJ25-195	380	25	195	25	76
175QJ25-210	380	25	210	25	76
175QJ25-225	380	25	225	30	76
175QJ25-240	380	25	240	30	76
175QJ32-30/2	380	32	30	4	76
175QJ32-39/3	380	32	39	5.5	76
175QJ32-52/4	380	32	52	7.5	76
175QJ32-65/5	380	32	65	9.2	76
175QJ32-78/6	380	32	78	11	76
175QJ32-91/7	380	32	91	13	76
175QJ32-104/8	380	32	104	15	76
175QJ32-117/9	380	32	117	18.5	76
175QJ32-130/10	380	32	130	18.5	76
175QJ32-143	380	32	143	22	76
175QJ32-156	380	32	156	22	76
175QJ32-169	380	32	169	25	76
175QJ32-182	380	32	182	25	76
175QJ32-195	380	32	195	30	76
175QJ32-208	380	32	208	30	76
175QJ40-30/2	380	40	30	5.5	89
175QJ40-45/3	380	40	45	7.5	89
175QJ40-60/4	380	40	60	11	89
175QJ40-75/5	380	40	75	15	89
175QJ40-90/6	380	40	90	18.5	89
175QJ40-105/7	380	40	105	22	89
175QJ40-120/8	380	40	120	22	89
175QJ40-135/9	380	40	135	25	89
175QJ40-150	380	40	150	30	89
175QJ40-165	380	40	165	30	89
175QJ50-26/2	380	50	26	5.5	89
175QJ50-39/3	380	50	39	7.5	89
175QJ50-52/4	380	50	52	11	89
175QJ50-65/5	380	50	65	13	89
175QJ50-78/6	380	50	78	18.5	89
175QJ50-91/7	380	50	91	22	89
175QJ50-104/8	380	50	104	25	89
175QJ50-117/9	380	50	117	25	89
175QJ50-130/10	380	50	130	30	89
200QJ20-52/4	380	20	52	5.5	60
200QJ20-65/5	380	20	65	7.5	60
200QJ20-78/6	380	20	78	7.5	60
200QJ20-91/7	380	20	91	9.2	60
200QJ20-104/8	380	20	104	11	60
200QJ20-120/9	380	20	120	13	60
200QJ20-135/10	380	20	135	15	60
200QJ20-150/11	380	20	150	15	60
200QJ20-165/12	380	20	165	18.5	60
200QJ20-180/13	380	20	180	18.5	60
200QJ20-195/13	380	20	195	22	60
200QJ20-210/14	380	20	210	22	60
200QJ20-225/15	380	20	225	25	60
200QJ20-240/16	380	20	240	25	60
200QJ20-255/17	380	20	255	30	60
200QJ20-270/18	380	20	270	30	60
200QJ20-285/19	380	20	285	30	60
200QJ20-300/20	380	20	300	37	60
200QJ25-52/4	380	25	52	5.5	60
200QJ25-65/5	380	25	65	7.5	60
200QJ25-78/6	380	25	78	9.2	60
200QJ25-91/7	380	25	91	11	60
200QJ25-104/8	380	25	104	13	60
200QJ25-117/9	380	25	117	15	60
200QJ25-130/10	380	25	130	18.5	60
200QJ25-143	380	25	143	18.5	60
200QJ25-156	380	25	156	18.5	60
200QJ25-169	380	25	169	22	60
200QJ25-182	380	25	182	22	60
200QJ25-195	380	25	195	25	60
200QJ25-208	380	25	208	25	60
200QJ25-221	380	25	221	30	60
200QJ25-234	380	25	234	30	60
200QJ25-247	380	25	247	30	60
200QJ32-39/3	380	32	39	5.5	76
200QJ32-52/4	380	32	52	7.5	76
200QJ32-65/5	380	32	65	9.2	76
200QJ32-78/6	380	32	78	11	76
200QJ32-91/7	380	32	91	13	76
200QJ32-104/8	380	32	104	15	76
200QJ32-117/9	380	32	117	18.5	76
200QJ32-130/10	380	32	130	22	76
200QJ32-143	380	32	143	22	76
200QJ32-156	380	32	156	25	76
200QJ32-169	380	32	169	25	76
200QJ32-182	380	32	182	30	76
200QJ32-195	380	32	195	30	76
200QJ32-208	380	32	208	37	76
200QJ32-221	380	32	221	37	76
200QJ32-234	380	32	234	37	76
200QJ32-247	380	32	247	45	76
200QJ32-260	380	32	260	45	76
200QJ32-273	380	32	273	45	76
200QJ32-286	380	32	286	45	76
200QJ32-80/4	380	32	80	11	76
200QJ32-100/5	380	32	100	13	76
200QJ32-120/6	380	32	120	15	76
200QJ32-140/7	380	32	140	18.5	76
200QJ32-160/8	380	32	160	22	76
200QJ32-180/9	380	32	180	25	76
200QJ32-200/10	380	32	200	30	76
200QJ32-220/11	380	32	220	30	76
200QJ32-240/12	380	32	240	37	76
200QJ32-260/13	380	32	260	37	76
200QJ32-280/14	380	32	280	37	76
200QJ32-300/15	380	32	300	37	76
200QJ32-320/16	380	32	320	45	76
200QJ40-26/2	380	40	26	5.5	89
200QJ40-39/3	380	40	39	7.5	89
200QJ40-52/4	380	40	52	7.5	89
200QJ40-52/4	380	40	52	9.2	89
200QJ40-65/5	380	40	65	11	89
200QJ40-78/6	380	40	78	13	89
200QJ40-78/6	380	40	78	15	89
200QJ40-91/7	380	40	91	18.5	89
200QJ40-104/8	380	40	104	18.5	89
200QJ40-117/9	380	40	117	22	89
200QJ40-130/10	380	40	130	25	89
200QJ40-143	380	40	143	25	89
200QJ40-156	380	40	156	30	89
200QJ40-169	380	40	169	30	89
200QJ40-182	380	40	182	37	89
200QJ40-195	380	40	195	37	89
200QJ40-208	380	40	208	37	89
200QJ40-221	380	40	221	45	89
200QJ40-234	380	40	234	45	89
200QJ40-52/3	380	40	52	9.2	89
200QJ40-65/4	380	40	65	11	89
200QJ40-76/4	380	40	76	13	89
200QJ40-95/5	380	40	95	17	89
200QJ40-114/6	380	40	114	22	89
200QJ40-133/7	380	40	133	25	89
200QJ40-152/8	380	40	152	30	89
200QJ40-171/9	380	40	171	30	89
200QJ40-190/10	380	40	190	37	89
200QJ40-209/11	380	40	209	37	89
200QJ40-228/12	380	40	228	45	89
200QJ40-247/13	380	40	247	45	89
200QJ50-26/2	380	50	26	5.5	89
200QJ50-39/3	380	50	39	7.5	89
200QJ50-52/4	380	50	52	9.2	89
200QJ50-52/4	380	50	52	11	89
200QJ50-65/5	380	50	65	13	89
200QJ50-78/6	380	50	78	18.5	89
200QJ50-91/7	380	50	91	22	89
200QJ50-104/8	380	50	104	22	89
200QJ50-117/9	380	50	117	25	89
200QJ50-130/10	380	50	130	30	89
200QJ50-143	380	50	143	37	89
200QJ50-156	380	50	156	37	89
200QJ50-169	380	50	169	37	89
200QJ50-182	380	50	182	45	89
200QJ50-195	380	50	195	45	89
200QJ50-35/2	380	50	35	7.5	89
200QJ50-52/3	380	50	52	11	89
200QJ50-70/4	380	50	70	15	89
200QJ50-88/5	380	50	88	18.5	89
200QJ50-105/6	380	50	105	22	89
200QJ50-122/7	380	50	122	25	89
200QJ50-140/8	380	50	140	30	89
200QJ50-157/9	380	50	157	37	89
200QJ50-175/10	380	50	175	37	89
200QJ50-192/11	380	50	192	45	89
200QJ50-210/12	380	50	210	45	89
200QJ50-20/1	380	50	20	5.5	89
200QJ50-40/2	380	50	40	7.5	89
200QJ50-60/3	380	50	60	13	89
200QJ50-80/4	380	50	80	18.5	89
200QJ50-100/5	380	50	100	22	89
200QJ50-120/6	380	50	120	25	89
200QJ50-140/7	380	50	140	30	89
200QJ50-160/8	380	50	160	37	89
200QJ50-180/9	380	50	180	37	89
200QJ50-200/10	380	50	200	45	89
200QJ50-220/11	380	50	220	45	89
200QJ63-28/2	380	63	28	7.5	89
200QJ63-42/3	380	63	42	11	89
200QJ63-56/4	380	63	56	15	89
200QJ63-70/5	380	63	70	22	89
200QJ63-84/6	380	63	84	25	89
200QJ63-98/7	380	63	98	30	89
200QJ63-112/8	380	63	112	30	89
200QJ63-126/9	380	63	126	37	89
200QJ63-140/10	380	63	140	45	89
200QJ63-154/11	380	63	154	45	89
200QJ80-22/2	380	80	22	7.5	89
200QJ80-33/3	380	80	33	9.2	89
200QJ80-33/3	380	80	33	11	89
200QJ80-44/4	380	80	44	13	89
200QJ80-44/4	380	80	44	15	89
200QJ80-55/5	380	80	55	18.5	89
200QJ80-66/6	380	80	66	22	89
200QJ80-77/7	380	80	77	25	89
200QJ80-88/8	380	80	88	30	89
200QJ80-99/9	380	80	99	37	114
200QJ80-121/11	380	80	121	45	114
200QJ80-17/1	380	80	17	5.5	114
200QJ80-34/2	380	80	34	11	114
200QJ80-51/3	380	80	51	18.5	114
200QJ80-68/4	380	80	68	22	114
200QJ80-85/5	380	80	85	30	114
200QJ80-102/6	380	80	102	37	114
200QJ80-119/7	380	80	119	45	114
200QJ80-136/8	380	80	136	45	114
200QJ100-10/1	380	100	10	5.5	114
200QJ100-20/2	380	100	20	9.2	114
200QJ100-30/3	380	100	30	15	114
200QJ100-40/4	380	100	40	18.5	114
200QJ100-50/5	380	100	50	25	114
200QJ100-60/6	380	100	60	30	114
200QJ100-70/7	380	100	70	37	114
200QJ100-80/8	380	100	80	37	114
200QJ100-90/9	380	100	90	45	114
250QJ40-22/1	380	40	22	4	114
250QJ40-44/2	380	40	44	7.5	114
250QJ40-66/3	380	40	66	13	114
250QJ40-88/4	380	40	88	15	114
250QJ40-110/5	380	40	110	18.5	114
250QJ40-132/6	380	40	132	25	114
250QJ40-154/7	380	40	154	30	114
250QJ40-198/9	380	40	198	37	114
250QJ40-330/15	380	40	330	63	114
250QJ50-20/1	380	50	20	5.5	89
250QJ50-40/2	380	50	40	9.2	89
250QJ50-60/3	380	50	60	13	89
250QJ50-80/4	380	50	80	18.5	89
250QJ50-100/5	380	50	100	22	89
250QJ50-120/6	380	50	120	25	89
250QJ50-140/7	380	50	140	30	89
250QJ50-160/8	380	50	160	37	89
250QJ50-200/10	380	50	200	45	89
250QJ50-240/12	380	50	240	55	89
250QJ50-280/14	380	50	280	63	89
250QJ50-320/16	380	50	320	75	89
250QJ63-20/1	380	63	20	5.5	89
250QJ63-40/2	380	63	40	11	89
250QJ63-60/3	380	63	60	18.5	89
250QJ63-80/4	380	63	80	22	89
250QJ63-100/5	380	63	100	30	89
250QJ63-120/6	380	63	120	37	89
250QJ63-160/8	380	63	160	45	89
250QJ63-200/10	380	63	200	55	89
250QJ63-220/11	380	63	220	62	89
250QJ63-260/13	380	63	260	75	89
250QJ63-300/15	380	63	300	90	89
250QJ80-20/1	380	80	20	7.5	89
250QJ80-40/2	380	80	40	15	89
250QJ80-60/3	380	80	60	22	89
250QJ80-80/4	380	80	80	30	89
250QJ80-100/5	380	80	100	37	89
250QJ80-120/6	380	80	120	45	89
250QJ80-160/8	380	80	160	55	89
250QJ80-180/9	380	80	180	63	89
250QJ80-200/10	380	80	200	75	89
250QJ80-240/12	380	80	240	90	89
250QJ100-18/1	380	100	18	7.5	140
250QJ100-36/2	380	100	36	15	140
250QJ100-54/3	380	100	54	25	140
250QJ100-72/4	380	100	72	37	140
250QJ100-108/6	380	100	108	45	140
250QJ100-126/7	380	100	126	55	140
250QJ100-144/8	380	100	144	63	140
250QJ100-162/9	380	100	162	75	140
250QJ100-198/11	380	100	198	90	140
250QJ100-216/12	380	100	216	100	140
250QJ125-16/1	380	125	16	9.2	140
250QJ125-32/2	380	125	32	18.5	140
250QJ125-48/3	380	125	48	25	140
250QJ125-64/4	380	125	64	37	140
250QJ125-80/5	380	125	80	45	140
250QJ125-96/6	380	125	96	55	140
250QJ125-112/7	380	125	112	63	140
250QJ125-128/8	380	125	128	75	140
250QJ125-160/10	380	125	160	90	140
250QJ125-176/11	380	125	176	100	140
250QJ125-192/12	380	125	192	110	140
250QJ140-15/1	380	140	15	9.2	140
250QJ140-30/2	380	140	30	18.5	140
250QJ140-45/3	380	140	45	30	140
250QJ140-60/4	380	140	60	37	140
250QJ140-75/5	380	140	75	45	140
250QJ140-90/6	380	140	90	55	140
250QJ140-105/7	380	140	105	63	140
250QJ140-120/8	380	140	120	75	140
250QJ140-150/10	380	140	150	90	140
250QJ140-165/11	380	140	165	100	140
250QJ140-180/12	380	140	180	110	140
250QJ200-20/1	380	200	20	185	140
250QJ200-40/2	380	200	40	37	140
250QJ200-60/3	380	200	60	55	140
250QJ200-80/4	380	200	80	75	140
250QJ200-100/5	380	200	100	90	140
250QJ240-21	380	240	21	22	159
250QJ240-42	380	240	42	45	159
250QJ240-63	380	240	63	63	159
250QJ240-84	380	240	84	90	159
