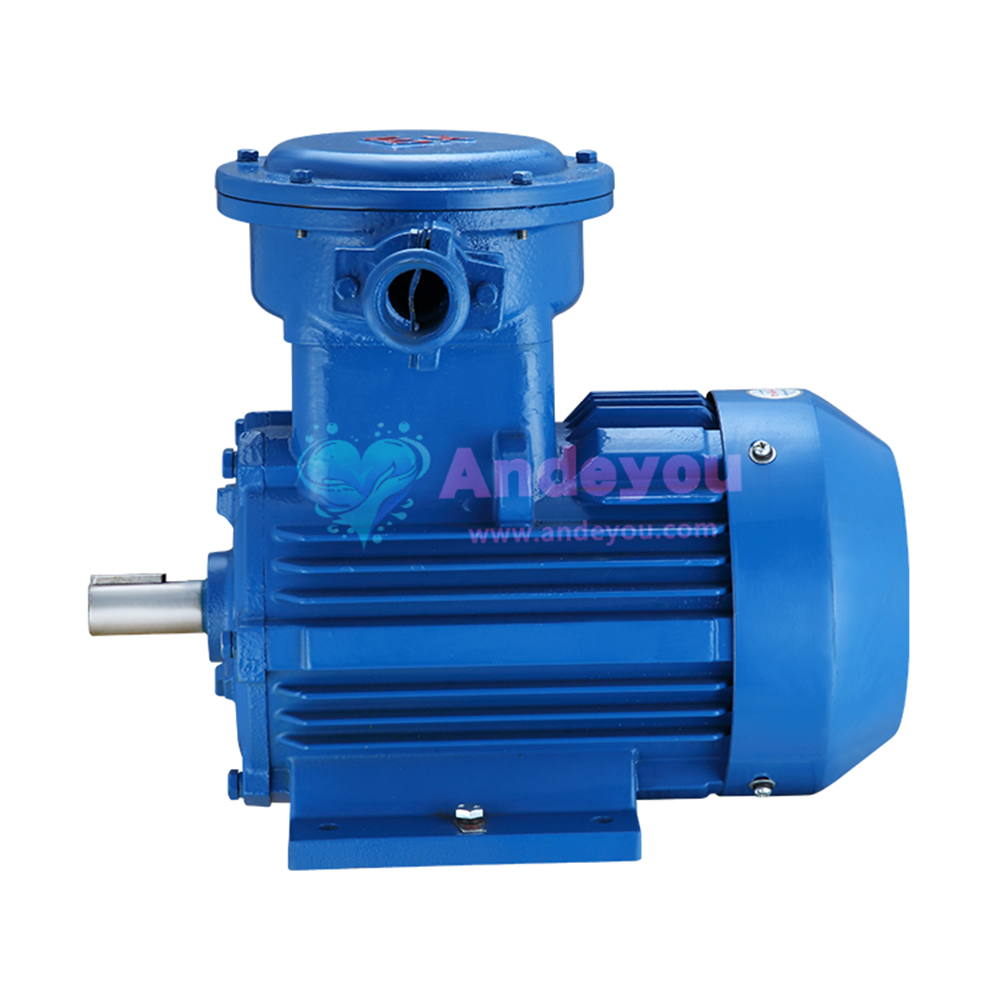

Fushen YBX3 Horizontal Explosion-proof Motor

YBX3-80M1-2、YBX3-80M2-2、YBX3-90S-2、YBX3-90L-2、YBX3-100L-2、YBX3-112M-2、YBX3-132S1-2、YBX3-132S2-2、YBX3-160M1-2、YBX3-160M2-2、YBX3-160L-2、YBX3-180M-2、YBX3-200L1-2、YBX3-200L2-2、YBX3-225M-2、YBX3-250M-2、YBX3-280S-2、YBX3-280M-2、YBX3-315S-2、YBX3-315M-2、YBX3-315L1-2、YBX3-315L2-2、YBX3-355M-2、YBX3-355L-2、YBX3-80M1-4、YBX3-80M2-4、YBX3-90S-4、YBX3-90L-4、YBX3-100L1-4、YBX3-100L2-4、YBX3-112M-4、YBX3-132S-4、YBX3-132M-4、YBX3-160M-4、YBX3-160L-4、YBX3-180M-4、YBX3-180L

The Fushen YBX3 series horizontal explosion-proof motor is a high-efficiency,energy-saving,safe,and reliable flameproof three-phase asynchronous motor.Compliant with Ex d explosion-proof standards,it is suitable for use in flammable and explosive environments.Constructed from high-quality materials,the motor features dust-proof,explosion-proof,and corrosion-resistant capabilities,ensuring stable operation and low noise levels.The YBX3 series meets national Grade 2 energy efficiency standards

Product Consultation By telephone

Function

Parameters

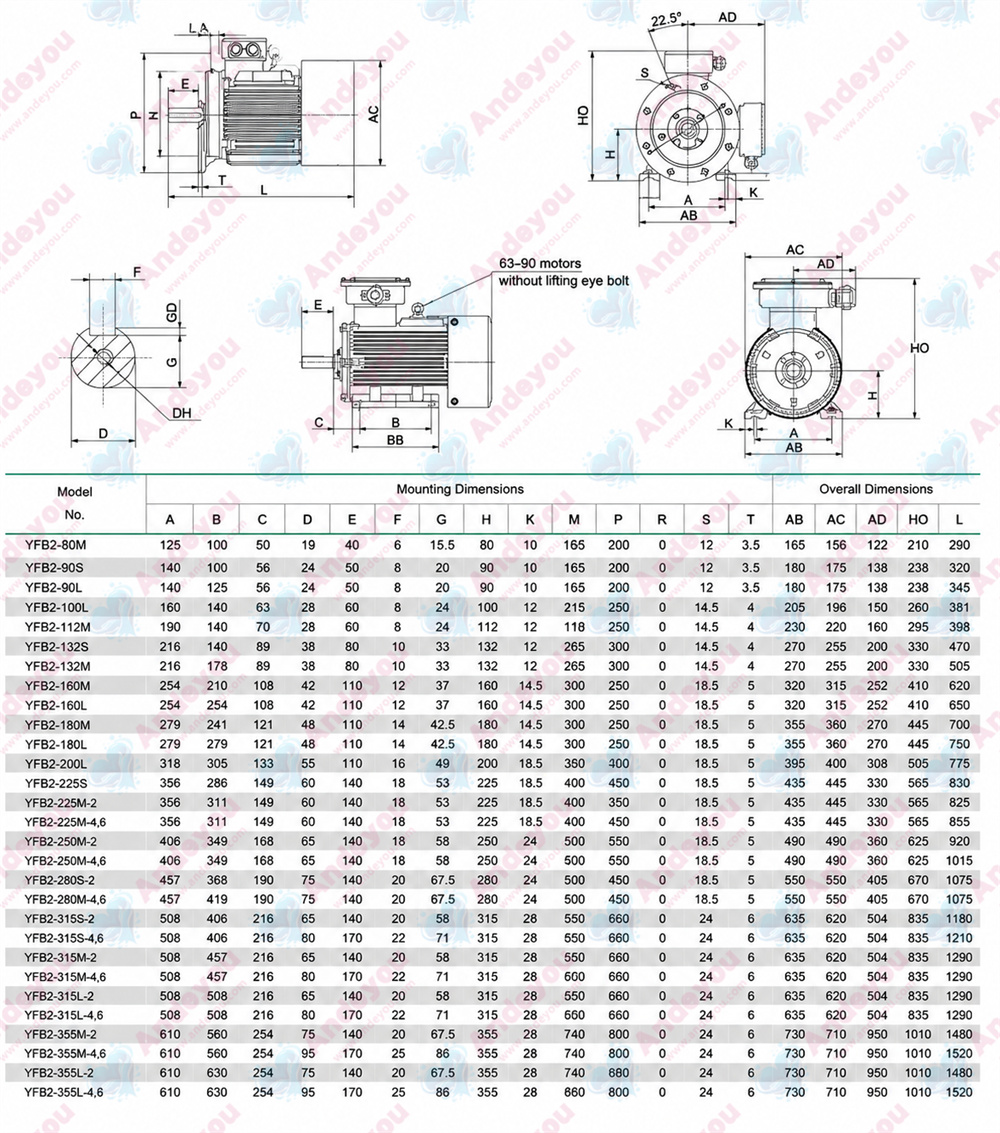

Size

Video Introduction

Function

The Fushen YBX3 horizontal explosion-proof motor is a high-efficiency, energy-saving, safe, and reliable industrial motor designed for explosive gas environments. It is widely used in industries such as petroleum, chemicals, mining, and metallurgy.

1. High Efficiency, Energy Saving, and Environmental Friendliness

Energy Efficiency Rating: Complies with the GB18613-2012 national energy efficiency standard; offers significantly higher efficiency and energy savings compared to the traditional YB3 series.

Low Energy Consumption Design: Utilizes advanced electromagnetic schemes and optimized airflow structures to reduce windage losses and operational noise.

Environmental Compatibility: Features a totally enclosed, fan-cooled (TEFC) design that minimizes energy loss while meeting EU standards.

2. Superior Explosion-Proof Safety Performance

Explosion-Proof Rating: Certified for use in Class IIA, IIB, and IIC explosive gas environments (e.g., methane, ethylene).

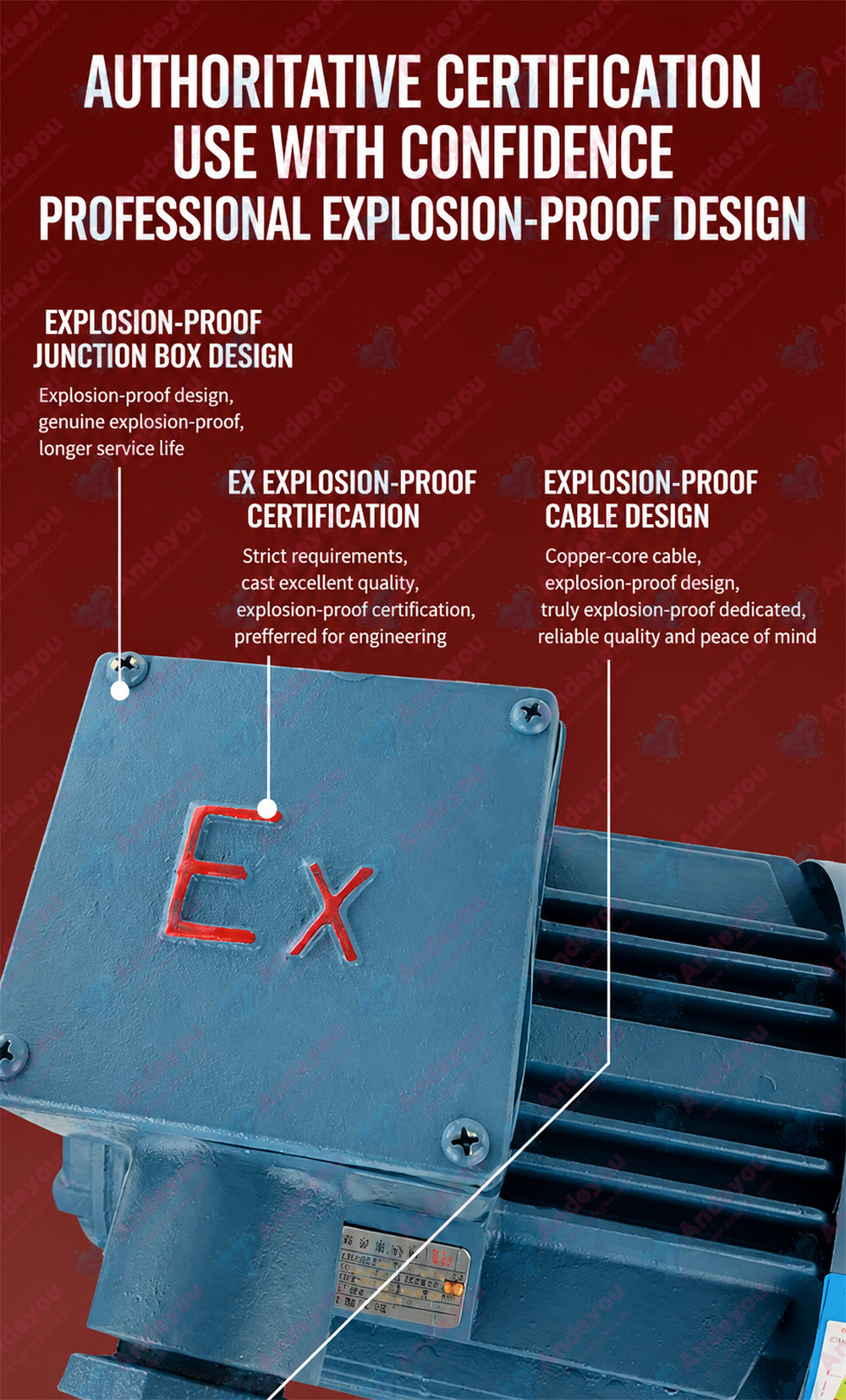

Flameproof Structure: The housing is constructed from high-strength cast iron or corrosion-resistant materials; features threaded flameproof joints and multiple sealing designs to effectively prevent sparks from igniting explosions.

Coal Mine-Specific Models: Certain models are certified for use in coal mine environments containing gas (methane).

3. Robust and Durable Mechanical Design

Vibration and Shock Resistance: Optimized rotor dynamic balance and reinforced bearing structures keep vibration levels below industry standards, extending service life.

Protection Rating: IP55 protection (IP65 optional); dustproof and waterproof, making it suitable for harsh environments such as outdoor (YBX3-W type) and hot-humid (YBX3-TH type) conditions.

Modular Components: Steel-plate housing structures and standardized mounting dimensions facilitate maintenance and integration for export applications.

4. Intelligence and Ease of Use

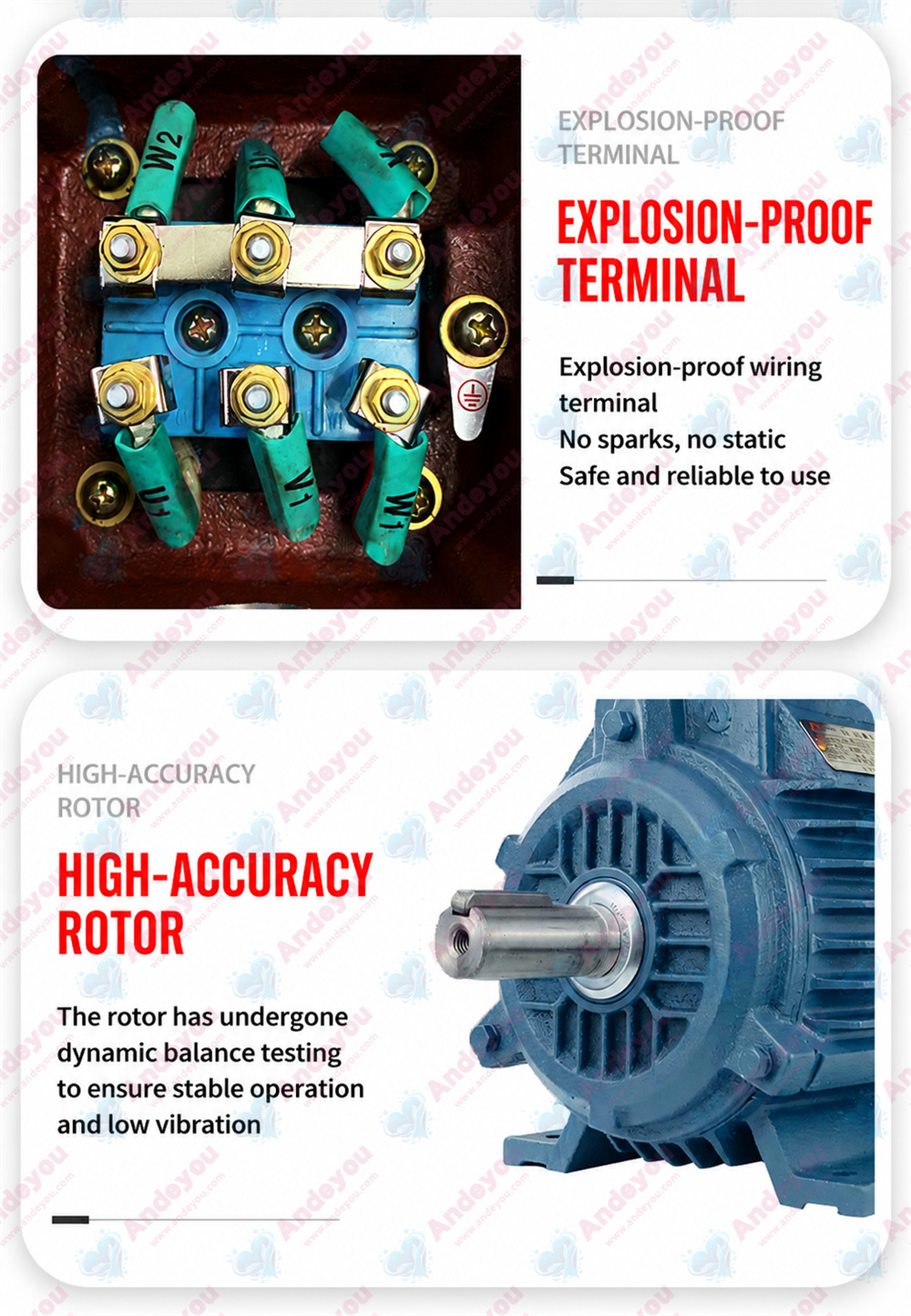

Flexible Wiring: The top-mounted terminal box supports cable entry from four directions (front, back, left, and right); compatible with steel conduit or rubber-sheathed cable wiring; supports custom dual-shaft extension configurations.

Low Maintenance Requirements: Bearing lubrication systems and anti-corrosion coatings reduce the frequency of routine maintenance.

Wide Voltage Adaptability: Customizable for specific voltages (e.g., 220V/380V/660V) and frequencies (50Hz/60Hz).

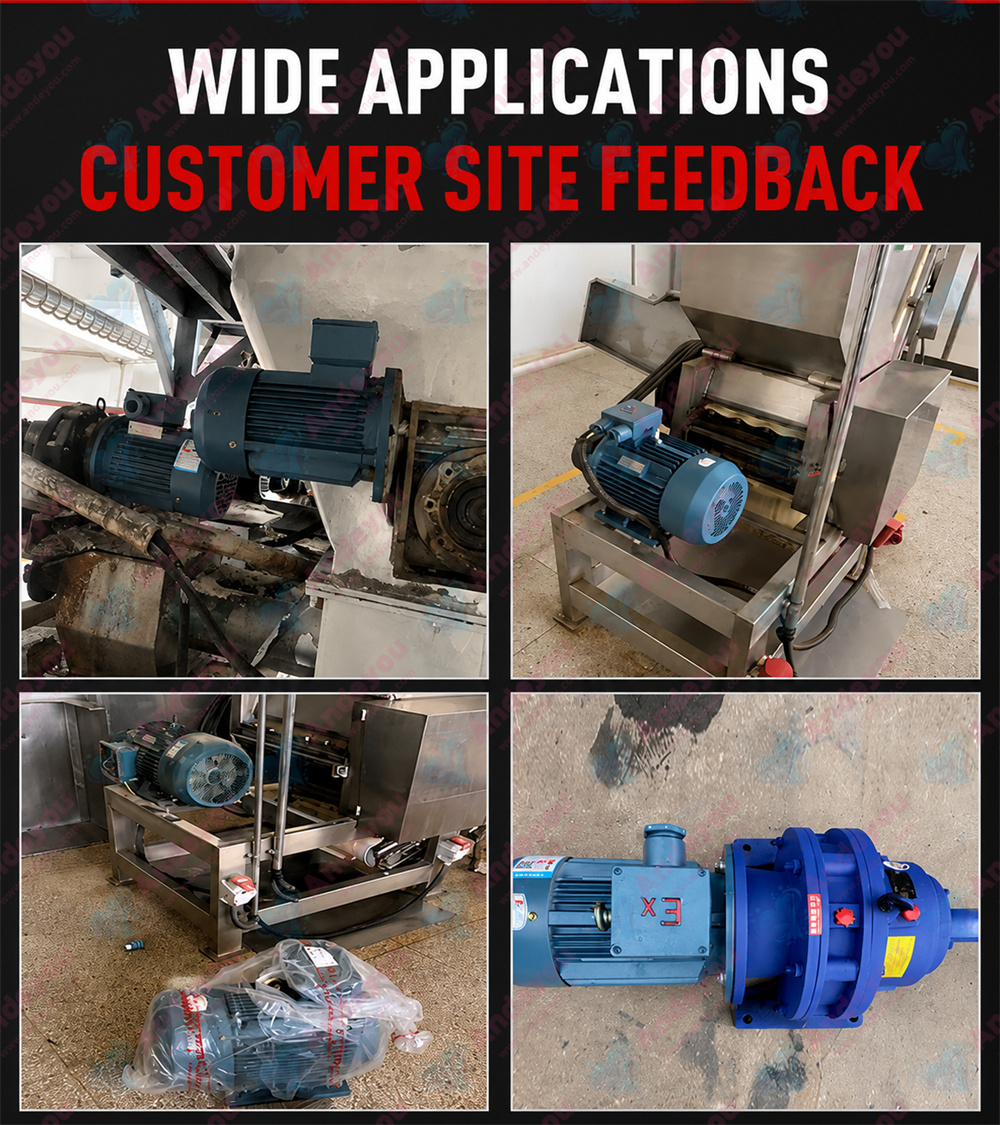

5. Industry Application Adaptability

Multi-scenario coverage: Beyond standard industrial environments, it is suitable for specialized applications such as pipeline pumps and outdoor hot-and-humid tropical climates.

Stable performance: Capable of continuous operation in ambient temperatures ranging from -20°C to 40°C, with a significant temperature rise margin that prevents shutdowns due to overheating.

Summary

With its high energy efficiency, multiple explosion-proof safeguards, long service life, and flexible configuration options, the Fushen YBX3 horizontal explosion-proof motor serves as an ideal power solution for high-risk environments.

Parameters

Motor Model	Rated power (kW)	Rated current (A)	Rated speed (r/min)	Efficiency % (η%)	Power factor (cosφ)	Rated torque (N·m)	Locked-rotor torque to rated torque (Tst/TN)	Locked-rotor current to rated current ratio (Ist/In)	Maximum torque and rated torque (Tmax, TN)	Noise dB(A)	Weight (kg)
Synchronous speed 3000 r/min
YBX3-80M1-2	0.75	1.7	2875	80.7	0.83	2.5	2.3	6.8	2.3	67	32
YBX3-80M2-2	1.1	2.4	2875	82.7	0.83	3.7	2.3	7.3	2.3	67	33
YBX3-90S-2	1.5	3.2	2890	84.2	0.84	5	2.3	7.6	2.3	72	39
YBX3-90L-2	2.2	4.6	2890	85.9	0.85	7.3	2.3	7.8	2.3	72	46
YBX3-100L-2	3	6	2891	87.1	0.87	9.9	2.3	8.1	2.3	76	57
YBX3-112M-2	4	7.8	2914	88.1	0.88	13.1	2.3	8.3	2.3	77	68
YBX3-132S1-2	5.5	10.6	2937	89.2	0.88	17.9	2.2	8	2.3	80	87
YBX3-132S2-2	7.5	14.2	2940	90.1	0.89	24.4	2.2	7.8	2.3	80	93
YBX3-160M1-2	11	20.6	2930	91.2	0.89	35.9	2.2	7.9	2.3	86	136
YBX3-160M2-2	15	27.9	2930	91.9	0.89	48.9	2.2	8	2.3	86	144
YBX3-160L-2	18.5	34.4	2937	92.4	0.89	60.2	2.2	8.1	2.3	86	155
YBX3-180M-2	22	40.5	2940	92.7	0.89	71.5	2.2	8.2	2.3	89	241
YBX3-200L1-2	30	54.9	2950	93.3	0.89	97.1	2.2	7.5	2.3	92	275
YBX3-200L2-2	37	67.4	2950	93.7	0.89	119.8	2.2	7.5	2.3	92	300
YBX3-225M-2	45	81.7	2960	94	0.89	145.2	2.2	7.6	2.3	92	420
YBX3-250M-2	55	99.6	2965	94.3	0.89	177.2	2.2	7.6	2.3	93	477
YBX3-280S-2	75	135.2	2970	94.7	0.89	241.2	2	6.9	2.3	94	640
YBX3-280M-2	90	161.7	2970	95	0.89	289.4	2	7	2.3	94	697
YBX3-315S-2	110	195.1	2975	95.2	0.9	353.1	2	7.1	2.2	96	1060
YBX3-315M-2	132	233.6	2975	95.4	0.9	423.7	2	7.1	2.2	96	1120
YBX3-315L1-2	160	279.4	2975	95.6	0.91	513.6	2	7.1	2.2	99	1290
YBX3-315L2-2	200	348.6	2975	95.8	0.91	642	2	7.1	2.2	99	1430
YBX3-355M-2	250	435.7	2980	95.8	0.91	801.2	2	7.1	2.2	103	1749
YBX3-355L-2	315	549	2980	95.8	0.91	1009.5	2	7.1	2.2	103	2060
Synchronous speed 1500 r/min
YBX3-80M1-4	0.55	1.4	1400	80.7	0.75	3.8	2.3	6.3	2.3	58	31
YBX3-80M2-4	0.75	1.8	1400	82.5	0.75	5.1	2.3	6.5	2.3	58	32
YBX3-90S-4	1.1	2.6	1440	84.1	0.75	7.3	2.3	6.6	2.3	61	43
YBX3-90L-4	1.5	3.6	1445	85.3	0.75	9.9	2.3	6.9	2.3	61	47
YBX3-100L1-4	2.2	4.8	1440	86.7	0.81	14.6	2.3	7.5	2.3	64	56
YBX3-100L2-4	3	6.3	1440	87.7	0.82	19.9	2.3	7.6	2.3	64	62
YBX3-112M-4	4	8.4	1445	88.6	0.82	26.4	2.3	7.7	2.3	65	74
YBX3-132S-4	5.5	11.4	1455	89.6	0.82	36.1	2	7.5	2.3	71	93
YBX3-132M-4	7.5	15.2	1455	90.4	0.83	49.2	2	7.4	2.3	71	105
YBX3-160M-4	11	21.5	1460	91.4	0.85	72	2.2	7.5	2.3	75	141
YBX3-160L-4	15	28.8	1460	92.1	0.86	98.1	2.2	7.5	2.3	75	153
YBX3-180M-4	18.5	35.3	1470	92.6	0.86	120.2	2.2	7.7	2.3	76	235
YBX3-180L-4	22	41.8	1470	93	0.86	142.9	2.2	7.8	2.3	76	255
YBX3-200L-4	30	56.6	1470	93.6	0.86	194.9	2.2	7.2	2.3	79	285
YBX3-225S-4	37	69.6	1480	93.9	0.86	238.8	2.2	7.3	2.3	81	360
YBX3-225M-4	45	84.4	1480	94.2	0.86	290.4	2.2	7.4	2.3	81	390
YBX3-250M-4	55	102.7	1480	94.6	0.86	354.9	2.2	7.4	2.3	83	490
YBX3-280S-4	75	136.3	1480	95	0.88	484	2.2	6.7	2.3	86	718
YBX3-280M-4	90	163.2	1480	95.2	0.88	580.7	2.2	6.9	2.3	86	816
YBX3-315S-4	110	199.1	1485	95.4	0.88	707.4	2.2	6.9	2.2	93	1050
YBX3-315M-4	132	238.4	1485	95.6	0.88	848.9	2.2	6.9	2.2	93	1210
YBX3-315L1-4	160	285.1	1485	95.8	0.89	1029	2.2	6.9	2.2	97	1290
YBX3-315L2-4	200	355.7	1485	96	0.89	1286.2	2.2	6.9	2.2	97	1400
YBX3-355M-4	250	439.6	1490	96	0.9	1602.3	2.2	6.9	2.2	101	1805
YBX3-355L-4	315	553.9	1490	96	0.9	2019	2.2	6.9	2.2	101	2130
Synchronous speed 1000 r/min
YBX3-90S-6	0.75	2	934	78.9	0.72	7.7	2.1	5.8	2	57	42
YBX3-90L-6	1.1	2.8	945	81	0.73	11.1	2.1	5.9	2	57	44
YBX3-100L-6	1.5	3.7	945	82.5	0.74	15.2	2.1	6	2	61	49
YBX3-112M-6	2.2	5.4	960	84.3	0.74	21.9	2.1	6	2	65	69
YBX3-132S-6	3	7.2	964	85.6	0.74	29.7	2	6.2	2	69	83
YBX3-132M1-6	4	9.5	965	86.8	0.74	39.6	2	6.8	2	69	91
YBX3-132M2-6	5.5	12.7	965	88	0.75	54.4	2	7.1	2	69	99
YBX3-160M-6	7.5	16.4	970	89.1	0.78	73.8	2.1	6.7	2	73	133
YBX3-160L-6	11	23.4	970	90.3	0.79	108.3	2.1	6.9	2	73	154
YBX3-180L-6	15	30.9	975	91.2	0.81	146.9	2	7.2	2	73	239
YBX3-200L1-6	18.5	37.8	980	91.7	0.81	180.3	2.1	7.2	2	76	240
YBX3-200L2-6	22	44.2	980	92.2	0.82	214.4	2.1	7.3	2	76	280
YBX3-225M-6	30	60.7	980	92.9	0.81	292.3	2	7.1	2	76	360
YBX3-250M-6	37	71.7	980	93.3	0.84	360.6	2.1	7.1	2	78	470
YBX3-280S-6	45	84.8	980	93.7	0.86	438.5	2.1	7.2	2	80	655
YBX3-280M-6	55	103.3	980	94.1	0.86	536	2.1	7.2	2	80	725
YBX3-315S-6	75	141.7	985	94.6	0.85	727.2	2	6.7	2	85	930
YBX3-315M-6	90	171.5	985	94.9	0.84	872.6	2	6.7	2	85	1060
YBX3-315L1-6	110	206.8	985	95.1	0.85	1066.5	2	6.7	2	85	1130
YBX3-315L2-6	132	244.5	985	95.4	0.86	1279.8	2	6.7	2	85	1215
YBX3-355S-6	160	292.3	990	95.6	0.87	1543.4	2	6.7	2	92	1940
YBX3-355M2-6	200	364.6	990	95.8	0.87	1929.3	2	6.7	2	92	2070
YBX3-355L-6	250	455.7	990	95.8	0.87	2411.6	2	6.7	2	92	2340
