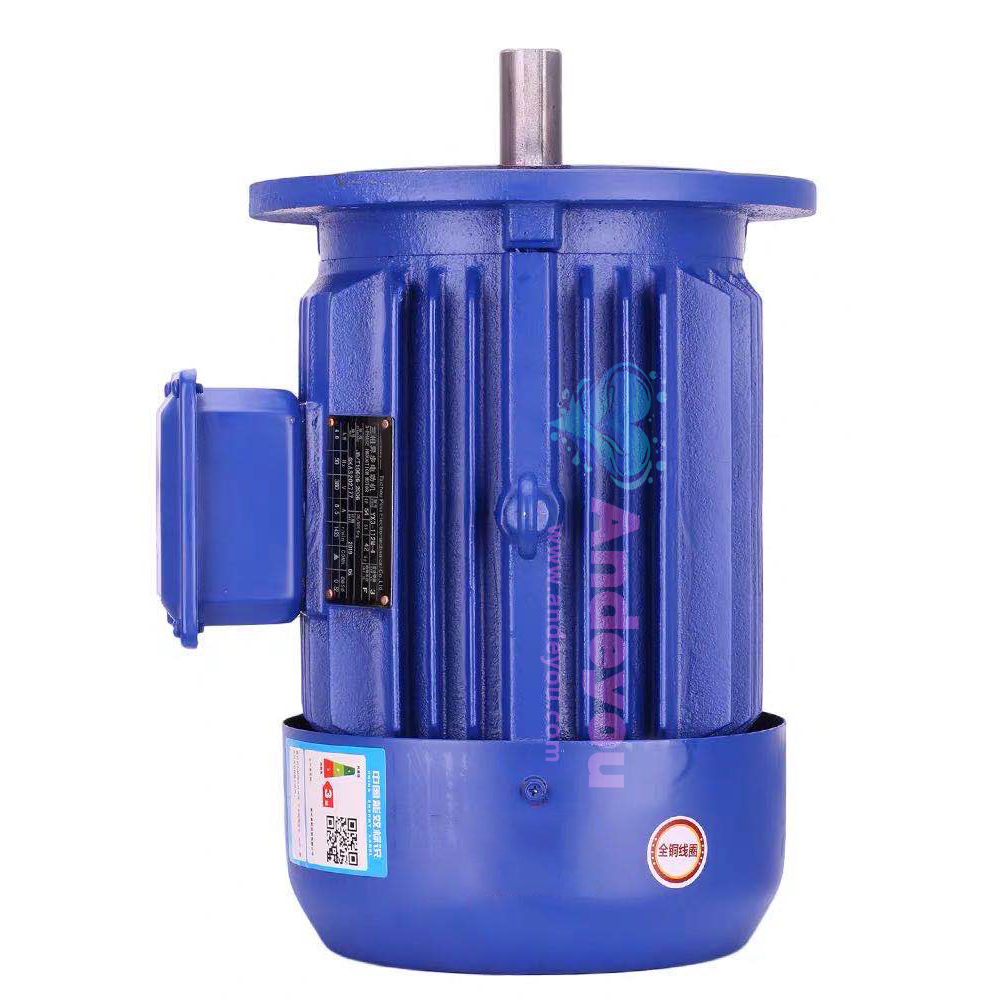

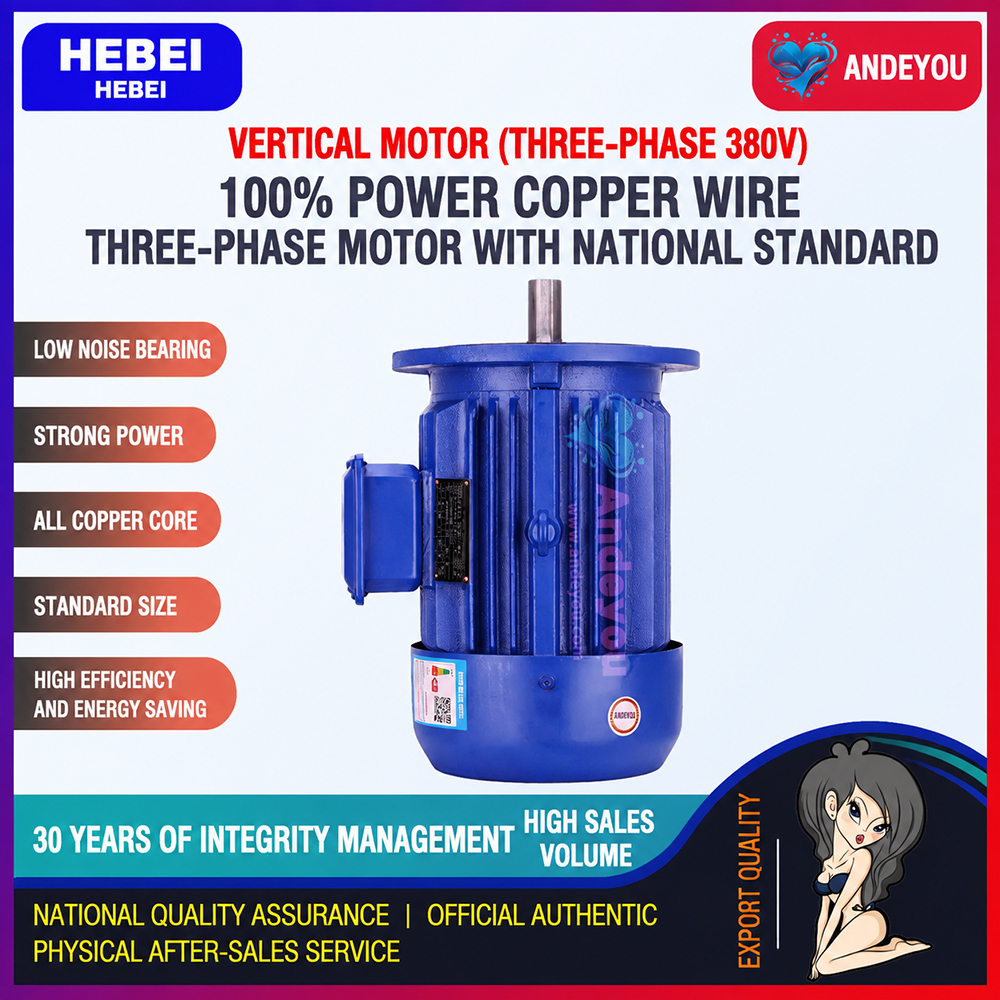

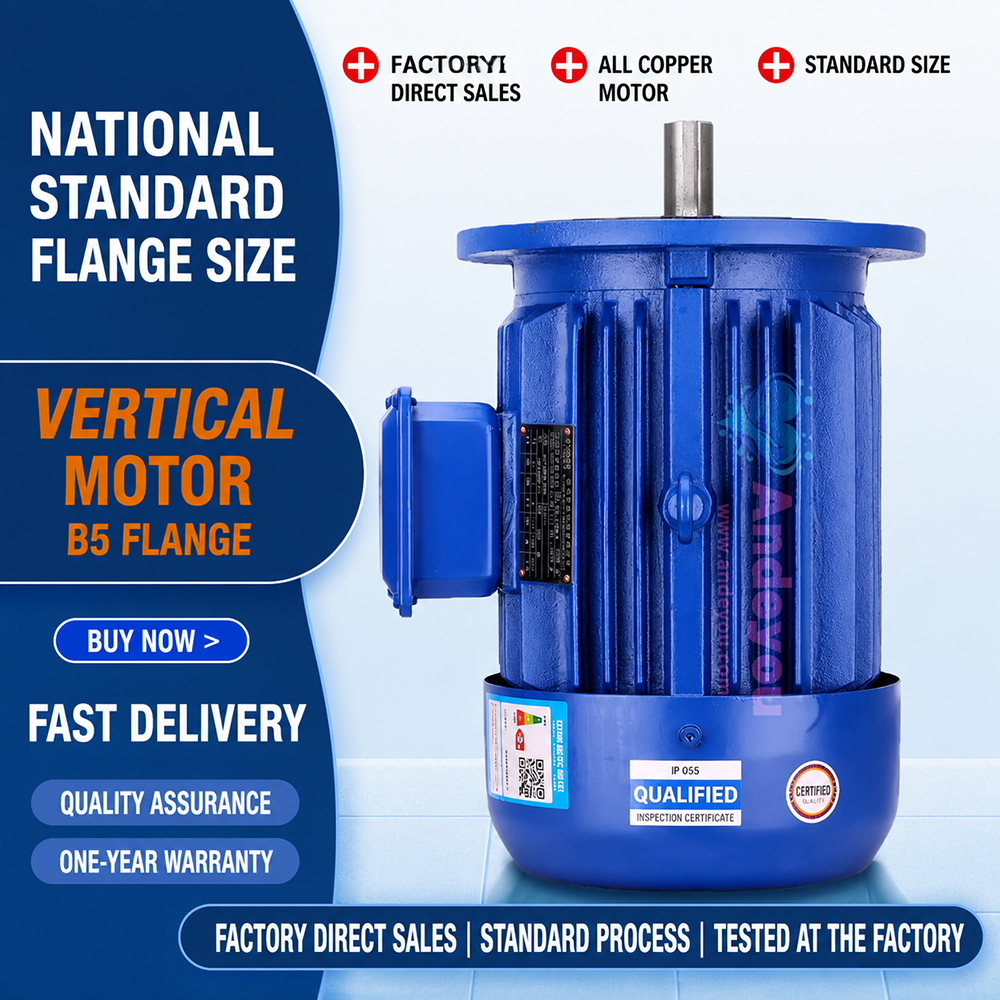

Fushen YL Vertical Motor (Three-phase 380V)

Y80M1-2、Y80M2-2、Y90S-2、Y90L-2、Y100L-2、Y112M-2、Y132S1-2、Y132S2-2、Y160M1-2、Y160M2-2、Y160L-2、Y180M-2、Y200L1-2、Y200L2-2、Y225M-2、Y250M-2、Y280S-2、Y280M-2、Y315S-2、Y315M-2、Y315L1-2、Y315L2-2、Y355M1-2、Y355M2-2、Y355L1-2、Y355L2-2、Y180M1-4、Y180M2-4、Y90S-4、Y90L1-4、Y100L1-4、Y100L2-4、Y112M-4、Y132S-4、Y132M-4、Y160M-4、Y160M-4、Y180M-4、Y180L-4、Y200L-4、Y225M-4、Y225M-4、Y250M-4、Y280S-4、Y280M-4、Y315S-4、Y315M-4、Y315L1-4、Y315L2-4、Y315M1-4、Y355M3-4、Y355L2-4、Y355L3-4

The Fushen YL series vertical motor (three-phase,380V) is a high-efficiency,energy-saving industrial motor designed to provide stable power for various types of machinery and equipment.Constructed from high-quality materials,it features low noise,high torque,and smooth operation,making it suitable for applications such as water pumps,fans,and compressors.Designed for 380V power systems to meet industrial standards,it offers reliable performance and easy maintenance

Product Consultation By telephone

Function

Parameters

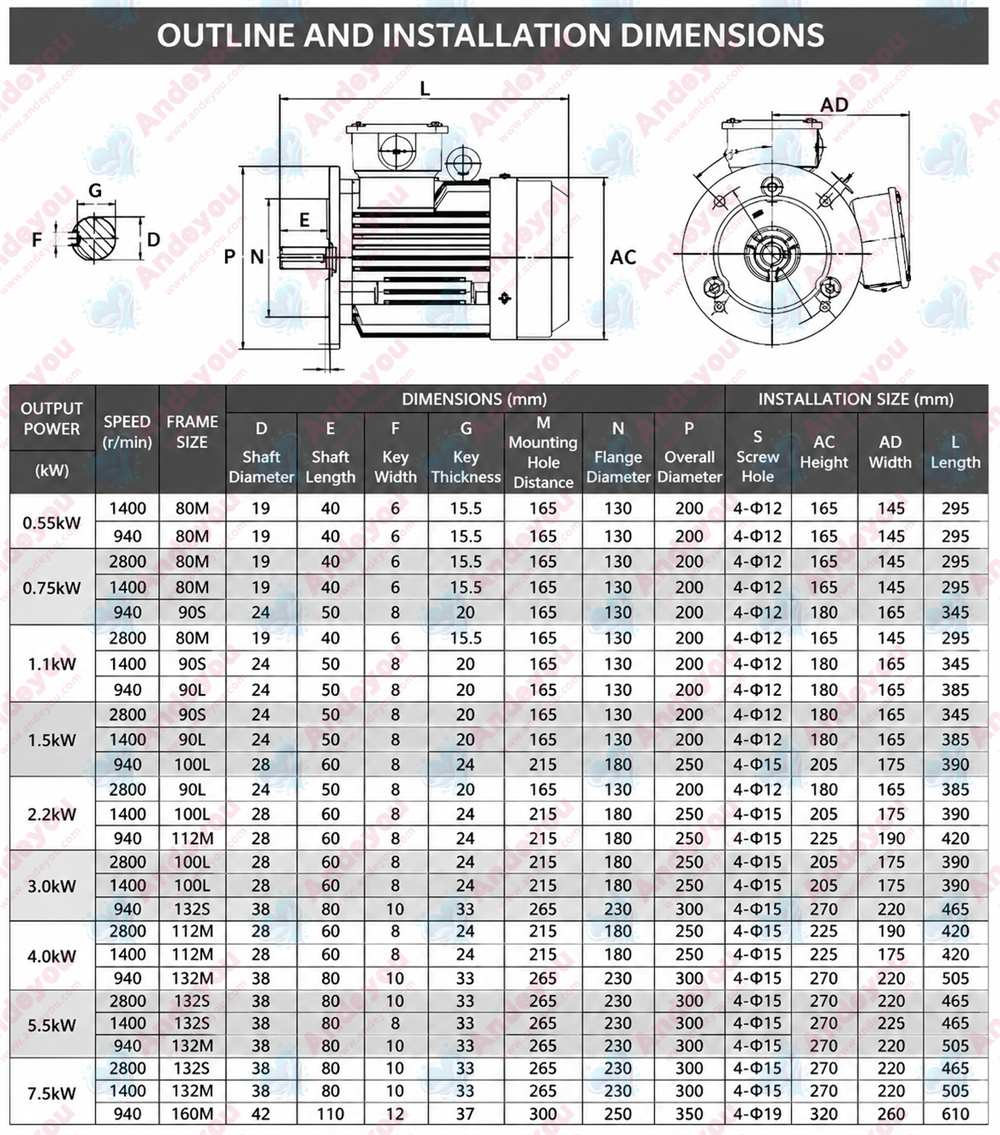

Size

Video Introduction

Function

Product Overview

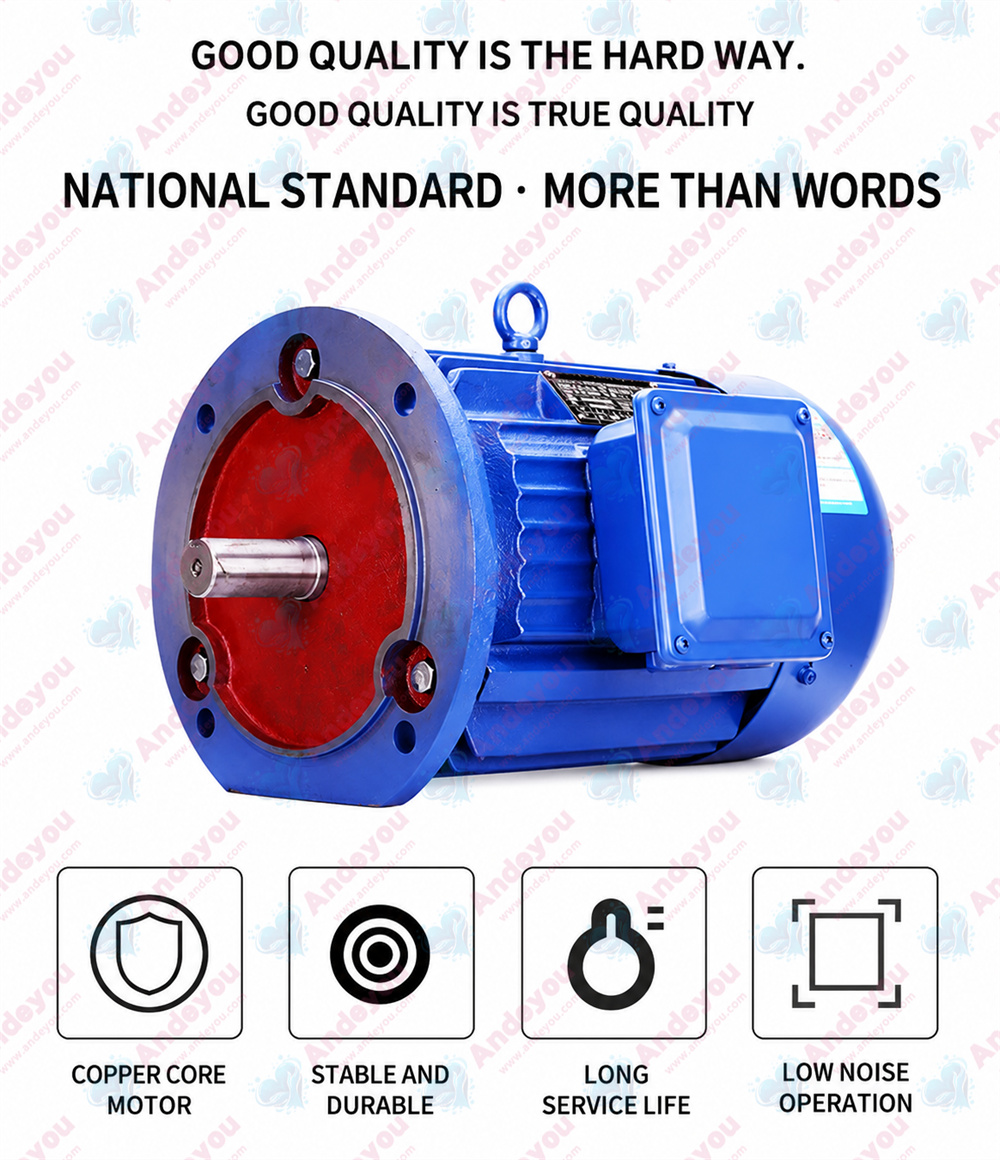

The Fushen YL series vertical motor is a three-phase, 380V asynchronous motor designed specifically for industrial applications. Manufactured using high-quality materials and advanced production techniques, it features a compact structure, stable operation, and ease of maintenance. This series is widely used in industrial equipment requiring vertical installation—such as water pumps, fans, compressors, and mining machinery—making it an ideal power source for medium-power mechanical equipment.

Key Features

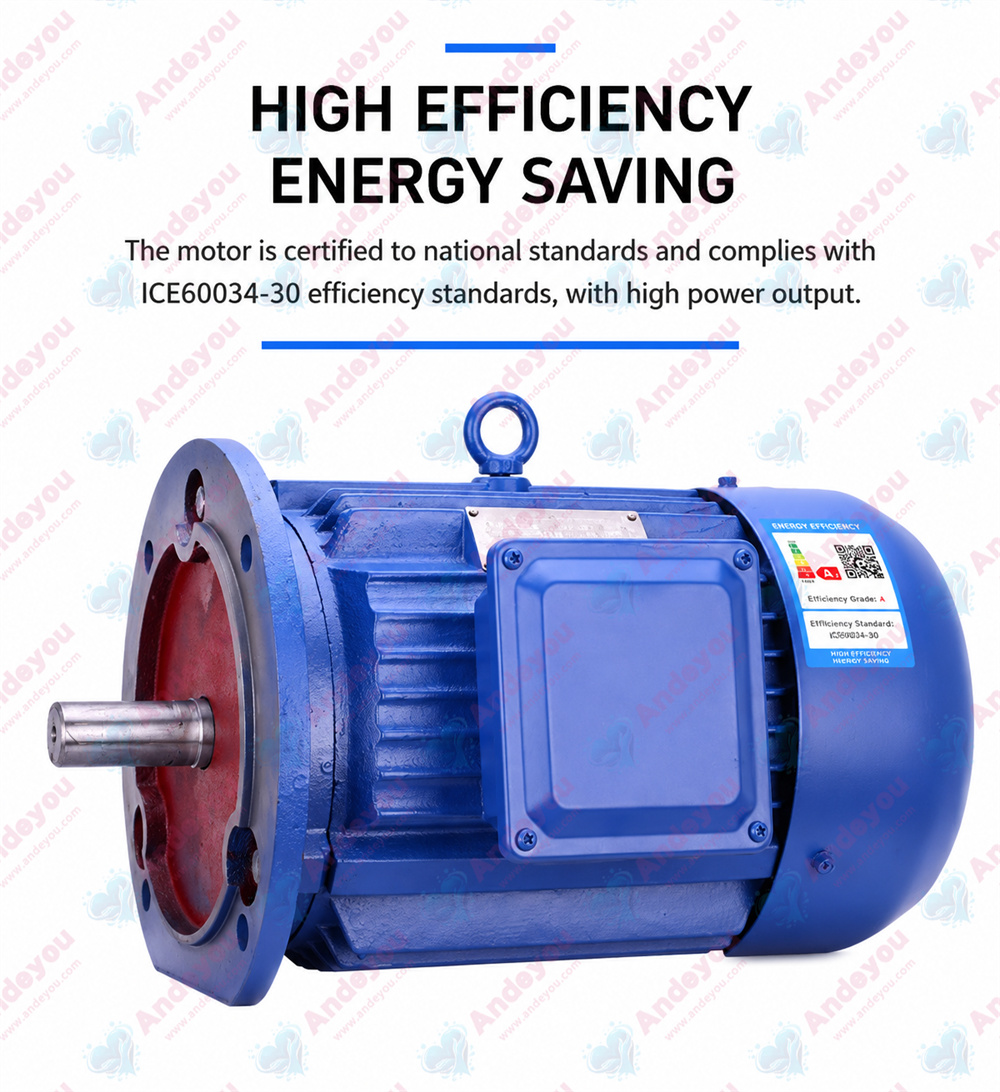

1. High-Efficiency and Energy-Saving Design

Utilizes high-permeability silicon steel sheets and an optimized electromagnetic design; the weighted average efficiency exceeds that of the traditional J02 series by 0.413%, reaching international standards.

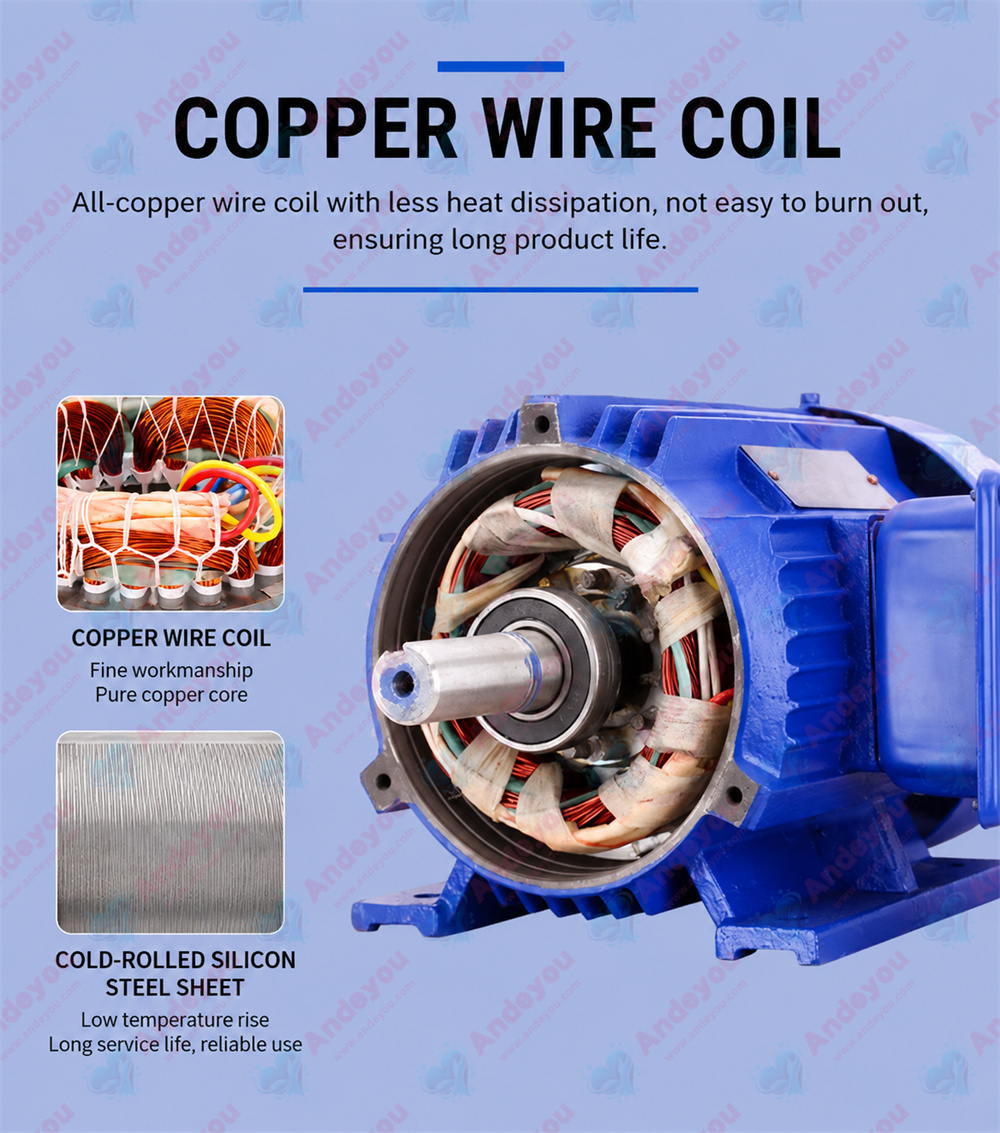

Features low-loss copper windings and a high power factor, effectively reducing line losses and ensuring an economical operating range.

Complies with the GB 30253-2013 energy efficiency standard.

2. Superior Operational Performance

High starting torque; locked-rotor torque is 33% higher than the average for traditional motors, with a minimum torque guaranteed to exceed 0.8 times the rated torque.

Smooth operation with minimal vibration; utilizes specialized motor bearings, resulting in noise levels 5–10 dB lower than traditional series.

Wide voltage adaptability (340V–420V), ensuring stable operation even amidst voltage fluctuations.

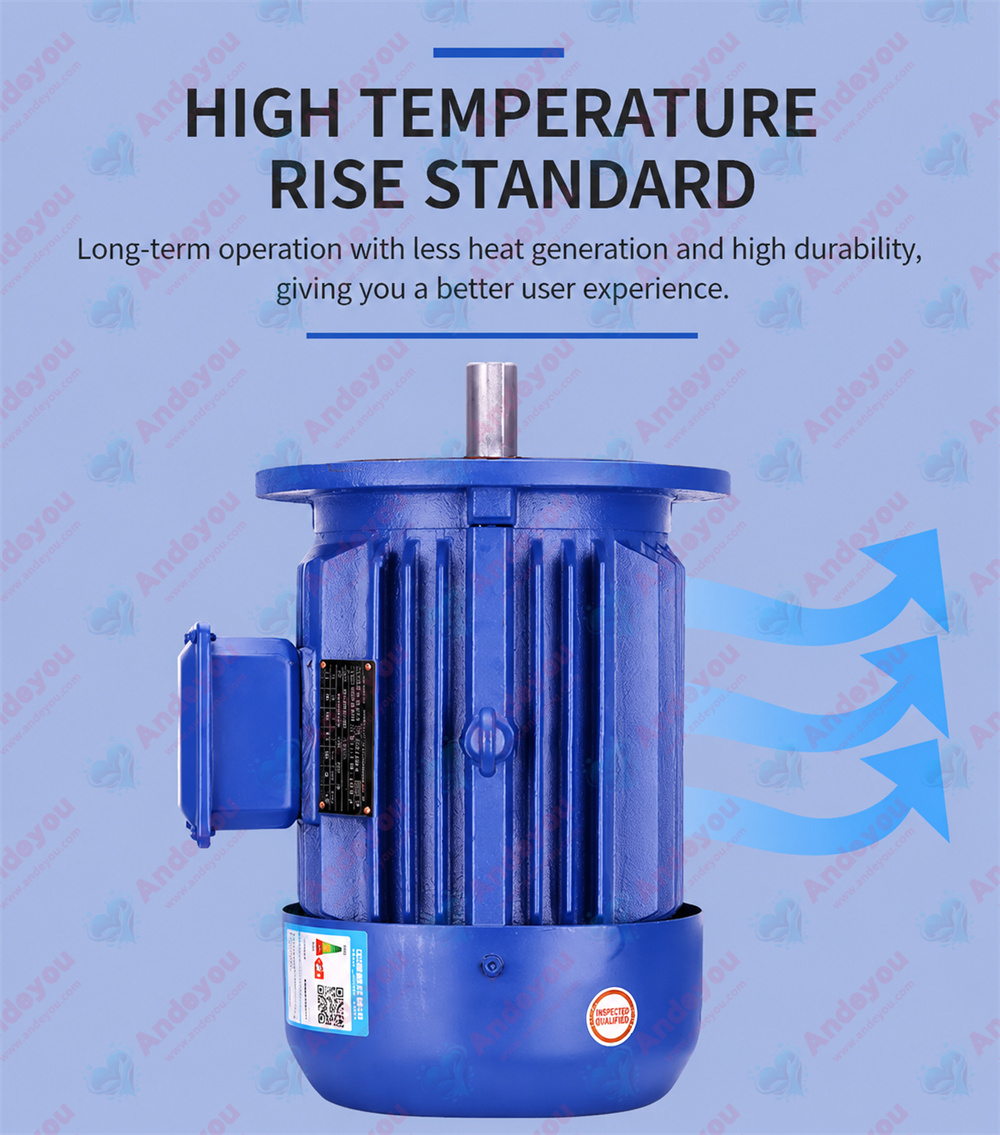

Excellent temperature rise control; temperature rise is limited to only 30–50K under rated load.

3. Robust and Durable Structural Design

The motor frame is fabricated from welded high-strength steel plate using a popular square or circular design, offering a lightweight yet rigid structure.

High-stability bearing assembly capable of withstanding significant axial forces, resolving stability and reliability issues common in vertical motors.

4. Flexible Configuration Options

Interchangeable protective covers and cooling units allow for the derivation of motors with various protection ratings.

Choice of rolling element bearings or sleeve bearings based on specific requirements.

Terminal box cable entry can be oriented upwards, downwards, to the left, or to the right, facilitating easy installation.

Supports variable frequency speed control: constant torque operation below rated frequency and constant power operation above rated frequency.

5. Safe and Reliable Protection

Windings utilize Class F insulation materials treated with Vacuum Pressure Impregnation (VPI) for excellent insulation performance.

The main terminal box features a sealed design and a dedicated grounding terminal to ensure operational safety.

Strong overload capability; capable of withstanding 150% of the rated load for short durations.

Complies with national electrical safety standards and holds CCC certification.

Technical Parameters

Rated Voltage: Three-phase 380V ±10% 50Hz

Power range: 0.55 kW – 315 kW

Number of poles: 2, 4, 6, 8, or 10 poles available

Insulation class: Class F

Duty type: Continuous duty (S1)

Ambient temperature: -15°C to +40°C

Applications

Thanks to their excellent performance, Fushen YL vertical motors (three-phase, 380V) are widely used in:

Various vertical water pumps, deep-well pumps, and sewage pump systems

Heavy-duty equipment in the petrochemical, power generation, and mining industries

Ventilation equipment, large exhaust fans, and cooling tower systems

Industrial machinery such as compressors, belt conveyors, and extruders

Specialized equipment in sectors including metallurgy, textiles, and building materials

Parameters

model	Rated Power (kW)	Rated current (A)	Rotational speed (r/min)	efficiency%	Power factor (cos φ)	Locked-rotor torque and rated torque	Locked-rotor current and rated current	Ratio of maximum torque to rated torque	Noise Level 1 dB(A)	2-pole	Vibration velocity (mm/s)	Weight (kg)
Synchronous speed 3000 r/min (2-pole)
Y80M1-2	0.75	1.8	2830	75	0.84	2.2	6.5	2.3	66	71	1.8	17
Y80M2-2	1.1	2.5	2830	77	0.86	2.2	7	2.3	66	71	1.8	18
Y90S-2	1.5	3.4	2840	78	0.85	2.2	7	2.3	70	75	1.8	22
Y90L-2	2.2	4.8	2840	80.5	0.86	2.2	7	2.3	70	75	1.8	25
Y100L-2	3	6.4	2890	82	0.87	2.2	7	2.3	74	79	1.8	34
Y112M-2	4	8.2	2890	85.5	0.87	2.2	7	2.3	74	79	1.8	45
Y132S1-2	5.5	11.1	2900	85.5	0.88	2	7	2.3	78	83	1.8	67
Y132S2-2	7.5	15	2900	86.2	0.88	2	7	2.3	78	83	1.8	72
Y160M1-2	11	21.8	2930	87.2	0.88	2	7	2.3	82	87	2.8	115
Y160M2-2	15	29.4	2930	88.2	0.88	2	7	2.3	82	87	2.8	125
Y160L-2	18.5	35.5	2930	89	0.89	2	7	2.2	82	87	2.8	145
Y180M-2	22	42.2	2940	89	0.89	2	7	2.2	87	92	2.8	173
Y200L1-2	30	56.9	2950	90	0.89	2	7	2.2	90	95	2.8	232
Y200L2-2	37	69.8	2950	90.5	0.89	2	7	2.2	90	95	2.8	250
Y225M-2	45	84	2970	91.5	0.89	2	7	2.2	90	97	2.8	312
Y250M-2	55	103	2970	91.5	0.89	2	7	2.2	92	97	4.5	387
Y280S-2	75	139	2970	92	0.89	2	7	2.2	94	99	4.5	515
Y280M-2	90	166	2970	92.5	0.89	2	7	2.2	94	99	4.5	566
Y315S-2	110	203	2980	92.5	0.89	1.8	6.8	2.2	99	104	4.5	900
Y315M-2	132	242	2980	93	0.89	1.8	6.8	2.2	99	104	4.5	1010
Y315L1-2	160	292	2980	93.5	0.89	1.8	6.8	2.2	99	104	4.5	1085
Y315L2-2	200	365	2980	93.5	0.89	1.8	6.8	2.2	99	104	4.5	1220
Y355M1-2	220	399	2980	94.2	0.89	1.2	6.9	2.2	109	109	4.5	1710
Y355M2-2	250	447	2985	94.5	0.9	1.2	7	2.2	111	111	4.5	1750
Y355L1-2	280	499	2985	94.7	0.9	1.2	7.1	2.2	111	111	4.5	1900
Y355L2-2	315	560	2985	95	0.9	1.2	7.1	2.2	111	111	4.5	2105
Synchronous speed 1500 r/min (4-pole)
Y180M1-4	0.55	1.5	1390	73	0.76	2.4	6	2.3	56	67	1.8	17
Y180M2-4	0.75	2	1390	74.5	0.76	2.3	6	2.3	56	67	1.8	17
Y90S-4	1.1	2.7	1400	78	0.78	2.3	6.5	2.3	61	67	1.8	25
Y90L1-4	1.5	3.7	1400	79	0.79	2.3	6.5	2.3	62	67	1.8	26
Y100L1-4	2.2	5	1430	81	0.82	2.2	7	2.3	65	70	1.8	34
Y100L2-4	3	6.8	1430	82.5	0.81	2.2	7	2.3	65	70	1.8	35
Y112M-4	4	8.8	1440	84.5	0.82	2.2	7	2.3	68	74	1.8	47
Y132S-4	5.5	11.6	1440	85.5	0.94	2.2	7	2.3	70	78	1.8	68
Y132M-4	7.5	15.4	1440	87	0.85	2.2	7	2.3	71	78	1.8	79
Y160M-4	11	22.6	1460	88	0.84	2.2	7	2.3	75	82	1.8	122
Y160M-4	15	30.3	1460	88.5	0.85	2.2	7	2.3	77	82	1.8	132
Y180M-4	18.5	35.9	1470	91.5	0.86	2	7	2.2	77	82	1.8	174
Y180L-4	22	42.5	1470	91.5	0.86	2	7	2.2	77	82	1.8	192
Y200L-4	30	56.8	1470	92.2	0.87	2	7	2.2	79	84	1.8	253
Y225M-4	37	70.4	1480	91.8	0.87	1.9	7	2.2	79	84	1.8	294
Y225M-4	45	84.2	1480	92.3	0.88	1.9	7	2.2	79	84	1.8	327
Y250M-4	55	103	1480	92.6	0.88	2	7	2.2	81	86	2.8	381
Y280S-4	75	140	1480	92.7	0.88	1.9	7	2.2	85	90	2.8	535
Y280M-4	90	164	1480	93.5	0.89	1.6	7	2.2	85	90	2.8	634
Y315S-4	110	201	1480	93.5	0.89	1.8	6.8	2.2	93	98	2.8	912
Y315M-4	132	240	1480	94	0.89	1.8	6.8	2.2	96	101	2.8	1048
Y315L1-4	160	289	1480	94.5	0.89	1.8	6.8	2.2	96	101	2.8	1105
Y315L2-4	200	361	1480	94.5	0.89	1.8	6.8	2.2	96	101	2.8	1260
Y315M1-4	220	407	1488	94.4	0.87	1.4	6.8	2.2	106	106	4.5	1690
Y355M3-4	250	461	1488	94.7	0.87	1.4	6.8	2.2	106	106	4.5	1800
Y355L2-4	280	515	1488	94.9	0.87	1.4	6.8	2.2	108	108	4.5	1945
Y355L3-4	315	578	1488	95.2	0.87	1.4	6.9	2.2	108	108	4.5	1985
Synchronous speed 1000 r/min (6-pole)
Y90S-6	0.75	2.3	910	72.5	0.7	2	5.5	2.2	56	65	1.8	21
Y90L-6	1.1	3.2	910	73.5	0.72	2	5.5	2.2	56	65	1.8	24
Y100L-6	1.5	4	940	77.5	0.74	2	6	2.2	62	67	1.8	35
Y112M-6	2.2	5.6	940	80.5	0.74	2	6	2.2	62	67	1.8	45
Y132S-6	3	7.2	960	83	0.76	2	6.5	2.2	66	71	1.8	66
Y132M1-6	4	9.4	960	84	0.77	2	6.5	2.2	66	71	1.8	75
Y132M2-6	5.5	12.6	960	85.3	0.78	2	6.5	2.2	66	71	1.8	85
Y160M-6	7.5	17	970	86	0.78	2	6.5	2	69	75	1.8	116
Y160L-6	11	24.6	970	87	0.78	2	6.5	2	70	75	1.8	128
Y180L-6	15	31.4	970	89.5	0.81	1.8	6.5	2	70	78	1.8	182
Y200L1-6	18.5	37.7	970	89.8	0.83	1.8	6.5	2	73	78	1.8	228
Y200L2-6	22	44.6	970	90.2	0.83	1.8	6.5	2	73	78	1.8	246
Y225M-6	30	59.5	980	90.2	0.85	1.7	6.5	2	76	81	1.8	294
Y225M-6	37	72	980	90.8	0.86	1.8	6.5	2	76	81	2.8	395
Y280S-6	45	85.4	980	92	0.87	1.8	6.5	2	79	84	2.8	505
Y280M-6	55	104	980	92	0.87	1.8	6.5	2	79	84	2.8	566
Y315S-6	75	141	980	92.8	0.87	1.6	6.5	2	87	92	2.8	850
Y315M-6	90	169	980	93.2	0.87	1.6	6.5	2	87	92	2.8	965
Y315L1-6	110	206	980	93.5	0.87	1.6	6.5	2	87	92	2.8	1028
Y315L2-6	132	246	980	93.8	0.87	1.6	6.5	2	87	92	2.8	1195
Y355M1-6	165	300	990	94.1	0.86	1.3	6.7	2	102	102	4.5	1590
Y355M2-6	185	347	990	94.3	0.86	1.3	6.7	2	102	102	4.5	1665
Y355M4-6	200	375	990	94.3	0.86	1.3	6.7	2	102	102	4.5	1725
Y355L1-6	220	311	991	94.5	0.86	1.3	6.7	2	102	102	4.5	1780
Y355L3-6	250	466	991	94.7	0.86	1.3	6.7	2	102	102	4.5	1865
Synchronous speed 750 r/min (8-pole)
Y132S-8	2.2	5.8	710	80.5	0.71	2	5.5	2	61	66	1.8	66
Y132M-8	3	7.7	710	82	0.72	2	5.5	2	61	66	1.8	76
Y160M1-8	4	9.9	720	84	0.73	2	6	2	64	69	1.8	105
Y160M2-8	5.5	13.3	720	85	0.74	2	6	2	64	69	1.8	115
Y160L-8	7.5	17.7	720	86	0.75	2	5.5	2	67	72	1.8	140
Y180L-8	11	24.8	730	87.5	0.77	1.7	6	2	67	72	1.8	180
Y200L-8	15	31.4	730	88	0.76	1.8	6	2	70	75	1.8	228
Y225S-8	18.5	41.3	730	89.5	0.76	1.7	6	2	70	75	1.8	265
Y225M-8	22	47.6	730	90	0.78	1.8	6	2	70	75	1.8	296
Y250M-8	30	63	730	90.5	0.8	1.8	6	2	73	78	2.8	391
Y280S-8	37	78.2	740	91	0.79	1.8	6	2	73	78	2.8	500
Y280M-8	45	93.2	740	91.7	0.8	1.8	6	2	73	78	2.8	562
Y315S-8	55	114	740	92	0.8	1.6	6.5	2	82	87	2.8	875
Y315M-8	75	152	740	92.5	0.81	1.6	6.5	2	82	87	2.8	1008
Y315L1-8	90	179	740	93	0.82	1.6	6.5	2	82	87	2.8	1065
Y315L2-8	110	218	740	93.3	0.82	1.6	6.3	2	82	87	2.8	1195
Y315M2-8	132	264	740	93.8	0.81	1.3	6.3	2	99	99	4.5	1675
Y355M4-8	160	319	740	94	0.81	1.3	6.3	2	99	99	4.5	1730
Y355L3-8	185	368	742	94.2	0.81	1.3	6.3	2	99	99	4.5	1840
Y355L4-8	200	398	743	94.3	0.81	1.3	6.3	2	99	99	4.5	1905
Synchronous speed 600 r/min (10-pole)
Y315S-10	45	101	590	91.5	0.74	1.4	6	2	82	87	2.8	838
Y315M-10	55	123	590	92	0.74	1.4	6	2	82	87	2.8	960
Y315L2-10	75	164	590	92.5	0.75	1.4	6	2	82	87	2.8	1180
Y355M1-10	90	191	595	93	0.77	1.2	6	2	96	96	4.5	1620
Y355M2-10	110	230	595	93.2	0.78	1.2	6	2	96	96	4.5	1775
Y355L1-10	132	275	595	93.5	0.78	1.2	6	2	96	96	4.5	1880
