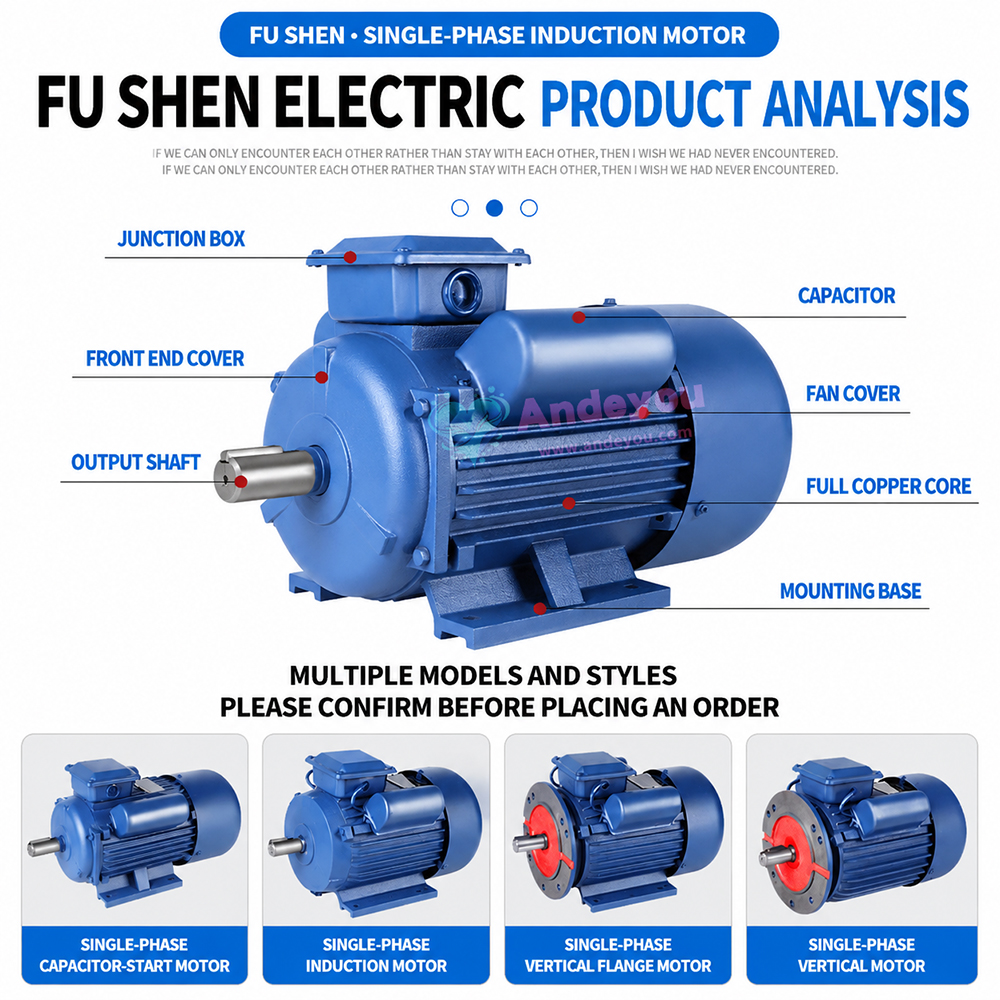

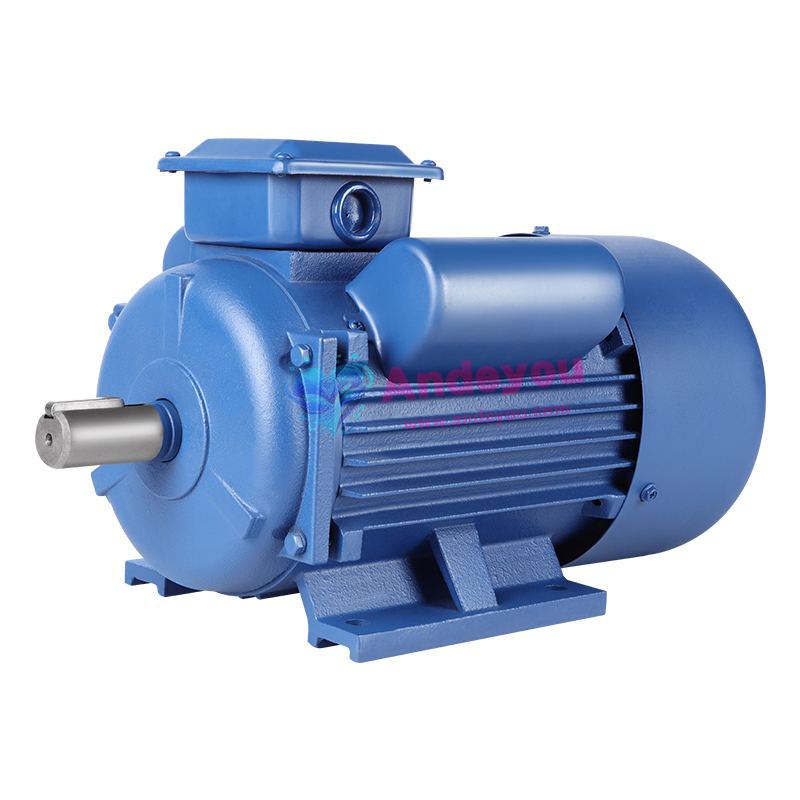

Product Overview

The Fushen Y-series horizontal motor is a single-phase 220V AC motor designed specifically for industrial applications. Manufactured using high-quality materials and advanced production techniques, it features a compact structure, stable operation, and ease of maintenance. Widely used in equipment such as water pumps, fans, compressors, food processing machinery, and packaging machinery, this series serves as an ideal power source for small- to medium-power industrial equipment.

Key Features

1. High-Efficiency, Energy-Saving Design

Utilizes high-permeability silicon steel sheets and an optimized electromagnetic design to ensure motor efficiency meets national energy efficiency standards.

Features a low-loss copper winding design to minimize electrical energy waste. High power factor effectively reduces line losses and improves grid utilization efficiency.

2. Excellent Operational Performance

High starting torque—exceeding 2.2 times the rated torque—enables easy heavy-load startups.

Smooth operation with minimal vibration and low noise ensures a quiet working environment.

Wide voltage adaptability (200V–240V) ensures stable operation even amidst voltage fluctuations.

3. Robust and Durable Structural Design

Totally enclosed, self-fan-cooled structure.

High-strength cast iron frame offers excellent heat dissipation and mechanical strength.

Precision-machined bearing housings paired with high-quality bearings ensure long-term stability without loosening.

4. User-Friendly Design

Horizontal mounting design facilitates direct connection to equipment.

Standardized flange and shaft extension dimensions ensure high interchangeability and easy equipment integration.

Rotatable terminal box allows for convenient cable entry from various directions.

5. Safe and Reliable Protection Features

Double insulation design ensures operator safety.

Strong overload capacity; capable of withstanding 150% of rated load for short durations.

Complies with national electrical safety standards and holds CCC certification.

Technical Specifications

Rated Voltage: Single-phase 220V ±10%, 50Hz

Power Range: 0.18kW–3.0kW

Number of Poles: 2-pole or 4-pole options

Insulation Class: Class B or Class F

Duty Cycle: Continuous duty (S1)

Ambient Temperature: -15°C to +40°C

Application Areas

Thanks to its outstanding performance, the Fushen Y-series horizontal motor is widely used in:

Various clean water pumps, sewage pumps, and booster pump systems

Ventilation equipment, smoke exhaust fans, and air conditioning systems

Food processing machinery, packaging machinery, and conveying equipment

Small machine tools, woodworking machinery, and printing equipment

Agricultural machinery, irrigation systems, etc.
