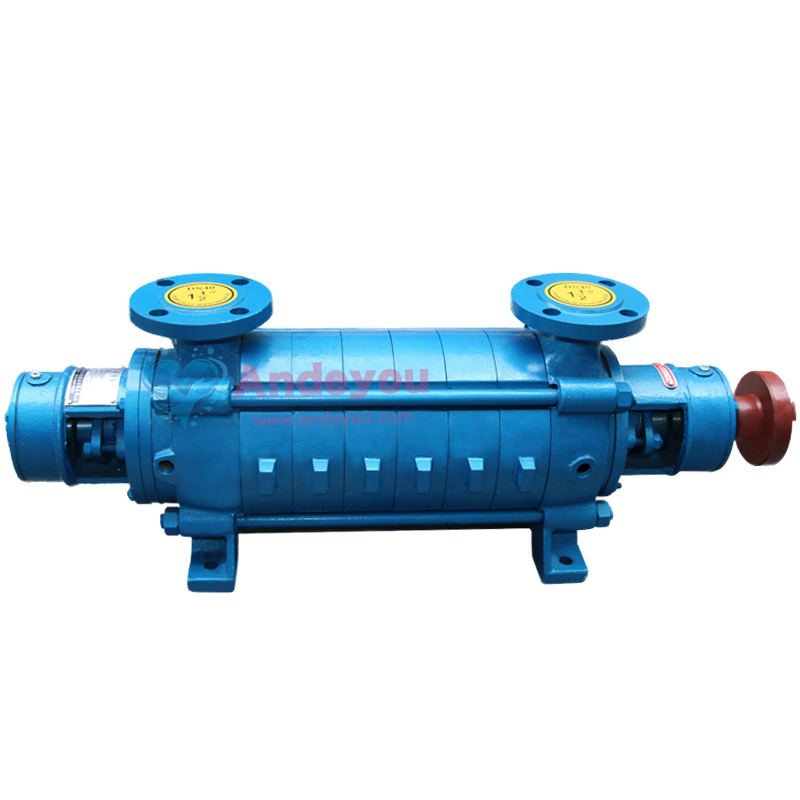

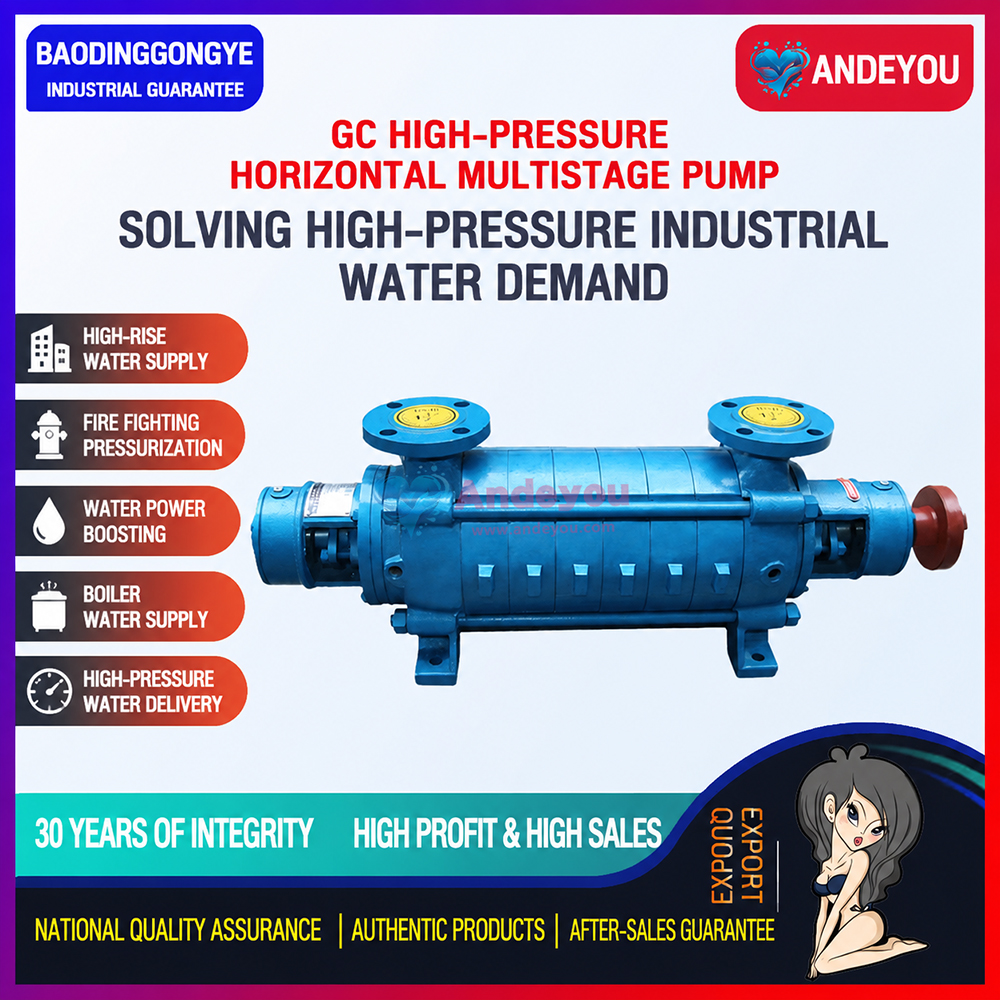

Baoding Industrial GC Horizontal Multistage Pump

1.5GC-5×2/1.5GC-5×3/1.5GC-5×4/1.5GC-5×5/1.5GC-5×6/1.5GC-5×7/1.5GC-5×8/1.5GC-5×9/2GC-5×2/2GC-5×3/2GC-5×4/2GC-5×5/2GC-5×6/2GC-5×7/2GC-5×8/2GC-5×9/2.5GC-6×2/2.5GC-6×3/2.5GC-6×4/2.5GC-6×5/2.5GC-6×6/2.5GC-6×7/2.5GC-6×8/2.5GC-6×9/

The Baoding Industrial GC horizontal multistage pump is constructed from high-quality stainless steel,offering excellent corrosion resistance and suitability for high-temperature,high-pressure industrial environments.Its multistage centrifugal design ensures stable,high-head water delivery,while integrated intelligent variable-frequency technology enables precise flow and pressure regulation,boosting energy efficiency by over 30%.Featuring a compact structure and low-noise operation

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

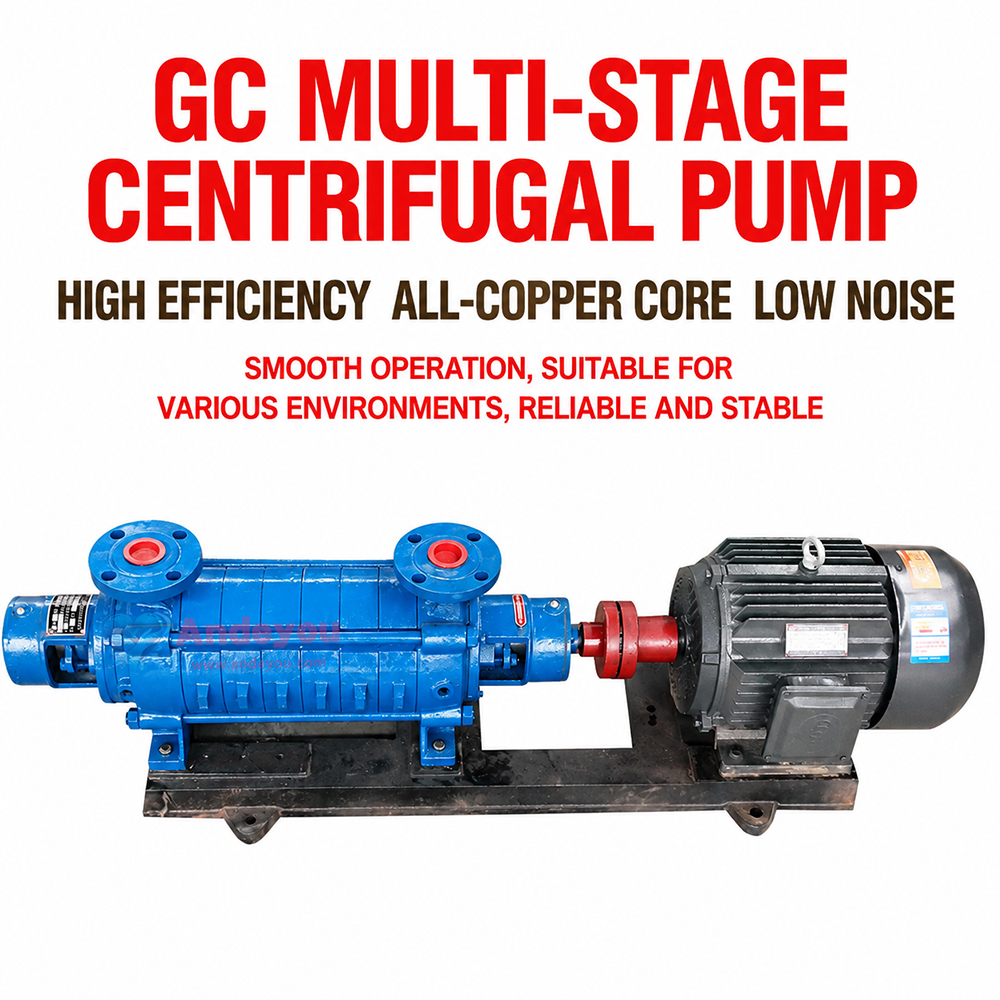

GC Horizontal Multistage Pump

**High-Efficiency Pressurization and Energy-Saving Design**

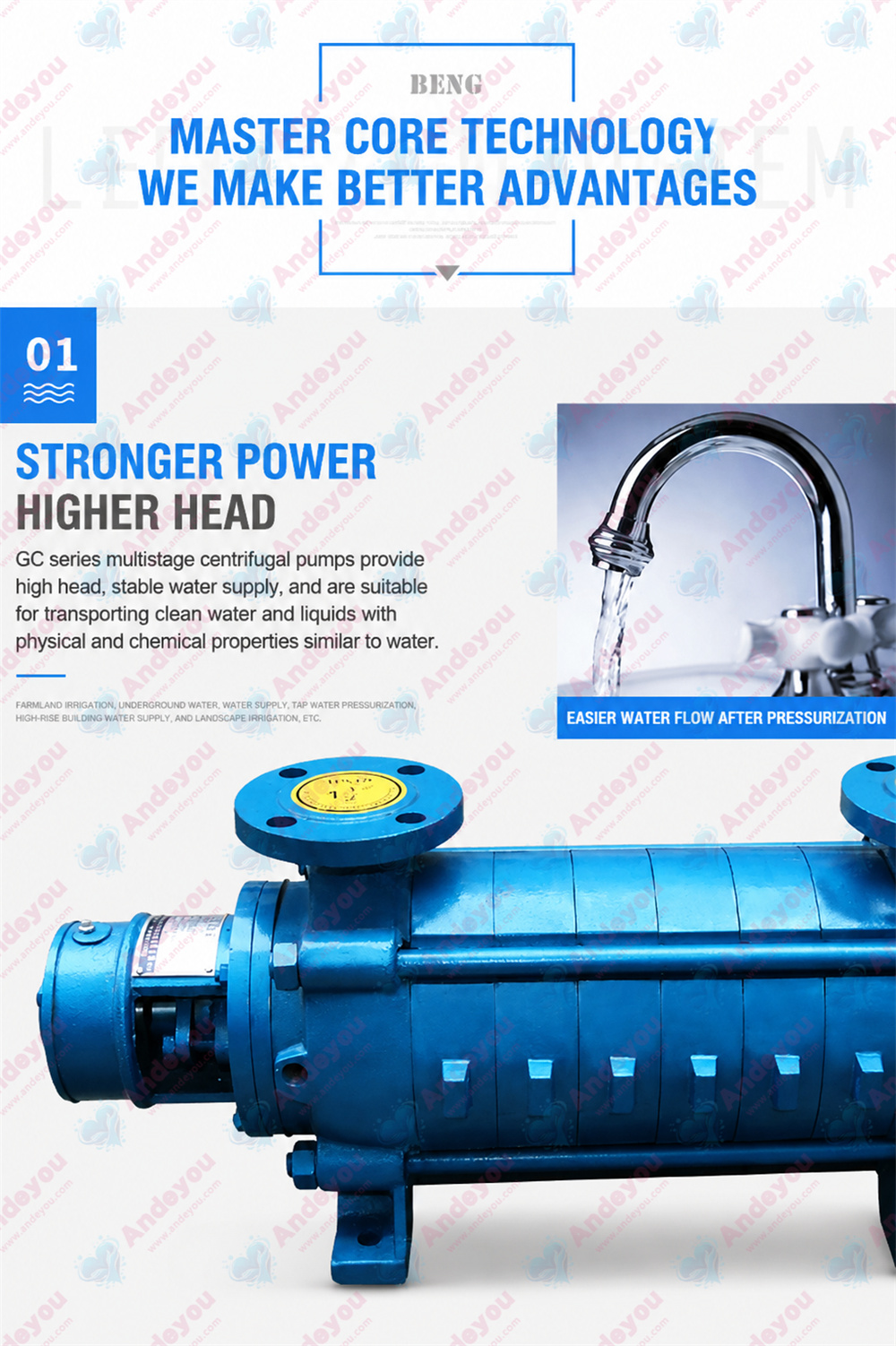

* Features a multistage centrifugal impeller structure that builds pressure stage-by-stage, achieving heads of several hundred meters to meet requirements for high-resistance or long-distance water transport.
* Combines advanced hydraulic modeling with intelligent variable-frequency control; the high-efficiency zone covers 70%–110% of the rated flow, reducing energy consumption by 10%–30%.

**Stability and Reliability**

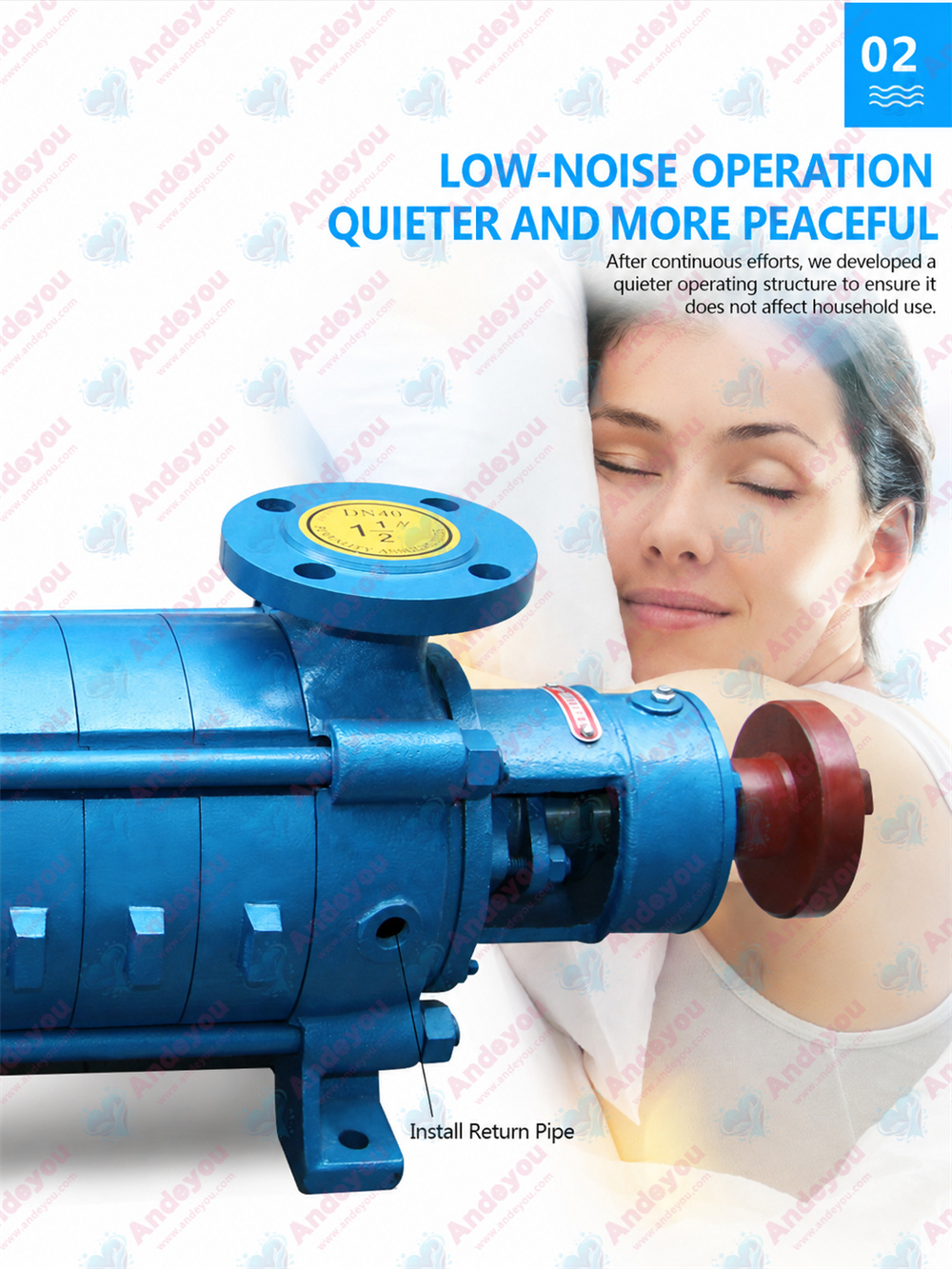

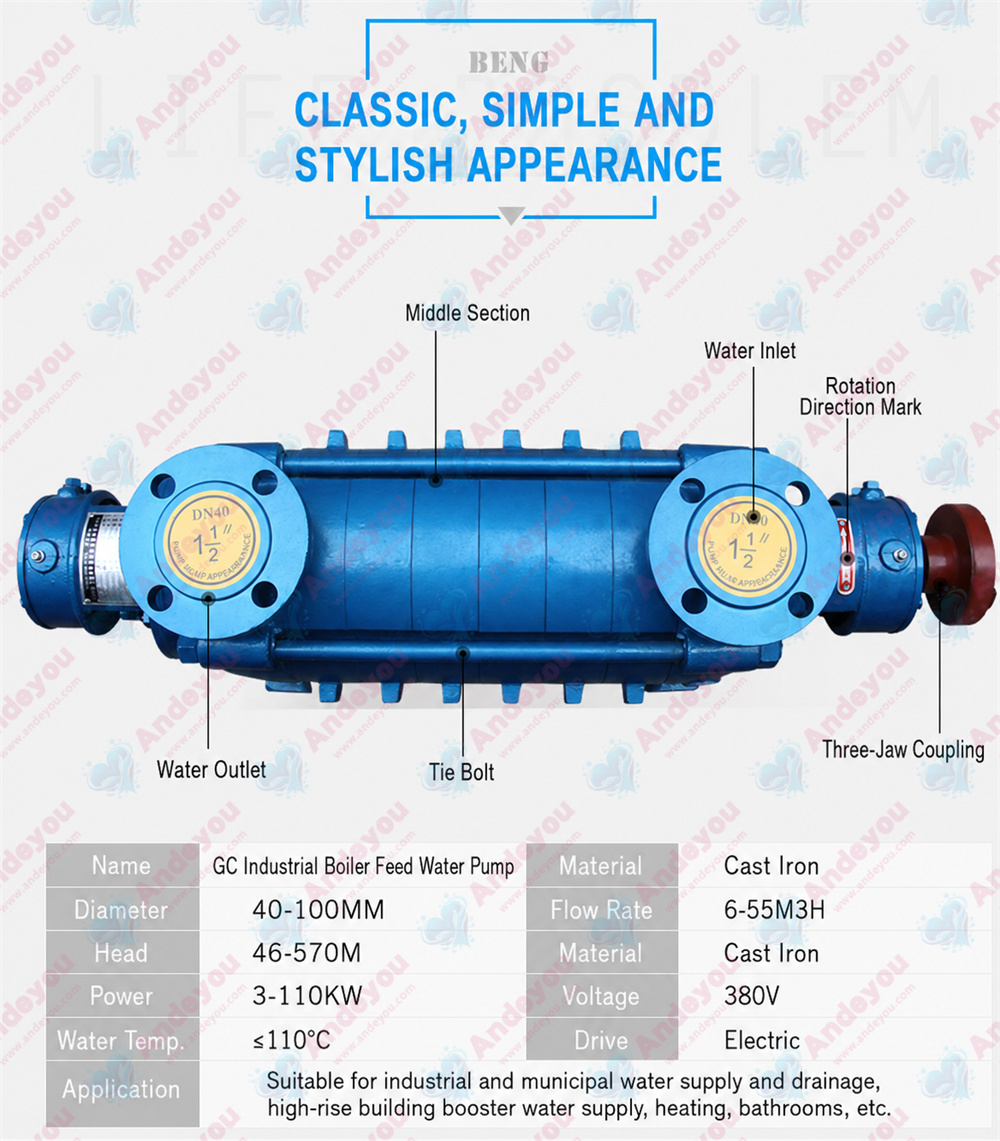

* Utilizes a segmented pump body design with an automatic axial force balancing system (balance disc/drum), minimizing vibration and bearing wear while keeping operating noise levels below industry standards.
* Employs soft packing or mechanical seal technology to ensure low leakage risk; suitable for transporting clean water (up to 110°C) and mildly corrosive media.

**Compact Structure and Easy Maintenance**

* Horizontal layout saves space; inlet and outlet flanges connect directly to piping, allowing for flexible installation.
* Modular segmented structure enables rapid disassembly; standardized components ensure low maintenance costs.

**Versatile Applications**

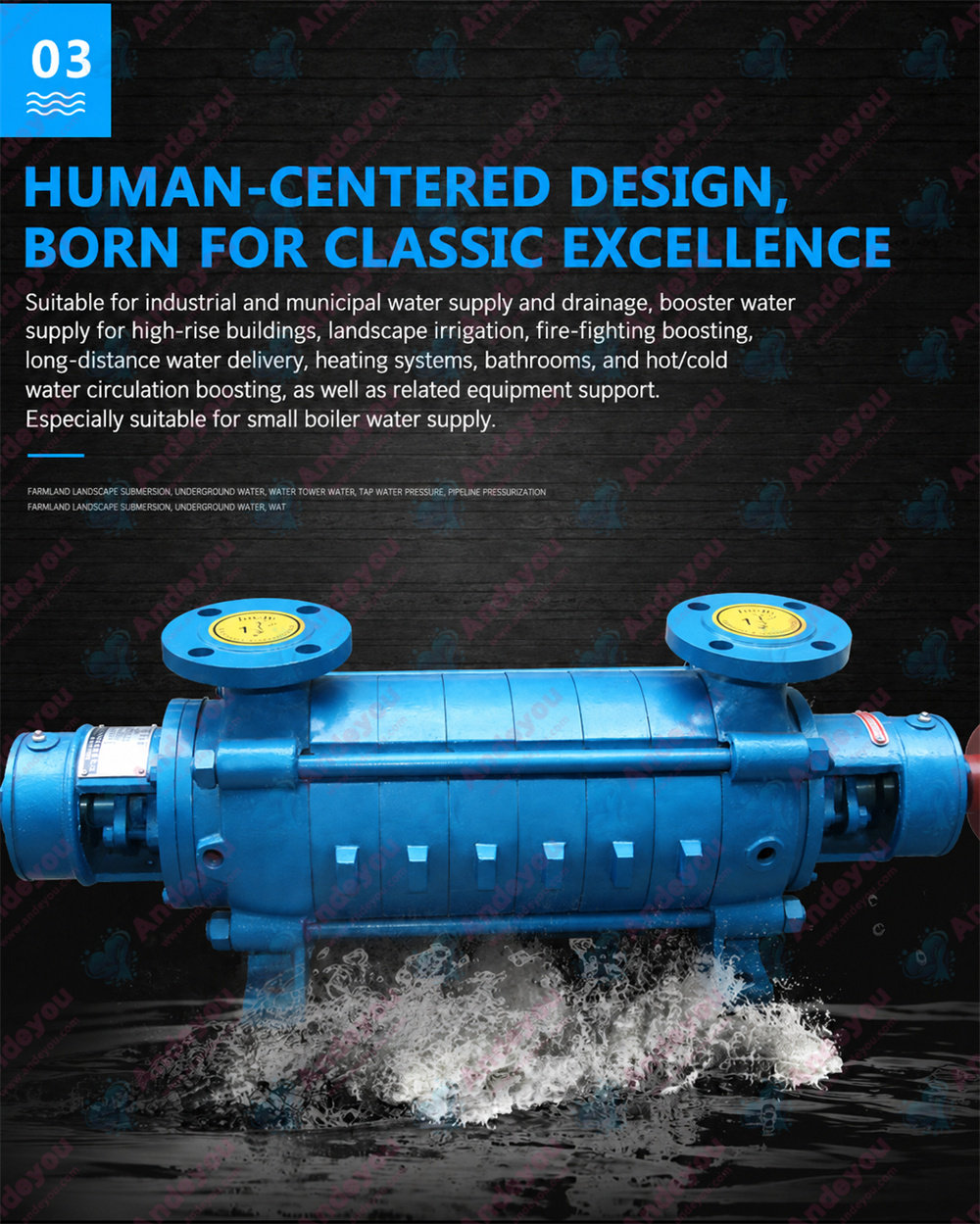

* Designed specifically for industrial boiler feed, HVAC circulation, and fire-fighting pressurization; also suitable for constant-pressure water supply in high-rise buildings, chemical processing, and agricultural irrigation.
* Flow-path components can be customized in stainless steel (304/316) for superior corrosion resistance, making the pump suitable for hygiene-sensitive sectors such as food and pharmaceuticals.

**Key Highlights:** High efficiency and energy savings, stable high-pressure performance, easy maintenance, and multi-scenario adaptability—meeting rigorous demands in both industrial and civil sectors.

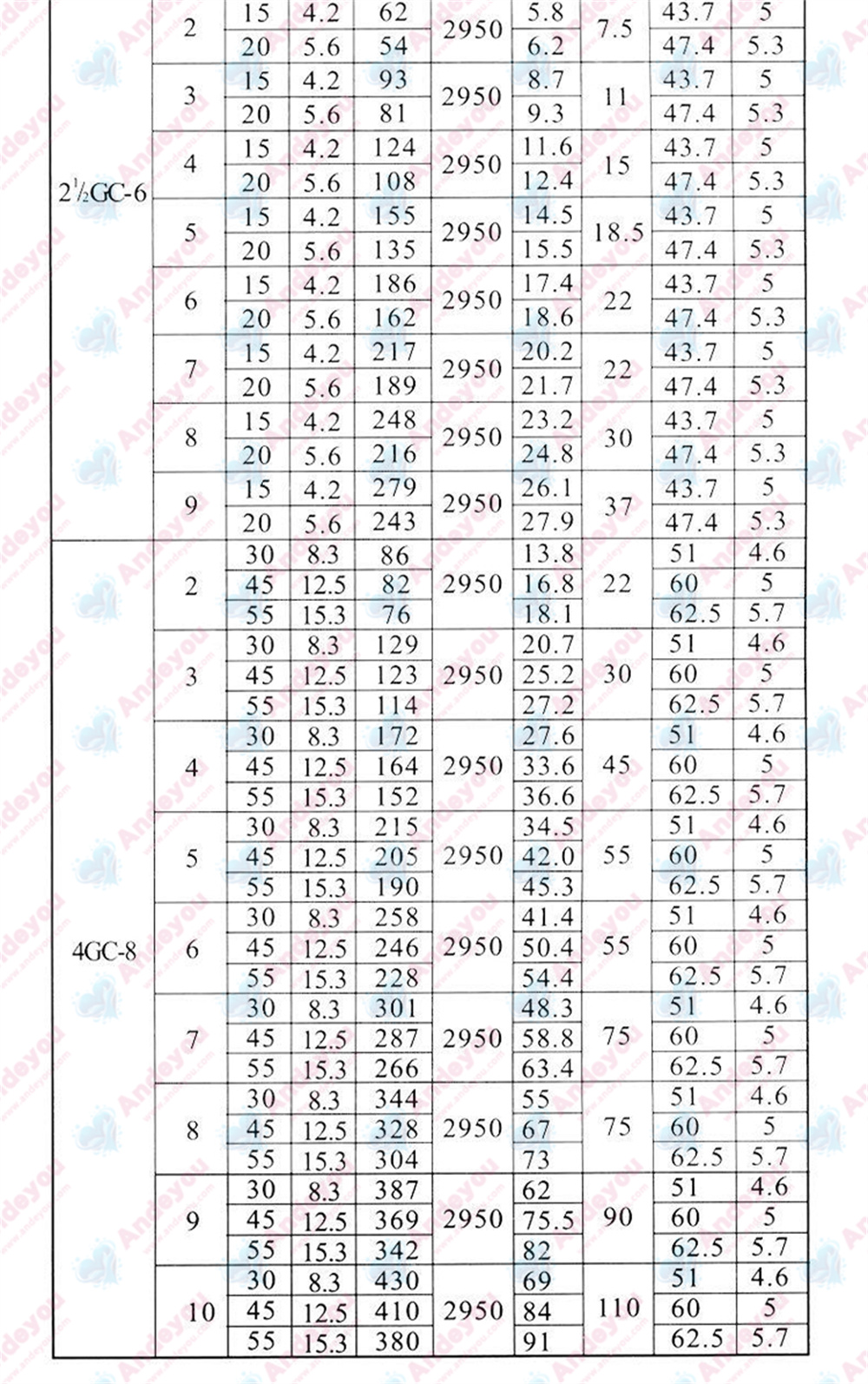

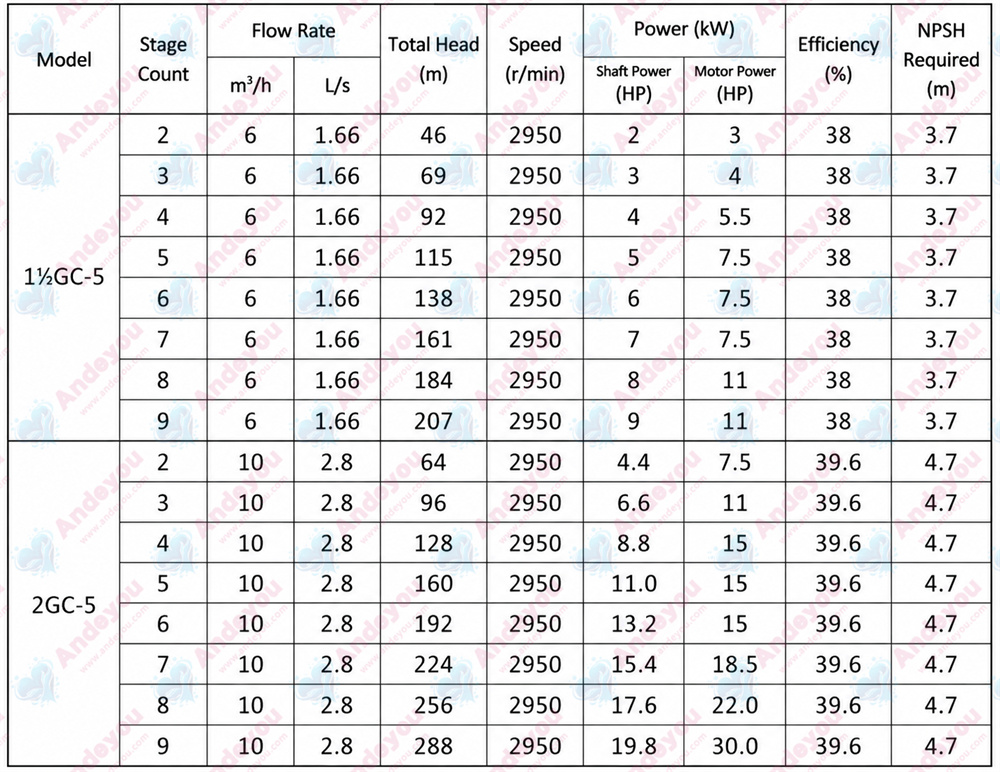

Parameters

Product Model	Voltage	Rated flow rate (m³/h)	Rated head (m)	Power (kW)	caliber	Rotational speed (r/min)
1.5GC-5×2	380	6	46	3	40×40	2850
1.5GC-5×3	380	6	69	4	40×40	2850
1.5GC-5×4	380	6	92	5.5	40×40	2850
1.5GC-5×5	380	6	115	7.5	40×40	2850
1.5GC-5×6	380	6	138	7.5	40×40	2850

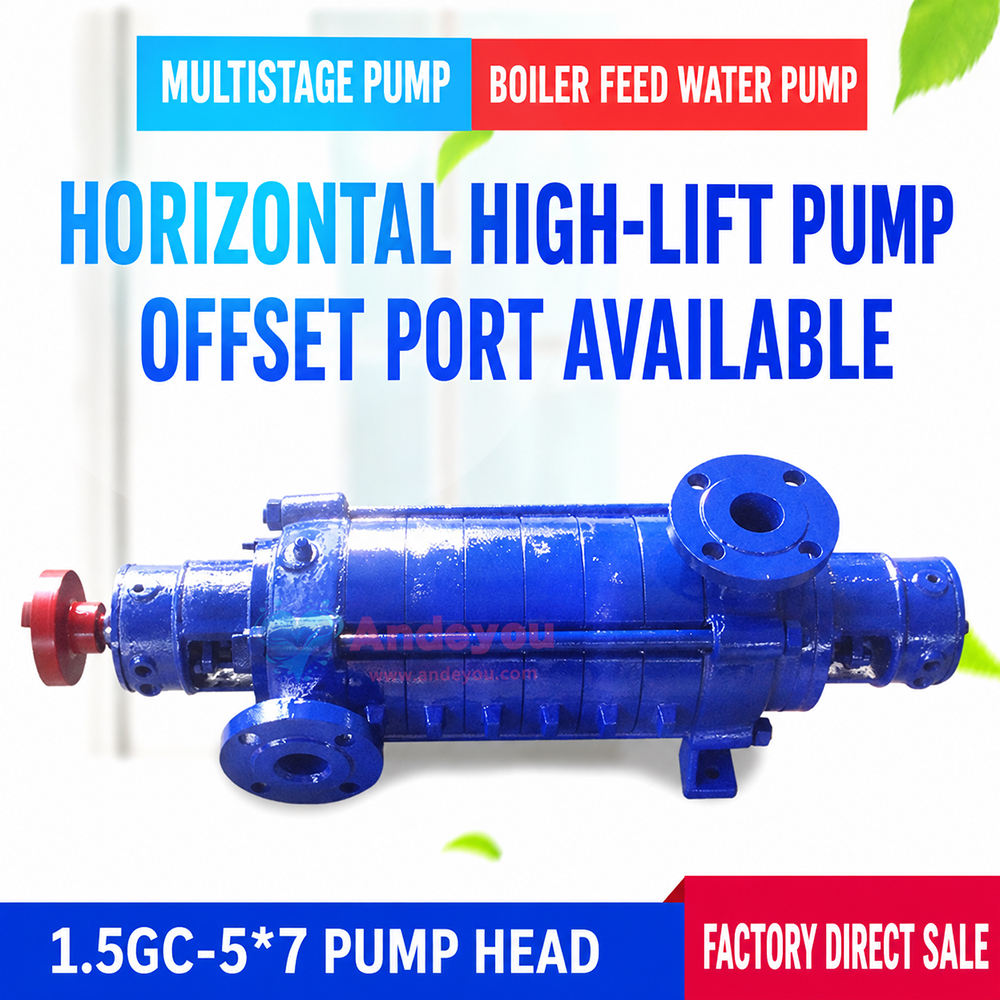

1.5GC-5×7	380	6	161	7.5	40×40	2850
1.5GC-5×8	380	6	184	11	40×40	2850
1.5GC-5×9	380	6	207	15	40×40	2850
2GC-5×2	380	10	64	7.5	50×50	2850
2GC-5×3	380	10	96	11	50×50	2850
2GC-5×4	380	10	128	15	50×50	2850
2GC-5×5	380	10	160	15	50×50	2850
2GC-5×6	380	10	192	18.5	50×50	2850
2GC-5×7	380	10	224	22	50×50	2850
2GC-5×8	380	10	256	30	50×50	2850
2GC-5×9	380	10	288	30	50×50	2850
2.5GC-6×2	380	15	62	7.5	65×65	2850
2.5GC-6×3	380	15	93	11	65×65	2850
2.5GC-6×4	380	15	124	15	65×65	2850
2.5GC-6×5	380	15	155	18.5	65×65	2850
2.5GC-6×6	380	15	186	22	65×65	2850
2.5GC-6×7	380	15	217	30	65×65	2850
2.5GC-6×8	380	15	248	30	65×65	2850
2.5GC-6×9	380	15	279	37	65×65	2850
