Hebei ISW Horizontal Inline Pump: Core Power for Industrial Fluid Transport
I. Innovative Structural Design Redefining Industrial Standards

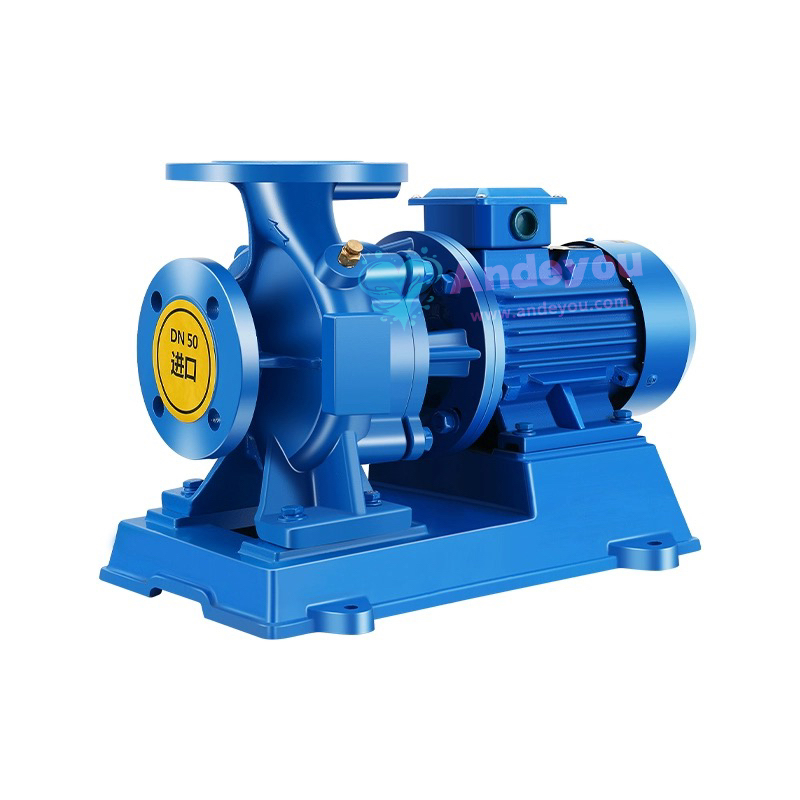

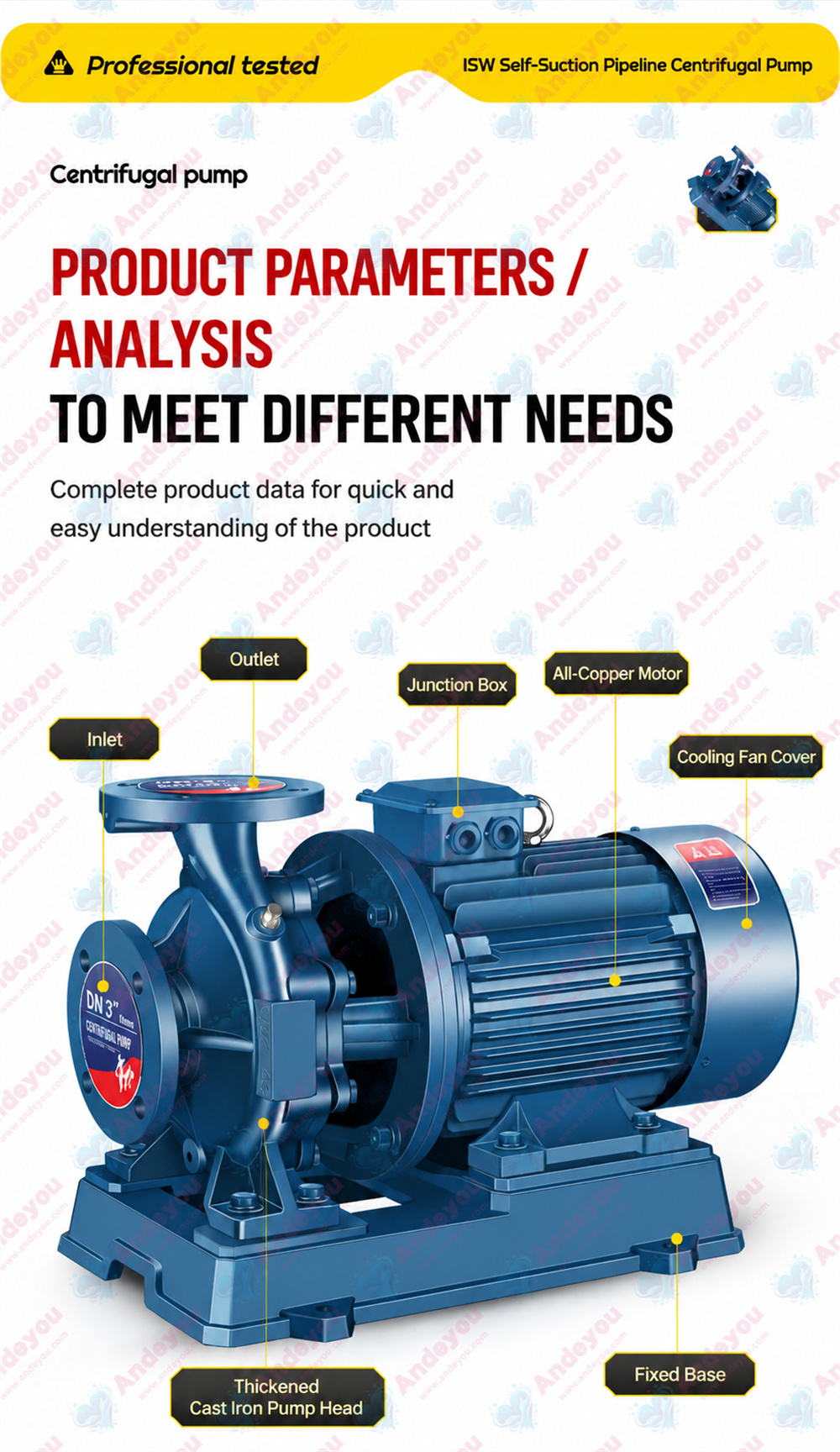

The Hebei ISW horizontal inline pump features a horizontal, close-coupled structure with an integrated motor-pump design. The inlet and outlet flanges are arranged horizontally, while the upward-facing discharge port facilitates flexible piping layouts. This design reduces the footprint by 30% compared to traditional horizontal pumps, making it ideal for space-constrained industrial sites. A drain port is located at the bottom of the pump casing, and pressure-sensing ports are provided on the flanges; these features simplify maintenance and enable real-time monitoring of operating parameters to ensure system stability.
II. High-Efficiency, Energy-Saving Technology Setting Industry Benchmarks

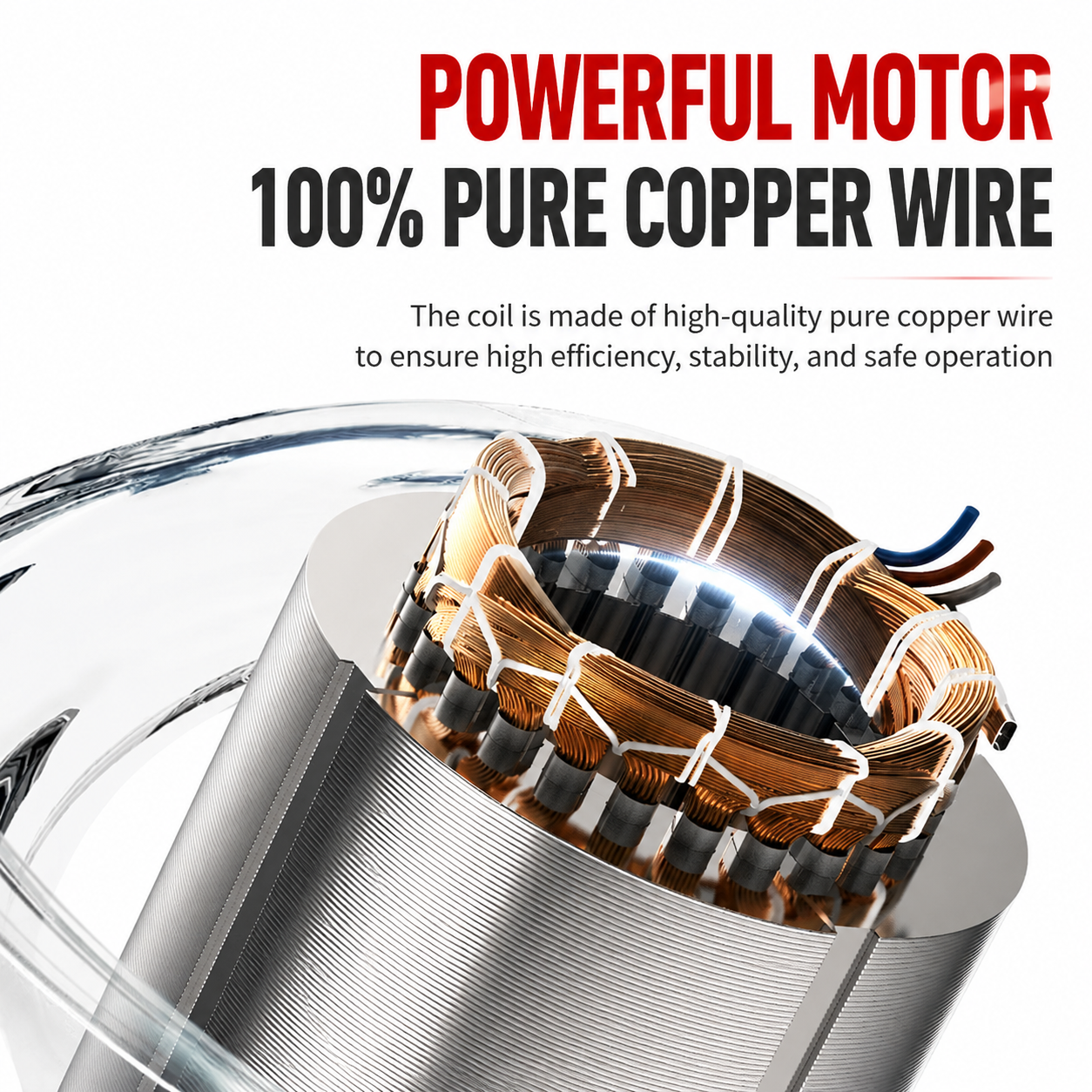

The impeller utilizes a 3D flow field simulation design paired with a close-coupled drive structure. It employs a YE3 high-efficiency motor (power factor ≥ 0.85) and maintains impeller dynamic/static balance at the G2.5 precision level, resulting in an 18% reduction in energy consumption under rated operating conditions and significant annual cost savings. For instance, the ISW80-160 model—operating at a flow rate of 50 m³/h and a head of 32 m—demonstrates a measured power consumption of only 7.5 kW, representing a 12% energy saving over previous models.
III. Quiet Operation and Reliability Assurance

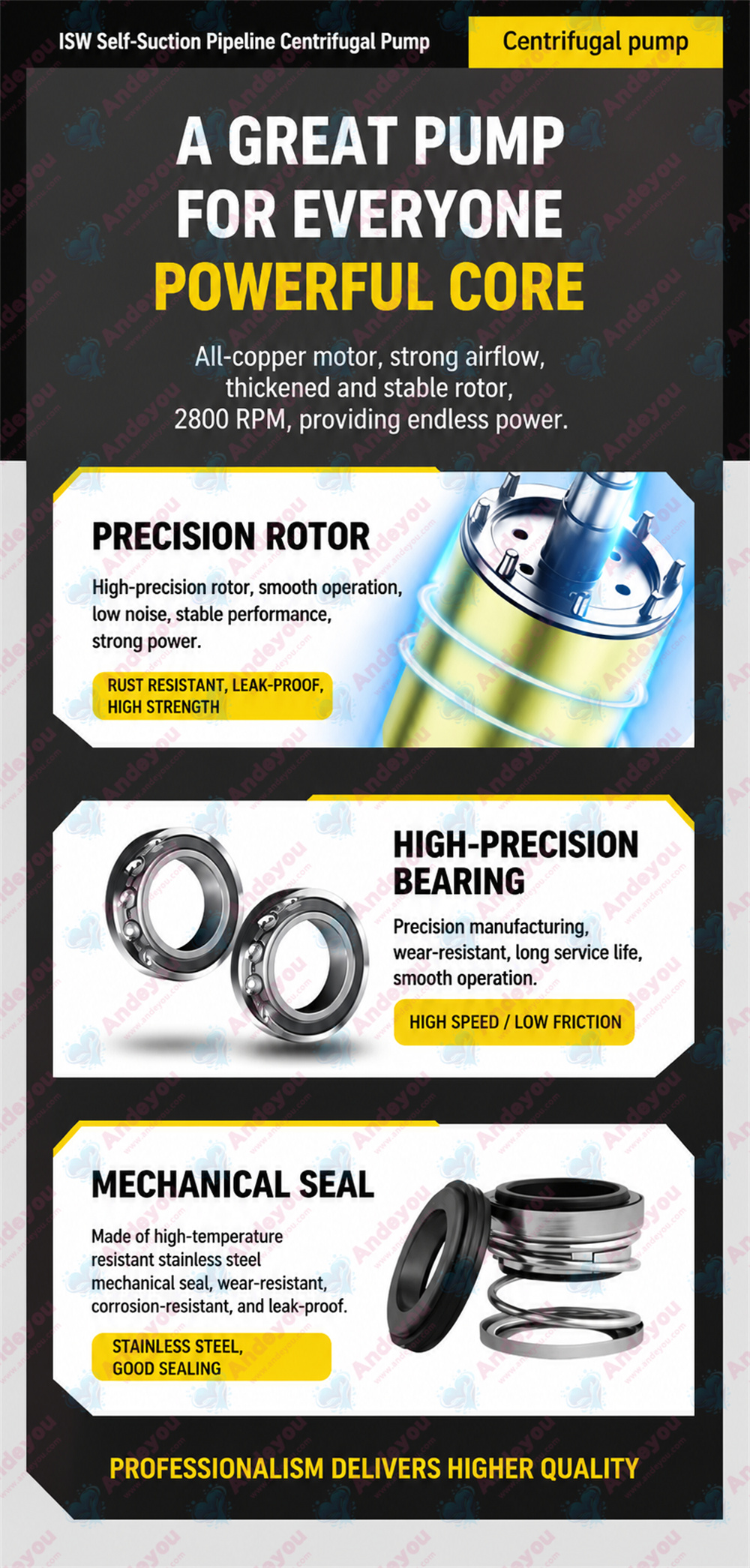

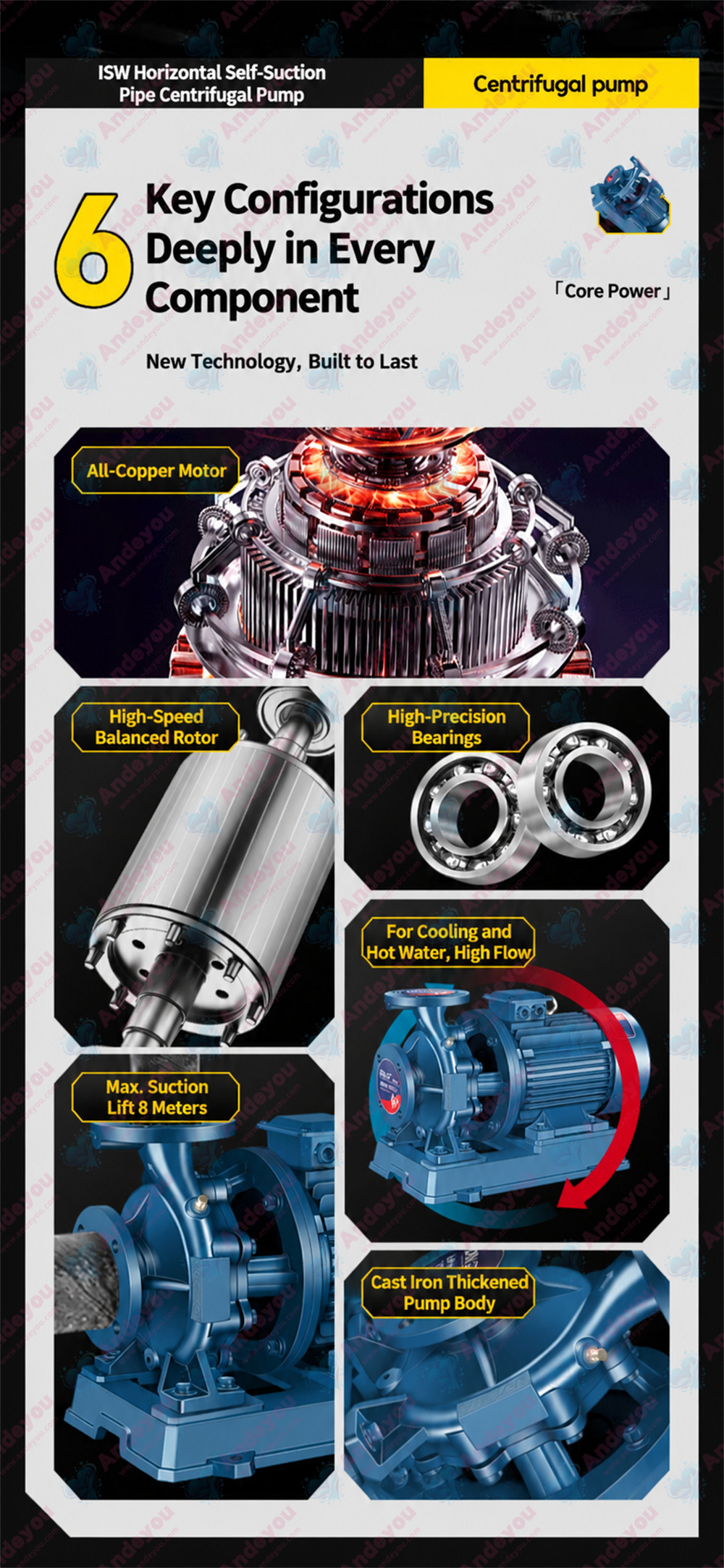

The pump utilizes double-row angular contact ball bearings paired with a high-precision shaft system and dynamic impeller balancing. The mechanical seal assembly features a standard tungsten carbide-silicon carbide friction pair and a bellows compensation mechanism, ensuring zero leakage across a medium temperature range of -20°C to 120°C.
IV. Diverse Materials for Complex Operating Conditions

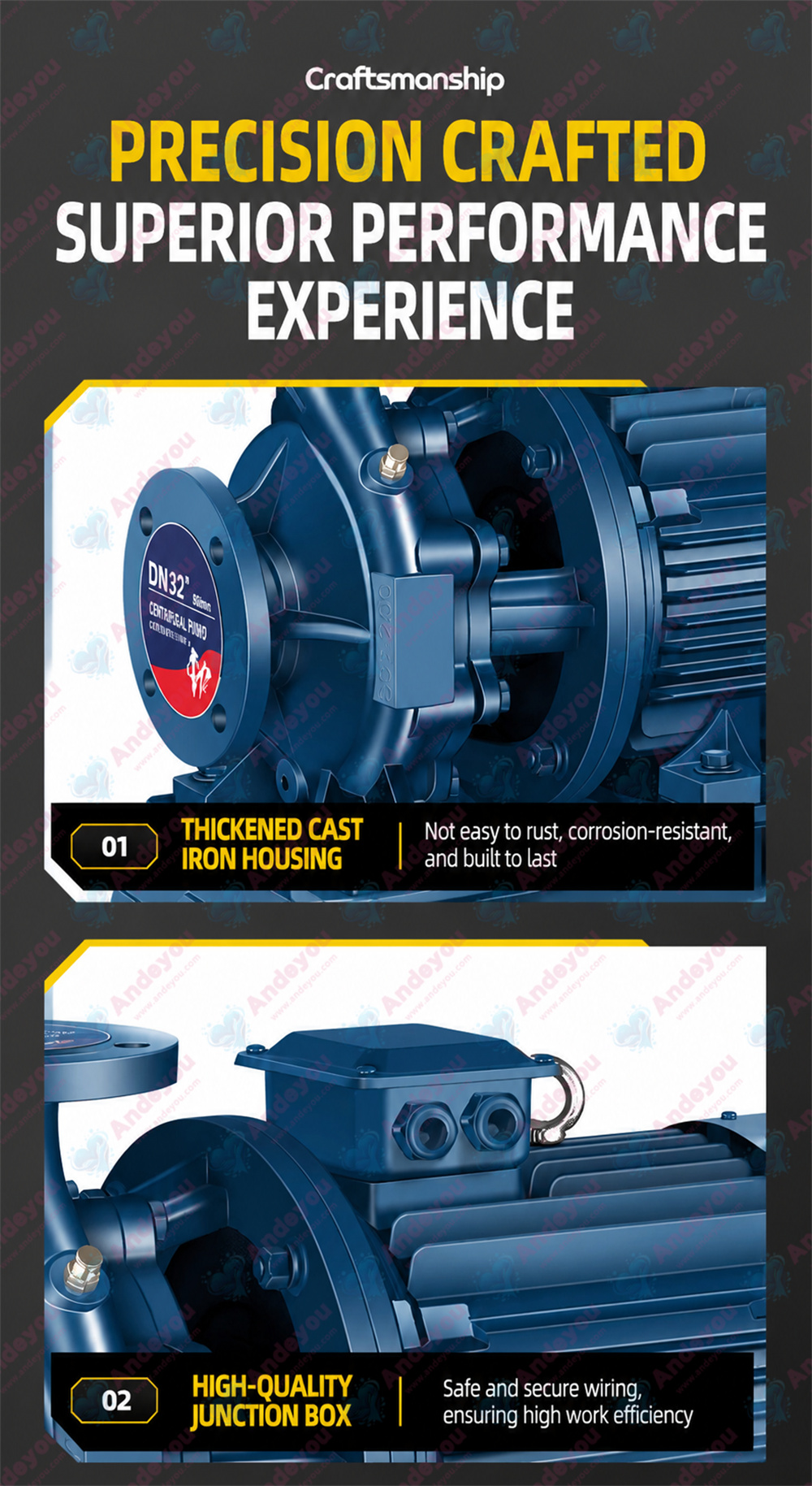

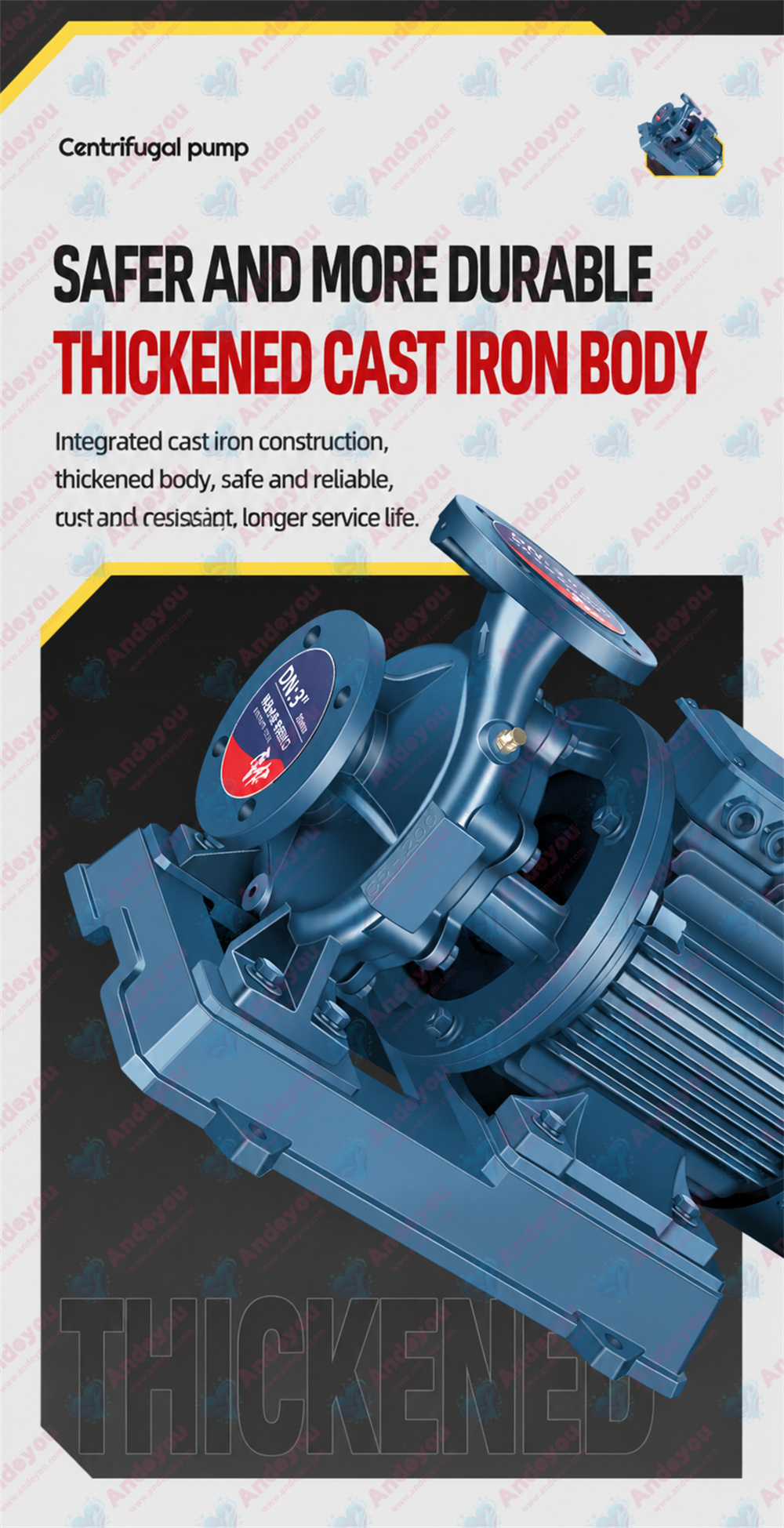

Standard models are constructed from cast iron with a pressure rating of ≤1.6 MPa. For high-temperature applications, the ISWR model offers ductile iron construction capable of withstanding temperatures up to 120°C, while the ISWH chemical model utilizes 316L stainless steel to handle corrosive liquids with a pH range of 2–12. Specialized custom models, such as the ISWHY stainless steel explosion-proof version, are ATEX-certified for the safe transport of flammable and explosive media with flash points ≤60°C, making them widely applicable in the petrochemical industry.
V. Modular Maintenance and Rapid Response
Features an integrated "pump cover – impeller – shaft" design, allowing for mechanical seal or bearing replacement within 30 minutes without disconnecting piping. Key components offer 90% interchangeability (e.g., impellers for ISW100-200 and ISW125-250 models are interchangeable), significantly reducing spare parts inventory costs. A local Hebei manufacturer provides 48-hour emergency response services and a standard 1-year warranty, with on-site technical support available for major projects.
VI. Comprehensive Application Solutions
Industrial Sector: ISWH chemical pumps are used for solvent transfer in pharmaceutical plants, utilizing 316L stainless steel and fluororubber seals to ensure medium purity; ISWR hot water pumps ensure stable operation with 120°C circulating water in steel mill continuous casting workshops.
Municipal Engineering: ISW pump units in high-rise building booster systems utilize variable frequency control to maintain constant water supply pressure (fluctuation ≤±0.02 MPa); dedicated fire-fighting models are CCCF certified and comply with the GB 6245-2006 standard.
HVAC: ISWD low-speed pumps operate at noise levels ≤55 dB in data center cooling systems; paired with permanent magnet motors, they achieve a 25% improvement in Annual Energy Efficiency Ratio (AEER).

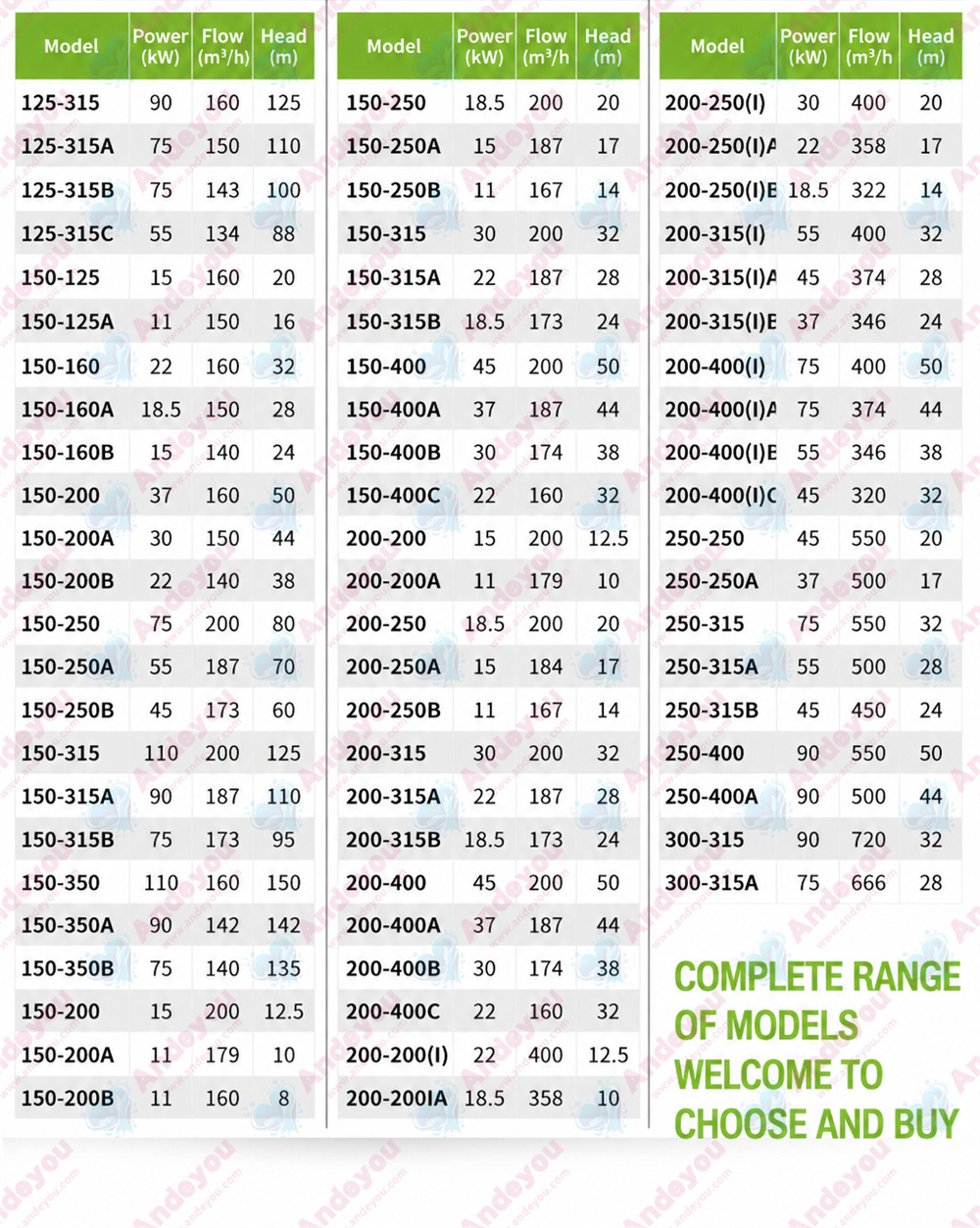

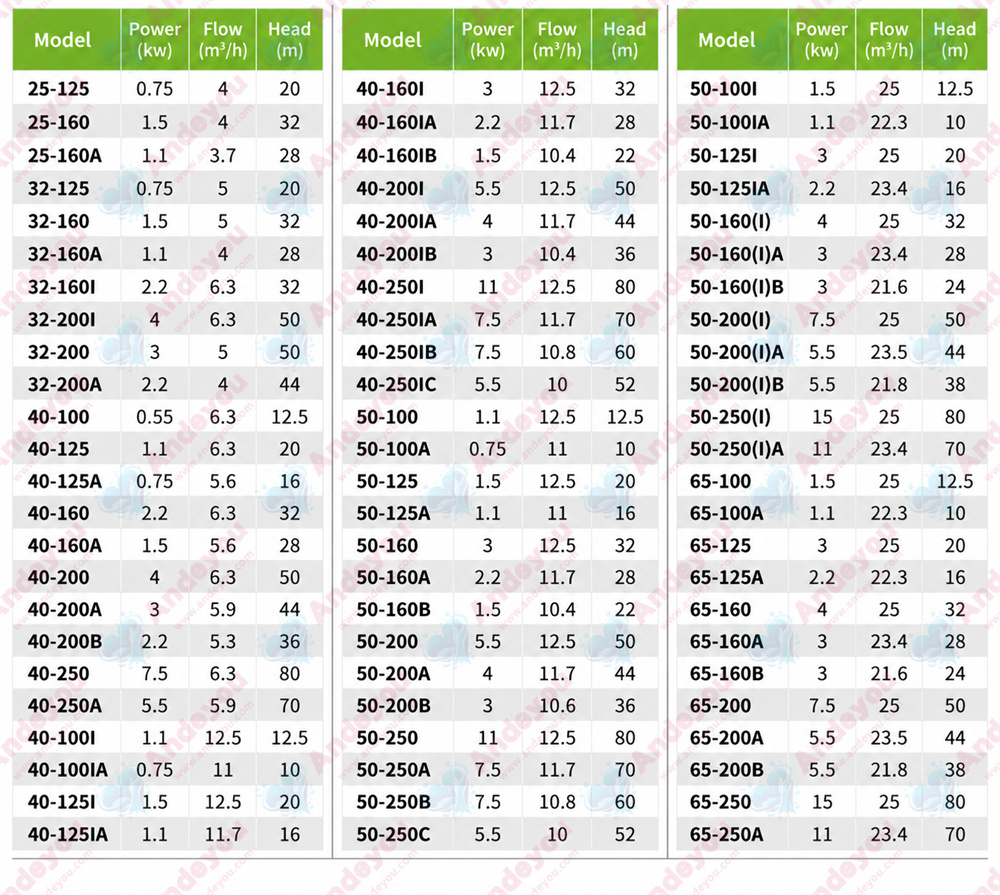

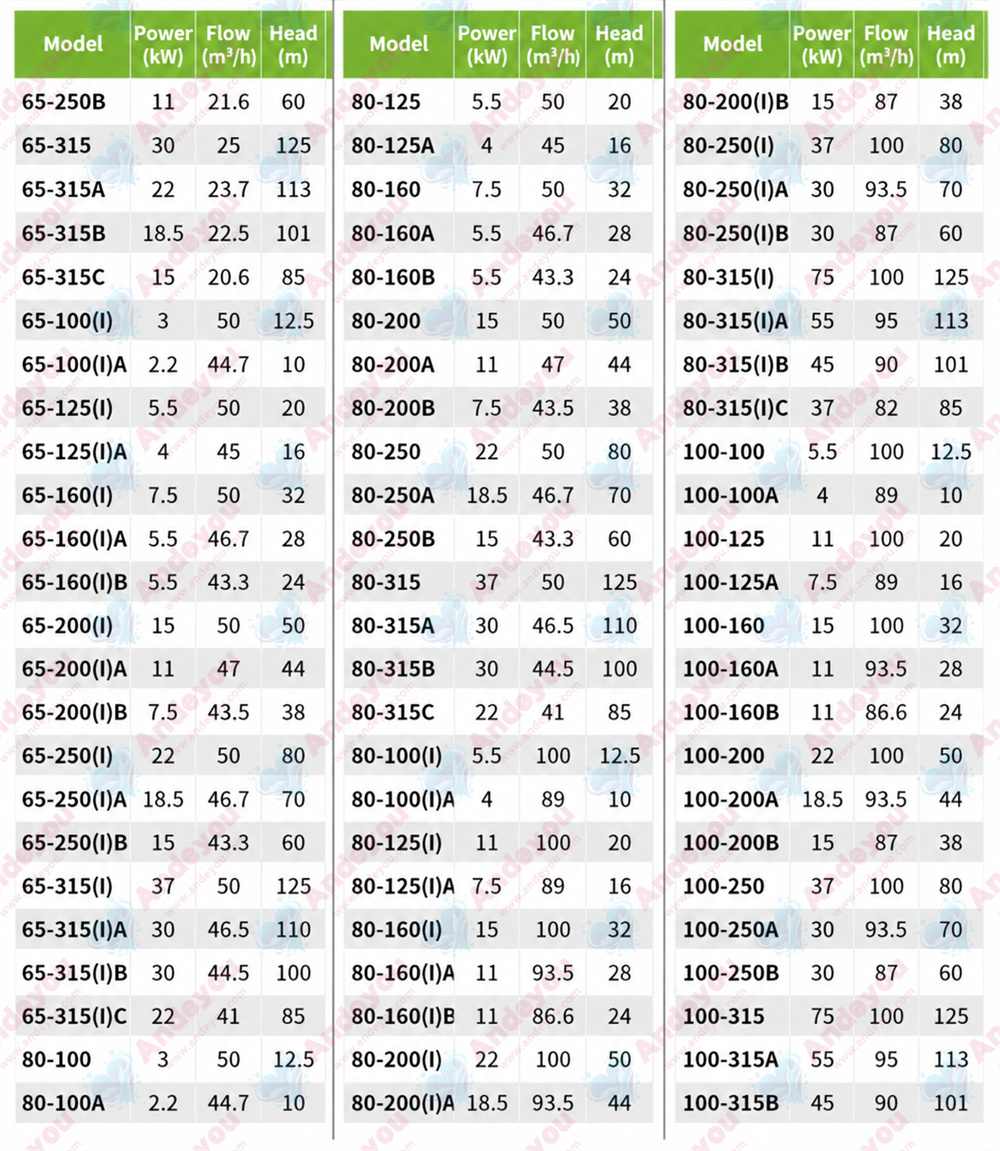

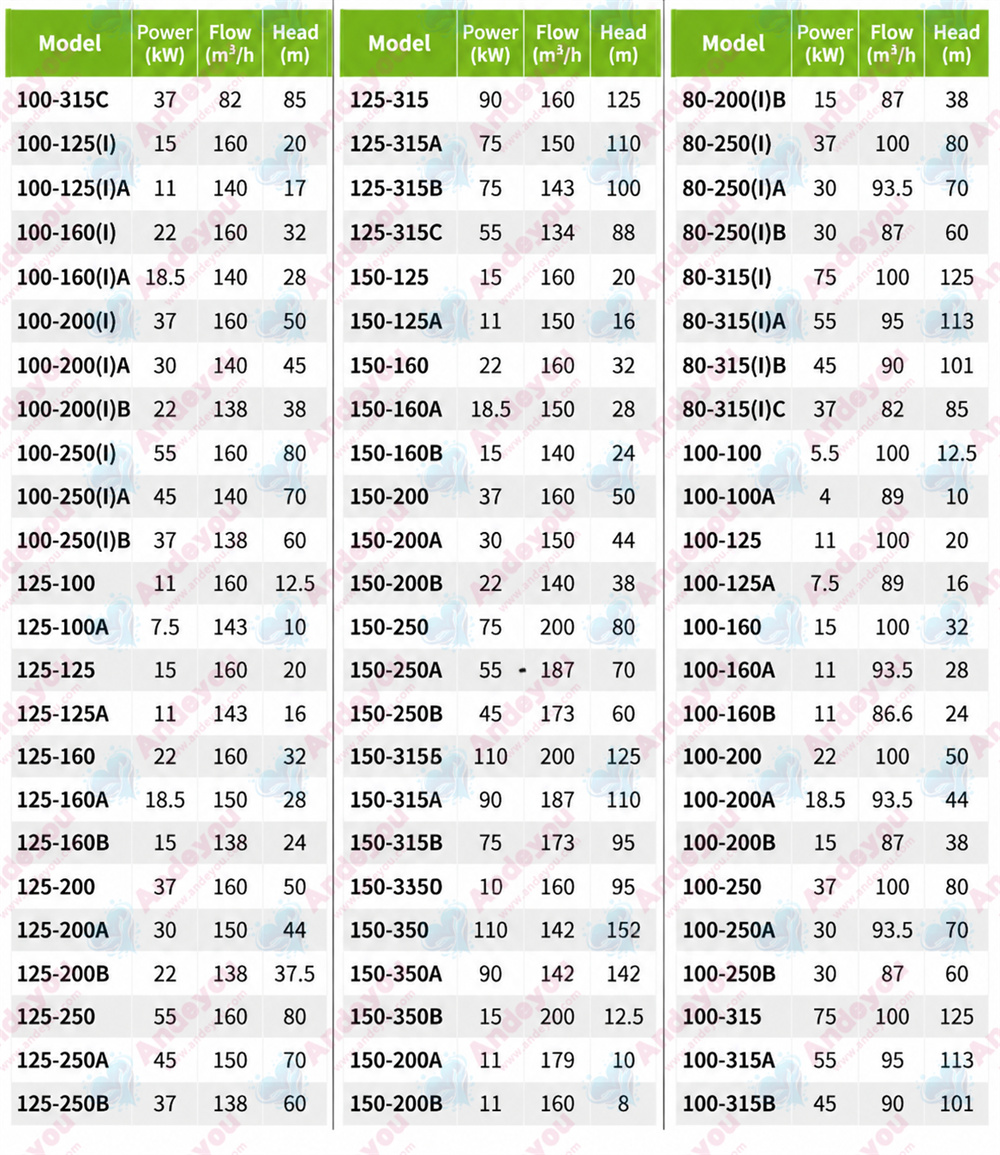

VII. Technical Parameters and Customization Capabilities
Flow Rate Range: 0.3–350 m³/h
Head Range: 12.5–125 m
Power Range: 0.75–110 kW
Special Configurations: Customizable options include high-pressure (≤2.5 MPa), variable frequency control, and explosion-proof (Ex d IIB T4) models.
VIII. Industry Certifications and Quality Assurance
Products are ISO 9001 quality management system certified, and pressure-bearing components pass 2.5 MPa hydrostatic testing. A 30-minute full-performance test is conducted prior to shipment to ensure that the deviation between actual operating parameters and catalog specifications is ≤3% for every pump. With its outstanding energy efficiency, reliable performance, and flexible customization capabilities, the Hebei ISW horizontal pipeline pump has become the equipment of choice across sectors such as the chemical industry, metallurgy, and municipal utilities. Its modular design and localized service network further ensure value for users throughout the product's entire lifecycle.
