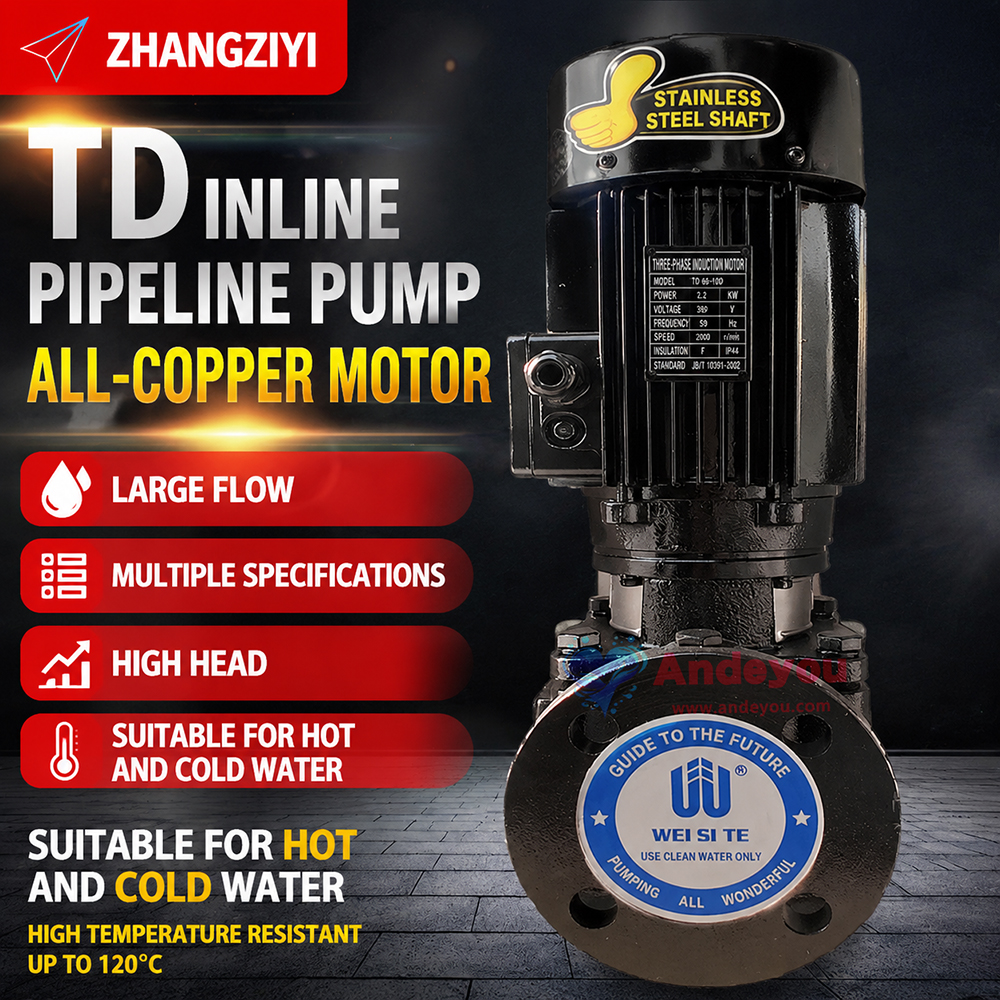

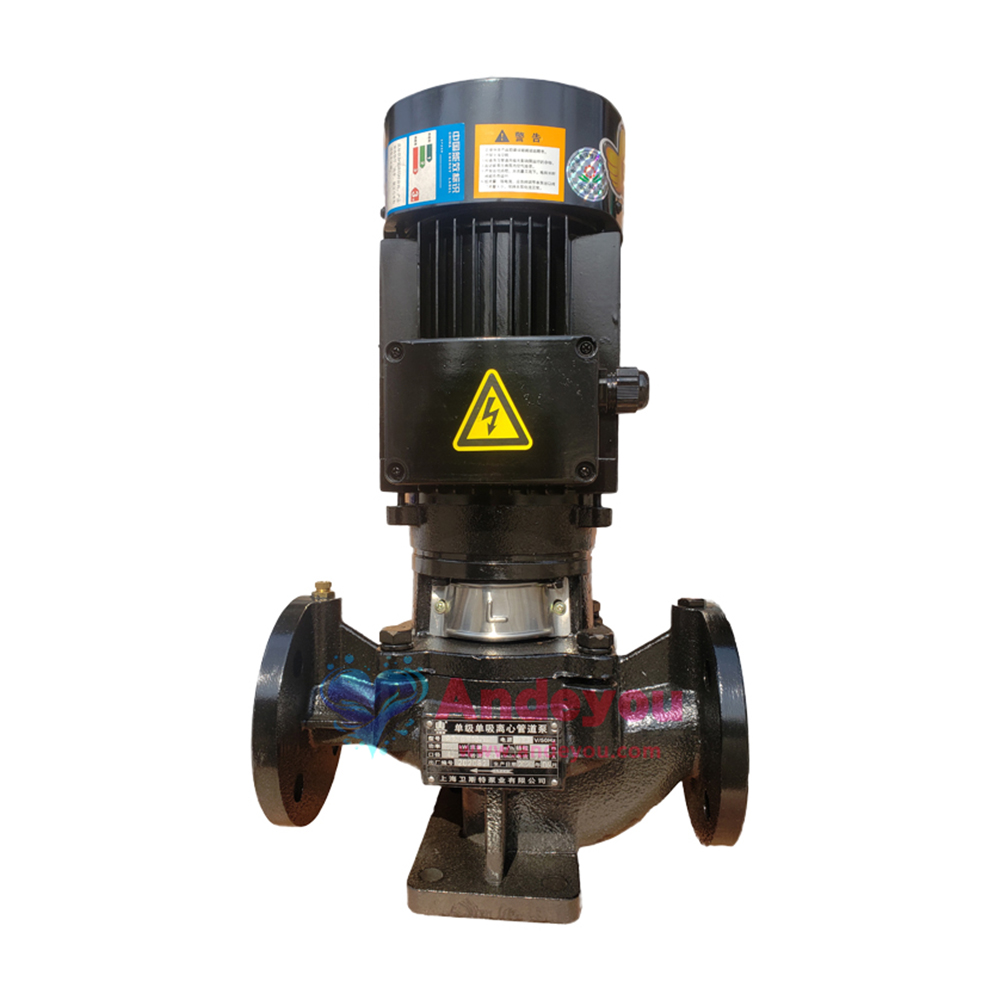

Wesite vertical pipeline pump

40-100、40-100A、40-125、40-125A、40-160、40-160A、50-125、50-125A、50-160、50-160A、50-160B、50-200、50-200A、65-125、65-125A、65-160、65-160A、65-160B、65-200、65-200A、65-200B、65-250、65-250A、65-250B、80-125、80-125A、80-160、80-160A、、100-125、100-125A、100-160、100-160A、100-160B、100-200、100-200A、100-200B、100-250

West vertical pipeline pumps offer high efficiency,energy savings,low noise levels,and reliable performance,designed and manufactured in accordance with the ISO2858 standard.The close-coupled structure minimizes transmission losses,boosting operating efficiency by 15–20% compared to traditional centrifugal pumps,while noise levels remain below 65 dB to meet industrial quiet-operation requirements.Available with 304/316L stainless steel construction and various mechanical seal configurations
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

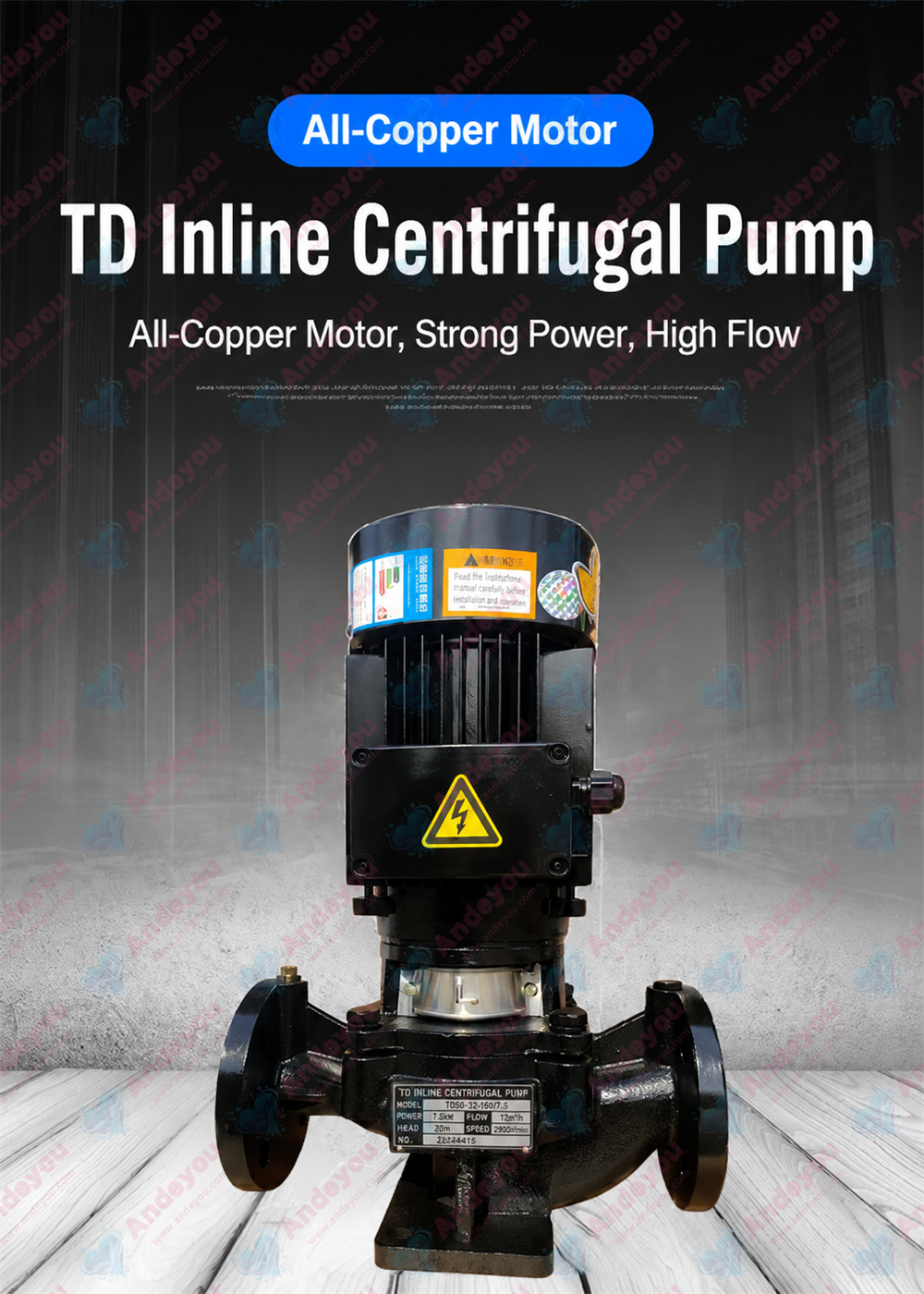

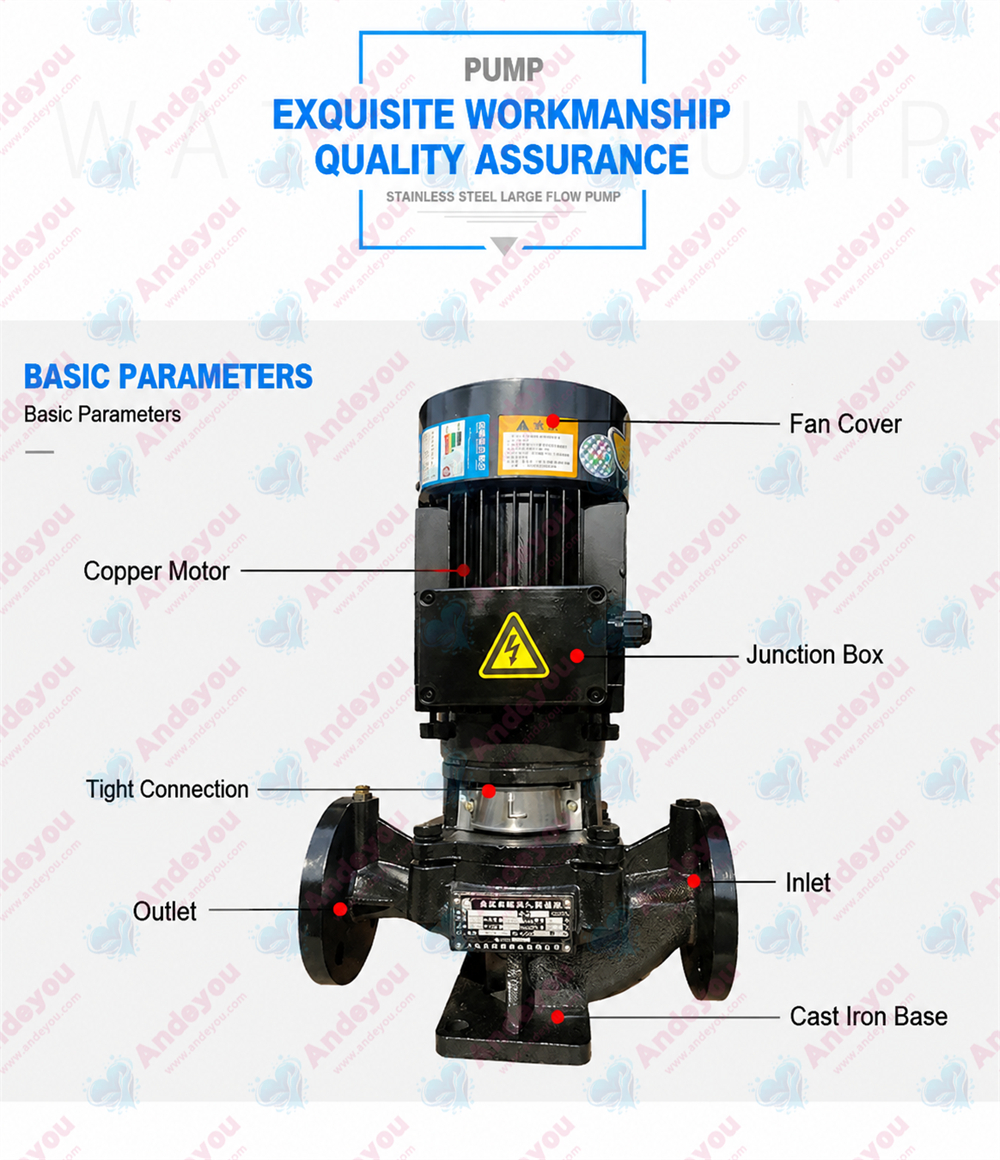

The West vertical pipeline pump is a high-efficiency, energy-saving fluid transport device. Featuring a vertical structure with aligned inlet and outlet ports of the same diameter, it can be installed directly into the pipeline, saving space and simplifying installation.

Key features include:

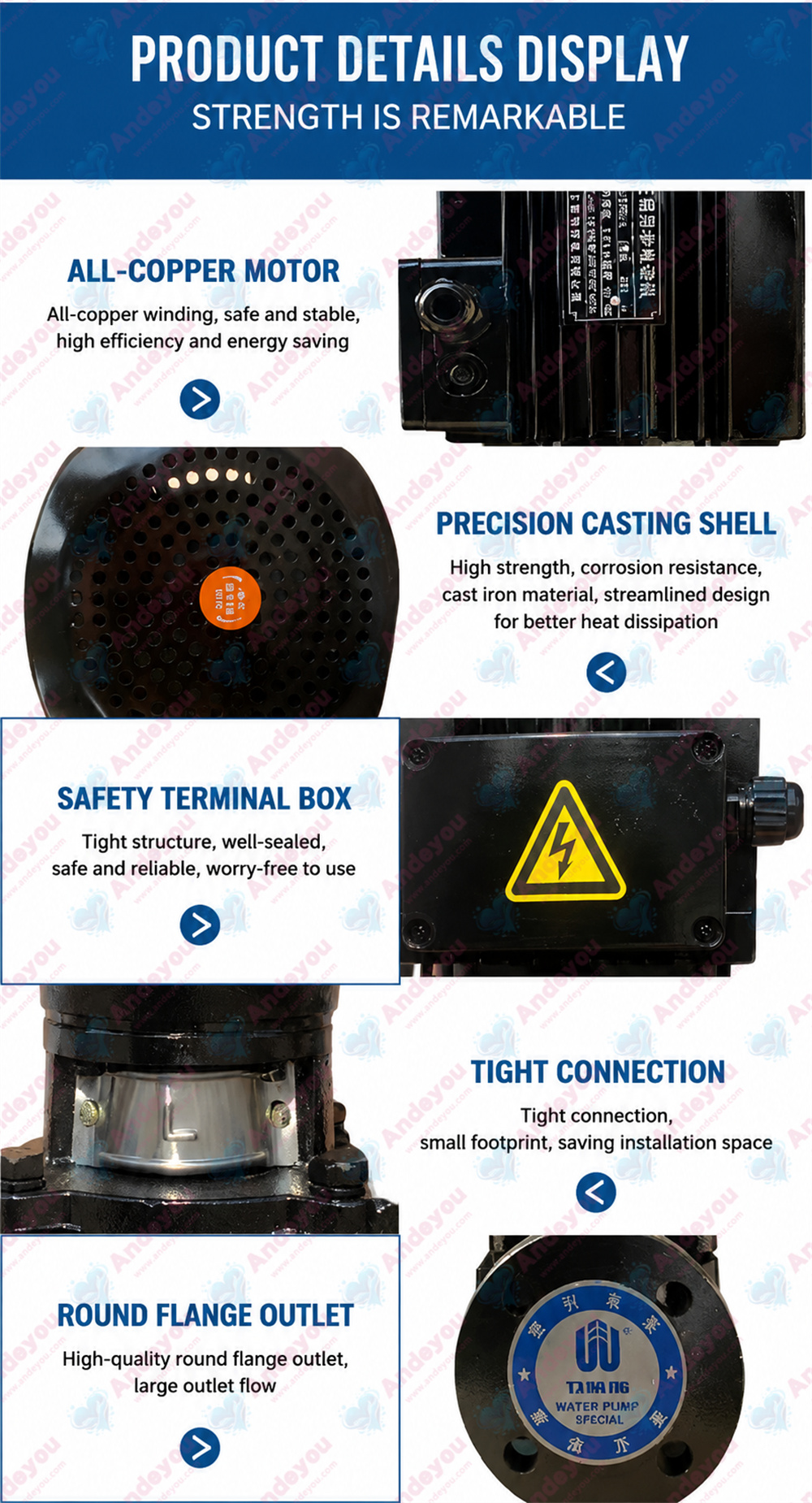

High Efficiency and Energy Saving: The direct-coupled design between the impeller and motor minimizes transmission losses. Combined with an optimized hydraulic model, operating efficiency is 15–20% higher than that of traditional centrifugal pumps, making it ideal for long-term, continuous operation.

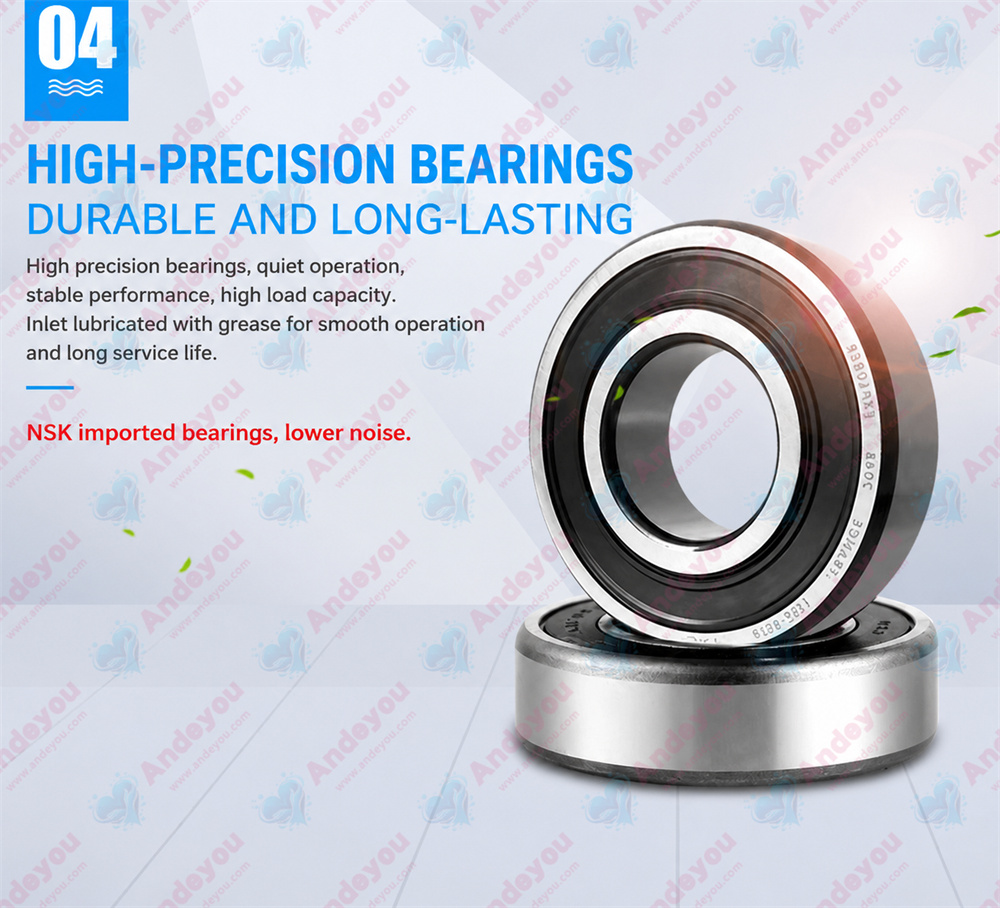

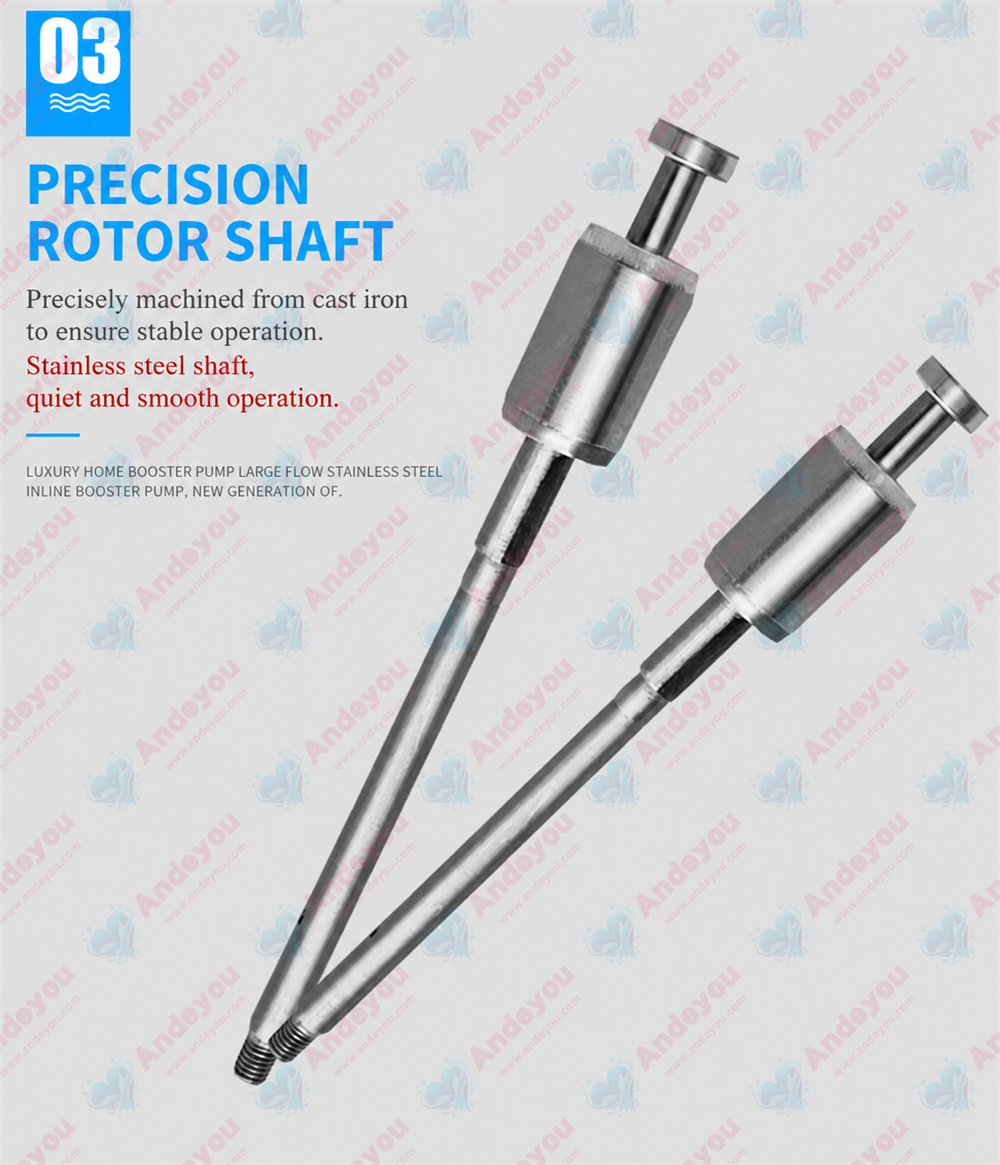

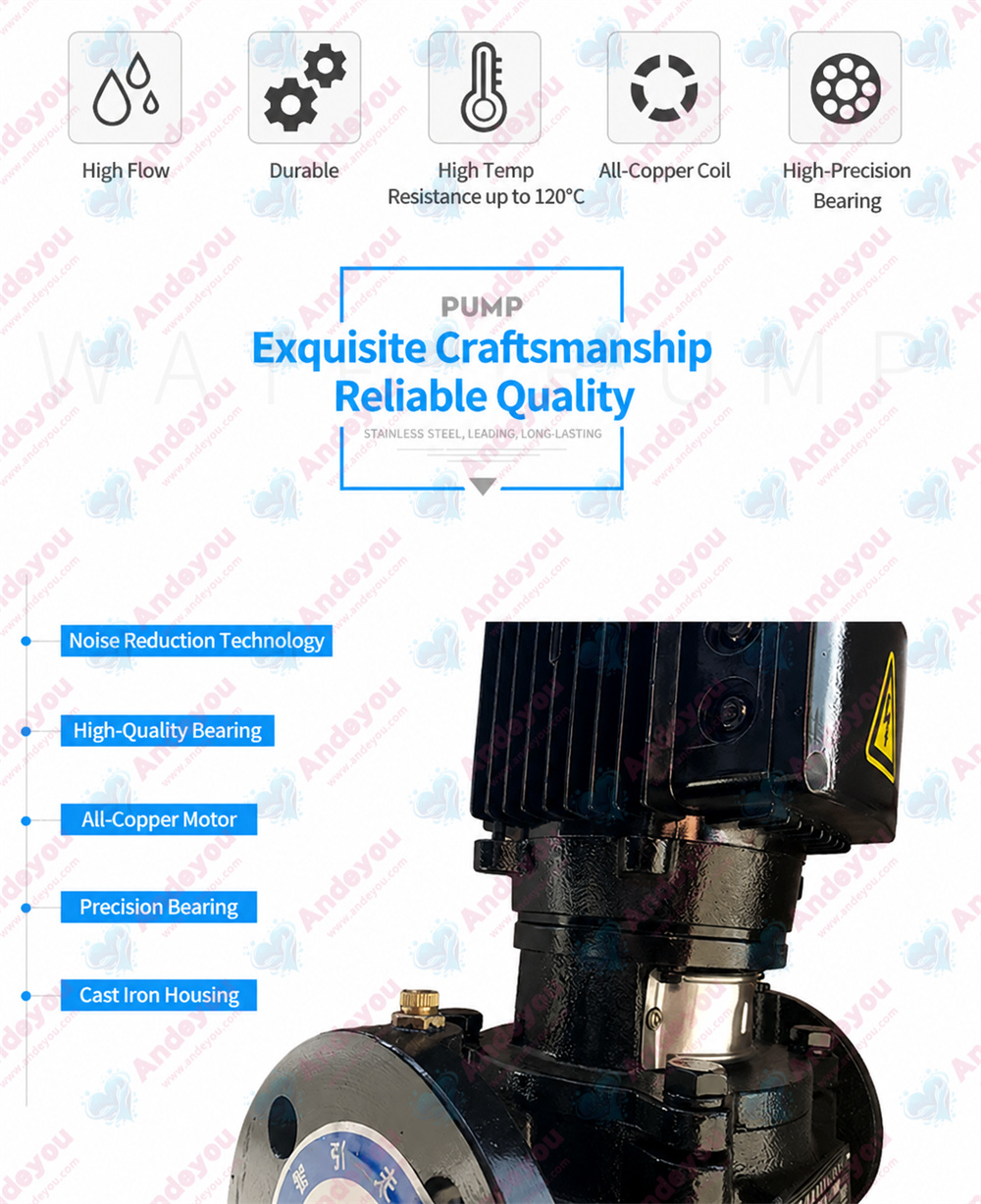

Low-Noise Operation: High-precision bearings support the pump shaft and motor, effectively balancing radial and axial loads. Operating noise remains below 65 dB, meeting industrial standards for quiet operation.

Corrosion-Resistant Design: Options include stainless steel construction (e.g., 304/316L) and various mechanical seal configurations. It handles fluids ranging from -20°C to 240°C—including clean water, hot water, corrosive liquids, and petroleum products—meeting the needs of sectors such as chemical processing, metallurgy, and HVAC.
Easy Maintenance: The modular structure allows for the replacement of mechanical seals and impellers without dismantling the pipeline. This extends maintenance intervals by 30% and reduces downtime costs.

Widely applied in:

Industrial Sector: Petrochemical feedstock transport, boiler hot water circulation, and wastewater treatment systems.

Municipal Engineering: High-rise building water supply boosting, fire protection systems, and landscape irrigation.

HVAC: Central air conditioning cooling water circulation and district heating systems.

Technical Specifications:

Flow Rate: 0.3–350 m³/h
Head: 12.5–125 m
Power: 0.75–110 kW
Working Pressure: ≤1.6 MPa (high-pressure models available upon request)

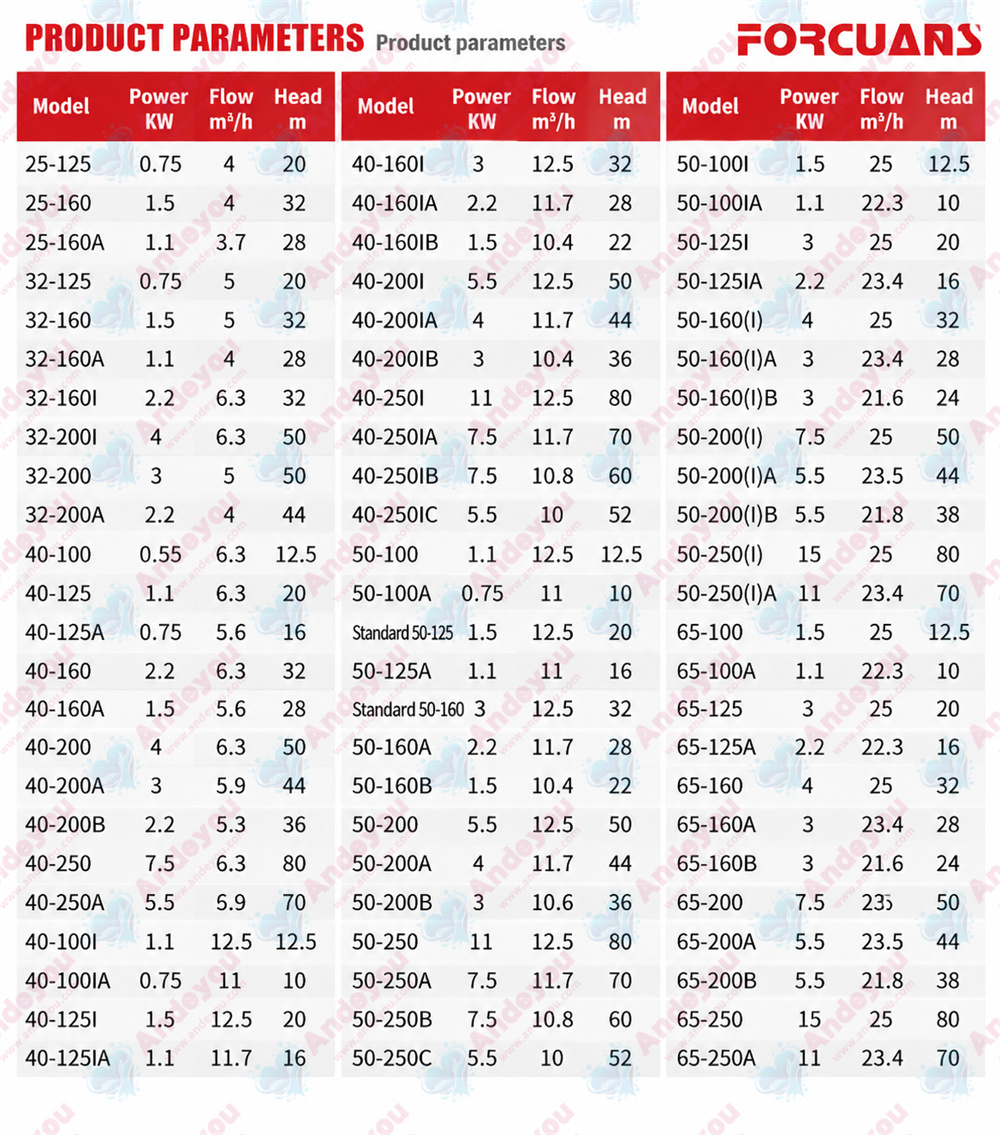

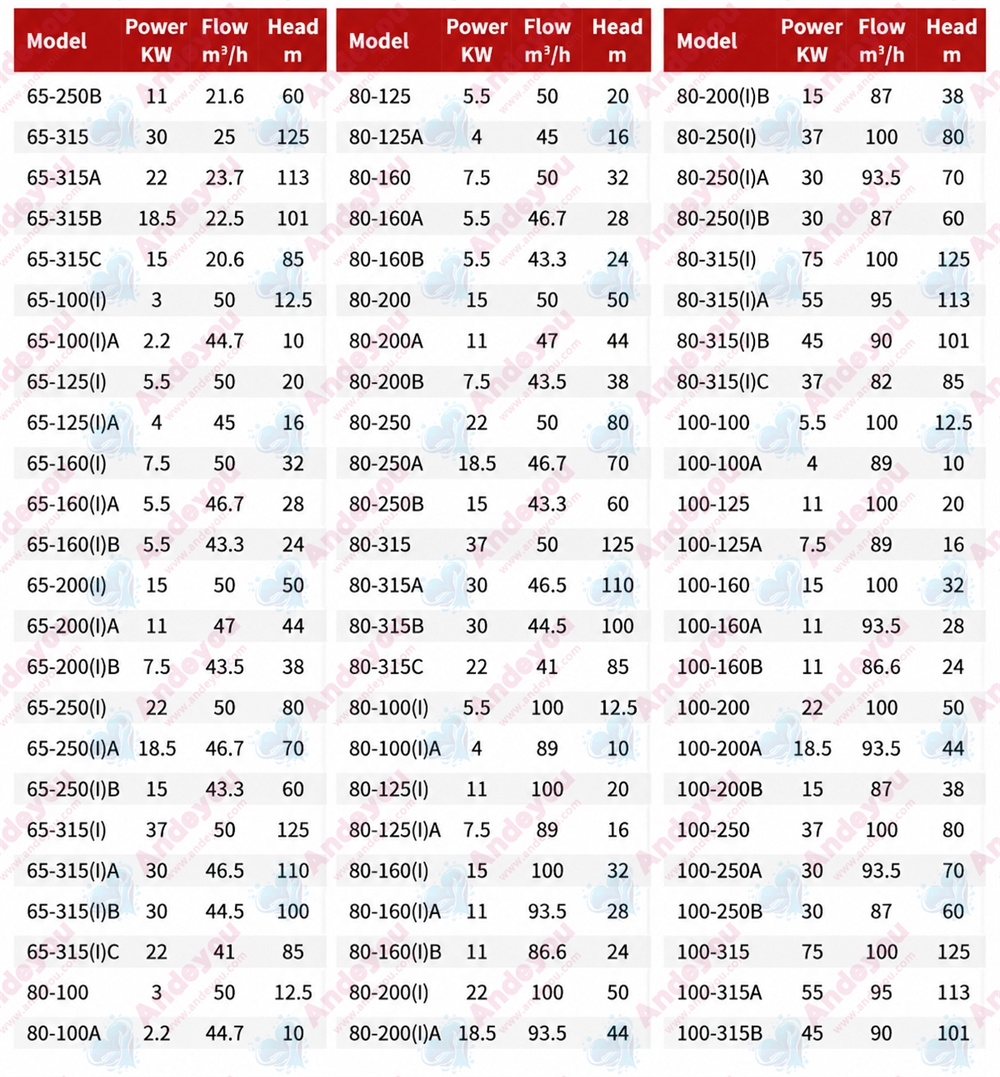

Parameters

model Flow rate (m³/h) Head (m) Rotational speed (r/min) Power (kW) Bore (mm)
15-80 1.1
1.5
2		 8.5
8
7		 2900 0.18 15
20-110 1.8
2.5
3.3		 16
15
13.5		 2900 0.37 20
20-160 1.8
2.5
3.3		 33
32
30		 2900 0.75 20
25-110 2.8
4
5.2		 16
15
13.5		 2900 0.55 25
25-125 2.8
4
5.2		 20.6
20
18		 2900 0.75 25
25-125A 2.5
3.6
4.6		 17
16
14.4		 2900 0.55 25
25-160 2.8
4
5.2		 33
32
30		 2900 1.5 25
25-160A 2.8
3.7
4.9		 29
28
26		 2900 1.1 25
32-100(I) 4.4
6.3
8.3		 13.2
12.5
11.3		 2900 0.75 32
32-125(I) 3.5
5
6.5		 22
20
18		 2900 1.1 32
32-125(I)A 3.1
4.5
5.8		 17.6
16
14.4		 2900 0.75 32
32-160(I)A 4.4
6.3
8.3		 33.2
32
30.2		 2900 2.2 32
32-200(I) 4.4
6.3
8.3		 50.5
50
48		 2900 4 32
32-200(I)A 2.8
4
5.2		 44.6
44
42.7		 2900 3 32
40-100 4.4
6.3
8.3		 13.2
12.5
11.3		 2900 0.55 40
40-100A 3.9
5.6
7.4		 10.6
10
9		 2900 0.37 40
40-125 4.4
6.3
8.3		 21
20
18		 2900 1.1 40
40-125A 3.9
5.6
7.4		 17.6
16
14.4		 2900 0.75 40
40-160 4.4
6.3
8.3		 33
32
30		 2900 2.2 40
40-160A 4.1
5.9
7.8		 29
28
26.3		 2900 1.5 40
40-160B 3.8
5.2
7.2		 25.5
24
22.5		 2900 1.1 40
40-200 4.4
6.3
8.3		 51
50
48		 2900 4 40
40-200A 4.1
5.9
7.8		 45
44
42		 2900 3 40
40-200B 3.1
5.3
7.0		 38
36
34.5		 2900 2.2 40
40-250 4.4
6.3
8.3		 82
80
74		 2900 7.5 40
40-250A 4.1
5.9
7.8		 72
70
65		 2900 5.5 40
40-250B 3.8
5.5
7		 61.5
60
56		 2900 4 40
40-100(I) 8.8
12.5
16.3		 13.2
12.5
11.3		 2900 1.1 40
40-100(I)A 8
11
14.5		 10.6
10
9		 2900 0.75 40
40-125(I) 8.8
12.5
16.3		 21.2
20
17.8		 2900 1.5 40
40-125(I)A 8
11
14.5		 17
16
14		 2900 1.1 40
40-160(I) 8.8
12.5
16.3		 33
32
30		 2900 3 40
40-160(I)A 8.2
11.7
15.2		 29
28
26		 2900 2.2 40
40-160(I)B 7.3
10.4
13.5		 23
22.5
20.5		 2900 1.5 40
40-200(I) 8.8
12.5
16.3		 51.2
50
48		 2900 5.5 40
40-200(I)A 8.3
11.7
15.3		 45
40
42		 2900 4 40
40-200(I)B 7.5
10.5
13.8		 37
35
34		 2900 3 40
40-250(I) 8.8
12.5
16.3		 81.2
80
77.5		 2900 11 40
40-250(I)A 8.2
11.6
15.2		 71
70
68		 2900 7.5 40
40-250(I)B 7.6
10.8
14		 61.4
60
58		 2900 7.5 40
40-250(I)C 7.1
10
13.1		 53.2
52
50.4		 2900 5.5 40
50-100 8.8
12.5
16.3		 13.6
12.5
11.3		 2900 11 50
50-100A 8
11.2
14.5		 11
10
9		 2900 0.75 50
50-125 8.8
11
14.5		 21.5
20
17.8		 2900 1.5 50
50-125A 8
11
14.5		 17
16
14		 2900 1.1 50
50-160 8.8
12.5
16.3		 33
32
30		 2900 3 50
50-160A 8.2
11.7
15.2		 29
28
26		 2900 2.2 50
50-160B 7.3
10.4
13.5		 23
22
20.5		 2900 1.5 50
50-200 8.8
12.5
16.3		 52
50
48		 2900 5.5 50
50-200A 8.3
11.7
15.3		 45.8
44
42		 2900 4 50
50-200B 7.5
10.5
13.8		 37
36
34		 2900 3 50
50-250 8.8
12.5
16.3		 82
80
77.5		 2900 11 50
50-250A 8.2
11.7
15.2		 71.5
70
68		 2900 7.5 50
50-250B 7.6
10.8
14		 61.4
60
58		 2900 7.5 50
50-250C 7.1
10
13.1		 53.2
52
50.4		 2900 5.5 50
50-100(I) 17.5
25
32.5		 13.7
12.5
10.5		 2900 1.5 50
50-100(I)A 15.6
22.3
29		 11
10
8.4		 2900 1.1 50
50-125(I) 17.5
25
32.5		 21.5
20
18		 2900 3 50
50-125(I)A 15.6
22.3
29		 17
16
13.6		 2900 2.2 50
50-160(I) 17.5
25
32.5		 34.4
32
27.5		 2900 4 50
50-160(I)A 16.4
23.4
30.4		 30
28
24		 2900 4 50
50-160(I)B 15
21.6
28		 26
24
20.6		 2900 3 50
50-200(I) 17.5
25
32.5		 52.7
50
45.5		 2900 7.5 50
50-200(I)A 16.4
23.4
30.4		 46.4
44
40		 2900 7.5 50
50-200(I)B 15.2
21.5
28.3		 40
38
34.5		 2900 5.5 50
50-250(I) 17.5
25
32.5		 82
80
76.5		 2900 15 50
50-250(I)A 16.4
23.6
30.5		 71.5
70
67		 2900 11 50
50-250(I)B 15
21.6
28		 61
60
57.4		 2900 11 50
50-315(I) 17.5
25
32.5		 128
125
122		 2900 30 50
50-315(I)A 16.8
23.7
31		 115
113
110		 2900 22 50
50-315(I)B 15.7
22.5
29.2		 103
93
98		 2900 18.5 50
50-315(I)C 14.4
20.6
26.8		 86
85
83		 2900 15 50
65-100 17.5
25
32.5		 13.7
12.5
10.5		 2900 1.5 65
65-100A 15.6
22.3
29		 11
10
8.4		 2900 1.1 65
65-125 17.5
25
32.5		 21.5
20
18		 2900 3 65
65-125A 15.6
22.3
29		 17
16
14.4		 2900 2.2 65
65-160 17.5
25
32.5		 34.4
32
27.5		 2900 4 65
65-160A 16.4
23.4
30.4		 30
28
24		 2900 4 65
65-160B 15
21.6
28		 26
24
20.6		 2900 3 65
65-200 17.5
25
32.5		 52.7
50
45.5		 2900 7.5 65
65-200A 16.4
23.5
30.5		 46.4
44
40		 2900 7.5 65
65-200B 15.2
21.8
28.3		 40
38
34.5		 2900 5.5 65
65-250 17.5
25
32.5		 82
80
76.5		 2900 15 65
65-250A 16.4
23.5
30.5		 71.5
70
67		 2900 11 65
65-250B 15
21.6
28		 61
60
57.4		 2900 11 65
65-315 17.5
25
32.5		 127
125
122		 2900 30 65
65-315A 16.6
23.7
31		 115
113
110		 2900 22 65
65-315B 15.7
22.5
29.2		 103
101
98		 2900 18.5 65
65-315C 14.4
20.6
26.8		 86
85
83		 2900 15 65
65-100(I) 35
50
65		 13.8
12.5
10		 2900 3 65
65-100(I)A 31.3
44.7
58		 11
10
8		 2900 2.2 65
65-125(I) 35
50
65		 22
20
17		 2900 5.5 65
65-125(I)A 31.3
44.7
58		 17.5
16
13.6		 2900 4 65
65-160(I) 35
50
65		 35
32
28		 2900 7.5 65
65-160(I)A 32.7
46.7
61		 30.6
28
24		 2900 7.5 65
65-160(I)B 30.3
43.3
56.3		 26
24
21		 2900 5.5 65
65-200(I) 35
50
65		 53.5
50
46		 2900 15 65
65-200(I)A 32.8
47
61		 47
44
40		 2900 11 65
65-200(I)B 30.5
43.5
56.5		 40.6
38
33.4		 2900 7.5 65
65-250(I) 35
50
65		 83
80
72		 2900 22 65
65-250(I)A 32.5
46.7
61		 73
70
63		 2900 18.5 65
65-250(I)B 30
43.3
56		 62
60
54		 2900 15 65
65-315(I) 35
50
65		 128
125
121		 2900 37 65
65-315(I)A 32.5
46.5
60.5		 112.5
110
106.4		 2900 30 65
65-315(I)B 31
44.5
58		 102.5
100
98		 2900 30 65
65-315(I)C 29
41
53.6		 87
85
83		 2900 22 65
80-100 35
50
65		 13.8
12.5
10		 2900 3 80
80-100A 31.3
44.7
58		 11
10
8		 2900 2.2 80
80-125 35
50
65		 22
20
17		 2900 5.5 80
80-125A 31.3
44.7
58		 17.5
16
13.6		 2900 4 80
80-160 35
50
65		 35
32
28		 2900 7.5 80
80-160A 32.7
46.7
61		 30.6
28
24		 2900 7.5 80
80-160B 30.3
43.3
56.3		 26
24
21		 2900 5.5 80
80-200 35
50
65		 53.5
50
46		 2900 15 80
80-200A 32.8
47
61		 47
44
40		 2900 11 80
80-200B 30.5
43.5
56.5		 40.6
38
33.4		 2900 7.5 80
80-250 35
50
65		 83
80
72		 2900 22 80
80-250A 32.5
46.7
61		 73
70
63		 2900 18.5 80
80-250B 30
43.3
56		 62
60
54		 2900 15 80
80-315 35
50
65		 128
125
122		 2900 37 80
80-315A 32.5
45.5
60.5		 112.6
110
107.4		 2900 30 80
80-315B 31
43.3
58		 102.5
93
98		 2900 30 80
80-315C 29
41
53.6		 98
85
83		 2900 22 80
80-350 35
50
65		 146
150
142		 2900 55 80
80-350A 31
44.5
58		 138.4
142
134.8		 2900 45 80
80-350B 29
41
53.6		 131.4
135
127.8		 2900 37 80
80-100(I) 70
100
130		 13.6
12.5
11		 2900 5.5 80
80-100(I)A 62.6
89
116		 11
10
8.8		 2900 4 80
80-125(I) 70
100
130		 23.5
20
14		 2900 11 80
80-125(I)A 62.6
89
116		 19
16
11		 2900 7.5 80
80-160(I) 70
100
130		 36.5
32
24		 2900 15 80
80-160(I)A 65.4
93.5
121.6		 32
28
21		 2900 11 80
80-160(I)B 60.6
86.6
112.5		 72
24
18		 2900 11 80
80-200(I) 70
100
130		 54
50
42		 2900 22 80
80-200(I)A 65.4
93.5
121.6		 47.5
44
37		 2900 18.5 80
80-200(I)B 61
87
113		 41
37
32		 2900 15 80
80-250(I) 70
100
130		 87
80
68		 2900 37 80
80-250(I)A 65.4
93.5
121.6		 76
70
59.6		 2900 30 80
80-250(I)B 61
87
113		 65
60
51		 2900 30 80
80-315(I) 70
100
130		 132
125
114		 2900 75 80
80-315(I)A 66
93
123		 119
110
103		 2900 55 80
80-315(I)B 63
86.4
117		 106.6
101
92		 2900 45 80
80-315(I)C 58
82
107		 90
85
76		 2900 37 80
100-100 70
100
130		 13.5
12.5
11		 2900 5.5 100
100-100A 62.6
89
116		 11
10
8.8		 2900 4 100
100-125 70
100
130		 23.5
20
14		 2900 11 100
100-125A 62.6
89
116		 19
16
11		 2900 7.5 100
100-160 70
100
130		 36.5
32
24		 2900 15 100
100-160A 65.4
93.5
121.6		 32
28
21		 2900 11 100
100-160B 60.6
86.6
112.5		 27
24
18		 2900 11 100
100-200 70
100
130		 54
50
42		 2900 22 100
100-200A 65.4
93.5
121.6		 47.5
44
37		 2900 18.5 100
100-200B 61
87
113		 41
38
32		 2900 15 100
100-250 70
100
130		 37
80
68		 2900 37 100
100-250A 65.4
93.5
121.6		 76
70
59.6		 2900 30 100
100-250B 61
87
113		 65
60
51		 2900 30 100
100-315 70
100
130		 132
125
114		 2900 75 100
100-315A 66.5
93.5
123.6		 119
113
103		 2900 55 100
100-315B 63
90
117		 106.5
101
92		 2900 45 100
100-315C 58
82
107		 90
85
76		 2900 37 100

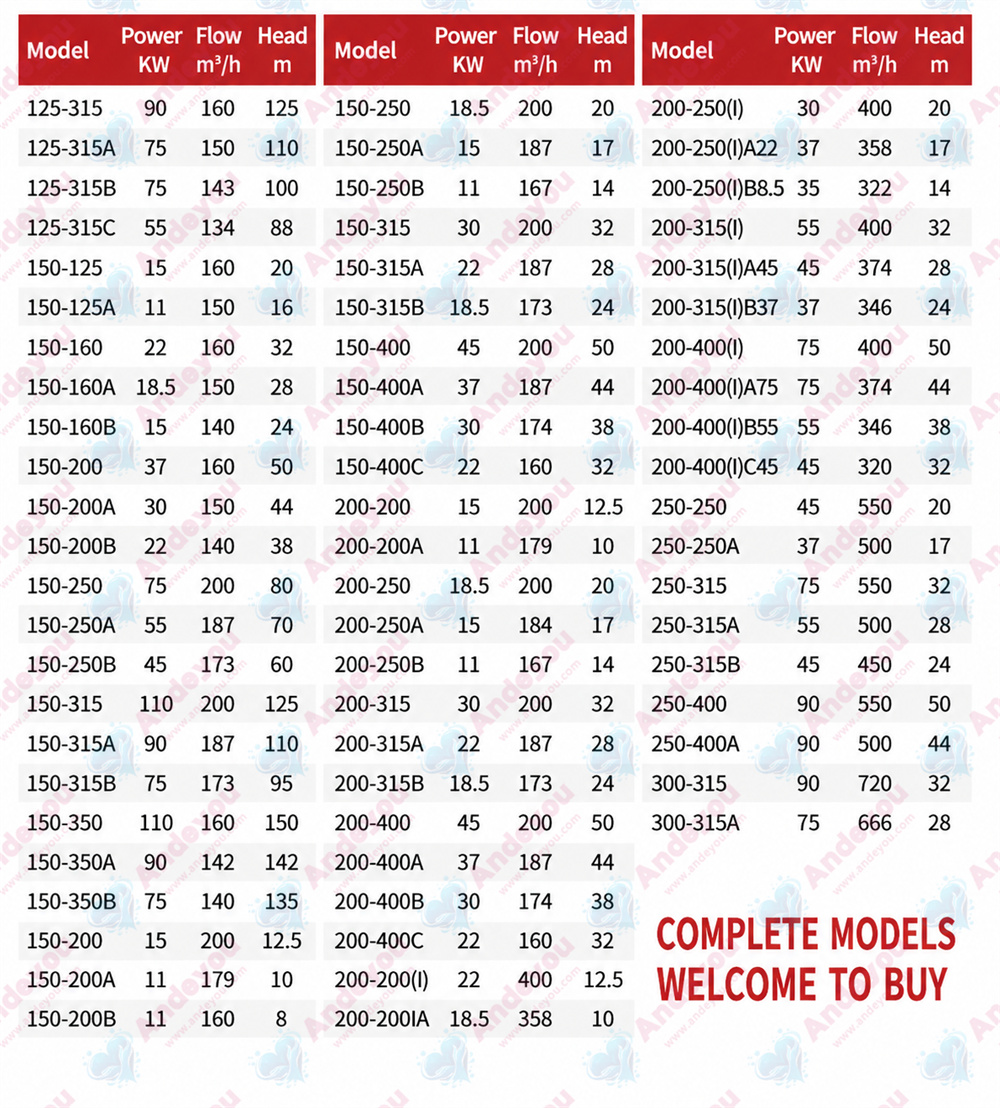

100-100(I) 96
160
192		 14
12.5
10		 2900 10 100
100-125(I) 96
160
192		 24
20
14		 2900 15 100
100-125(I)A 84
140
168		 20
17
12		 2900 11 100
100-160(I) 96
160
192		 36
32
27		 2900 22 100
100-160(I)A 84
140
168		 32
28
23.5		 2900 18.5 100
100-200(I) 96
160
192		 53
50
45		 2900 37 100
100-200(I)A 84
140
168		 48
45
40		 2900 30 100
100-200(I)B 60
100
120		 43
40
36		 2900 22 100
100-250(I) 96
160
192		 83
80
72		 2900 55 100
100-250(I)A 84
140
168		 75
72
65		 2900 45 100
100-250(I)B 60
100
120		 68
65
58		 2900 37 100
100-350 60
100
120		 153.6
150
142		 2900 90 100
100-350A 61
88
113		 145.6
142
132		 2900 75 100
100-350B 58
82
107		 138.6
135
127		 2900 55 100
125-100 96
160
192		 13
12.5
12		 2900 11 125
125-100A 86
143
172		 10.4
10
9.6		 2900 7.5 125
125-125 96
160
192		 22.6
20
17		 2900 15 125
125-125A 86
143
172		 18
16
13.6		 2900 11 125
125-160 96
160
192		 36
32
28		 2900 22 125
125-160A 90
150
180		 31.5
28
24.5		 2900 18.5 125
125-160B 83
138
166		 27
24
21		 2900 15 125
125-200 96
160
192		 55
50
46		 2900 37 125
125-200A 90
150
180		 48.4
44
40.5		 2900 30 125
125-200B 83
138
166		 41.3
37.5
34.5		 2900 22 125
125-250 96
160
192		 87
80
73		 2900 55 125
125-250A 90
150
180		 76
70
84		 2900 45 125
125-250B 83
138
166		 65
50
55		 2900 37 125
125-315 96
160
192		 133
125
119		 2900 90 125
125-315A 90
150
180		 117
110
104.6		 2900 75 125
125-315B 86
143
172		 106.4
100
95.2		 2900 75 125
125-315C 80.5
134
161		 96
88
86		 2900 55 125
150-125 96
160
192		 22.5
20
17		 2900 11 150
150-125A 90
156
180		 18
16
13.6		 2900 7.5 150
150-160 96
160
192		 36
32
27		 2900 22 150
150-160A 90
150
180		 32
28
23.5		 2900 18.5 150
150-160B 84
140
168		 27
24
21		 2900 15 150
150-200 96
160
192		 55
50
46		 2900 37 150
150-200A 90
150
180		 48.4
44
40.5		 2900 30 150
150-200B 83
138
166		 41.3
37.5
34.5		 2900 22 150
150-250 96
160
192		 87
80
73		 2900 55 150
150-250A 90
150
180		 76
70
84		 2900 45 150
150-250B 83
138
166		 65
50
55		 2900 37 150
150-315 96
160
192		 133
125
119		 2900 90 150
150-315A 90
150
180		 117
110
104.6		 2900 75 150
150-315B 86
143
172		 106.4
100
95.2		 2900 75 150
150-315C 80.5
134
161		 96
88
86		 2900 55 150
150-350 96
160
192		 153.6
150
142		 2900 110 150
150-350A 90
150
180		 145.6
142
134.8		 2900 90 150
150-350B 84
140
168		 145.6
142
134.8		 2900 75 150
150-200(I) 140
200
260		 13.8
12.5
10.8		 1450 15 150
150-200(I)A 125
179
232.5		 11
10
8.5		 1450 11 150
150-250(I) 140
200
260		 21.8
20
17		 1450 18.5 150
150-250(I)A 129
184.4
240		 18.5
17
14.4		 1450 15 150
150-250(I)B 117
167
217		 15.2
14
12		 1450 11 150
150-315(I) 140
200
260		 33.8
22
28		 1450 30 150
150-315(I)A 131
187
243		 29.5
28
24.5		 1450 22 150
150-315(I)B 121
173
225		 25
24
21		 1450 18.5 150
150-400(I) 140
200
260		 53
50
44		 1450 45 150
150-400(I)A 131
187
243		 46.6
44
38.3		 1450 37 150
150-400(I)B 122
174
226.5		 40
38
33		 1450 30 150
150-400(I)C 112
160
208		 34
32
28		 1450 22 150
200-250A 129
184.4
240		 18.5
17
14.4		 1450 150 200
200-250B 117
167
217.5		 15.2
14
12		 1450 11 200
200-315 140
200
260		 33.8
32
28		 1450 30 200
200-315A 131
187
243		 29.5
28
24.5		 1450 22 200
200-315B 121
173
225		 25
24
21		 1450 18.5 200
200-400 140
200
260		 53
50
44		 1450 45 200
200-400A 131
187
243		 46.4
44
38.3		 1450 37 200
200-400B 122
174
226.5		 40
38
33		 1450 30 200
200-400C 112
160
208		 34
32
28		 1450 22 200
200-200(I) 280
400
520		 13.4
12.5
10.5		 1450 22 200
200-200(I)A 250
358
465		 10.7
10
8.5		 1450 18.5 200
200-250(I) 280
400
520		 22.2
20
14		 1450 30 200
200-250(I)A 250
358
465		 18
16
11.2		 1450 22 200
200-250(I)B 226
322
419		 14.4
13
7.3		 1450 18.5 200
200-315(I) 280
400
520		 36
32
26		 1450 55 200
200-315(I)A 262
374
486		 31.5
28
23		 1450 45 200
200-315(I)B 242
346
450		 27
24
19.5		 1450 37 200
200-400(I) 280
400
520		 54.5
50
39		 1450 75 200
200-400(I)A 262
374
486		 48
44
34		 1450 75 200
200-400(I)B 242
374
486		 41.4
38
29.6		 1450 55 200
200-400(I)C 242
346
450		 34.9
35
25		 1450 45 200
250-250 224
320
416		 22
20
16		 1450 45 250
250-250A 350
550
650		 18.3
17
14		 1450 37 250
250-235 300
500
600		 14
12.5
11		 1450 22 250
250-300 300
500
600		 22
20
16		 1450 37 250
250-315 350
550
650		 34
32
28		 1450 75 250
250-315A 300
500
600		 29.5
28
24.5		 1450 55 250
250-315B 260
450
520		 25
24
20		 1450 45 250
250-400 300
500
600		 54.5
50
39		 1450 90 250
300-235 480
720
900		 20
18
15.5		 970 55 300
300-235A 438
607
821		 16.5
15
13		 970 45 300
300-235B 400
600
750		 14
12.5
11		 970 37 300
300-300 480
720
900		 31
28
25		 970 75 300
300-300A 444
666
833		 26.5
24
21.5		 970 75 300
300-300B 415
623
779		 23
21
18.5		 970 55 300
300-380 480
720
900		 48
44
34		 970 132 300
300-380A 444
666
833		 41.4
38
29.6		 970 110 300
300-380B 409
614
767		 35
32
28		 970 90 300
300-235(I) 718
1080
1345		 44.6
40
34.6		 1450 160 300
300-235(I)A 642
965
1203		 35.7
32
27.7		 1450 132 300

Size

Video Introduction

Message Inquiry

*
*
*
*
*
Submit
