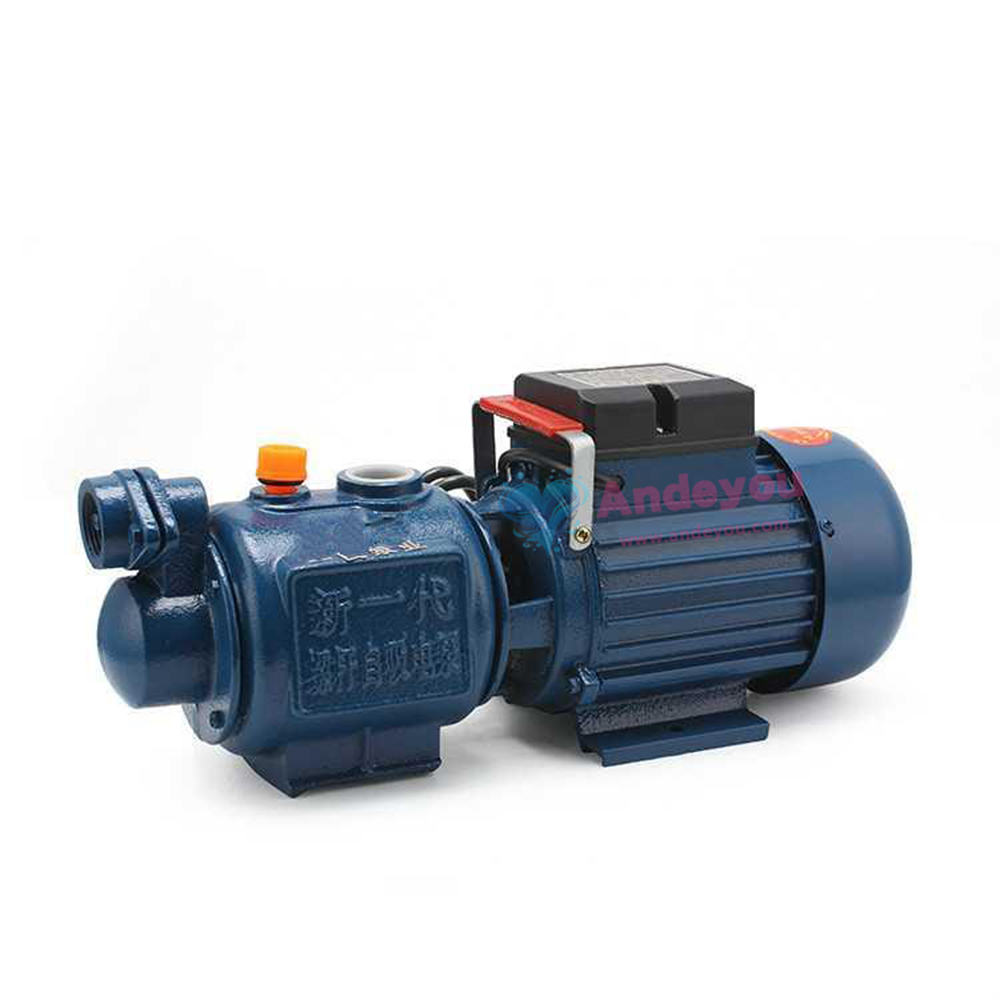

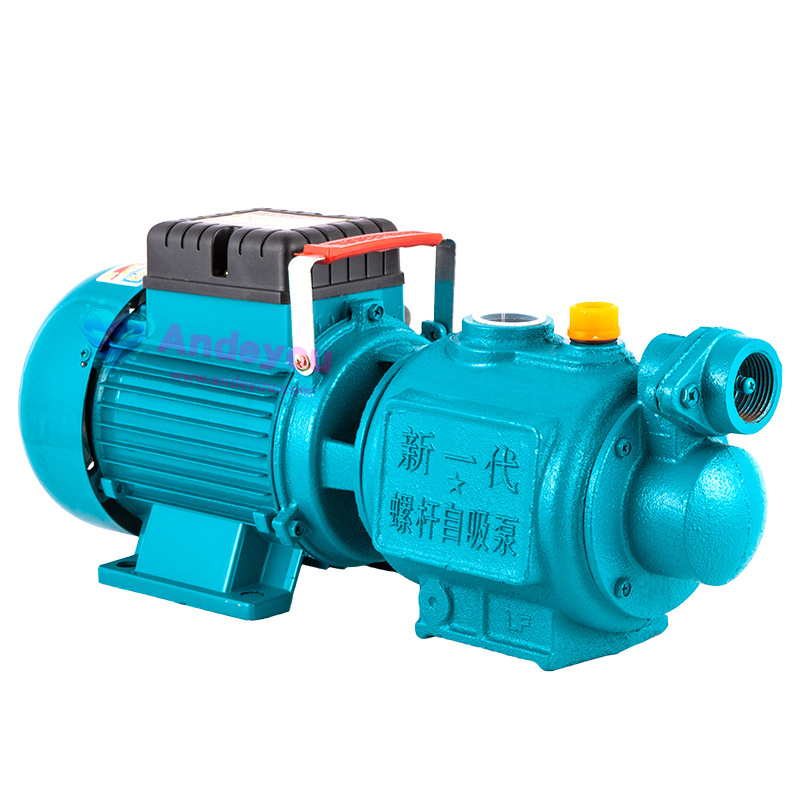

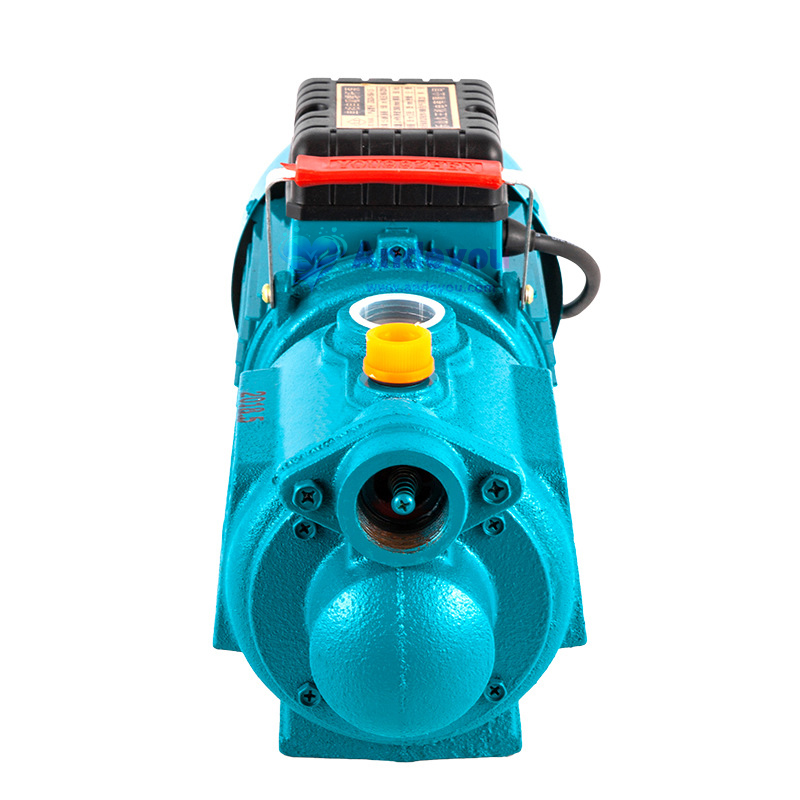

Xinguang Self-Priming Screw Pump

ZGD-2200|ZGD-3000

The ZGD self-priming screw pump is a high-efficiency,durable industrial pump designed to handle high-viscosity,abrasive,or corrosive media.Constructed from high-quality stainless steel for superior corrosion resistance,it is suitable for sectors such as the chemical,petroleum,and wastewater treatment industries.Key features include strong self-priming capabilities,stable operation,and energy efficiency
Function
Parameters
Size
Video Introduction

Function

The ZGD screw-type self-priming pump is a versatile fluid transfer device.

**High-Efficiency Self-Priming Capability**
Self-priming lift of up to 6–8 meters.

**Broad Media Compatibility**
Capable of transporting clean water, oils, and viscous fluids.

**Stable Operational Performance**
Stable flow rate proportional to rotational speed; minimal pressure pulsation.
Low vibration and noise; reduced mechanical friction; long service life.

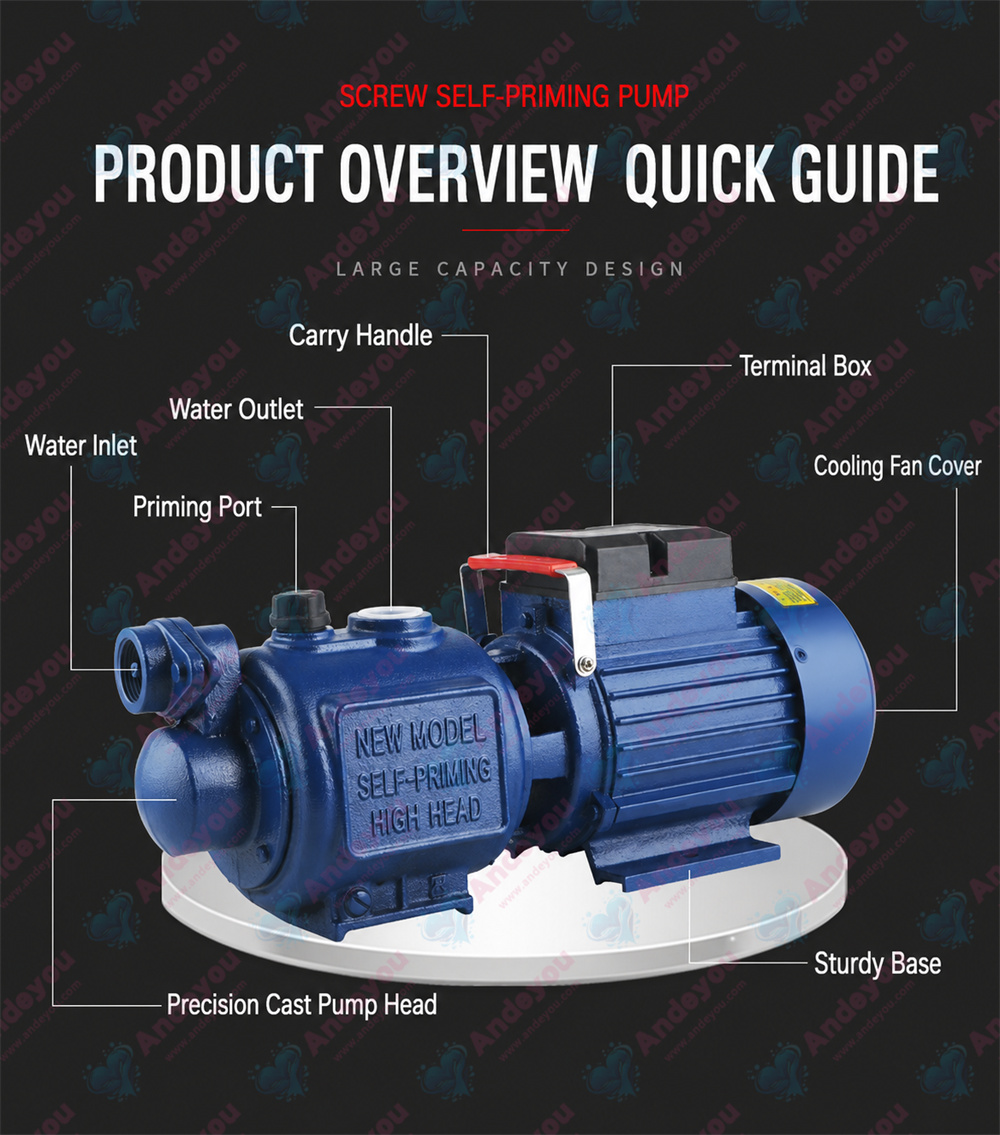

**Structural Design Advantages**
Compact and lightweight; easy to install and maintain.

**Diverse Application Scenarios**
Industrial: Chemical fluid transfer, wastewater treatment.
Civil/Residential: High-rise water supply, agricultural irrigation, vehicle washing.
Specialized Needs: High-pressure washing, mobile spray irrigation, pipeline pressure boosting.

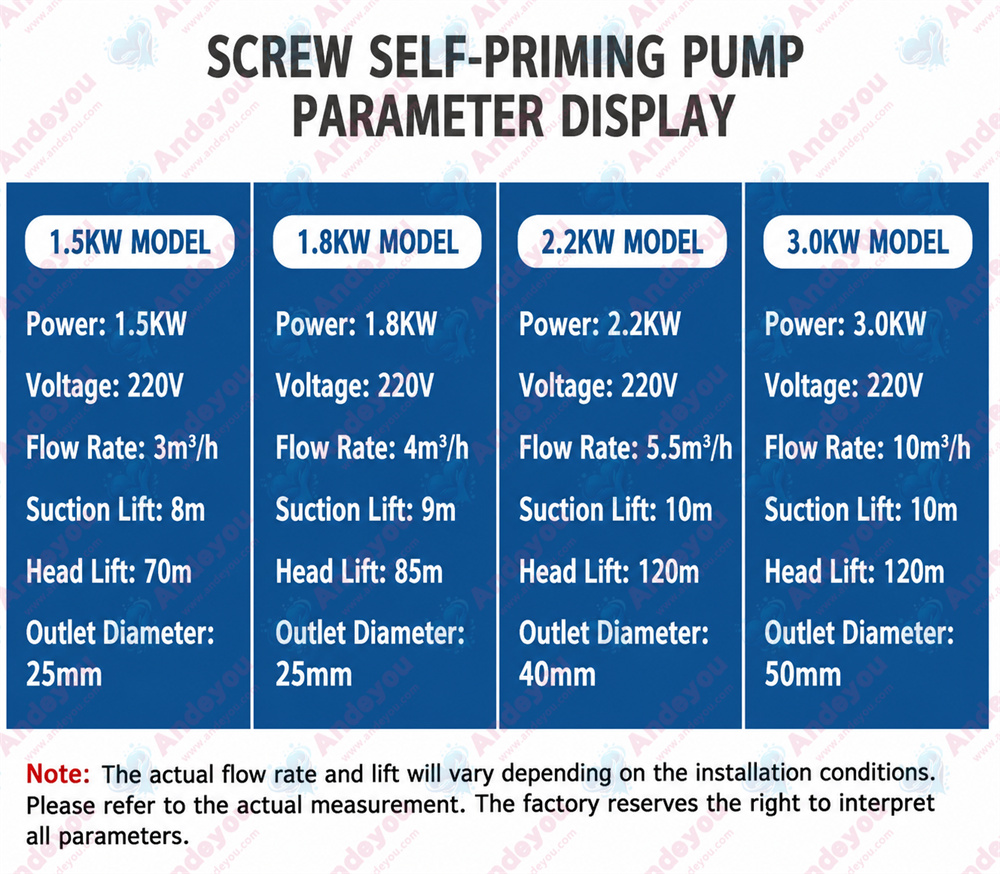

Parameters

Product Model Voltage Maximum flow rate (m³/h) Rated flow rate (m³/h) Maximum head (m) Rated head (m) Suction lift (m) Power (W) caliber Rotational speed (r/min)
ZGD-2200 220 18 5 88 50 8 2200 25×25 2850

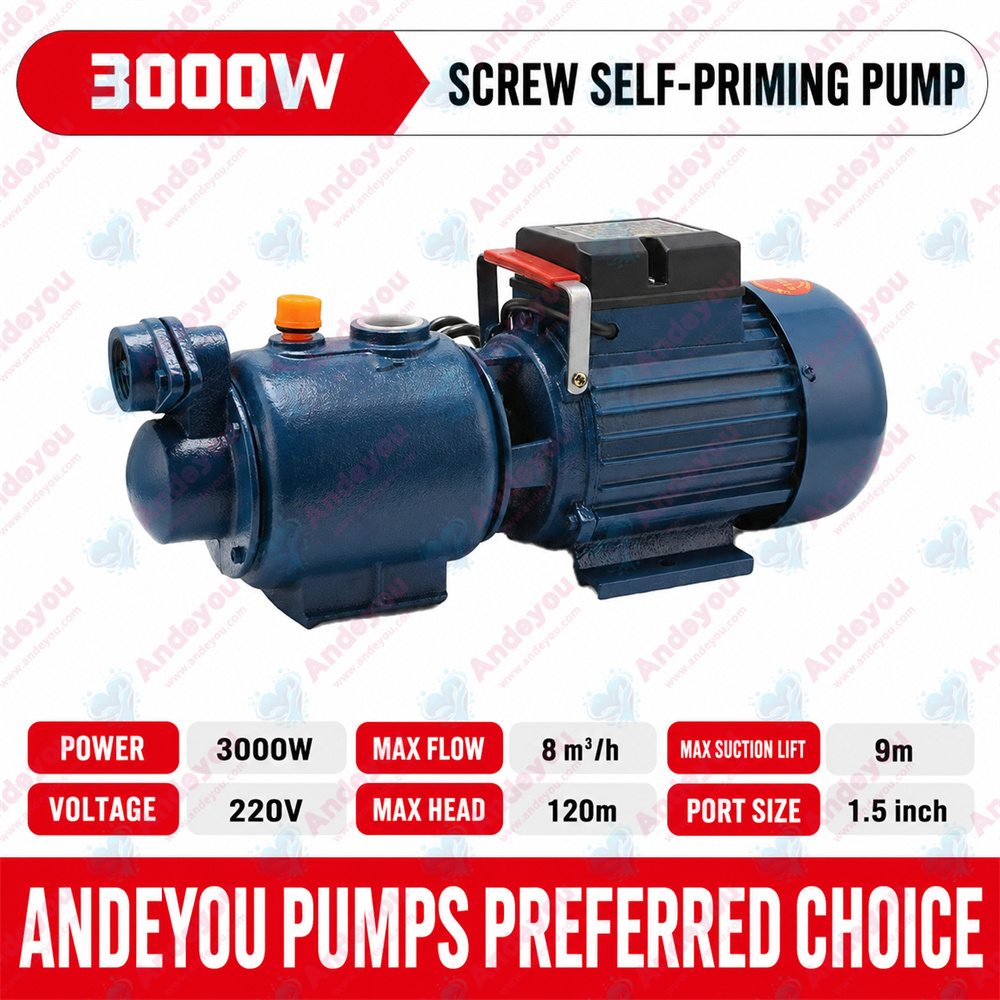

ZGD-3000 220 25 7 120 75 8 3000 40×40 2850

Size

Video Introduction
