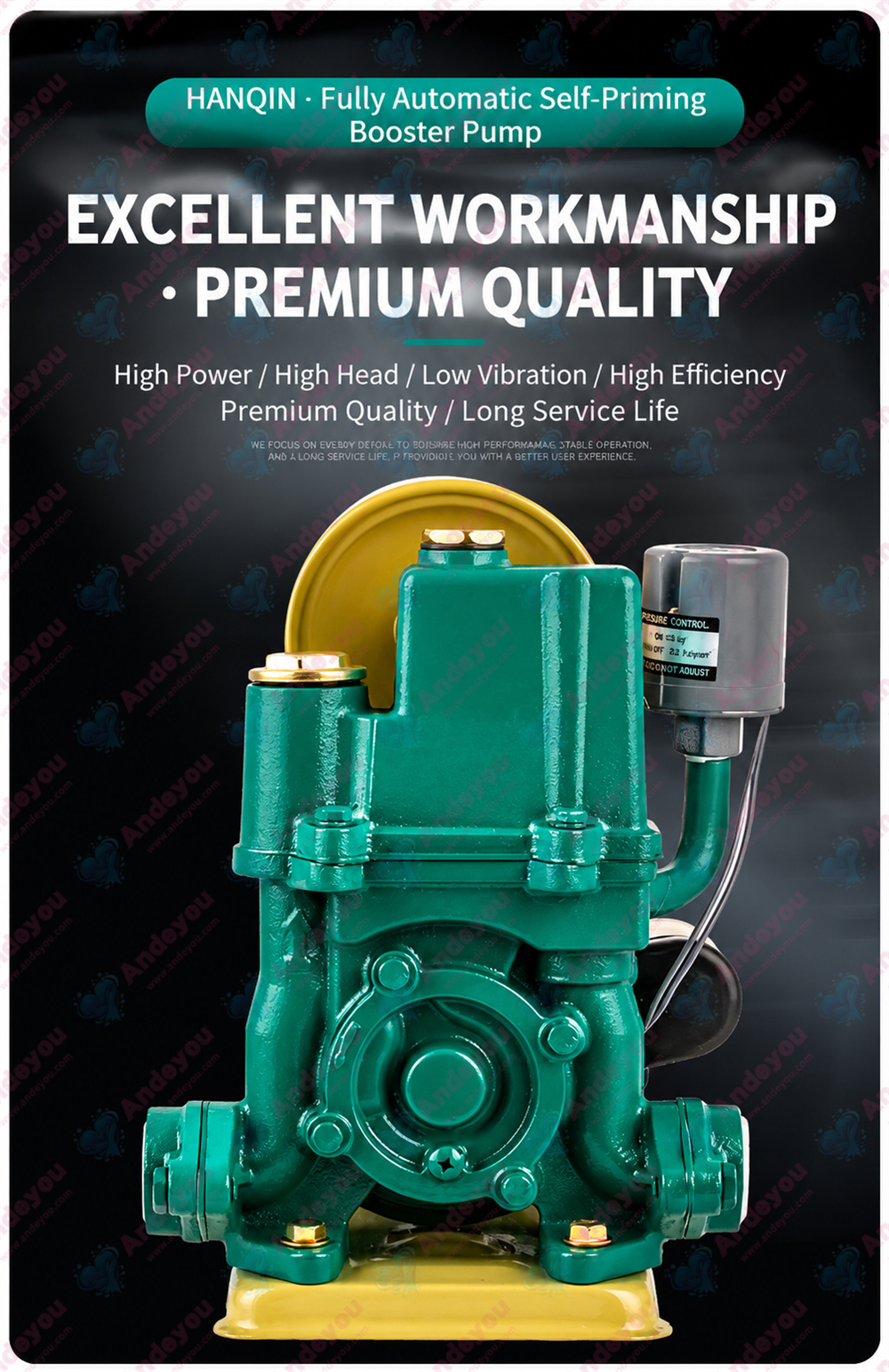

Fully automatic self-priming pump from a Korean company

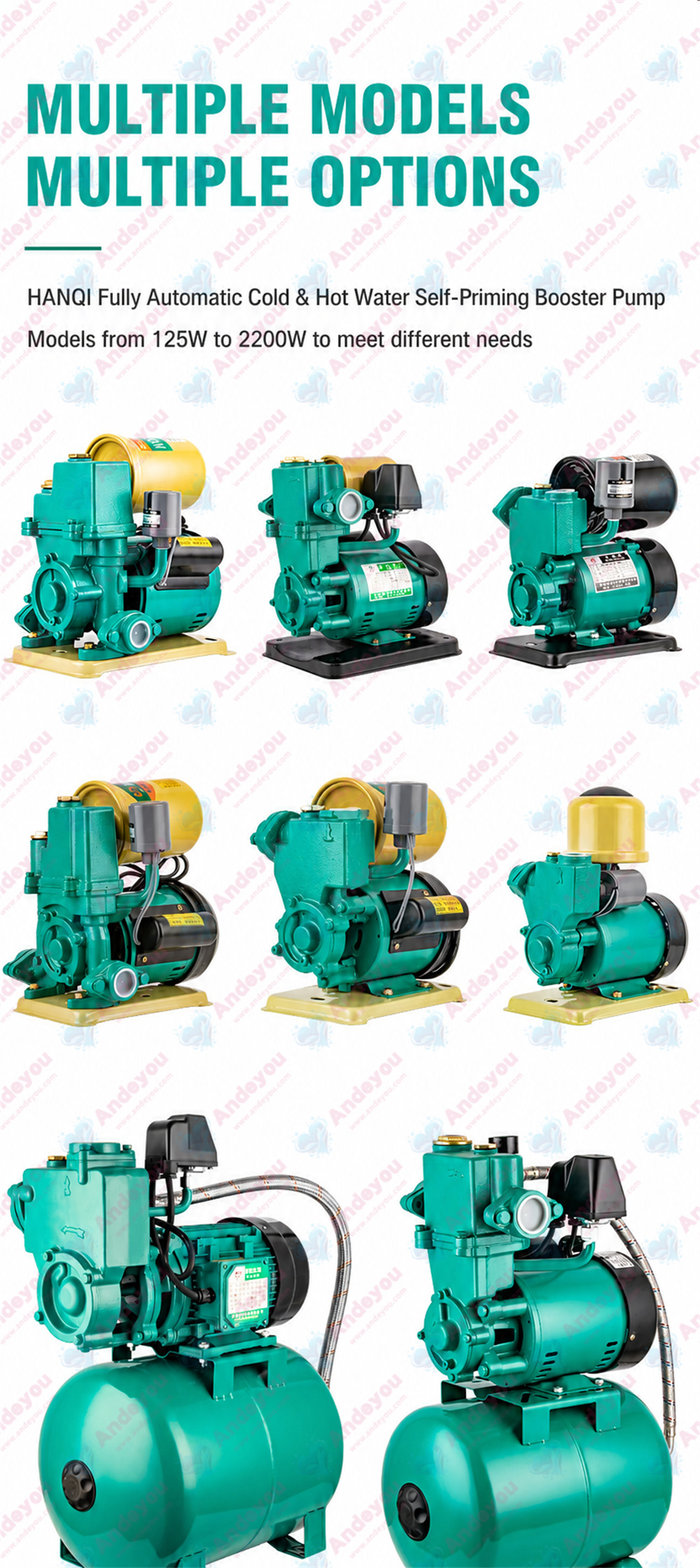

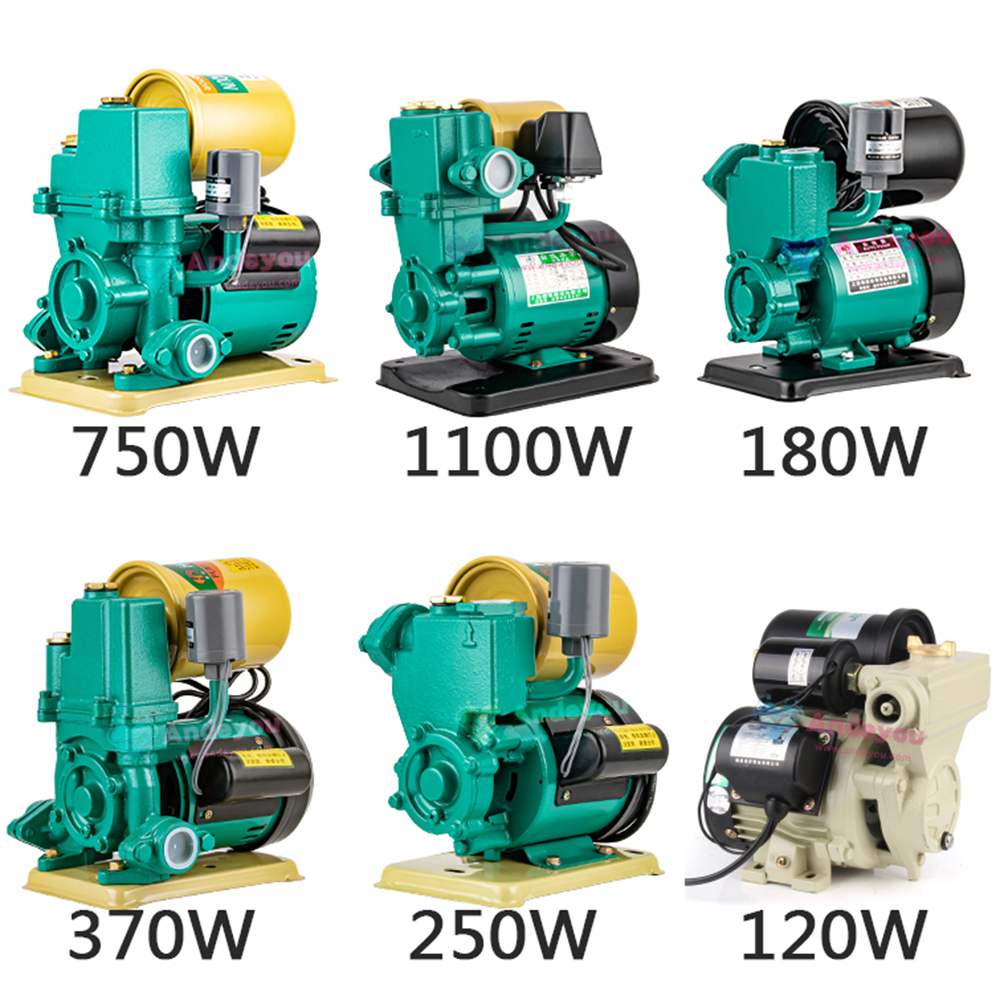

GA-101A|GA-120|HQ-125A|HQ-128A|HQ-250A|HQ-370A|HQ-550A|HQ-750A|HQ-1100A

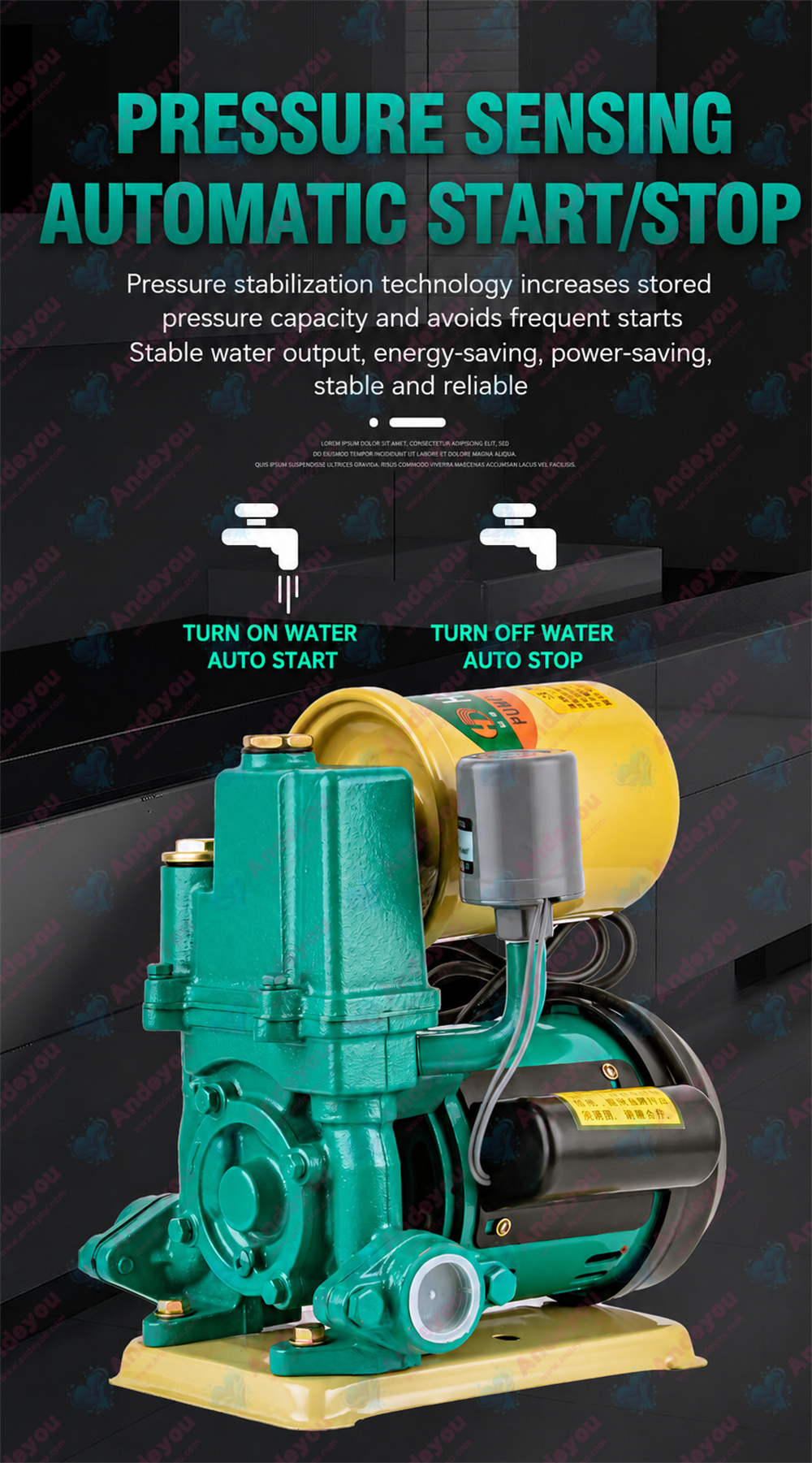

Manufactured using advanced South Korean technology,this fully automatic self-priming pump offers high-efficiency self-priming capabilities,intelligent control,and eco-friendly energy savings.It operates automatically—starting and stopping without manual intervention—and is designed for clean water transfer.It is widely used in residential circulation,agricultural irrigation,building water supply,and household pressure boosting systems.
Function
Parameters
Size
Video Introduction

Function

Product Overview:

Suitable for automatic water supply systems—including municipal mains, groundwater wells, and open-air wells—as well as applications in hotels, bathhouses, hair salons, space heating, residential water pressure boosting, and industrial equipment circulation systems.

Broad Applicability

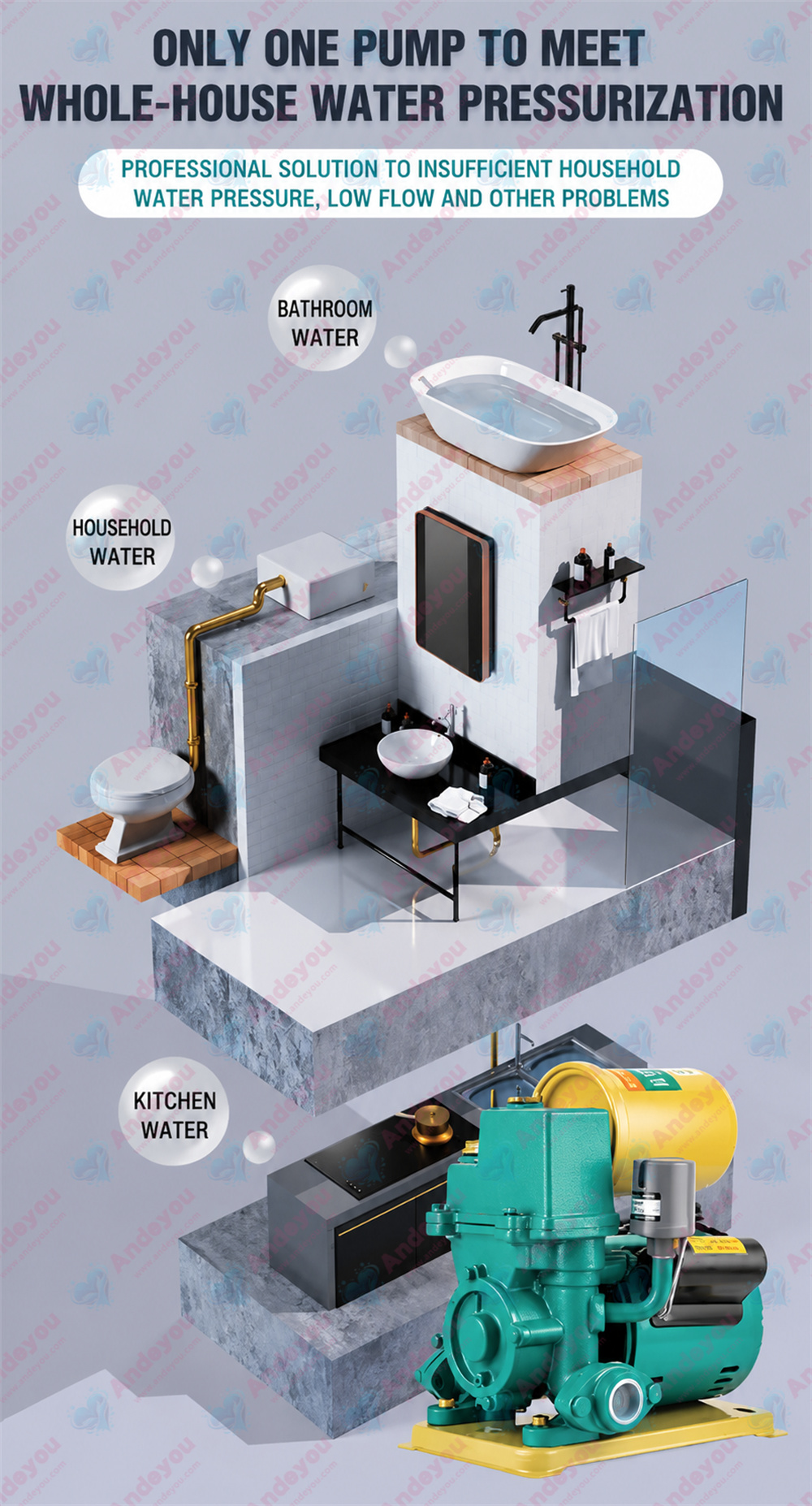

Residential Use: Mains water pressure boosting, water heater circulation, garden irrigation

Industrial Applications: Chemical liquid transfer, water treatment, fire protection systems

Parameters

Model Voltage Maximum flow rate (m³/h) Rated flow rate (m³/h) Maximum head (m) Rated head (m) Suction lift (m) Power (W) caliber Rotational speed (r/min)

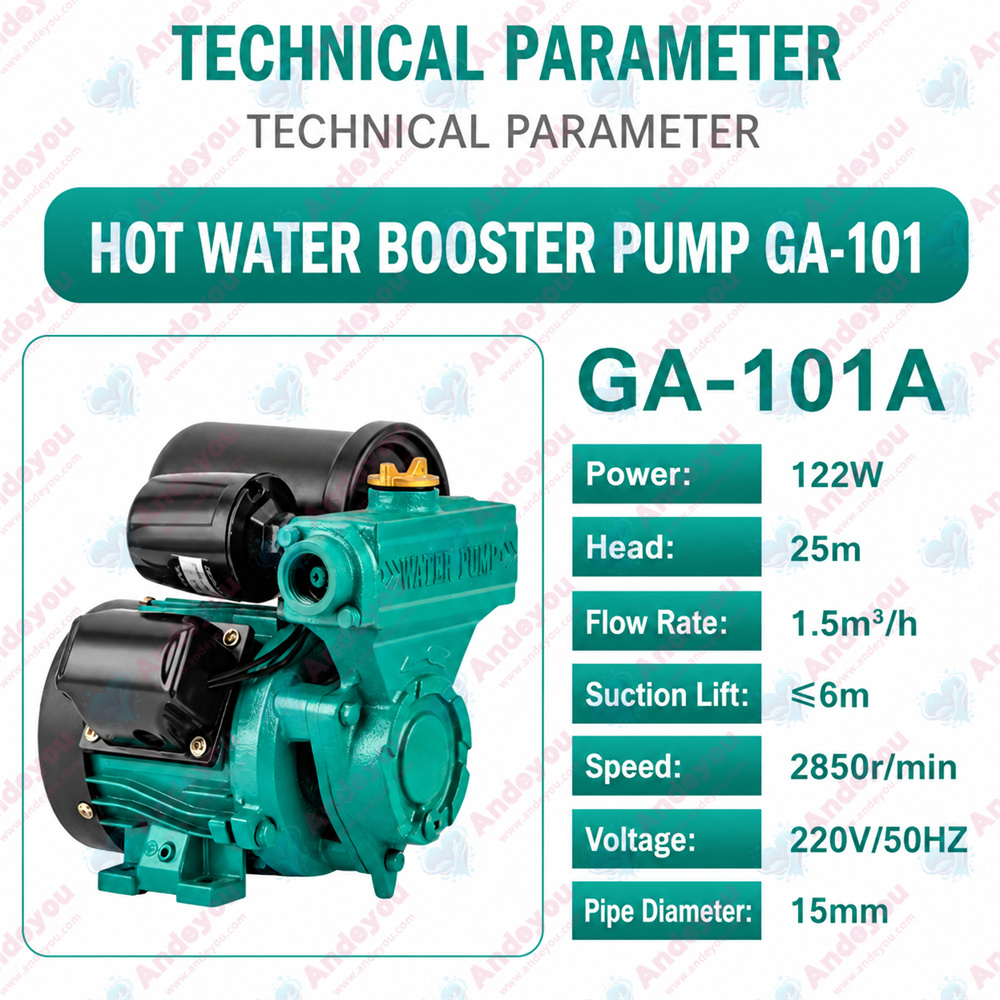

GA-101A 220   1.5   25 9 150 15×15 2850

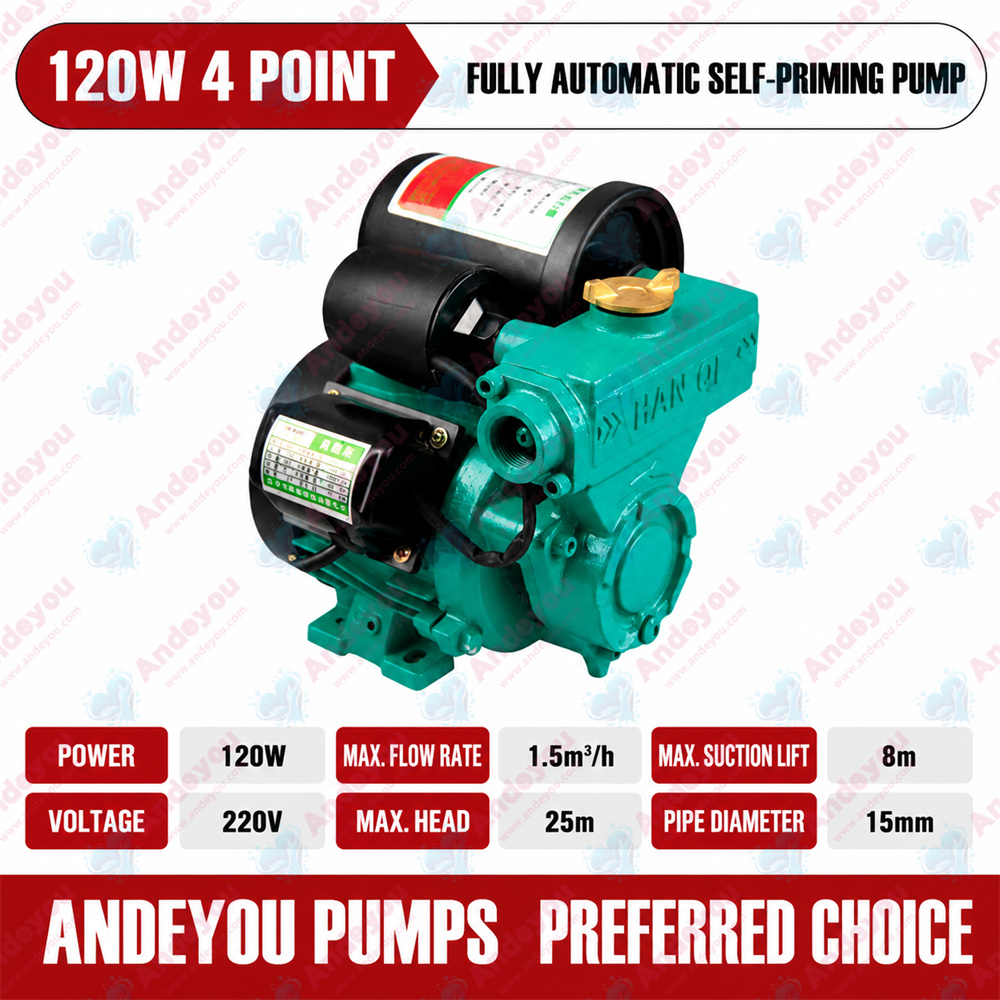

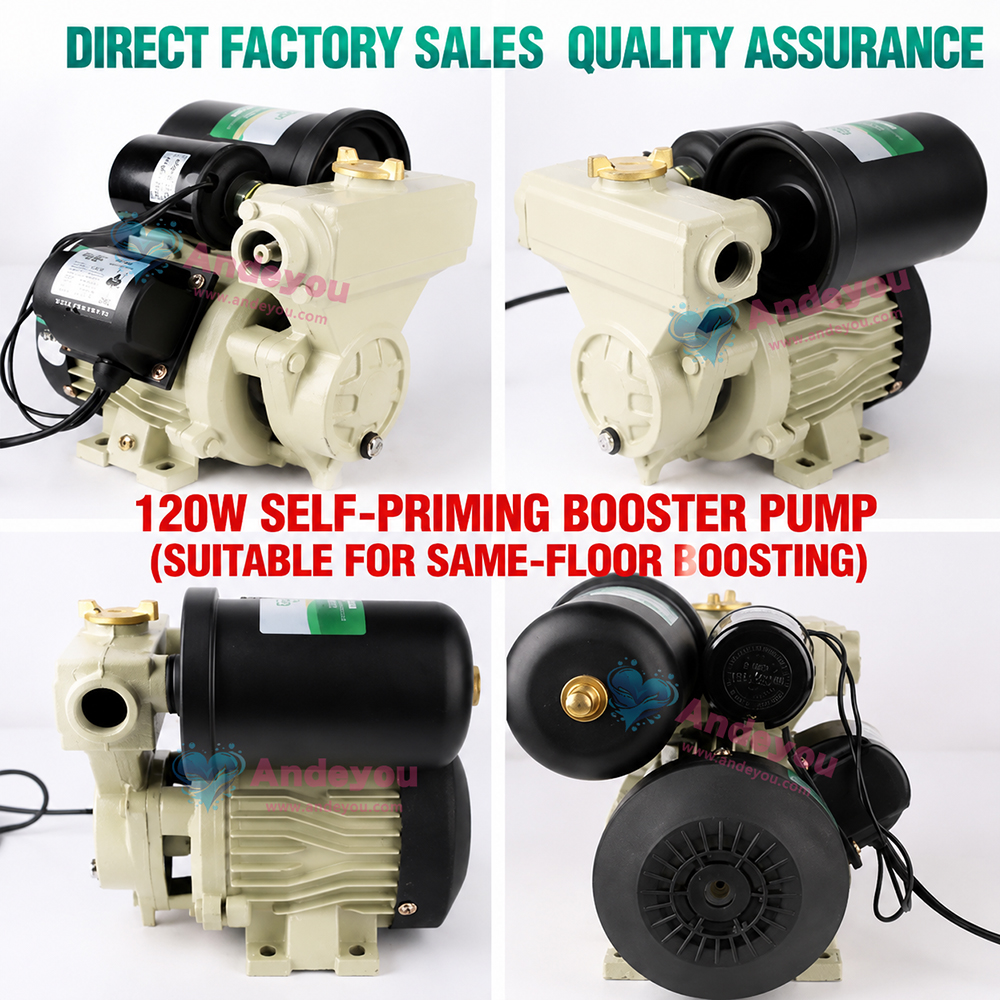

GA-120 220   1.8   25 9 120 25×25 2850

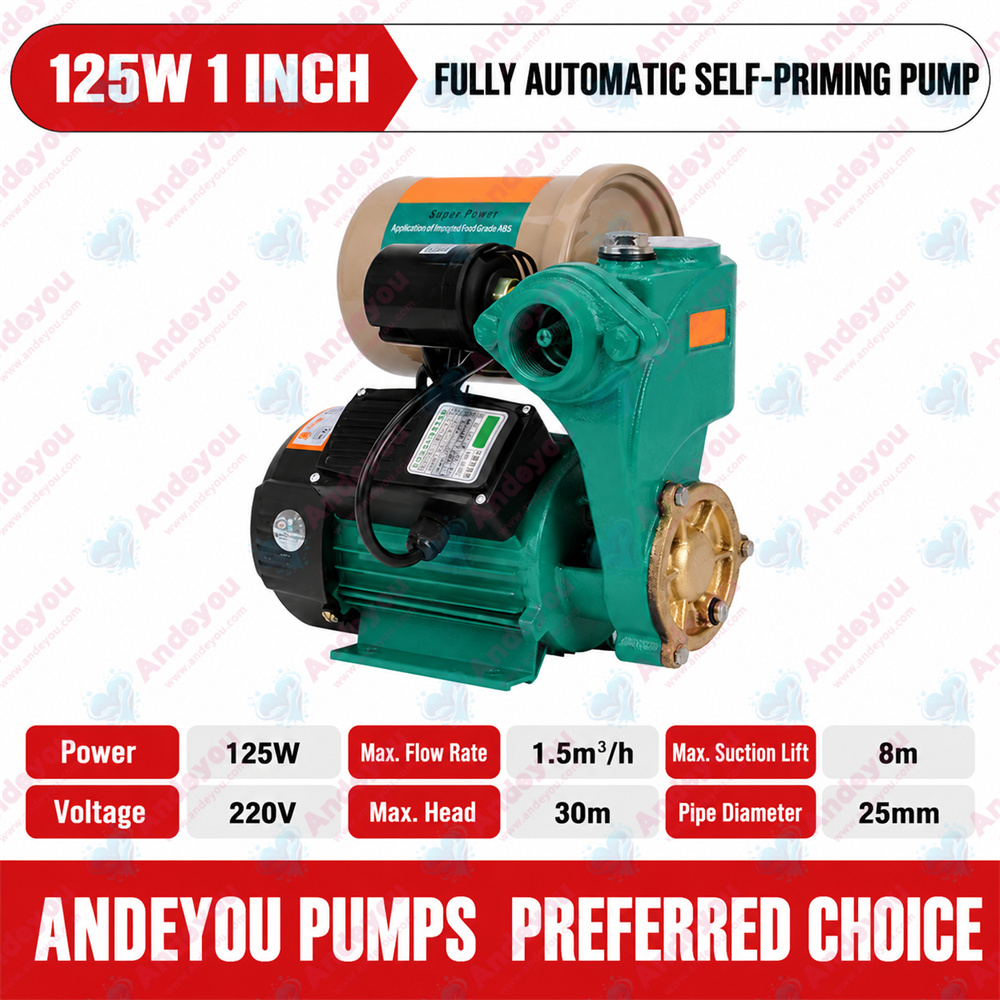

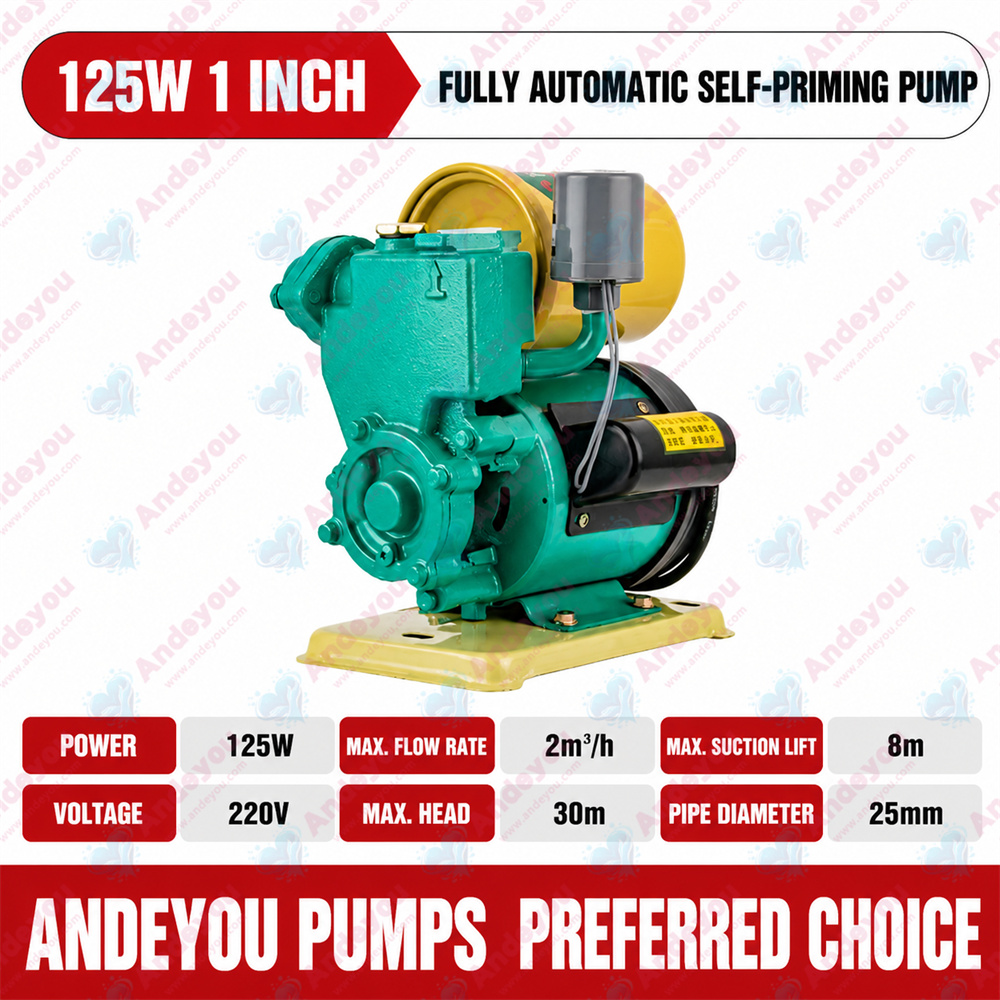

HQ-125A 220   0.9   13 9 125 25×25 2850
HQ-128A 220 1.5 0.9 32 13 9 128 25×25 2850

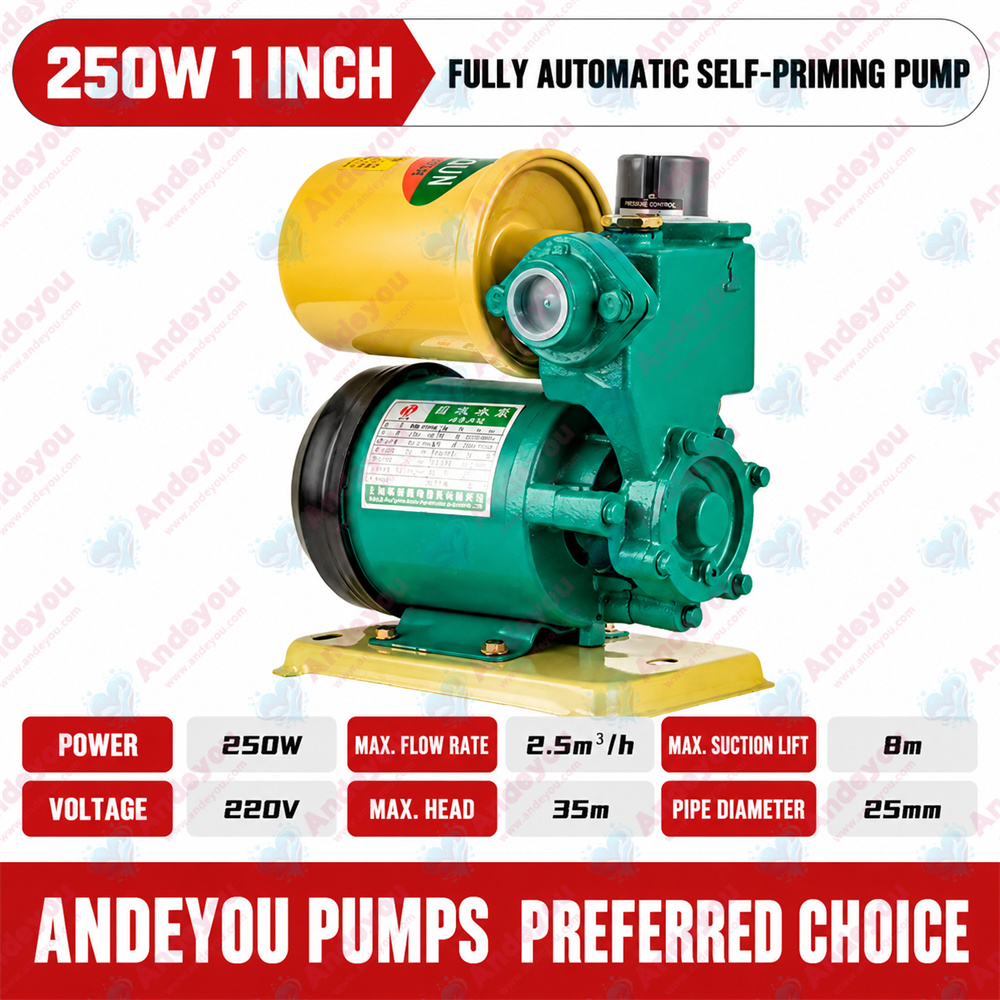

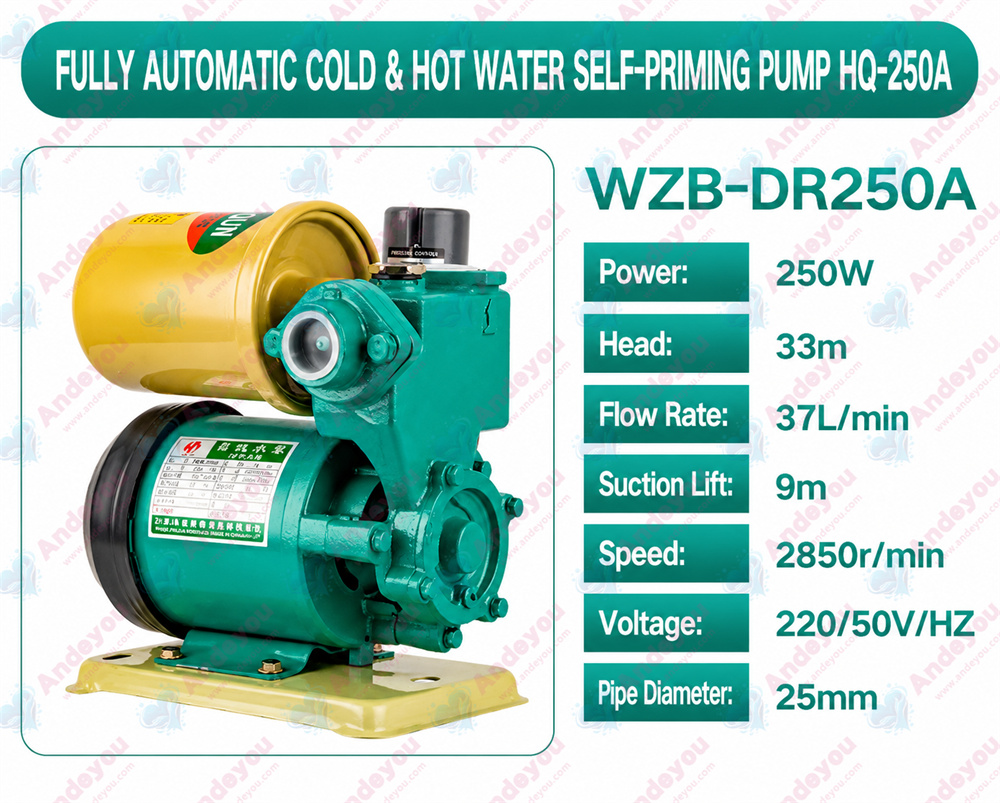

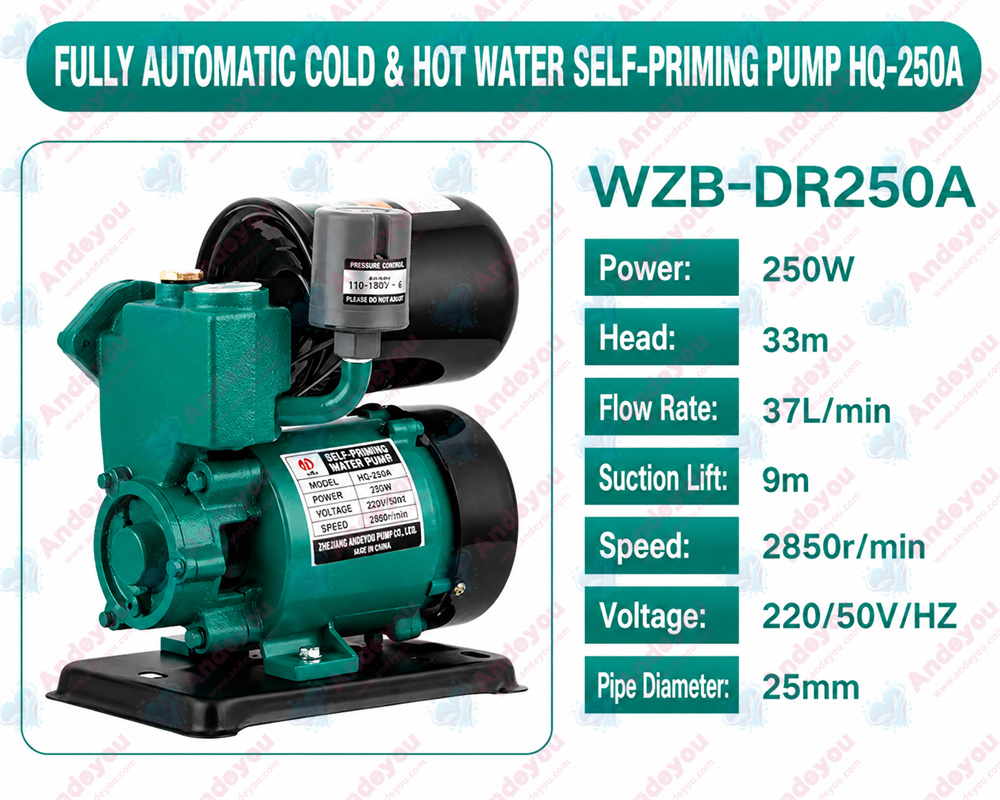

HQ-250A 220 1.5 0.9 35 13 9 250 25×25 2850

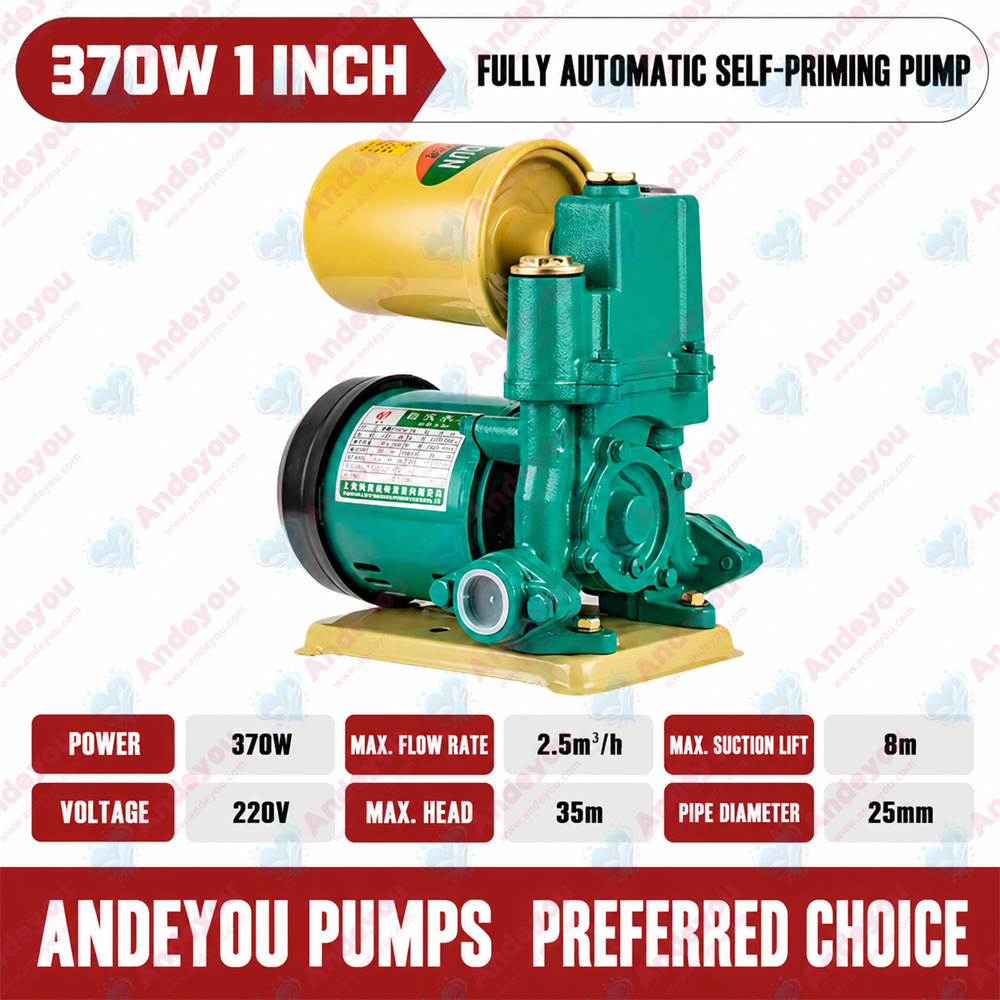

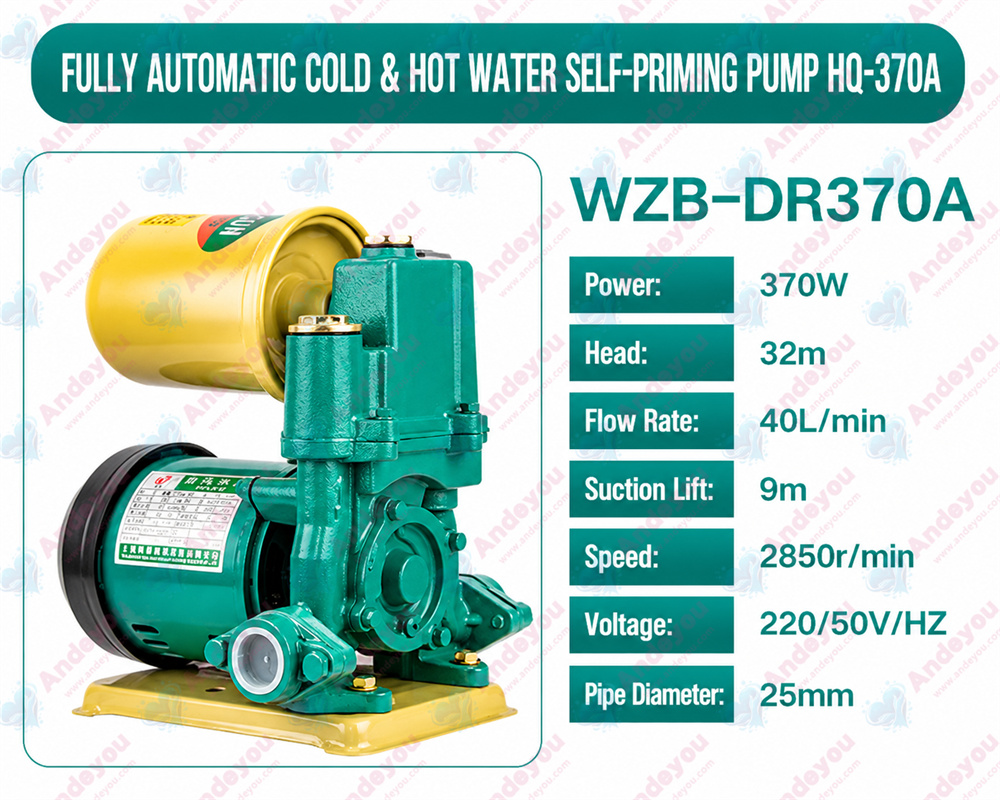

HQ-370A 220 1.8 1 40 15 9 370 25×25 2850

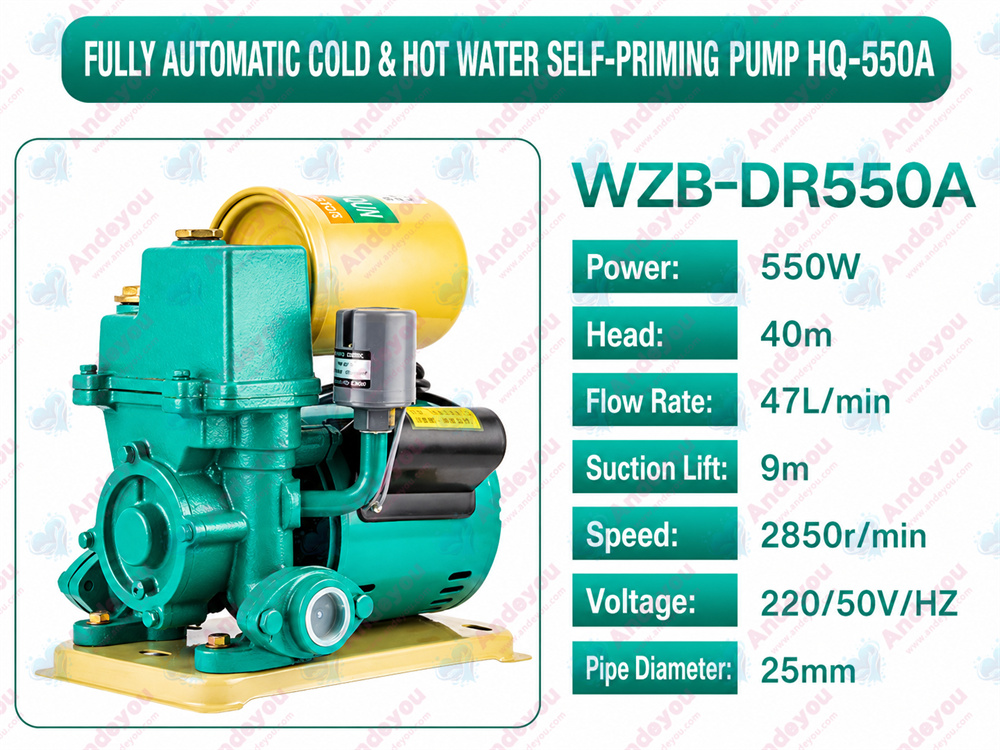

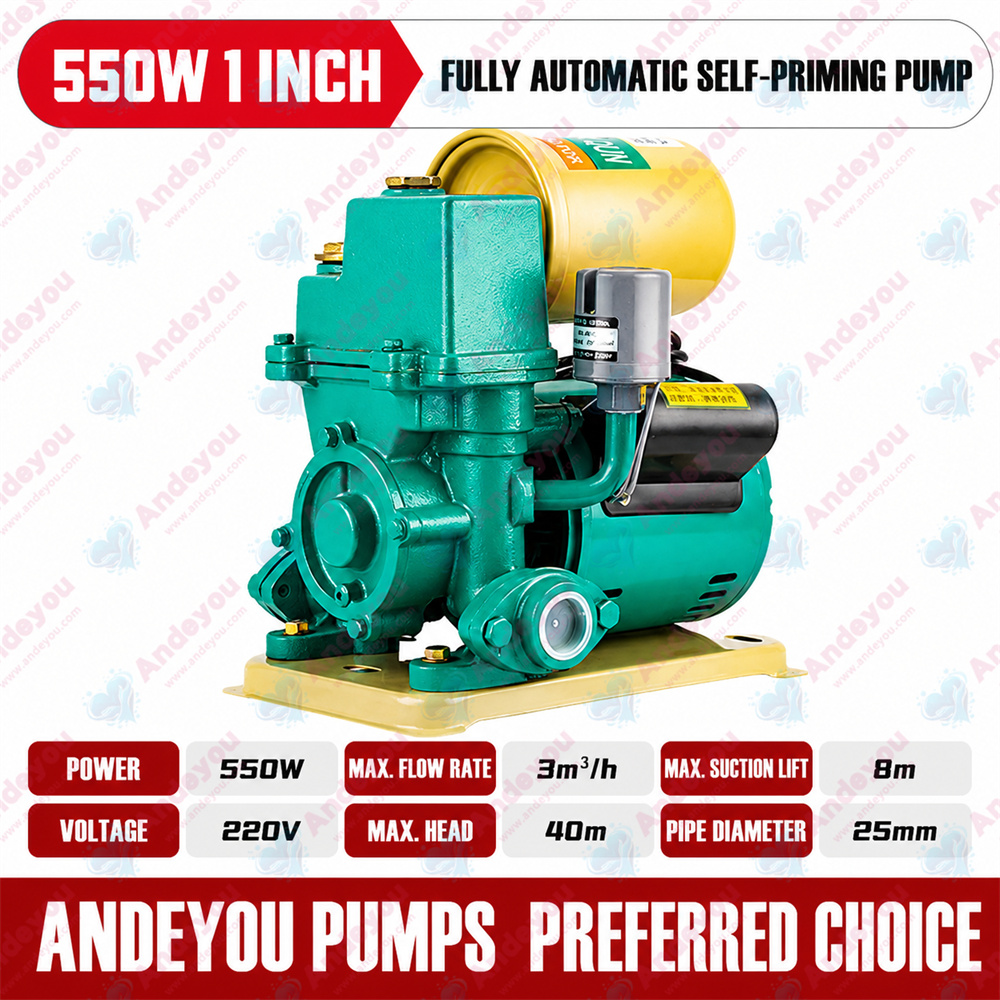

HQ-550A 220 2.2 1.2 40 14 9 550 25×25 2850

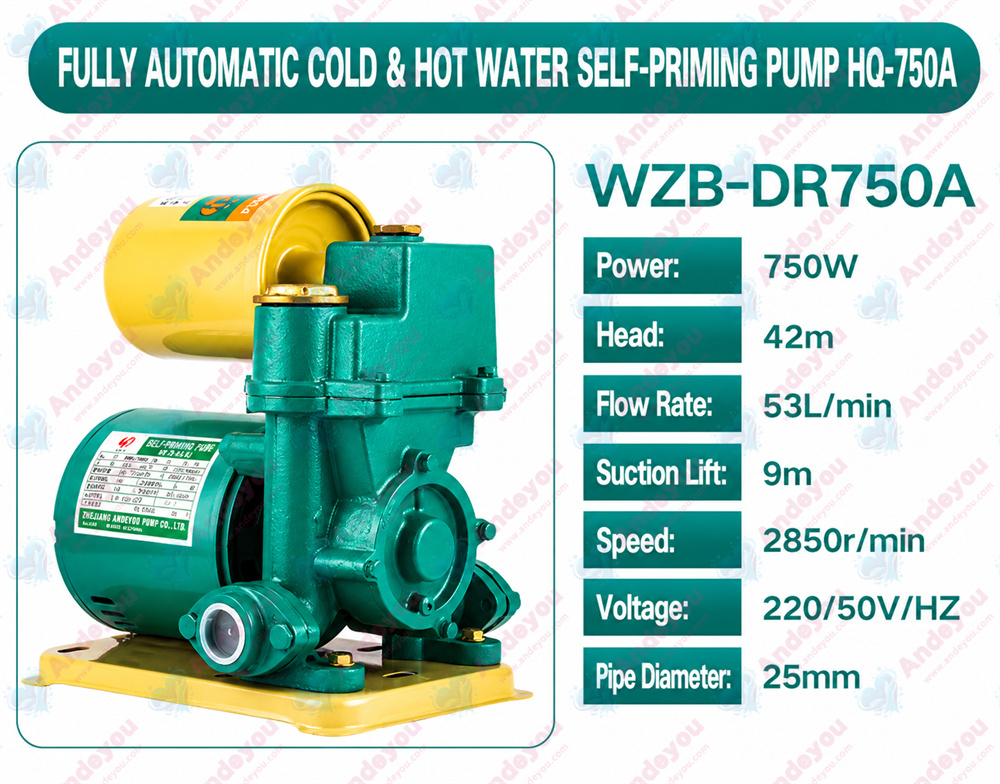

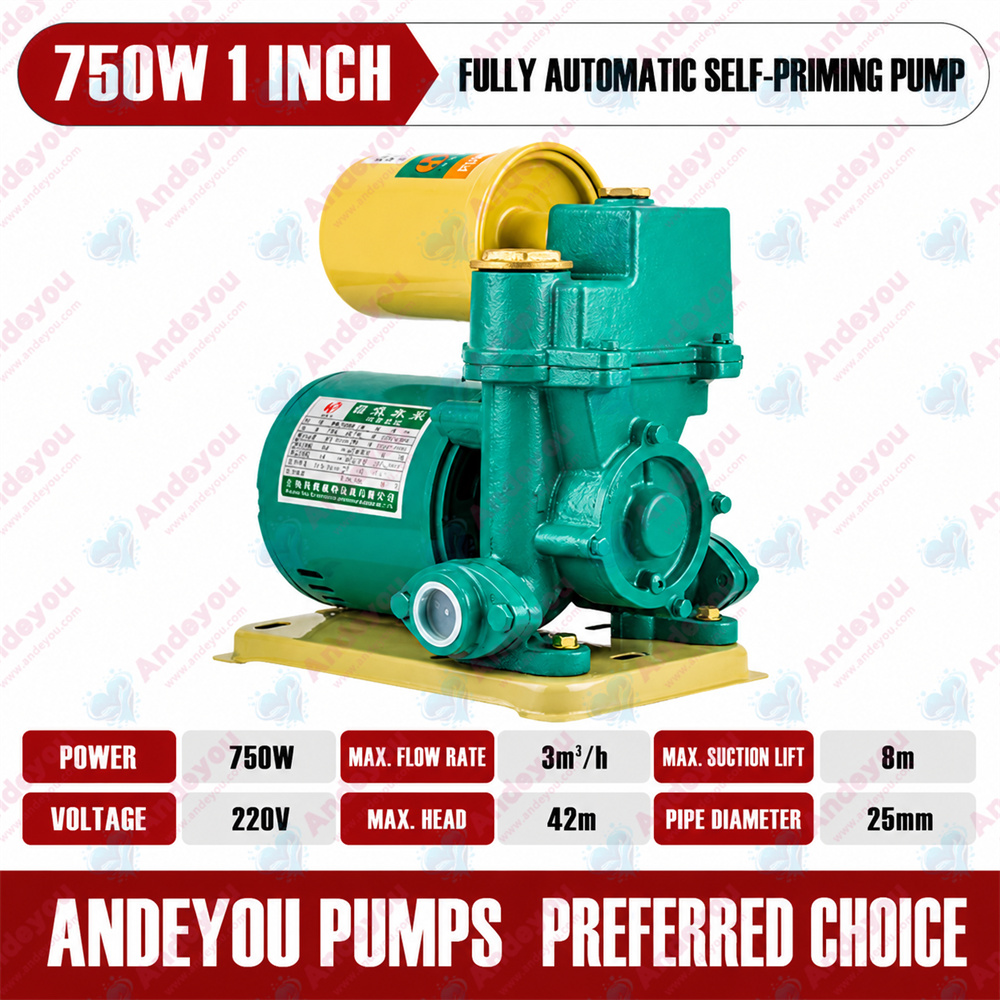

HQ-750A 220 2.4 1.2 45 18 9 750 25×25 2850

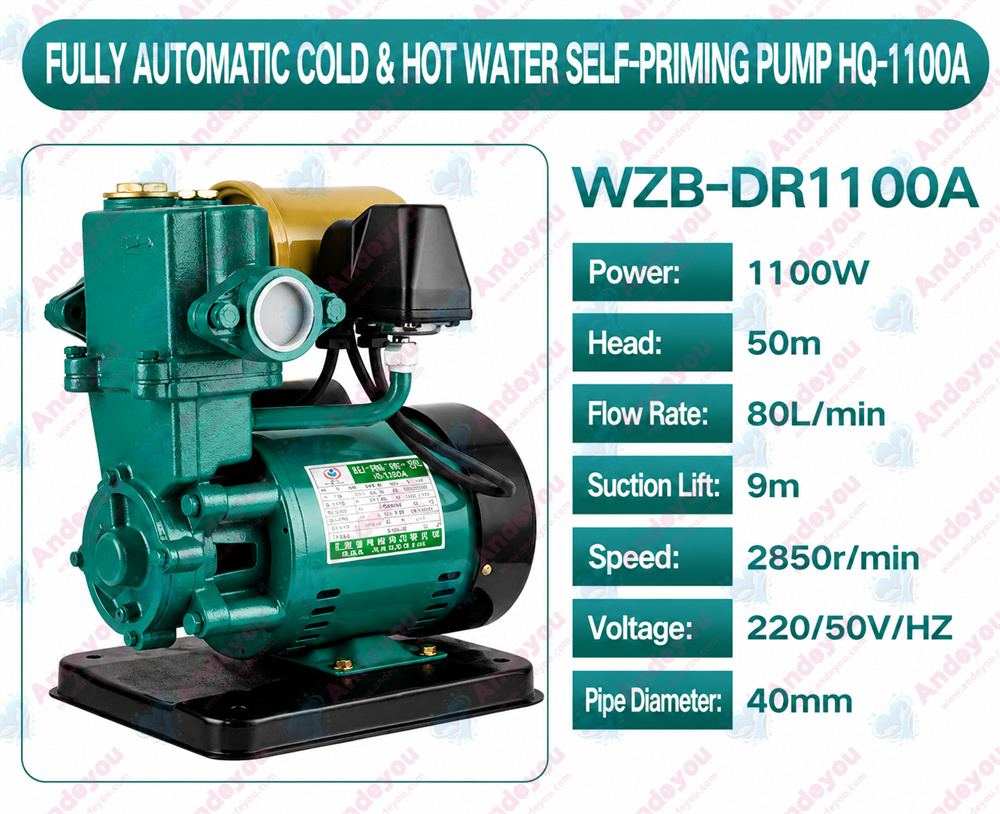

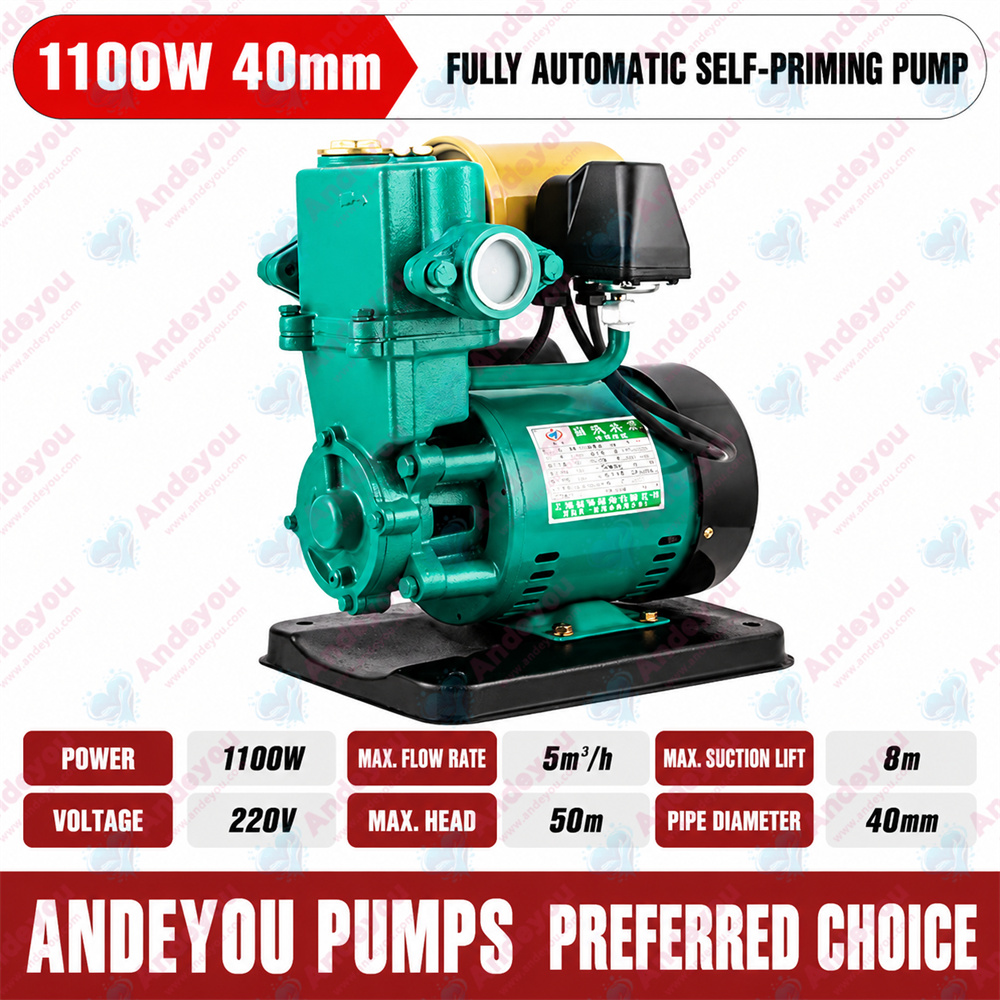

HQ-1100A 220 3.6 2 55 25 9 1100 40×40 2850
