Water Camel Intelligent Dual-Control Self-Priming Pump

RJm60-128 RJm60-130A RJm60-200(A) RJm60-300(A) RJm60-400(A) RJm70-600(A) RJm80-800(A) RJm90-1100(A) RJm90-1500(A)

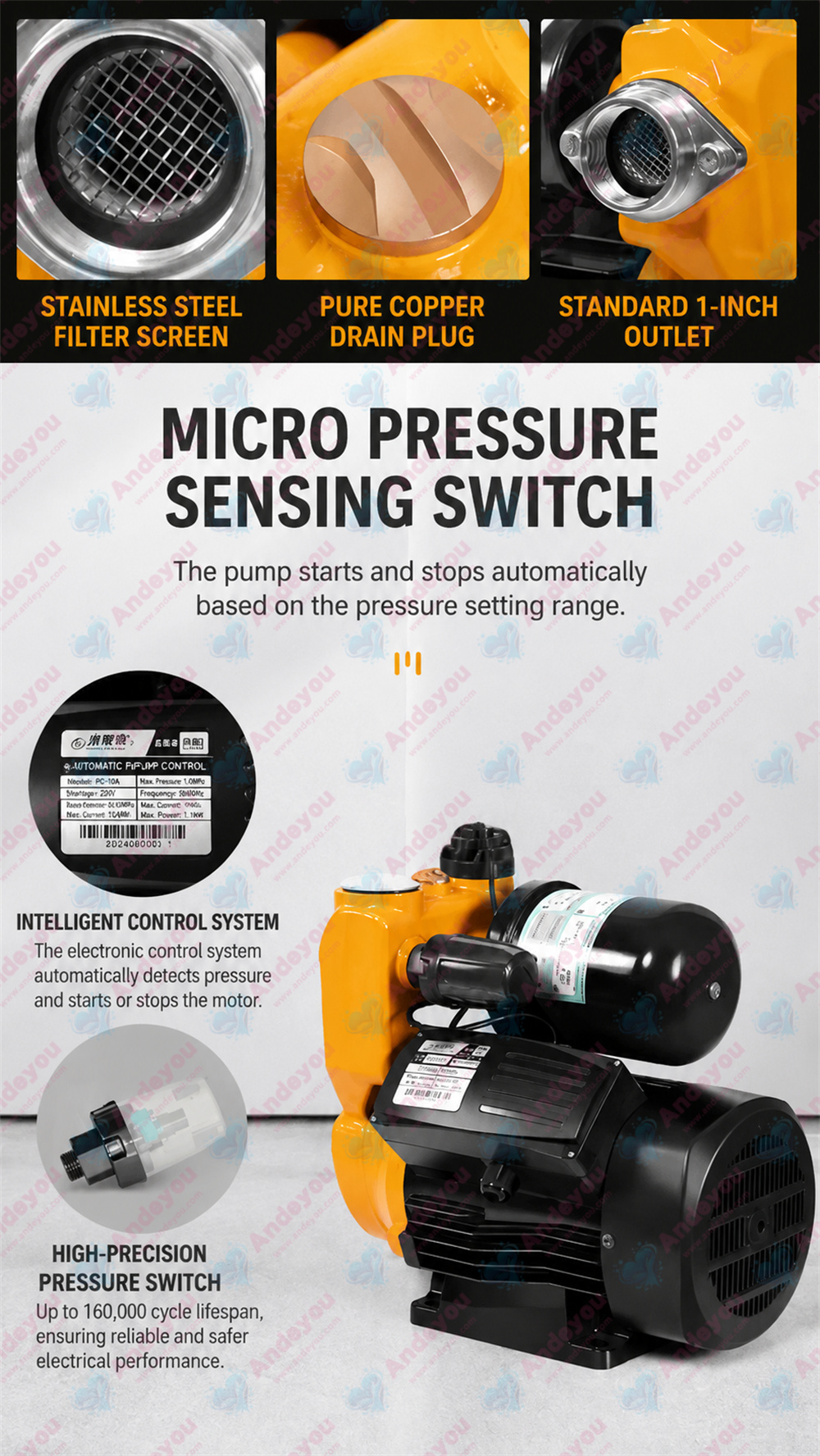

The "Water Camel" (Shui Luotuo) intelligent dual-control self-priming pump is a new type of water pump that integrates intelligent control with high efficiency and energy savings.It utilizes dual-control technology to enable automatic start/stop and pressure regulation,eliminating the need for manual intervention and ensuring ease of use.Featuring rapid self-priming capabilities with a lift height of 5–8 meters,it is suitable for handling various media
Function
Parameters
Size
Video Introduction

Function

Innovative Technology:

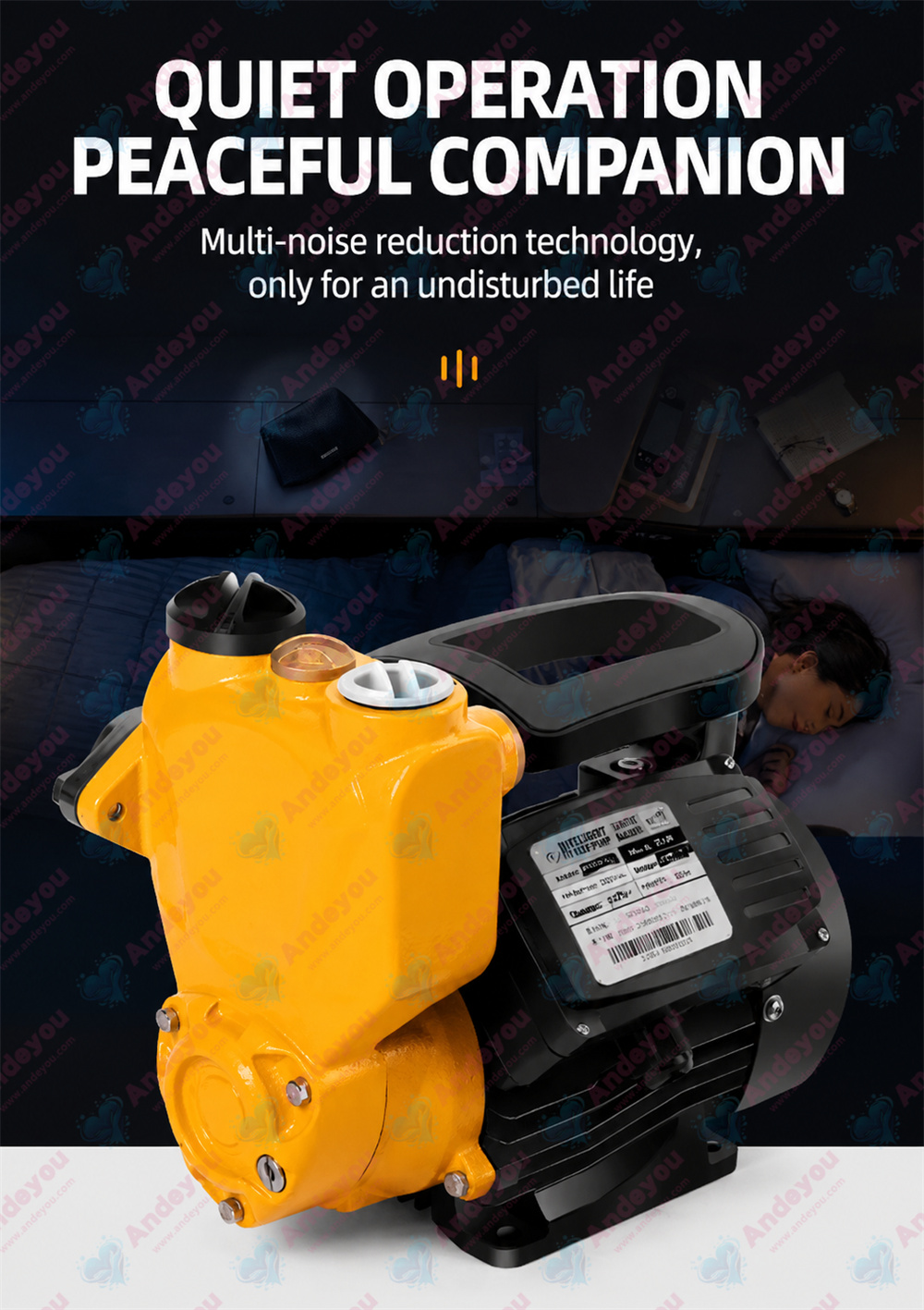

The "Water Camel" (Shui Luotuo) self-priming pump features a compact structure, ease of operation, smooth and quiet performance, simple maintenance, high efficiency, and a long service life, alongside strong self-priming capabilities. It also incorporates a timer function for water tower filling, offering users four selectable intervals: 2, 3, 6, and 12 hours. With its user-friendly design and outstanding performance, the "Water Camel" has become an essential pumping solution for an increasing number of users.

Product Applications:

This series of electric pumps represents an ideal, new generation of high-efficiency, energy-saving pumps for domestic use. They are widely applied in household water supply, well-water extraction, municipal water pressure boosting, garden irrigation, and greenhouse water supply. They are particularly well-suited for boosting pressure in water heater pipelines where pressure is insufficient, thereby preventing temperature fluctuations (alternating hot and cold water) during use.

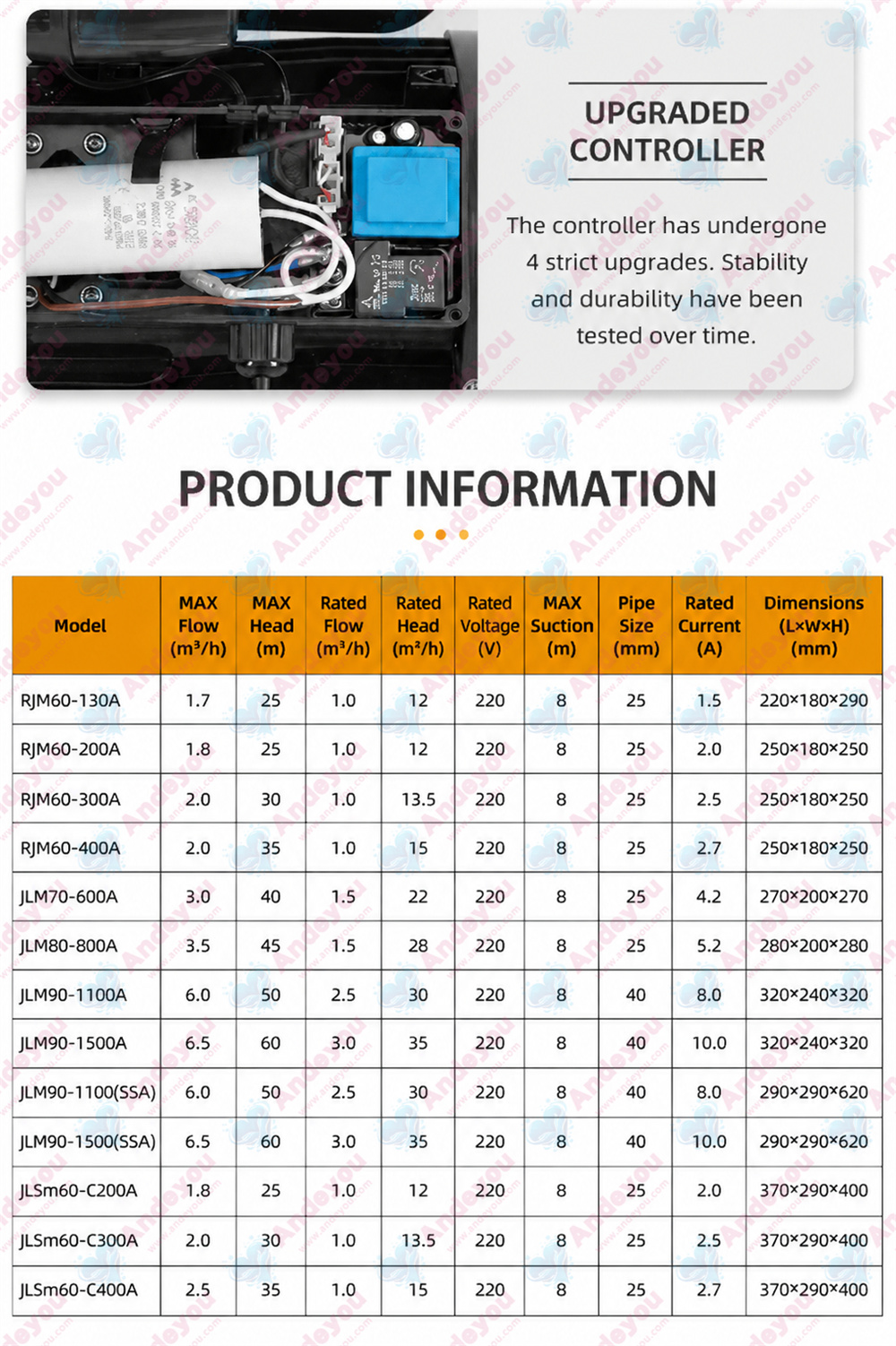

Parameters

Product Model Voltage Maximum flow rate
(m³/h)
Rated flow rate
(m³/h)
Maximum Head
(m)
Rated Head
(m)
Suction lift
(m)
Power
(W)
caliber Rotational speed
(r/min)
RJm60-128 220 1.5 1 25 12 8 128 25×25 2850

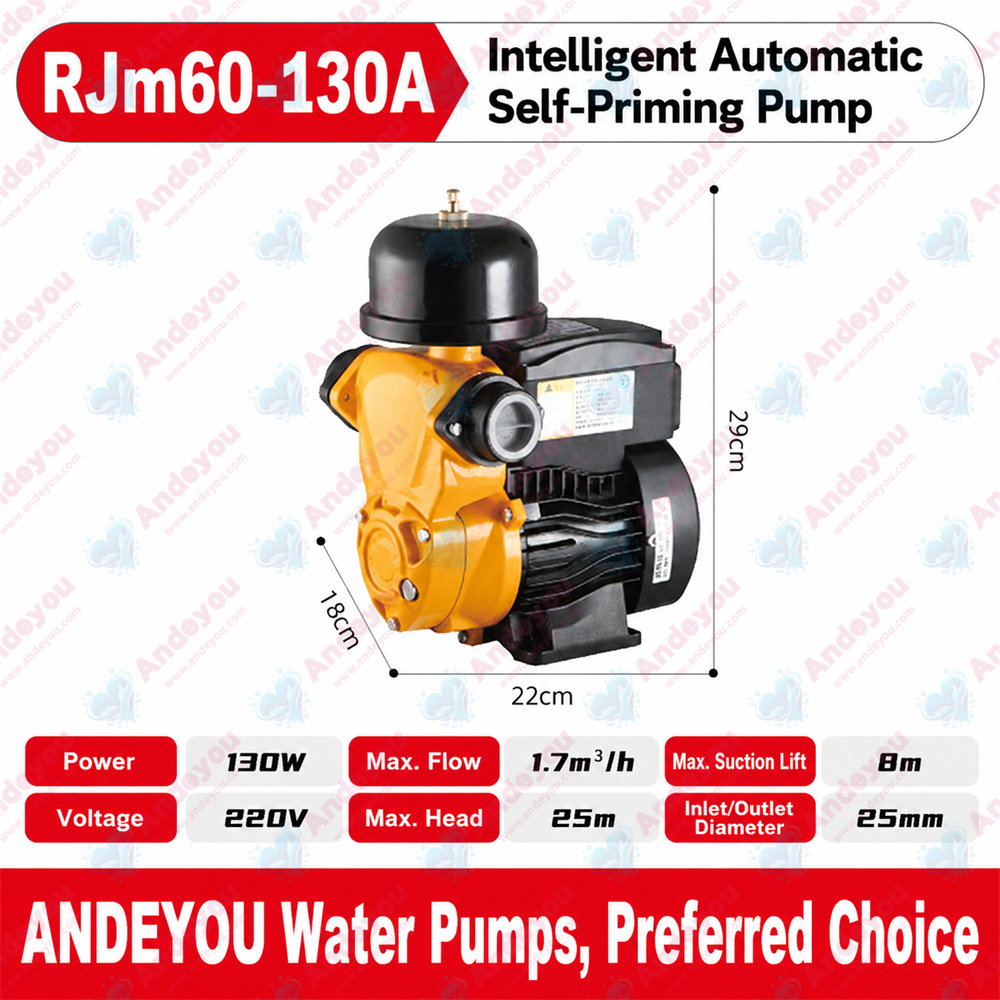

RJm60-130A 220 1.8 1 25 12 8 130 25×25 2850

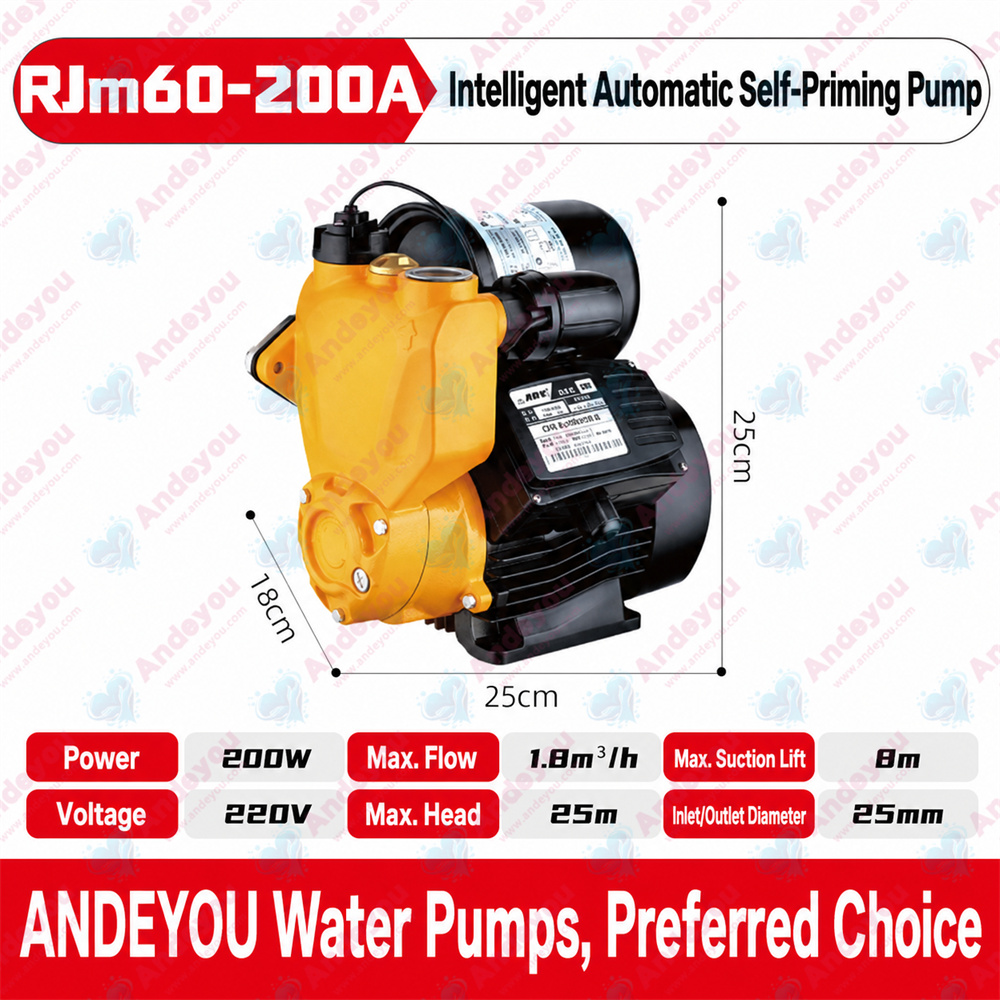

RJm60-200(A) 220 2 1 25 12 8 200 25×25 2850
RJm60-300(A) 220 2 1 30 13.5 8 300 25×25 2850

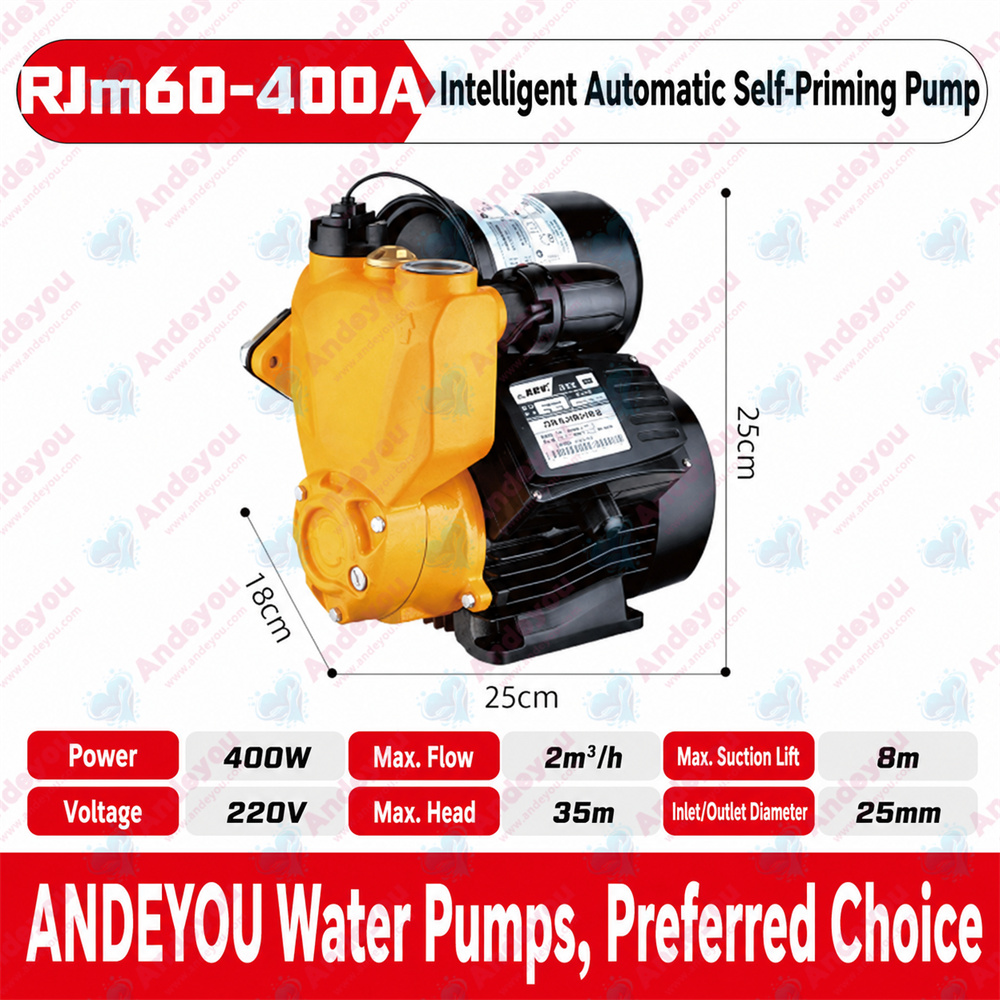

RJm60-400(A) 220 2.5 1 35 15 8 400 25×25 2850

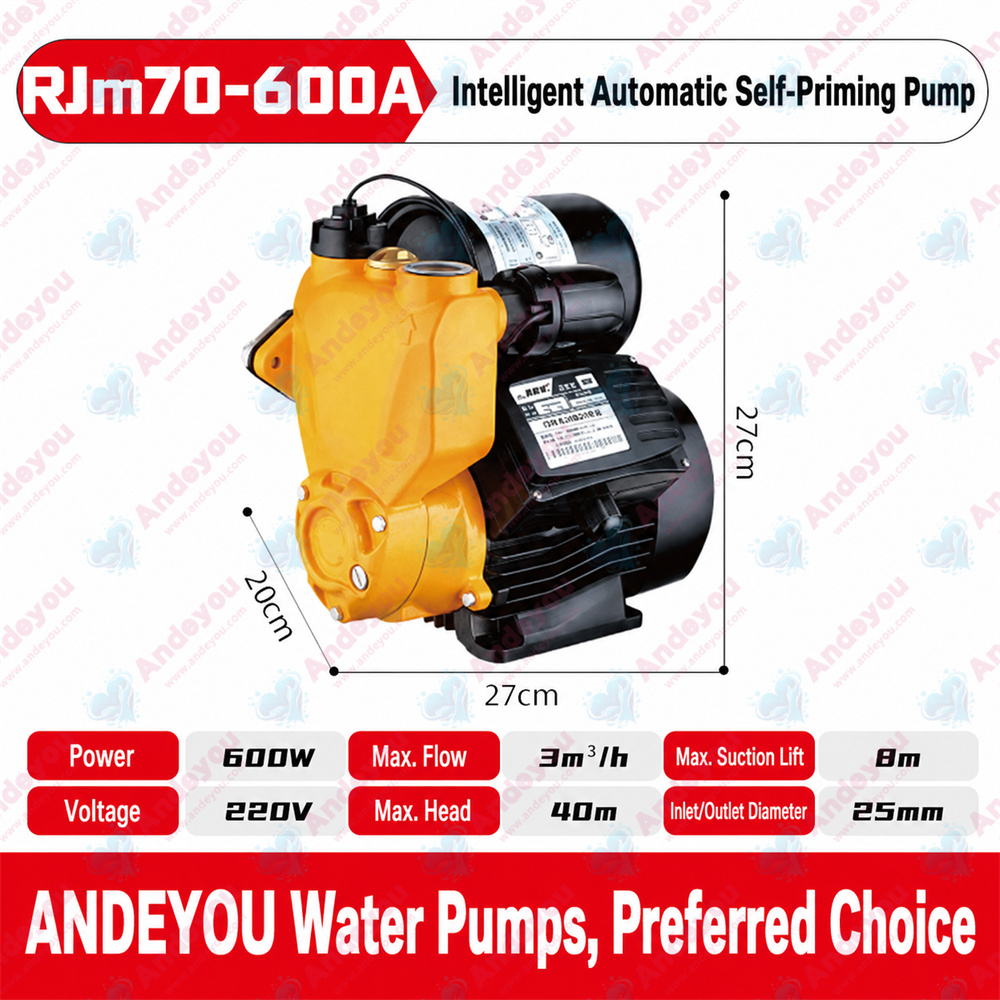

RJm70-600(A) 220 3 1.5 40 22 8 600 25×25 2850

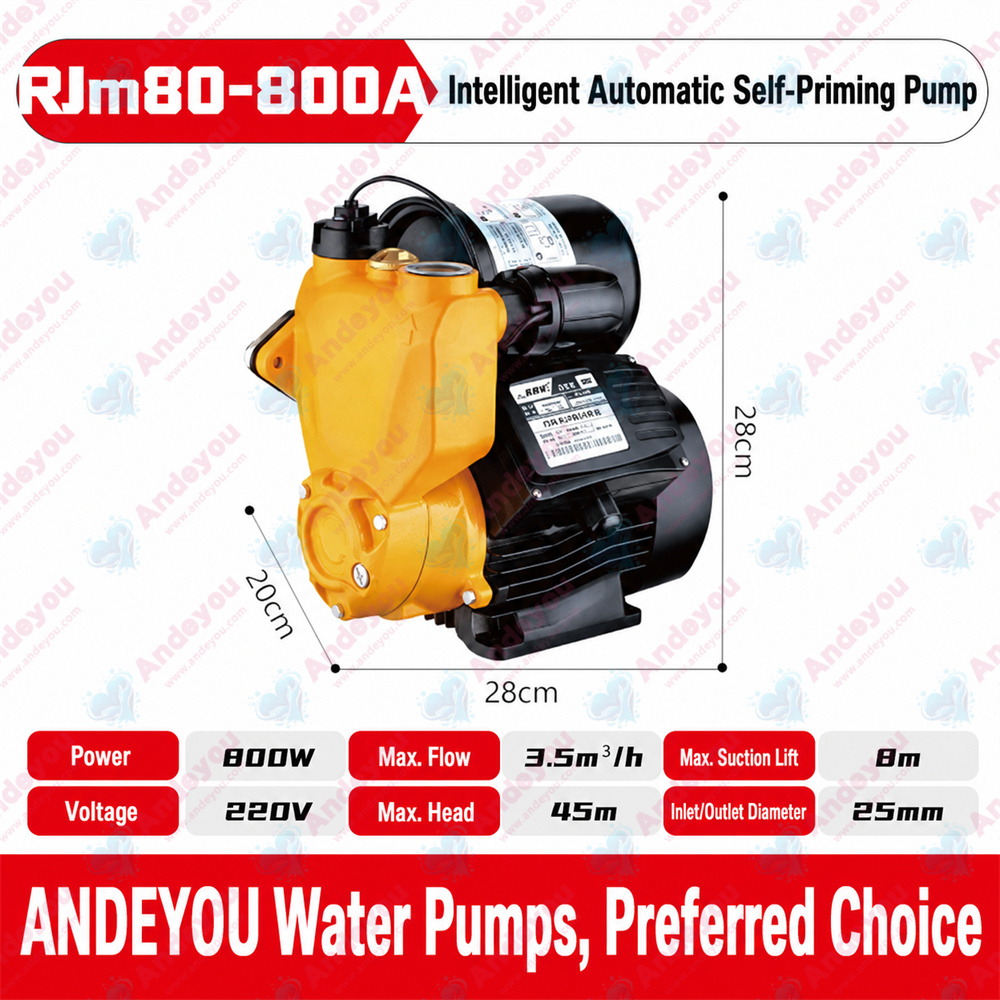

RJm80-800(A) 220 3.5 1.5 50 28 8 800 25×25 2850

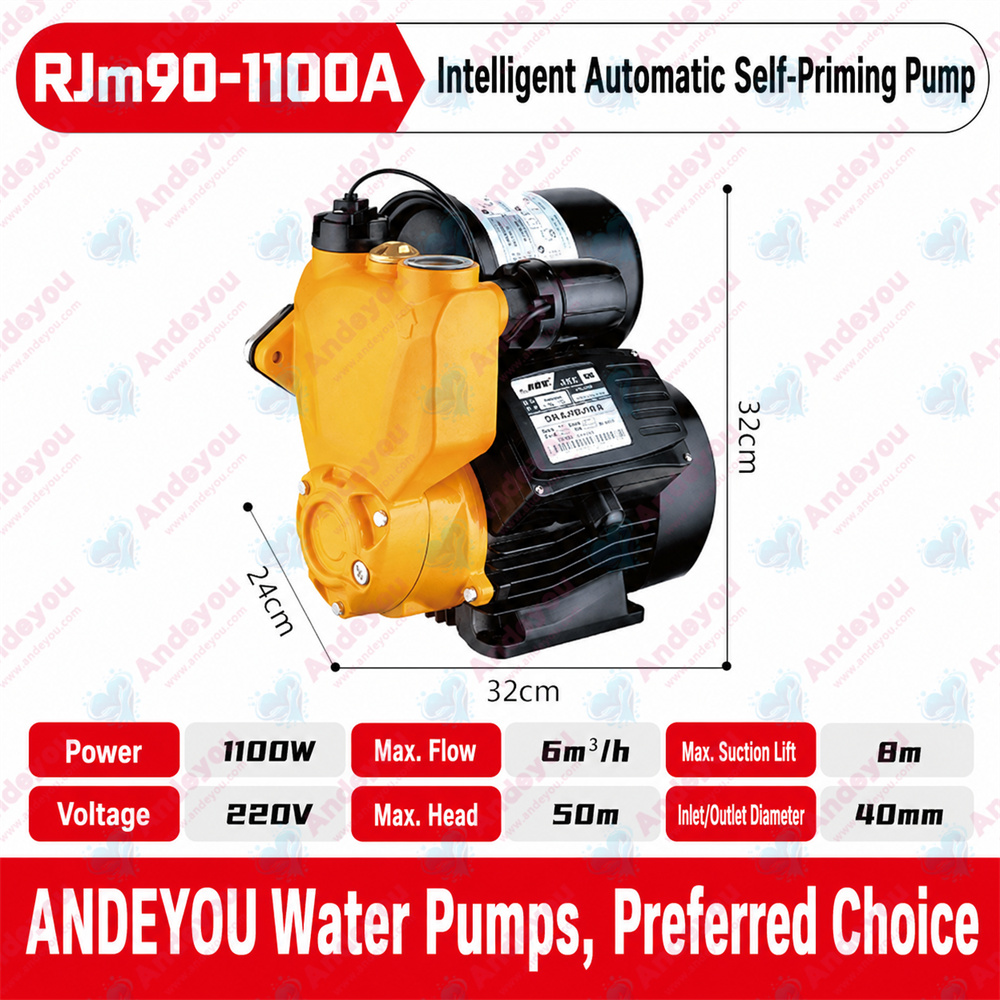

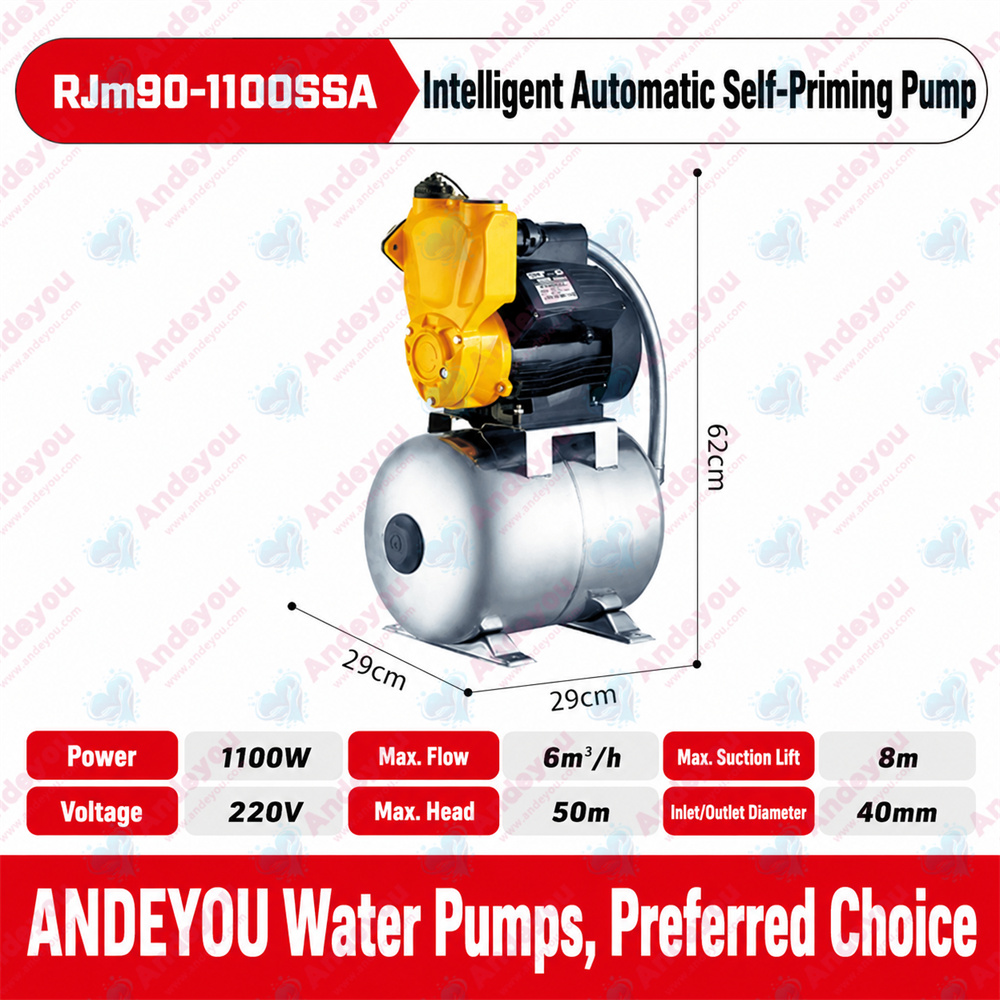

RJm90-1100(A) 220 6 2.5 50 30 8 1100 40×40 2850

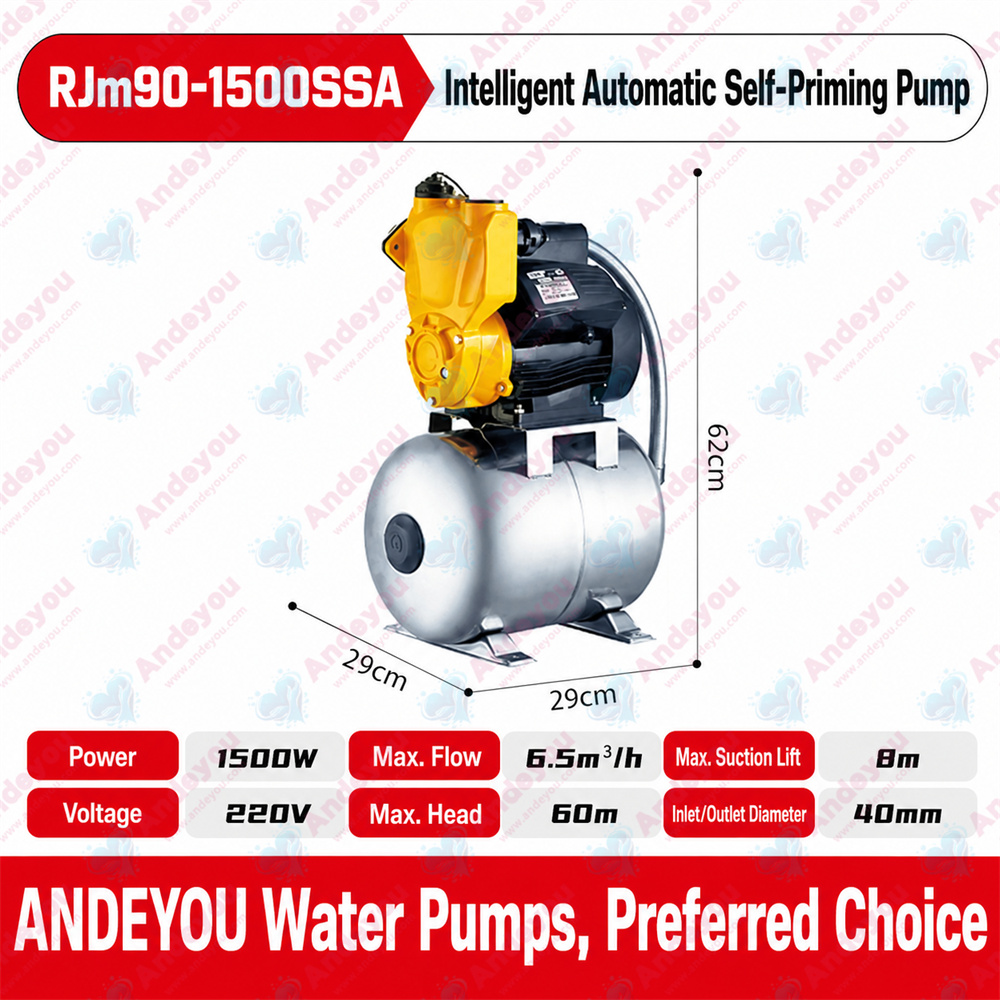

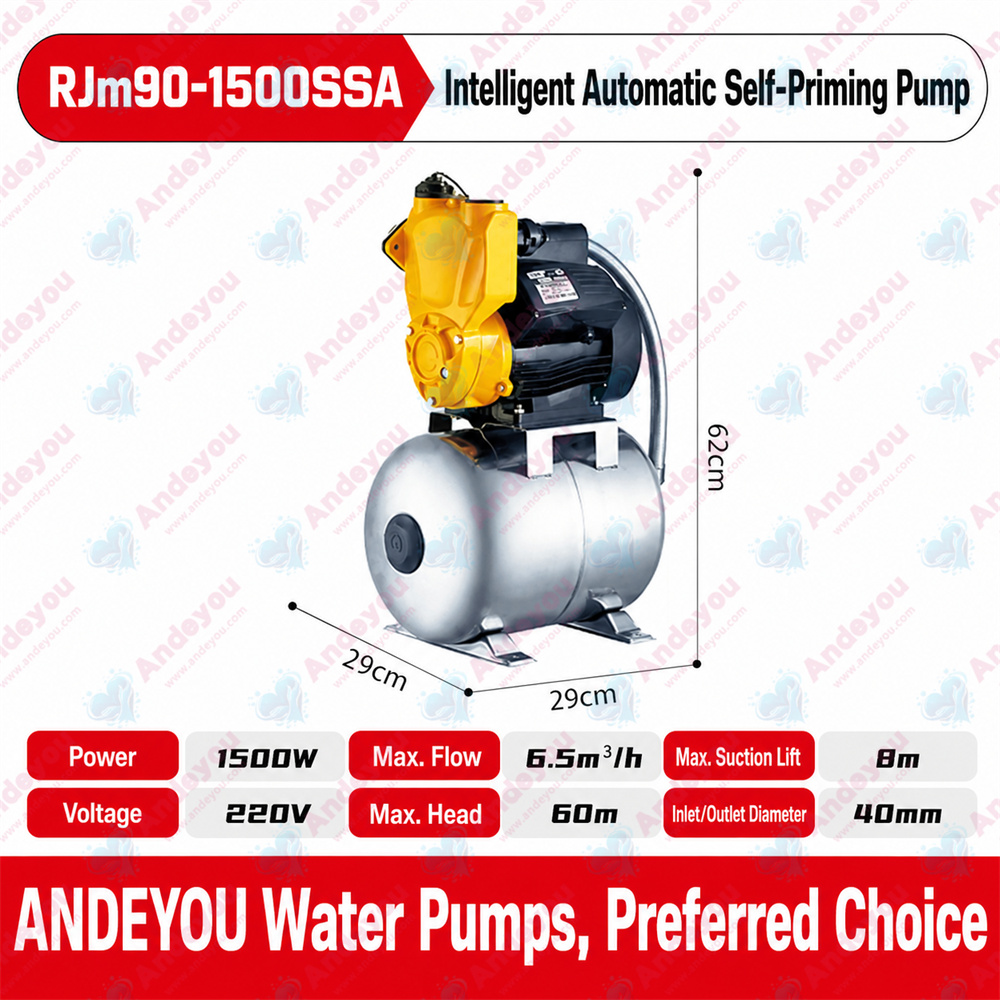

RJm90-1500(A) 220 6.5 3 60 35 8 1500 40×40 2850
