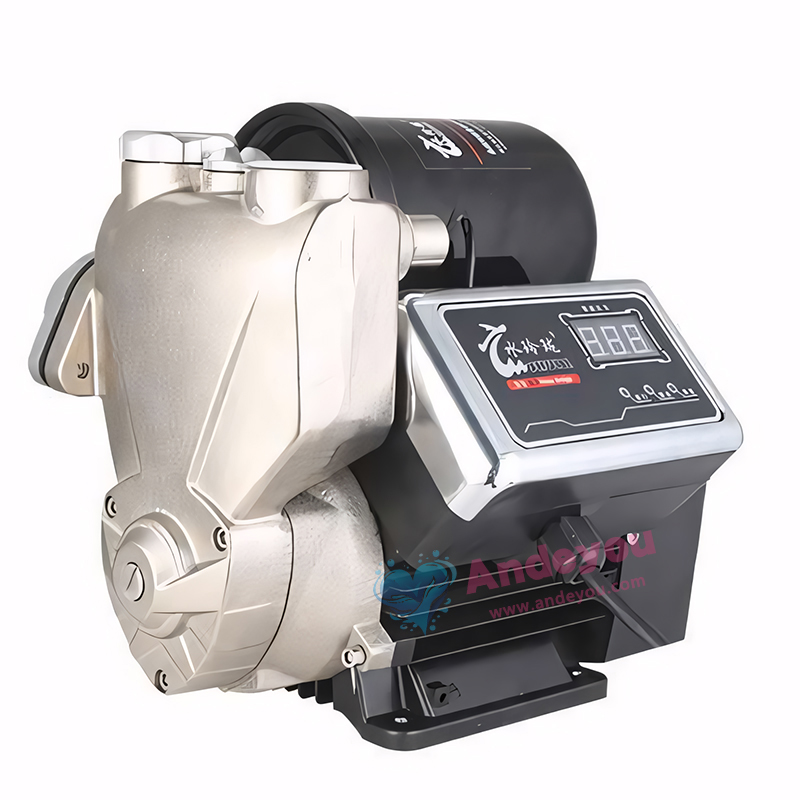

Shuilinglong Smart Automatic Self-Priming Pump (Anti-Freeze Model)

WXJ90-200B WXJ100-300B WXJ120-400B WXJ136-600B WXJ160-800B WXJ160-1100B WXJ180-1500B

The Shui Linglong Smart Automatic Self-Priming Pump (Anti-Freeze Model) is specifically designed for cold environments.Featuring anti-freeze and crack-resistant technology,it ensures stable operation in temperatures as low as -20°C.It offers smart,fully automatic control,one-touch self-priming (up to 5–8 meters),and automatic dry-run protection.The corrosion-resistant alloy steel pump body houses a high-efficiency
Function
Parameters
Size
Video Introduction

Function

Water Lily Intelligent Automatic Self-Priming Pump (Anti-Freeze Model) Product Features Introduction

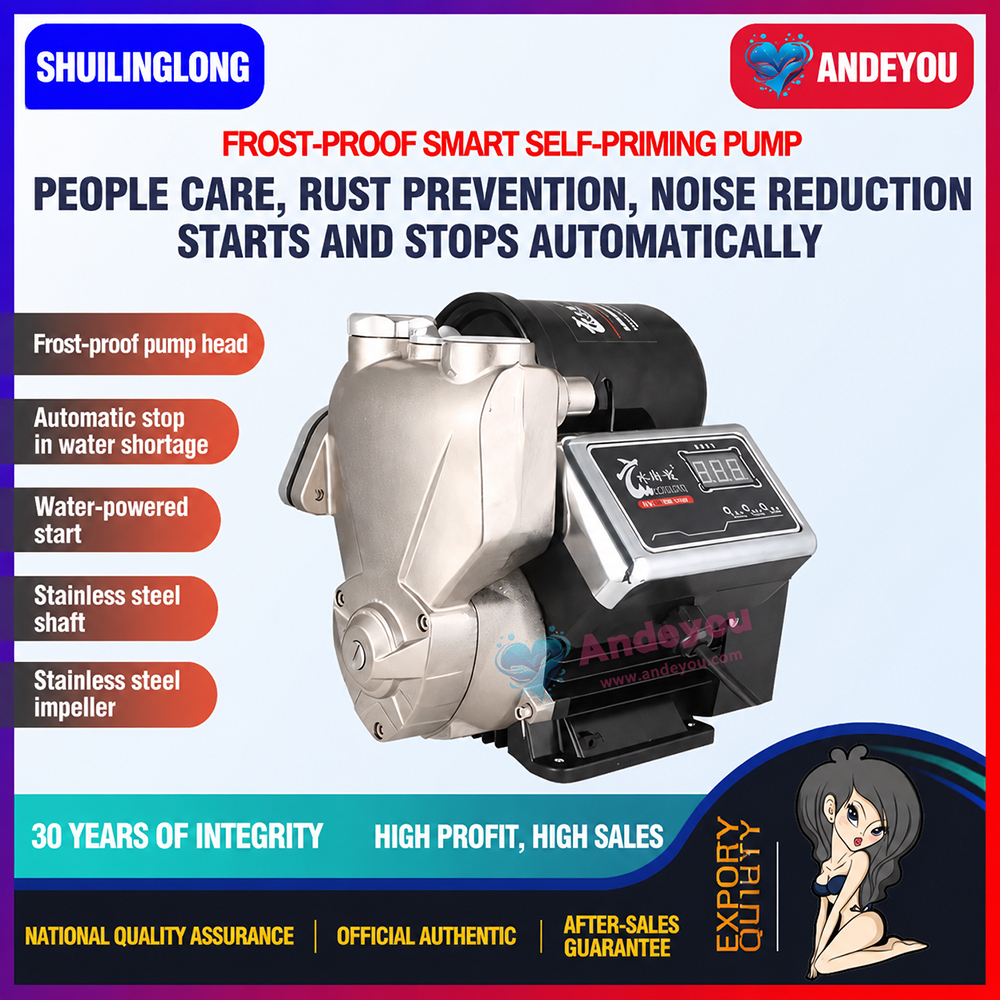

Intelligent Anti-Freeze Technology

Designed specifically for low-temperature environments, the alloy steel anti-freeze pump head effectively prevents the pump body from freezing and cracking.
The impeller and shaft are made of 304 stainless steel, which is corrosion-resistant and rust-proof, making it suitable for long-term outdoor use.

High-efficiency self-priming and constant pressure

With a self-priming height of 5-8 meters, it can quickly absorb water without the need for priming, making it suitable for applications such as water wells and solar energy systems.

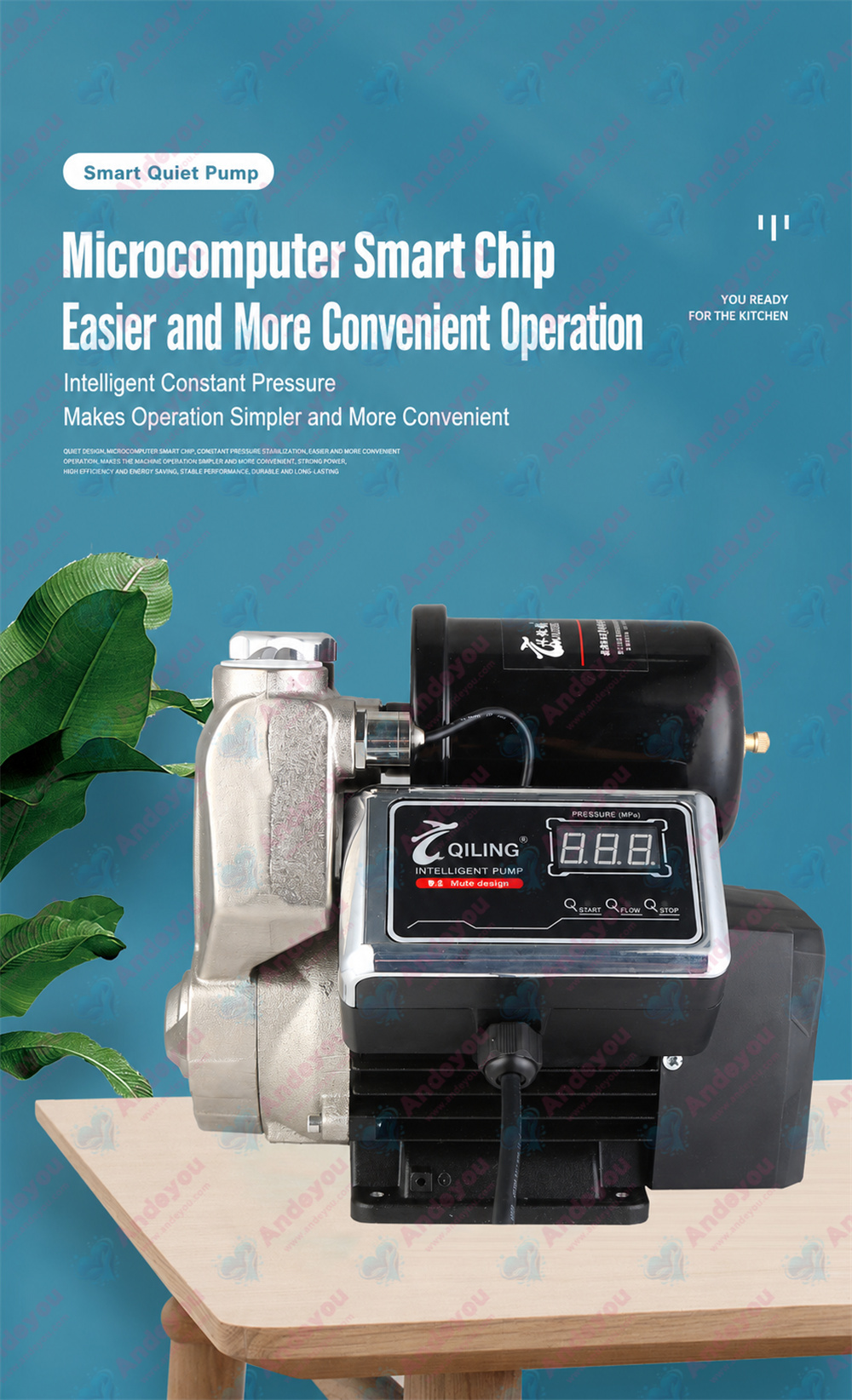

Intelligent digital display control automatically adjusts water pressure and supports differential compensation to ensure stable and unfluctuating water output.

Energy-saving and quiet design

The copper core motor is highly efficient, reducing energy consumption by more than 30% compared to traditional pumps, and operating noise is only 45 decibels.
Soft-start technology reduces mechanical shock and extends service life.

Intelligent safety protection

Automatic shutdown in case of water shortage, 72-hour anti-rust operation function to prevent motor jamming.

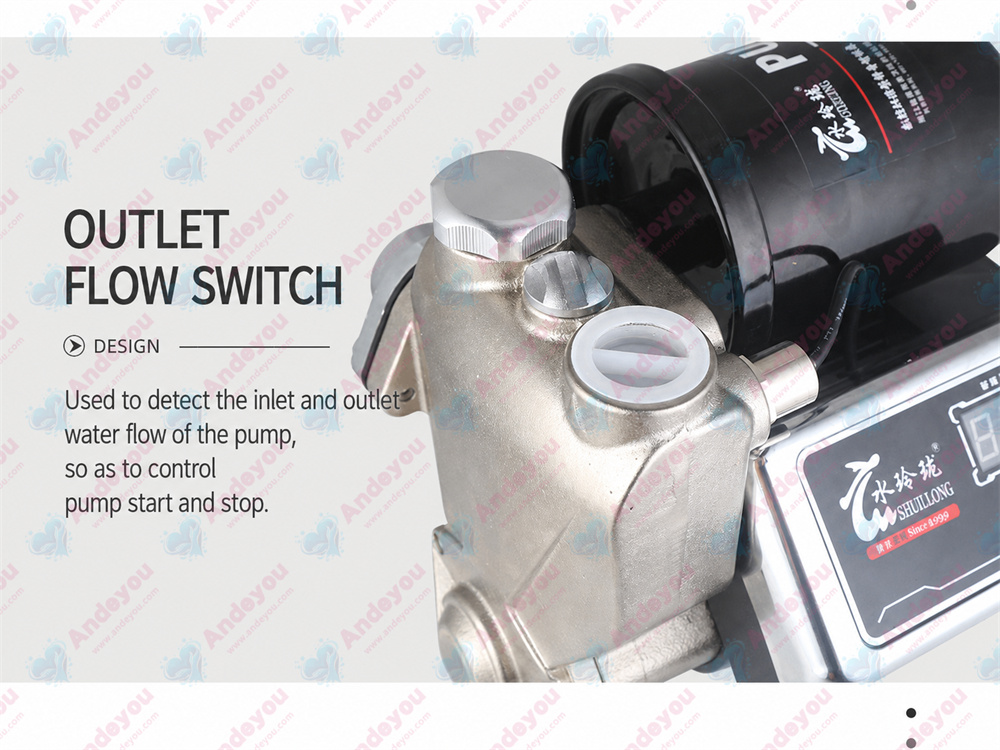

It supports automatic start and stop; it starts working as soon as the valve is opened and stops 3 seconds after the valve is closed, reducing damage from frequent start and stop.

Multi-scenario Adaptability

Compatible with tap water pressurization, agricultural irrigation, air source heat pump water heating systems, etc. The anti-freeze version is especially suitable for northern regions.

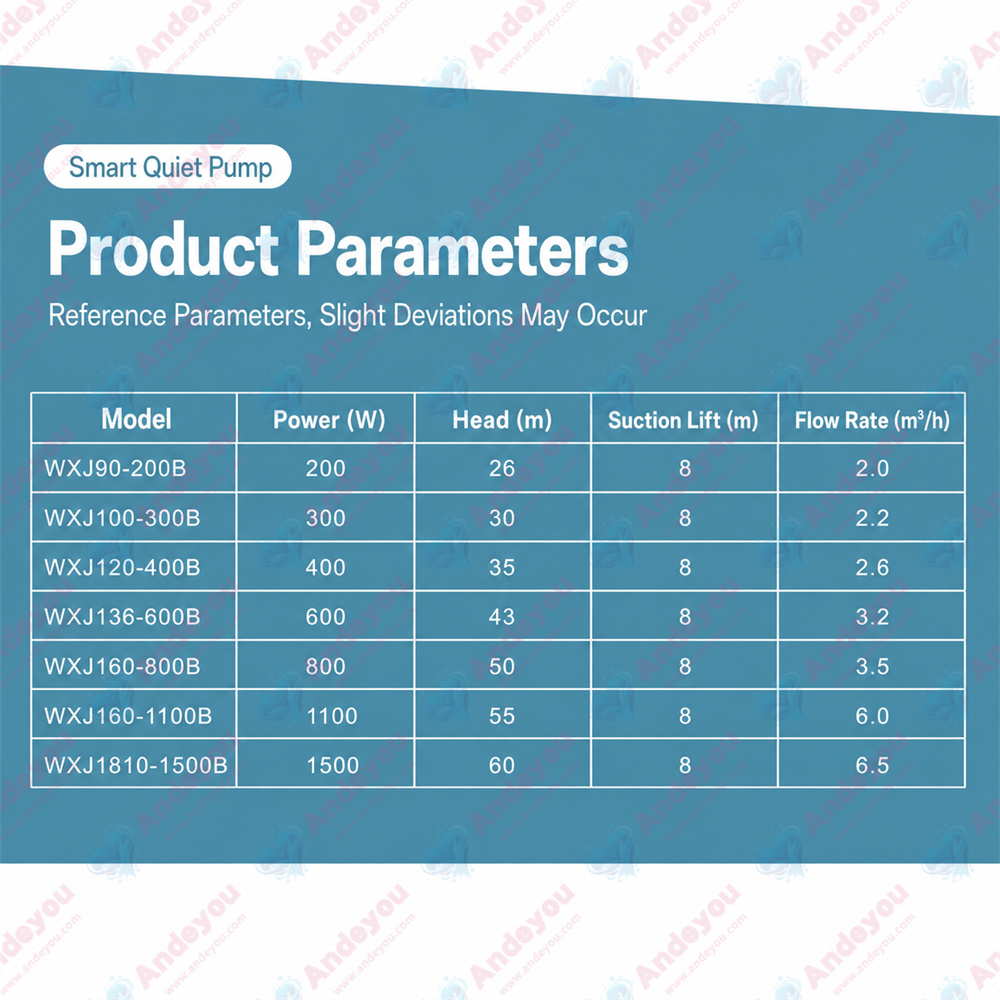

Parameters

Model Voltage Rated flow rate (m³/h) Rated head (m) Suction lift (m) Power (W) caliber Rotational speed (r/min)

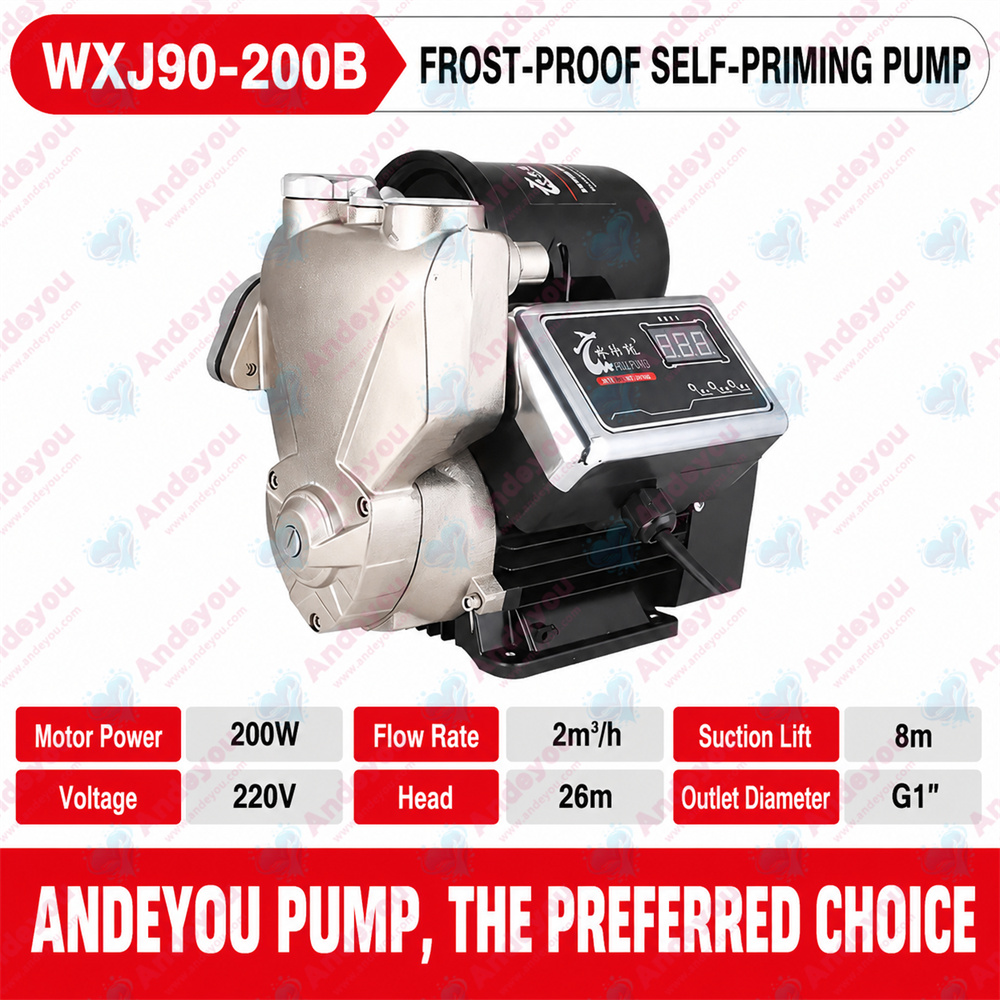

WXJ90-200B 220 2 26 8 200 25×25 2850

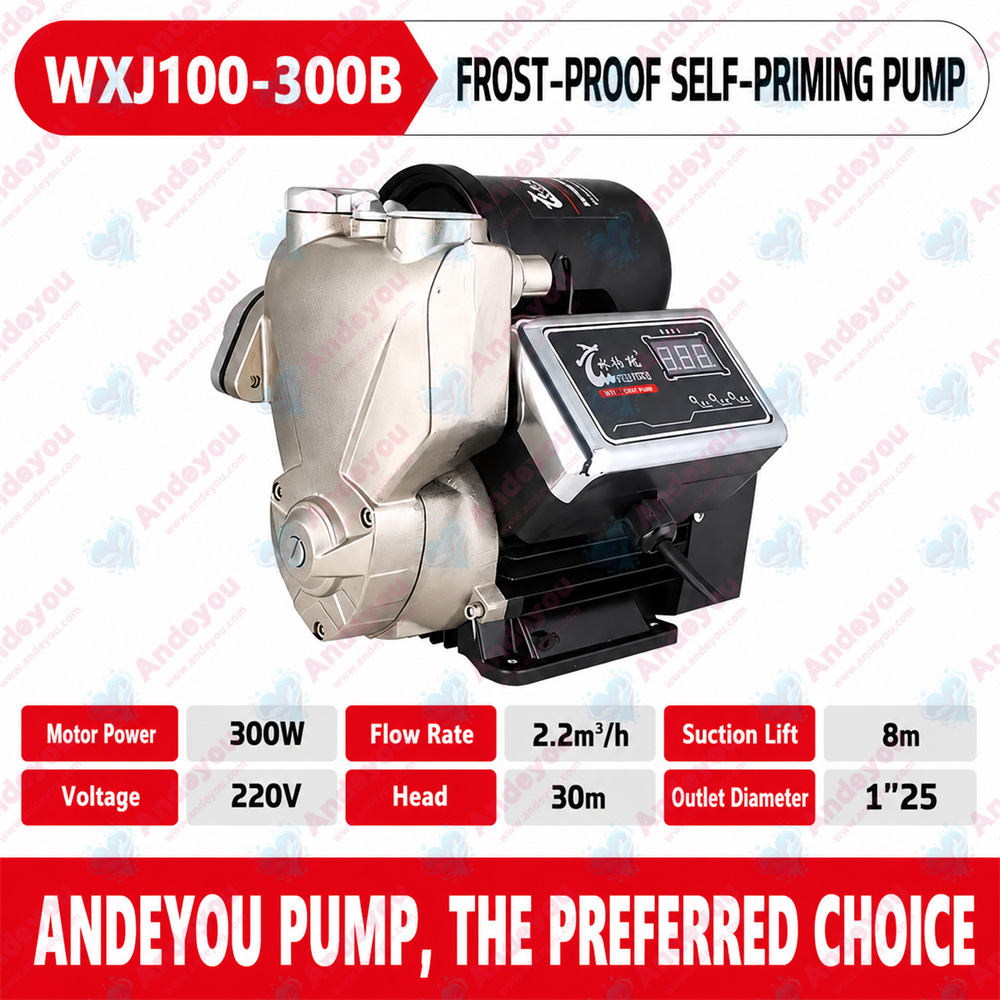

WXJ100-300B 220 2.2 30 8 300 25×25 2850

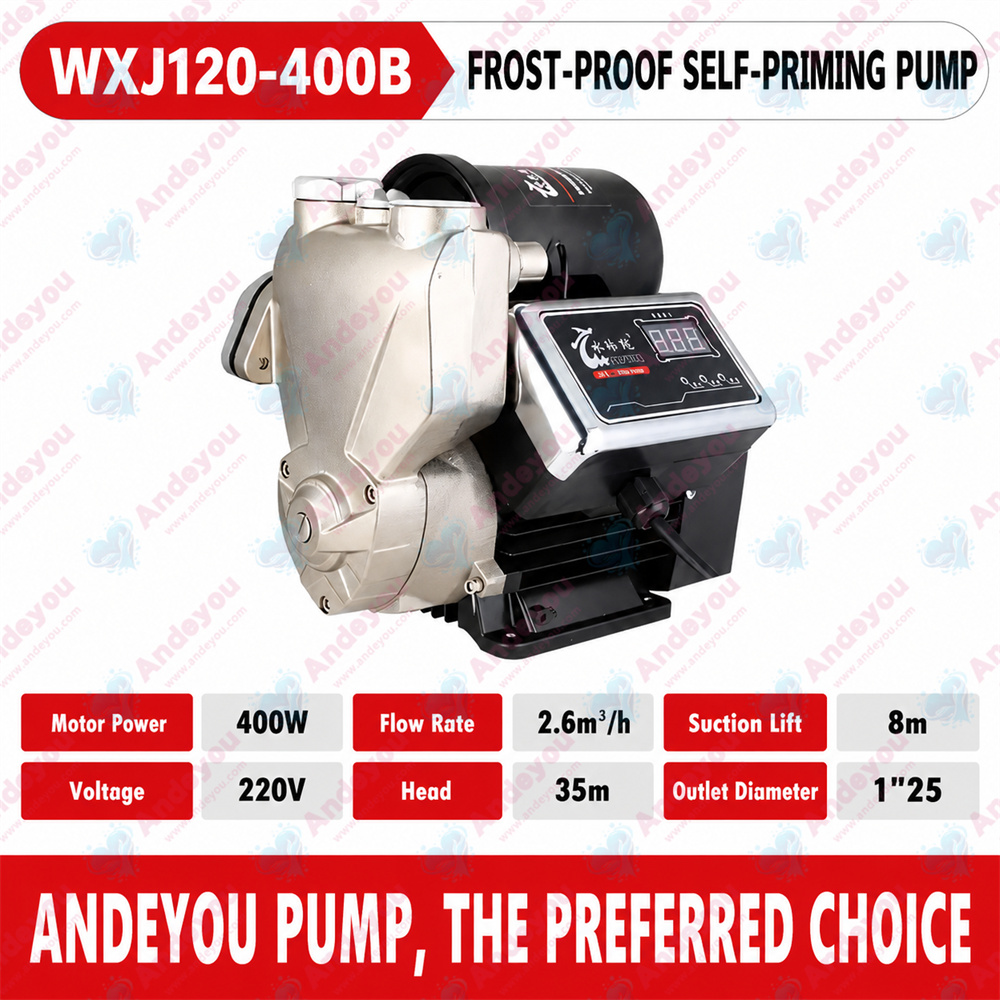

WXJ120-400B 220 2.6 35 8 400 25×25 2850

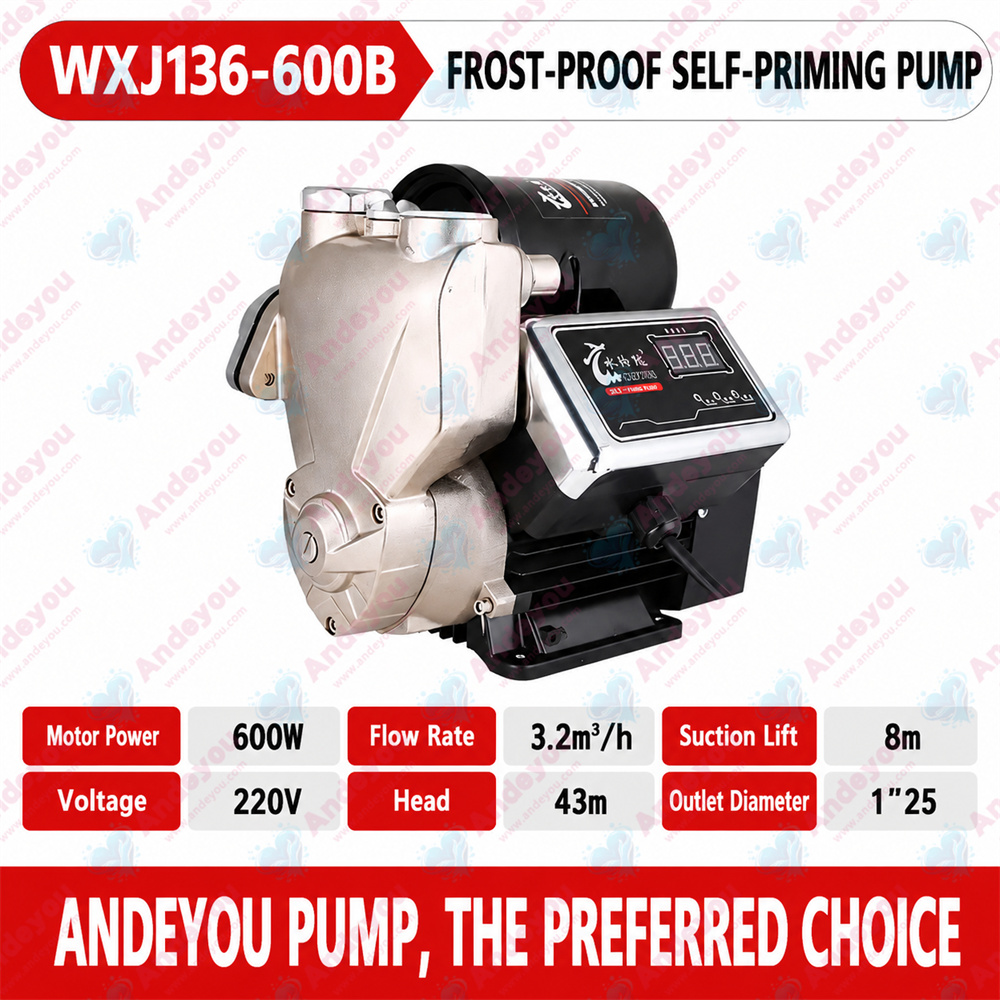

WXJ136-600B 220 3.2 43 8 600 25×25 2850

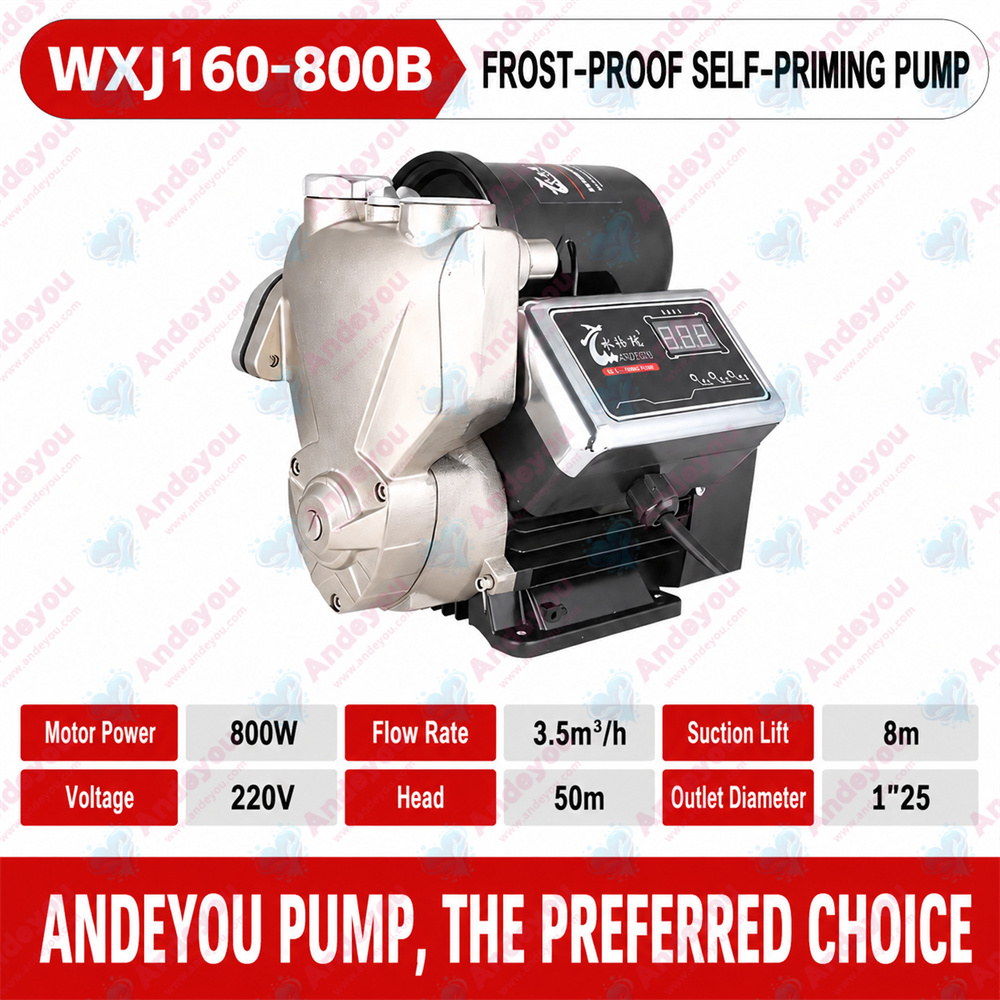

WXJ160-800B 220 3.5 50 8 800 25×25 2850

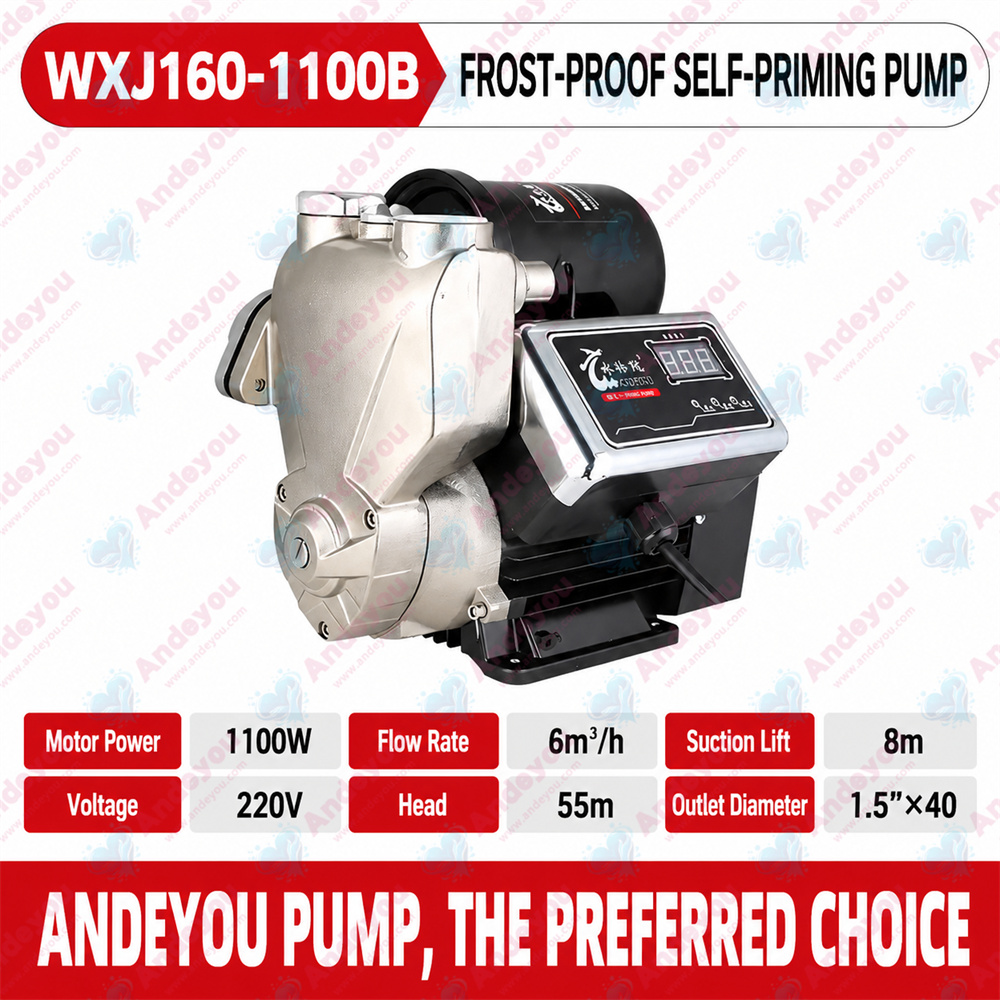

WXJ160-1100B 220 6 55 8 1100 40×40 2850

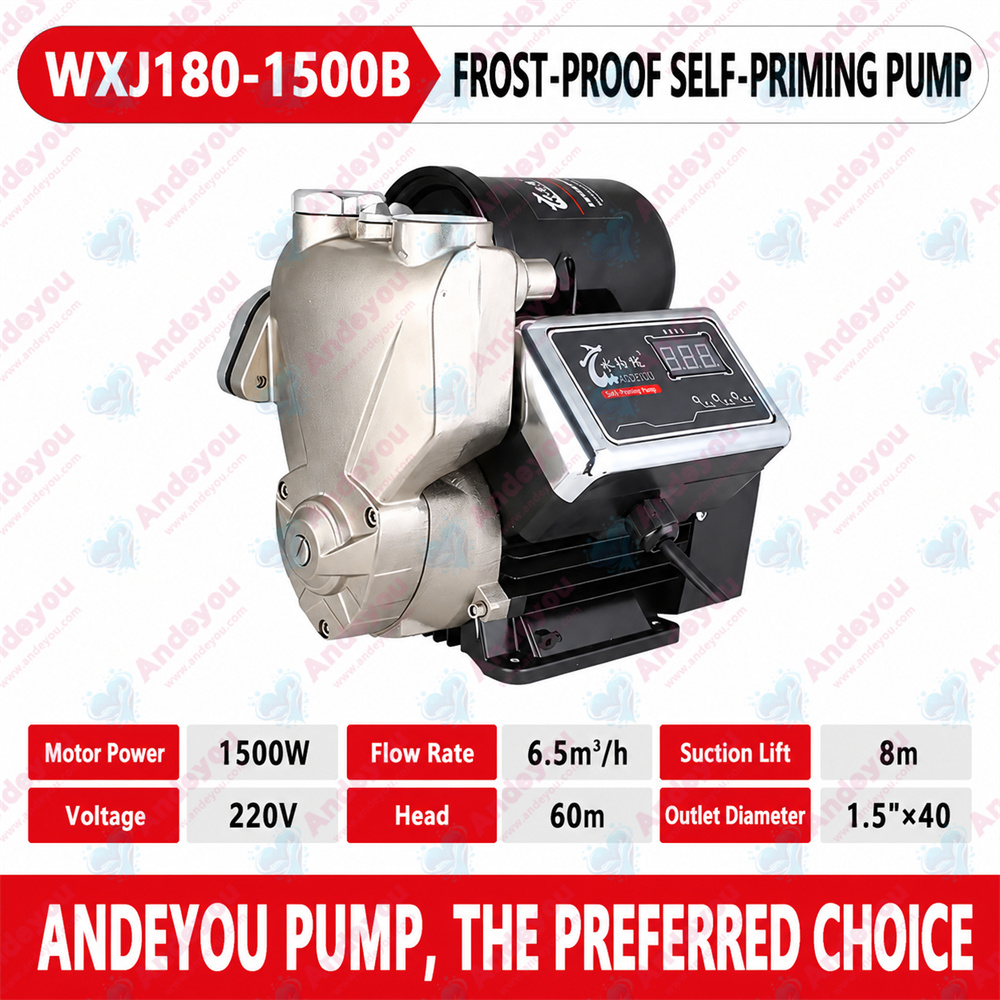

WXJ180-1500B 220 6.5 60 8 1500 40×40 2850
