Achieving maximum power with peak energy efficiency.

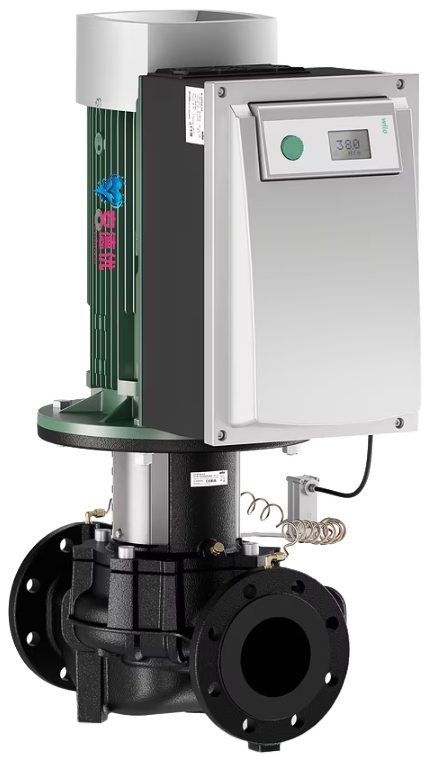

For buildings requiring high delivery heads and large volume flows, the Wilo-Stratos GIGA is the ideal high-efficiency pump for heating, air-conditioning, and cooling systems.
Features/Product Advantages
Innovative high-efficiency pump delivering maximum overall efficiency
High-efficiency motor with IE5 energy efficiency rating, compliant with IEC 60034-30-2 standards
Optional interface available for building automation connectivity via plug-in IF modules
Construction
High-efficiency glanded in-line pump featuring an IE5 motor and electronic power control. Single-stage, low-pressure centrifugal pump with flanged connections and mechanical seal.
Applications
Pumping of heating water (in accordance with VDI 2035), cold water, and water-glycol mixtures in heating, chilled water, and cooling systems; the fluid must be free of abrasive substances.
Equipment/Functions
Operating modes
Δp-c (constant differential pressure)
Δp-v (variable differential pressure)
PID control
Constant speed (n = constant)
Manual control level
Green button and display
Manual functions
Differential pressure setpoint adjustment
Speed adjustment (manual control mode)
Operating mode selection
Pump ON/OFF
Configuration of all operating parameters
Fault acknowledgement
External control functions
1× "Overriding Off" control input
1× "External pump cycling" control input (active only in twin-head pump operation)
1× Analog input (0-10 V, 2-10 V, 0-20 mA, 4-20 mA) for constant speed (DDC) and remote setpoint adjustment
1× Analog input (0-10 V, 2-10 V, 0-20 mA, 4-20 mA) for actual value signal from pressure sensor
Reporting and display functions
Combined fault signal (SSM)
Combined run signal (SBM)
Data exchange
Wireless data exchange via IR interface and IR stick
Slot for Wilo IF-Module (Modbus, BACnet, CAN, PLR, LON) for connection to building automation systems
Safety functions
Comprehensive motor protection with integrated trip electronics
Access lock
Dual pump management (2x single pumps)
Main/standby operation (automatic fault-based switchover)
Main/standby operation with pump cycling after 24 hours
Parallel operation
Parallel operation (efficiency-optimized peak-load activation/deactivation)
Type key
|
Example |
Wilo-Stratos GIGA 40/5-64/11-xx |
|
Stratos |
High-efficiency pump |
|
GIGA |
Single-head pipeline pump |
|
40 |
Flange nominal diameter DN |
|
5-64 |
Rated head range, unit [m] |
|
11 |
Guideline value for motor rated power P2, in kW |
|
-xx |
Specification: e.g., R1 specification zero-differential pressure sensor |
Technical Data
Permissible fluid temperature range: -20 °C to +140 °C
The mechanical seal is suitable for pumping water at temperatures up to Tmax = +140 °C. At temperatures of T ≤ +40 °C, pumping water-glycol mixtures with a glycol volume content of 20% to 40% is permitted. A different mechanical seal is required if the glycol volume content in the water-glycol mixture exceeds 40% (up to a maximum of 50%), if the medium temperature exceeds +40 °C (up to a maximum of +120 °C), or if media other than water are used. When using water-glycol mixtures, the S1 model equipped with the appropriate mechanical seal is generally recommended. Power supply:
3~440 V ±10%, 50/60 Hz
3~400 V ±10%, 50/60 Hz
3~380 V -5% +10%, 50/60 Hz
EMC compliance without additional measures:
Interference emission for residential areas: EN 61800-3:2018
Interference immunity for industrial areas: EN 61800-3:2018
Protection class: IP55
Nominal diameters: DN 40 to DN 200
Max. operating pressure: 16 bar at up to +120 °C; 13 bar at up to +140 °C
Materials
Pump housing and lantern: EN-GJL-250
Impeller: EN-GJL-200
Special version: CuSn 10 bronze (depending on model)
Special version: 1.4408 stainless steel (depending on model)
Shaft: 1.4122 or 1.4057
Mechanical seal: AQEGG; other mechanical seals available upon request
Scope of delivery
Pump
Installation and operating instructions
Options
Model ...-L1 with bronze impeller (surcharge)
Model ...-L4 with stainless steel impeller (surcharge)
Model ...-R1 without differential pressure sensor
Model ...-S1 with special mechanical seal
Accessories
1 bracket with mounting hardware for base installation
Installation aids for mechanical seal
IR-Stick
IF-Module PLR for connection to PLR/interface converter
IF-Module LON for connection to LONWORKS network
IF-Module BACnet
IF-Module Modbus
IF-Module CAN
VR-HVAC control system
CCe-HVAC control system
SCe-HVAC control system
Differential pressure sensor (DDG)
