Features/Product Advantages
Compact pump design featuring a rigid connection between the motor and pump shaft; eliminates the need for on-site shaft alignment and results in a compact overall footprint.
Low noise and vibration levels during operation ensure stability and effectively reduce operating costs.
Pump casing, impeller, and other components are available in various materials to meet specific application requirements.
Construction

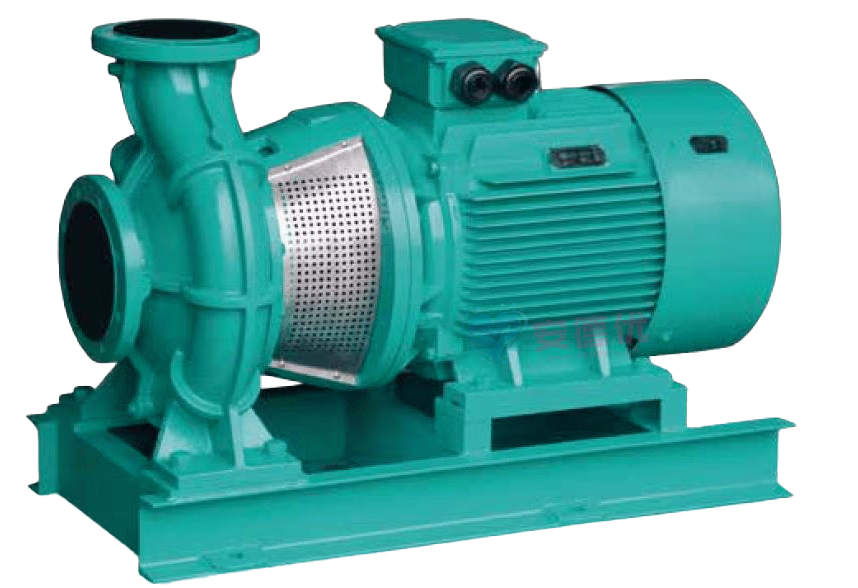

Flanged connection; compact horizontal end-suction centrifugal pump.
Applications
Pumping of clean water or slightly contaminated water (max. 20 ppm solids) for circulation, transfer, and pressure boosting.
Handling of hot water (compliant with VDI 2035 standards), water-glycol mixtures, cooling/chilled water, and industrial process water.
Suitable for municipal water supply, irrigation, building services, general industry, power plants, etc.
Equipment/Functions
Single-stage, low-pressure centrifugal pump with close-coupled design (motor and baseplate).
Mechanical seal.
Technical Data
Permissible temperature range: -20°C to +120°C
Power supply: 3~380 V ±10%, 50 Hz
Protection class: IP55
Nominal diameter: DN 32 – DN 200
Max. operating pressure: 13 bar (up to 140°C), 16 bar (up to 120°C)
Materials
Pump casing: Standard: Cast iron; Special: Ductile iron, stainless steel
Lantern bracket: Cast iron
Impeller: Cast iron, bronze, or stainless steel
Shaft: Stainless steel
Mechanical seal: Silicon carbide/graphite (max. permissible water temperature 120°C)
Type
Single-stage, low-head centrifugal pump with axial inlet and radial outlet.
Dimensions and performance comply with DIN EN 733 standards.
Flange pressure rating: PN 16 (compliant with DIN 2533); PN 25 optional.
Integrated design with rigid coupling for a more compact structure.
Motor equipped with thrust bearings to effectively counteract axial forces from the impeller.
Wide range of material options available. As-supplied condition
Complete pump assembly comprising pump head, motor, and baseplate
Installation, operation, and maintenance manual
Accessories
Accessories must be ordered separately
Mating flanges
Foundation bolts for the pump baseplate
Commissioning
This pump series is designed for installation and operation within enclosed spaces only. Typical installation locations include equipment rooms inside buildings that house other building services equipment.
Before commissioning, the pump and electrical components must be allowed to adjust to the ambient temperature.
Properly fill the entire unit with liquid and vent it.
Dry running damages the mechanical seal; ensure the pump does not run dry.
