Wilo BM Horizontal In-line Pump (Stainless Steel and Bronze Models)

BM-B 32/100-0,75/2、BM-B 32/120-1,1/2、BM-B 32/130-1,5/2、BM-B 32/140-2,2/2、BM-B 32/150-2,2/2、BM-B 32/160-3/2、BM-B 32/170-0,55/4、BM-B 32/170-4/2、BM-B 32/190-4/2、BM-B 32/210-5,5/2、BM-B 32/210-7,5/2、BM-B 32/215-7,5/2、BM-B 32/220-1,1/4、BM-B 32/220-7,5/2、BM-B 32/220-9,2/2、BM-B 32/230-9,2/2、BM-B 32/230-11/2、BM-B 32/240-11/2、BM-B 32/240-12,5/2、BM-B 32/250-2,2/4、BM-B 32/250-13,5/2、BM-B 32/250-15/2、BM-B 32/260-3/4、BM-B 32/260-17/2、BM-B 32/265-17/2、BM-B 40/120-1,5/2、BM-B 40/130-2,2/2

The Wilo BM series of horizontal in-line pumps offers a choice of stainless steel or bronze for wetted parts,ensuring exceptional corrosion resistance and a long service life.Featuring a high-efficiency,energy-saving design and low-noise operation,these pumps are widely used in applications such as building heating,air conditioning circulation,industrial water treatment,and domestic water supply boosting.They boast a compact structure,easy installation
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

Features/Product Advantages

Compact, close-coupled modular design featuring a directly flange-mounted three-phase motor and a single-piece motor/pump shaft

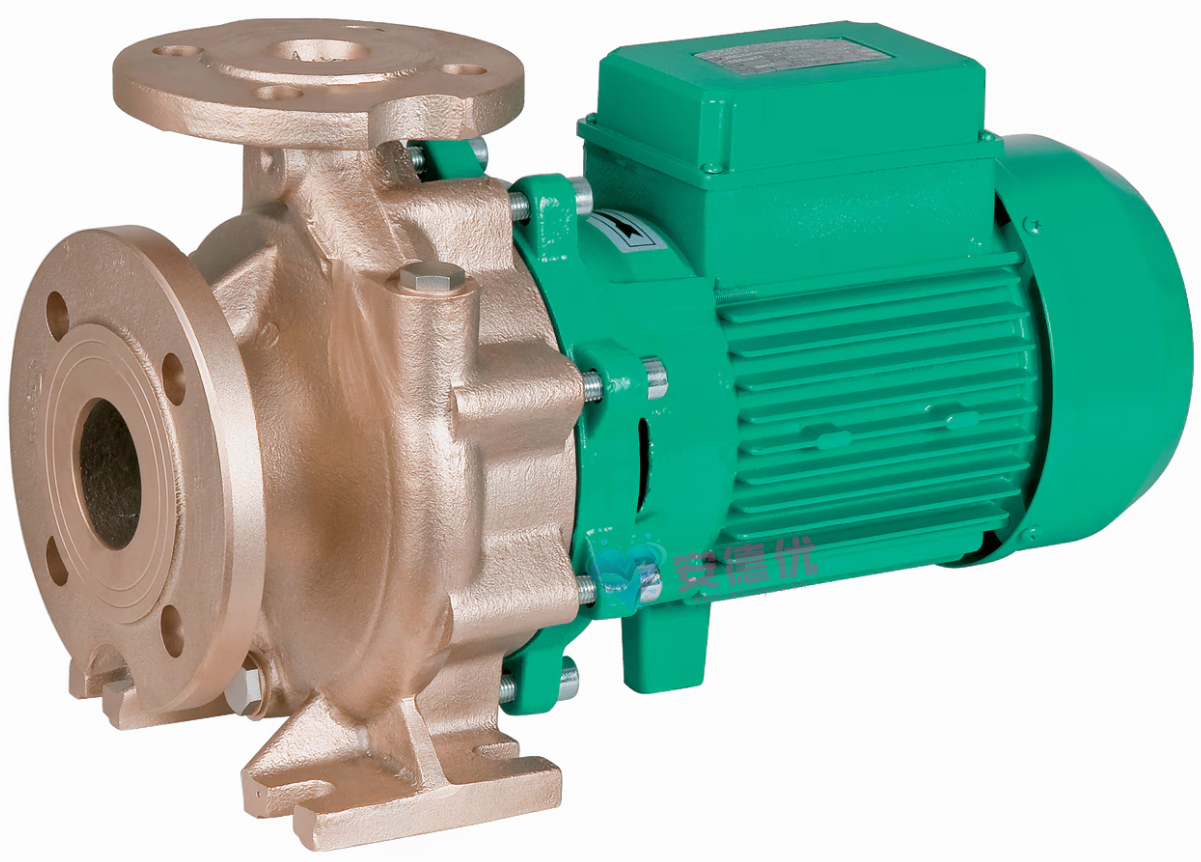

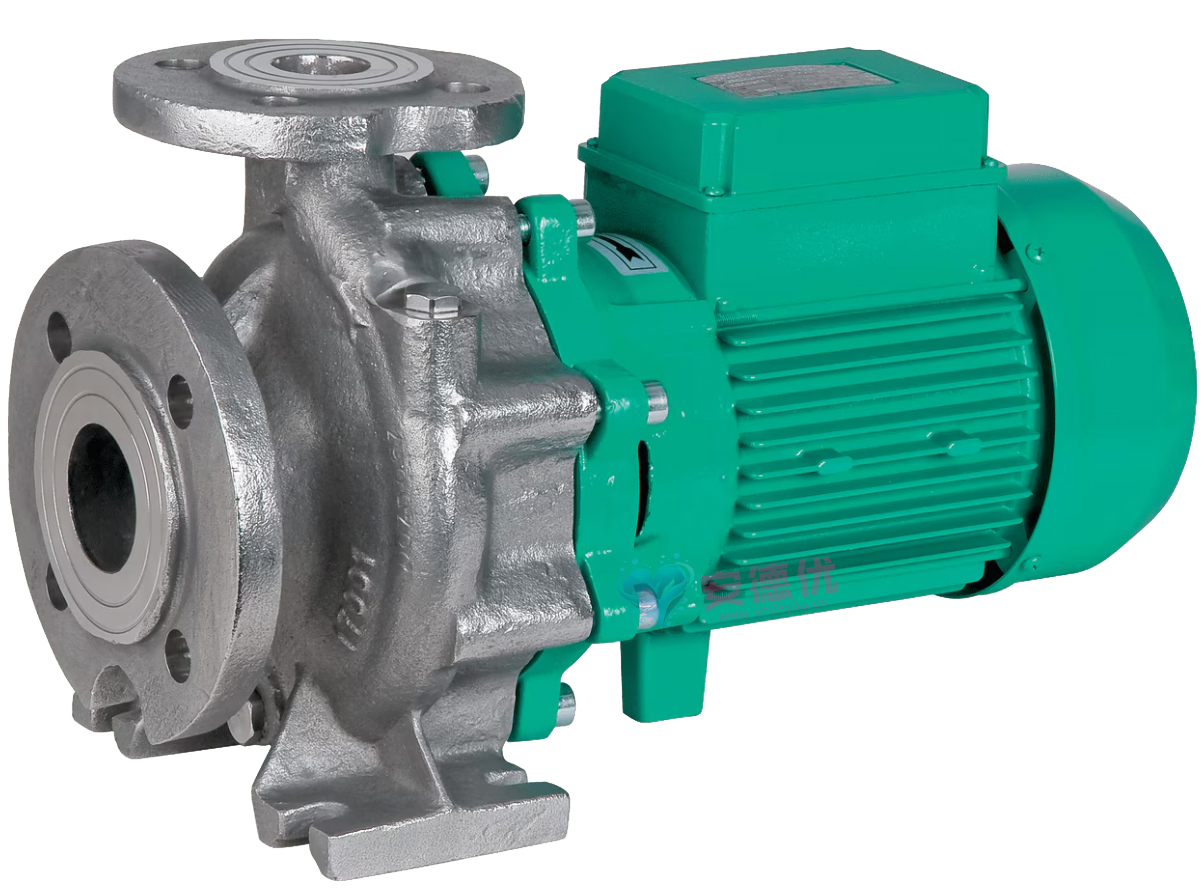

Available in cast stainless steel (BM-S) and cast bronze (BM-B) versions to suit a wide range of applications
Power ratings and key dimensions comply with EN 733 standards (DIN standard pumps)
Pump casing and motor are equipped with feet as standard, facilitating base-plate mounting

Design

Close-coupled, dry-rotor pump with flange connections

Applications

Suitable for pumping hot water (compliant with VDI 2035), water-glycol mixtures, cooling water, and cold water in heating, cooling, and chilled water systems (media must be free of abrasive substances).

Model Code

Example

BM-S 40/165-4/2

-S

Close-coupled pump made of stainless steel castings

-B

Close-coupled pump made of bronze castings

40

Nominal diameter (DN) of the pipe connection (pressure port)

165

Nominal impeller diameter

4

Motor rated power P2, in kW

2

Number of poles

Technical Data

Minimum Efficiency Index (MEI) ≥ 0.4
Permissible temperature range: -10 °C to +90 °C
Mains connection: 3~400 V, 50 Hz
Protection class: IP55
Nominal diameter: DN 32 to DN 125
Max. operating pressure: 10 bar

Materials

BM-B pump housing: Bronze CuSn10
BM-S pump housing: Cast stainless steel 1.4408
BM-B impeller: Bronze CuSn 10
BM-S impeller: Cast stainless steel 1.4408
Shaft: 1.4362
Mechanical seal: Q1Q1VGG

Type

Single-stage, dry-rotor centrifugal pump made of cast stainless steel; compact modular design
Flanged connection to three-phase motor; non-split motor/pump shaft
Mechanical seal
Feet on pump housing and motor

Scope of Delivery

Pump
Installation and operating instructions

Options

Version ...-K3 with PTC thermistor sensor (surcharge applies)
Other mechanical seals available upon request

Parameters

model Voltage
(V)		 Flow rate
(m³/h)		 Head
(m)		 Power
(kW)		 Motor energy efficiency Rotational speed (rpm) caliber
BM-B 32/100-0,75/2 380V 19.6 7.5 0.75 IE3 2900 DN50×DN32
BM-B 32/120-1,1/2 380V 20.5 14 1.1 IE3 2900 DN50×DN32
BM-B 32/130-1,5/2 380V 22.2 17 1.5 IE3 2900 DN50×DN32
BM-B 32/140-2,2/2 380V 26 20 2.2 IE3 2900 DN50×DN32
BM-B 32/150-2,2/2 380V 18 19.8 2.2 IE3 2900 DN50×DN32
BM-B 32/160-3/2 380V 23.2 25.5 3 IE3 2900 DN50×DN32
BM-B 32/170-0,55/4 380V 9.2 7.8 0.55 IE3 1450 DN50×DN32
BM-B 32/170-4/2 380V 24 32.5 4 IE3 2900 DN50×DN32
BM-B 32/190-4/2 380V 19.2 36.5 4 IE3 2900 DN50×DN32
BM-B 32/210-5,5/2 380V 23.2 44 5.5 IE3 2900 DN50×DN32
BM-B 32/210-7,5/2 380V 31 46 7.5 IE3 2900 DN50×DN32
BM-B 32/215-7,5/2 380V 28 53 7.5 IE3 2900 DN50×DN32
BM-B 32/220-1,1/4 380V 11.2 13.2 1.1 IE3 1450 DN50×DN32
BM-B 32/220-7,5/2 380V 26.5 51 7.5 IE3 2900 DN50×DN32
BM-B 32/220-9,2/2 380V 34 51 9.2 IE3 2900 DN50×DN32
BM-B 32/230-9,2/2 380V 29.5 55 9.2 IE3 2900 DN50×DN32
BM-B 32/230-11/2 380V 40.2 53 11 IE3 2900 DN50×DN32
BM-B 32/240-11/2 380V 35 60.5 11 IE3 2900 DN50×DN32
BM-B 32/240-12,5/2 380V 44 58 12.5 IE3 2900 DN50×DN32
BM-B 32/250-2,2/4 380V 27.5 17 2.2 IE3 1450 DN50×DN32
BM-B 32/250-13,5/2 380V 37.5 66 13.5 IE3 2900 DN50×DN32
BM-B 32/250-15/2 380V 47.5 63 15 IE3 2900 DN50×DN32
BM-B 32/260-3/4 380V 31.5 19 3 IE3 1450 DN50×DN32
BM-B 32/260-17/2 380V 45 79 17 IE3 2900 DN50×DN32
BM-B 32/265-17/2 380V 52.5 70 17 IE3 2900 DN50×DN32
BM-B 40/120-1,5/2 380V 21.5 15.8 1.5 IE3 2900 DN65×DN40
BM-B 40/130-2,2/2 380V 27.5 20.4 2.2 IE3 2900 DN65×DN40
BM-B 40/140-3/2 380V 31 22.8 3 IE3 2900 DN65×DN40
BM-B 40/145-0,37/4 380V 16.5 5.6 0.37 IE3 1450 DN65×DN40
BM-B 40/150-0,55/4 380V 19.5 6.6 0.55 IE3 1450 DN65×DN40
BM-B 40/150-4/2 380V 33.5 24.8 4 IE3 2900 DN65×DN40
BM-B 40/155-3/2 380V 31.5 25.5 3 IE3 2900 DN65×DN40
BM-B 40/155-4/2 380V 34 30.5 4 IE3 2900 DN65×DN40
BM-B 40/165-4/2 380V 35 30 4 IE3 2900 DN65×DN40
BM-B 40/165-5,5/2 380V 39 32.5 5.5 IE3 2900 DN65×DN40
BM-B 40/170-0,75/4 380V 19 8 0.75 IE3 1450 DN65×DN40
BM-B 40/170-5,5/2 380V 39 32 5.5 IE3 2900 DN65×DN40
BM-B 40/185-4/2 380V 30 33.5 4 IE3 2900 DN65×DN40
BM-B 40/190-5,5/2 380V 35 37 5.5 IE3 2900 DN65×DN40
BM-B 40/195-7,5/2 380V 45 42 7.5 IE3 2900 DN65×DN40
BM-B 40/210-1,1/4 380V 19 13 1.1 IE3 1450 DN65×DN40
BM-B 40/210-7,5/2 380V 36 48 7.5 IE3 2900 DN65×DN40
BM-B 40/215-11/2 380V 41 52 11 IE3 2900 DN65×DN40
BM-B 40/225-12,5/2 380V 38 56 12.5 IE3 2900 DN65×DN40
BM-B 40/235-15/2 380V 49 60 15 IE3 2900 DN65×DN40
BM-B 40/240-2,2/4 380V 26 16.4 2.2 IE3 1450 DN65×DN40
BM-B 40/240-17/2 380V 70 55 17 IE3 2900 DN65×DN40
BM-B 40/250-18,5/2 380V 67 62 18.5 IE3 2900 DN65×DN40
BM-B 40/260-3/4 380V 26 20 3 IE3 1450 DN65×DN40
BM-B 40/260-22/2 380V 52 78 22 IE3 2900 DN65×DN40
BM-B 40/275-4/4 380V 35.5 21.5 4 IE3 1450 DN65×DN40
BM-B 40/275-37/2 380V 71 85 37 IE3 2900 DN65×DN40
BM-B 40/300-5,5/4 380V 42.5 26 5.5 IE3 1450 DN65×DN40
BM-B 40/300-55/2 380V 77.5 120 55 IE3 2900 DN65×DN40
BM-B 40/335-9,2/4 380V 50 35 9.2 IE3 1450 DN65×DN40
BM-B 50/120-2,2/2 380V 45 13 2.2 IE3 2900 DN65×DN50
BM-B 50/130-3/2 380V 47 16 3 IE3 2900 DN65×DN50
BM-B 50/140-0,55/4 380V 24.5 5.3 0.55 IE3 1450 DN65×DN50
BM-B 50/140-4/2 380V 53 19.2 4 IE3 2900 DN65×DN50
BM-B 50/150-5,5/2 380V 11 30.5 5.5 IE3 2900 DN65×DN50
BM-B 50/160-5,5/2 380V 48 26.5 5.5 IE3 2900 DN65×DN50
BM-B 50/165-7,5/2 380V 56 33.5 7.5 IE3 2900 DN65×DN50
BM-B 50/170-7,5/2 380V 58 32.5 7.5 IE3 2900 DN65×DN50
BM-B 50/175-1,1/4 380V 33 8.4 1.1 IE3 1450 DN65×DN50
BM-B 50/175-9,2/2 380V 72.5 33 9.2 IE3 2900 DN65×DN50
BM-B 50/180-1,5/4 380V 37 9.3 1.5 IE3 1450 DN65×DN50
BM-B 50/190-9,2/2 380V 53 42 9.2 IE3 2900 DN65×DN50
BM-B 50/195-1,1/4 380V 25.2 9.5 1.1 IE3 1450 DN65×DN50
BM-B 50/195-15/2 380V 64 46 15 IE3 2900 DN65×DN50
BM-B 50/200-11/2 380V 57 46 11 IE3 2900 DN65×DN50
BM-B 50/205-2,2/4 380V 27.5 17 2.2 IE3 1450 DN65×DN50
BM-B 50/205-17/2 380V 60 53 17 IE3 2900 DN65×DN50
BM-B 50/210-1,5/4 380V 30.5 11.5 1.5 IE3 1450 DN65×DN50
BM-B 50/210-12,5/2 380V 62 50 12.5 IE3 2900 DN65×DN50
BM-B 50/215-3/4 380V 32.5 15.5 3 IE3 1450 DN65×DN50
BM-B 50/220-2,2/4 380V 28 14.7 2.2 IE3 1450 DN65×DN50
BM-B 50/220-15/2 380V 65 52 15 IE3 2900 DN65×DN50
BM-B 50/220-22/2 380V 57.5 66 22 IE3 2900 DN65×DN50
BM-B 50/225-17/2 380V 55 60 17 IE3 2900 DN65×DN50
BM-B 50/235-18,5/2 380V 54 74 18.5 IE3 2900 DN65×DN50
BM-B 50/235-20/2 380V 54 74 20 IE3 2900 DN65×DN50
BM-B 50/250-22/2 380V 61 80 22 IE3 2900 DN65×DN50
BM-B 50/250-25/2 380V 61 80 25 IE3 2900 DN65×DN50
BM-B 50/260-4/4 380V 38 20.5 4 IE3 1450 DN65×DN50
BM-B 50/260-30/2 380V 68 86 30 IE3 2900 DN65×DN50
BM-B 65/115-3/2 380V 60 14 3 IE3 2900 DN80×DN65
BM-B 65/125-4/2 380V 70 16.5 4 IE3 2900 DN80×DN65
BM-B 65/135-0,75/4 380V 48 5.4 0.75 IE3 1450 DN80×DN65
BM-B 65/135-5,5/2 380V 82 19 5.5 IE3 2900 DN80×DN65
BM-B 65/145-7,5/2 380V 95 22 7.5 IE3 2900 DN80×DN65
BM-B 65/150-9,2/2 380V 83 27 9.2 IE3 2900 DN80×DN65
BM-B 65/160-11/2 380V 95 31.5 11 IE3 2900 DN80×DN65
BM-B 65/170-1,5/4 380V 56 8 1.5 IE3 1450 DN80×DN65
BM-B 65/170-15/2 380V 107.5 37 15 IE3 2900 DN80×DN65
BM-B 65/185-18,5/2 380V 85 41 18.5 IE3 2900 DN80×DN65
BM-B 65/195-22/2 380V 98 44.5 22 IE3 2900 DN80×DN65
BM-B 65/200-3/4 380V 54 12.5 3 IE3 1450 DN80×DN65
BM-B 65/215-3/4 380V 49 15 3 IE3 1450 DN80×DN65
BM-B 65/215-30/2 380V 116 57 30 IE3 2900 DN80×DN65
BM-B 65/220-22/2 380V 100 63 22 IE3 2900 DN80×DN65
BM-B 65/235-4/4 380V 84 17 4 IE3 1450 DN80×DN65
BM-B 65/235-30/2 380V 120 64 30 IE3 2900 DN80×DN65
BM-B 65/250-5,5/4 380V 65 20 5.5 IE3 1450 DN80×DN65
BM-B 65/250-37/2 380V 126 77 37 IE3 2900 DN80×DN65
BM-B 65/250-45/2 380V 118 86 45 IE3 2900 DN80×DN65
BM-B 65/290-9,2/4 380V 72 24.5 9.2 IE3 1450 DN80×DN65
BM-B 65/315-11/4 380V 80 29 11 IE3 1450 DN80×DN65
BM-B 65/340-15/4 380V 91 35 15 IE3 1450 DN80×DN65
BM-B 80/130-5,5/2 380V 108 13 5.5 IE3 2900 DN100×DN80
BM-B 80/140-7,5/2 380V 115 15.5 7.5 IE3 2900 DN100×DN80
BM-B 80/145-9,2/2 380V 145 18.5 9.2 IE3 2900 DN100×DN80
BM-B 80/150-11/2 380V 148 20 11 IE3 2900 DN100×DN80
BM-B 80/160-2,2/4 380V 72 6.8 2.2 IE3 1450 DN100×DN80
BM-B 80/160-15/2 380V 125 26 15 IE3 2900 DN100×DN80
BM-B 80/170-18,5/2 380V 145 29 18.5 IE3 2900 DN100×DN80
BM-B 80/175-2,2/4 380V 87 8.2 2.2 IE3 1450 DN100×DN80
BM-B 80/180-22/2 380V 170 32 22 IE3 2900 DN100×DN80
BM-B 80/195-4/4 380V 90 11 4 IE3 1450 DN100×DN80
BM-B 80/200-30/2 380V 178 44 30 IE3 2900 DN100×DN80
BM-B 80/210-5,5/4 380V 95 13.2 5.5 IE3 1450 DN100×DN80
BM-B 80/210-37/2 380V 195 50 37 IE3 2900 DN100×DN80
BM-B 80/215-45/2 380V 200 56 45 IE3 2900 DN100×DN80
BM-B 80/230-7,5/4 380V 104 15.4 7.5 IE3 1450 DN100×DN80
BM-B 80/270-9,2/4 380V 142 21 9.2 IE3 1450 DN100×DN80
BM-B 80/290-11/4 380V 150 21.2 11 IE3 1450 DN100×DN80
BM-B 80/315-15/4 380V 160 26.2 15 IE3 1450 DN100×DN80
BM-B 80/340-22/4 380V 148 35 22 IE3 1450 DN100×DN80
BM-B 100/185-5,5/4 380V 108 9.3 5.5 IE3 1450 DN125×DN100
BM-B 100/220-7,5/4 380V 142 12.5 7.5 IE3 1450 DN125×DN100
BM-B 100/250-9,2/4 380V 152 17.4 9.2 IE3 1450 DN125×DN100
BM-B 100/270-15/4 380V 170 21 15 IE3 1450 DN125×DN100
BM-B 100/295-18,5/4 380V 192 23.8 18.5 IE3 1450 DN125×DN100
BM-B 100/315-22/4 380V 225 27 22 IE3 1450 DN125×DN100
BM-B 100/340-30/4 380V 223 32.5 30 IE3 1450 DN125×DN100
BM-B 125/235-11/4 380V 220 14 11 IE3 1450 DN150×DN125
BM-B 125/255-15/4 380V 260 16.5 15 IE3 1450 DN150×DN125
BM-B 125/270-18,5/4 380V 290 18.5 18.5 IE3 1450 DN150×DN125
BM-B 125/295-18,5/4 380V 188 22 18.5 IE3 1450 DN150×DN125
BM-B 125/315-30/4 380V 245 28.4 30 IE3 1450 DN150×DN125
BM-B 125/340-37/4 380V 375 34 37 IE3 1450 DN150×DN125
BM-S 32/100-0,75/2 380V 19.5 7.6 0.75 IE3 2900 DN50×DN32
BM-S 32/120-1,1/2 380V 20.5 14.2 1.1 IE3 2900 DN50×DN32
BM-S 32/130-1,5/2 380V 22.2 17 1.5 IE3 2900 DN50×DN32
BM-S 32/140-2,2/2 380V 25.8 20 2.2 IE3 2900 DN50×DN32
BM-S 32/150-2,2/2 380V 18 19.8 2.2 IE3 2900 DN50×DN32
BM-S 32/160-3/2 380V 23.5 25.5 3 IE3 2900 DN50×DN32
BM-S 32/170-0,55/4 380V 9.2 8 0.55 IE3 1450 DN50×DN32
BM-S 32/170-4/2 380V 24 32.5 4 IE3 2900 DN50×DN32
BM-S 32/190-4/2 380V 19.2 36.2 4 IE3 2900 DN50×DN32
BM-S 32/210-5,5/2 380V 23.2 44 5.5 IE3 2900 DN50×DN32
BM-S 32/210-7,5/2 380V 31 46 7.5 IE3 2900 DN50×DN32
BM-S 32/215-7,5/2 380V 27.5 53 7.5 IE3 2900 DN50×DN32
BM-S 32/220-1,1/4 380V 11.4 13.2 1.1 IE3 1450 DN50×DN32
BM-S 32/220-7,5/2 380V 25 51 7.5 IE3 2900 DN50×DN32
BM-S 32/220-9,2/2 380V 34 50 9.2 IE3 2900 DN50×DN32
BM-S 32/230-9,2/2 380V 29.5 56 9.2 IE3 2900 DN50×DN32
BM-S 32/230-11/2 380V 40.5 53 11 IE3 2900 DN50×DN32
BM-S 32/240-11/2 380V 35 60 11 IE3 2900 DN50×DN32
BM-S 32/240-12,5/2 380V 44 58 12.5 IE3 2900 DN50×DN32
BM-S 32/250-2,2/4 380V 27.5 17 2.2 IE3 1450 DN50×DN32
BM-S 32/250-13,5/2 380V 37.5 67 13.5 IE3 2900 DN50×DN32
BM-S 32/250-15/2 380V 47.5 63 15 IE3 2900 DN50×DN32
BM-S 32/260-3/4 380V 31 19 3 IE3 1450 DN50×DN32
BM-S 32/260-17/2 380V 45 80 17 IE3 2900 DN50×DN32
BM-S 32/265-17/2 380V 52.5 69 17 IE3 2900 DN50×DN32
BM-S 40/120-1,5/2 380V 21.5 16 1.5 IE3 2900 DN65×DN40
BM-S 40/130-2,2/2 380V 27.5 20.2 2.2 IE3 2900 DN65×DN40
BM-S 40/140-3/2 380V 31 23 3 IE3 2900 DN65×DN40
BM-S 40/145-0,37/4 380V 16.5 5.6 0.37 IE3 1450 DN65×DN40
BM-S 40/150-0,55/4 380V 19.5 6.7 0.55 IE3 1450 DN65×DN40
BM-S 40/150-4/2 380V 33.5 25 4 IE3 2900 DN65×DN40
BM-S 40/155-3/2 380V 32 25.5 3 IE3 2900 DN65×DN40
BM-S 40/155-4/2 380V 34 30.5 4 IE3 2900 DN65×DN40
BM-S 40/165-4/2 380V 35 30 4 IE3 2900 DN65×DN40
BM-S 40/165-5,5/2 380V 39 32 5.5 IE3 2900 DN65×DN40
BM-S 40/170-0,75/4 380V 19 8 0.75 IE3 1450 DN65×DN40
BM-S 40/170-5,5/2 380V 39 32 5.5 IE3 2900 DN65×DN40
BM-S 40/185-4/2 380V 30 33.5 4 IE3 2900 DN65×DN40
BM-S 40/190-5,5/2 380V 35 37 5.5 IE3 2900 DN65×DN40
BM-S 40/195-7,5/2 380V 45 42 7.5 IE3 2900 DN65×DN40
BM-S 40/210-1,1/4 380V 19 13 1.1 IE3 1450 DN65×DN40
BM-S 40/210-7,5/2 380V 36 47 7.5 IE3 2900 DN65×DN40
BM-S 40/215-11/2 380V 42 52 11 IE3 2900 DN65×DN40
BM-S 40/225-12,5/2 380V 38 56 12.5 IE3 2900 DN65×DN40
BM-S 40/235-15/2 380V 49 60 15 IE3 2900 DN65×DN40
BM-S 40/240-2,2/4 380V 27 16.5 2.2 IE3 1450 DN65×DN40
BM-S 40/240-17/2 380V 70 55 17 IE3 2900 DN65×DN40
BM-S 40/250-18,5/2 380V 67 62 18.5 IE3 2900 DN65×DN40
BM-S 40/260-3/4 380V 26 20 3 IE3 1450 DN65×DN40
BM-S 40/260-22/2 380V 52 78 22 IE3 2900 DN65×DN40
BM-S 40/275-4/4 380V 45 22.5 4 IE3 1450 DN65×DN40
BM-S 40/275-37/2 380V 71 85 37 IE3 2900 DN65×DN40
BM-S 40/300-5,5/4 380V 42.5 26 5.5 IE3 1450 DN65×DN40
BM-S 40/300-55/2 380V 77.5 120 55 IE3 2900 DN65×DN40
BM-S 40/335-9,2/4 380V 51 35 9.2 IE3 1450 DN65×DN40
BM-S 50/120-2,2/2 380V 45 13 2.2 IE3 2900 DN65×DN50
BM-S 50/130-3/2 380V 48 16 3 IE3 2900 DN65×DN50
BM-S 50/140-0,55/4 380V 24.5 5.3 0.55 IE3 1450 DN65×DN50
BM-S 50/140-4/2 380V 53 19.2 4 IE3 2900 DN65×DN50
BM-S 50/150-5,5/2 380V 11 30.5 5.5 IE3 2900 DN65×DN50
BM-S 50/160-5,5/2 380V 48 26.5 5.5 IE3 2900 DN65×DN50
BM-S 50/165-7,5/2 380V 56 33 7.5 IE3 2900 DN65×DN50
BM-S 50/170-7,5/2 380V 58 32.5 7.5 IE3 2900 DN65×DN50
BM-S 50/175-1,1/4 380V 33 8.4 1.1 IE3 1450 DN65×DN50
BM-S 50/175-9,2/2 380V 73 33 9.2 IE3 2900 DN65×DN50
BM-S 50/180-1,5/4 380V 37 9.3 1.5 IE3 1450 DN65×DN50
BM-S 50/190-9,2/2 380V 53 42 9.2 IE3 2900 DN65×DN50
BM-S 50/195-1,1/4 380V 25.2 9.5 1.1 IE3 1450 DN65×DN50
BM-S 50/195-15/2 380V 65 46 15 IE3 2900 DN65×DN50
BM-S 50/200-11/2 380V 57 46 11 IE3 2900 DN65×DN50
BM-S 50/205-2,2/4 380V 27.5 17 2.2 IE3 1450 DN65×DN50
BM-S 50/205-17/2 380V 60 53 17 IE3 2900 DN65×DN50
BM-S 50/210-1,5/4 380V 30.5 11.5 1.5 IE3 1450 DN65×DN50
BM-S 50/210-12,5/2 380V 62 50 12.5 IE3 2900 DN65×DN50
BM-S 50/215-3/4 380V 33 15.5 3 IE3 1450 DN65×DN50
BM-S 50/220-2,2/4 380V 26 14.7 2.2 IE3 1450 DN65×DN50
BM-S 50/220-15/2 380V 65 52 15 IE3 2900 DN65×DN50
BM-S 50/220-22/2 380V 57.5 66 22 IE3 2900 DN65×DN50
BM-S 50/225-17/2 380V 61 80 22 IE3 2900 DN65×DN50
BM-S 50/235-18,5/2 380V 54 74 18.5 IE3 2900 DN65×DN50
BM-S 50/235-20/2 380V 54 74 20 IE3 2900 DN65×DN50
BM-S 50/250-22/2 380V 61 80 22 IE3 2900 DN65×DN50
BM-S 50/250-25/2 380V 61 80 25 IE3 2900 DN65×DN50
BM-S 50/260-4/4 380V 39 20.5 4 IE3 1450 DN65×DN50
BM-S 50/260-30/2 380V 68 87 30 IE3 2900 DN65×DN50
BM-S 65/115-3/2 380V 60 14 3 IE3 2900 DN80×DN65
BM-S 65/125-4/2 380V 70 16.5 4 IE3 2900 DN80×DN65
BM-S 65/135-0,75/4 380V 48 5.5 0.75 IE3 1450 DN80×DN65
BM-S 65/135-5,5/2 380V 82 19 5.5 IE3 2900 DN80×DN65
BM-S 65/145-7,5/2 380V 95 22 7.5 IE3 2900 DN80×DN65
BM-S 65/150-9,2/2 380V 83 27 9.2 IE3 2900 DN80×DN65
BM-S 65/160-11/2 380V 95 31 11 IE3 2900 DN80×DN65
BM-S 65/170-1,5/4 380V 56 8 1.5 IE3 1450 DN80×DN65
BM-S 65/170-15/2 380V 106 37 15 IE3 2900 DN80×DN65
BM-S 65/185-18,5/2 380V 85 41 18.5 IE3 2900 DN80×DN65
BM-S 65/195-22/2 380V 98 45 22 IE3 2900 DN80×DN65
BM-S 65/200-3/4 380V 54 12.5 3 IE3 1450 DN80×DN65
BM-S 65/215-3/4 380V 49 15 3 IE3 1450 DN80×DN65
BM-S 65/215-30/2 380V 116 57 30 IE3 2900 DN80×DN65
BM-S 65/220-22/2 380V 100 63 22 IE3 2900 DN80×DN65
BM-S 65/235-4/4 380V 54 17 4 IE3 1450 DN80×DN65
BM-S 65/235-30/2 380V 120 64 30 IE3 2900 DN80×DN65
BM-S 65/250-5,5/4 380V 65 20 5.5 IE3 1450 DN80×DN65
BM-S 65/250-37/2 380V 125 78 37 IE3 2900 DN80×DN65
BM-S 65/250-45/2 380V 118 86 45 IE3 2900 DN80×DN65
BM-S 65/290-9,2/4 380V 71 24.5 9.2 IE3 1450 DN80×DN65
BM-S 65/315-11/4 380V 78 29 11 IE3 1450 DN80×DN65
BM-S 65/340-15/4 380V 91 35 15 IE3 1450 DN80×DN65
BM-S 80/130-5,5/2 380V 107.5 13 5.5 IE3 2900 DN100×DN80
BM-S 80/140-7,5/2 380V 115 15.5 7.5 IE3 2900 DN100×DN80
BM-S 80/145-9,2/2 380V 145 18.5 9.2 IE3 2900 DN100×DN80
BM-S 80/150-11/2 380V 147 20 11 IE3 2900 DN100×DN80
BM-S 80/160-2,2/4 380V 72 6.8 2.2 IE3 2900 DN100×DN80
BM-S 80/160-15/2 380V 125 26 15 IE3 2900 DN100×DN80
BM-S 80/170-18,5/2 380V 144 29 18.5 IE3 2900 DN100×DN80
BM-S 80/175-2,2/4 380V 86 8.2 2.2 IE3 1450 DN100×DN80
BM-S 80/180-22/2 380V 170 32 22 IE3 2900 DN100×DN80
BM-S 80/195-4/4 380V 90 11 4 IE3 1450 DN100×DN80
BM-S 80/200-30/2 380V 178 44 30 IE3 2900 DN100×DN80
BM-S 80/210-5,5/4 380V 94 13.2 5.5 IE3 1450 DN100×DN80
BM-S 80/210-37/2 380V 195 50 37 IE3 2900 DN100×DN80
BM-S 80/215-45/2 380V 200 56 45 IE3 2900 DN100×DN80
BM-S 80/230-7,5/4 380V 103 15.3 7.5 IE3 1450 DN100×DN80
BM-S 80/270-9,2/4 380V 140 21 9.2 IE3 1450 DN100×DN80
BM-S 80/290-11/4 380V 150 21 11 IE3 1450 DN100×DN80
BM-S 80/315-15/4 380V 160 26 15 IE3 1450 DN100×DN80
BM-S 80/340-22/4 380V 146 35 22 IE3 1450 DN100×DN80
BM-S 100/185-5,5/4 380V 108 9.3 5.5 IE3 1450 DN125×DN100
BM-S 100/220-7,5/4 380V 142 12.5 7.5 IE3 1450 DN125×DN100
BM-S 100/250-9,2/4 380V 152 17.5 9.2 IE3 1450 DN125×DN100
BM-S 100/270-15/4 380V 170 21 15 IE3 1450 DN125×DN100
BM-S 100/295-18,5/4 380V 190 23.8 18.5 IE3 1450 DN125×DN100
BM-S 100/315-22/4 380V 225 27 22 IE3 1450 DN125×DN100
BM-S 100/340-30/4 380V 220 32 30 IE3 1450 DN125×DN100
BM-S 125/235-11/4 380V 220 14 11 IE3 1450 DN150×DN125
BM-S 125/255-15/4 380V 260 16.5 15 IE3 1450 DN150×DN125
BM-S 125/270-18,5/4 380V 290 18.5 18.5 IE3 1450 DN150×DN125
BM-S 125/295-18,5/4 380V 200 22 18.5 IE3 1450 DN150×DN125
BM-S 125/315-30/4 380V 245 28 30 IE3 1450 DN150×DN125
BM-S 125/340-37/4 380V 275 34 37 IE3 1450 DN150×DN125

Size

Video Introduction

Message Inquiry

*
*
*
*
*
Submit
