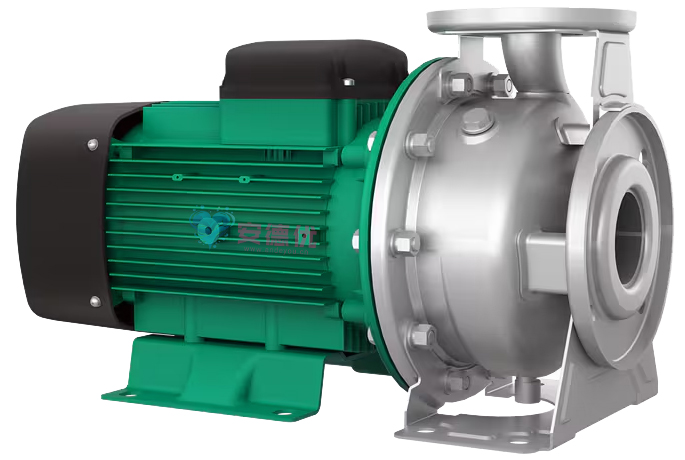

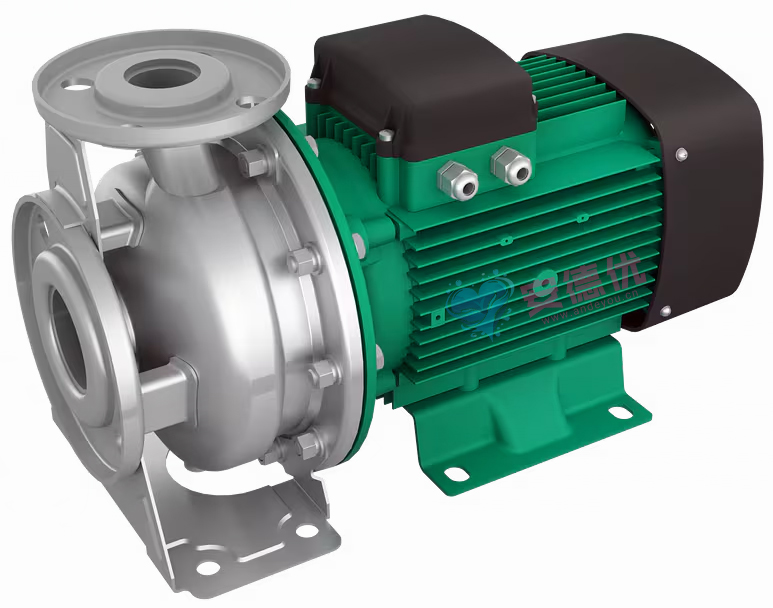

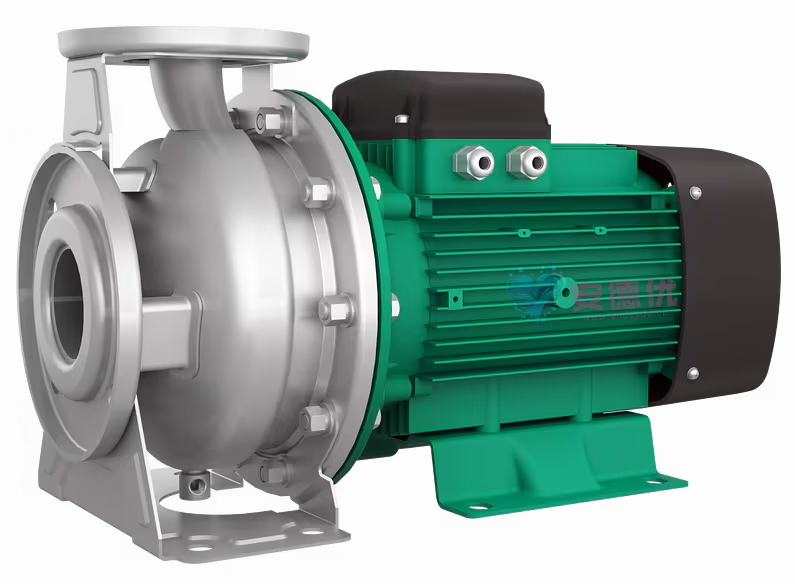

A versatile single-stage centrifugal pump suitable for a wide range of applications, including heating, cooling, and industrial circulation.
With a variety of hydraulic components and motor options, the Wilo-Atmos BST single-stage centrifugal pump is suitable for diverse applications such as HVAC, water supply, pressure boosting, and water treatment. It can be used to transport clear, non-abrasive fluids in systems like industrial cooling and cleaning units, as well as for agricultural spraying. Stainless steel hydraulics ensure high corrosion resistance and a long service life. The monobloc design, combined with integrated pump feet, facilitates quick installation while ensuring low-vibration and quiet operation. Modern hydraulics paired with standard IE3 motors deliver excellent energy efficiency.
Features/Product Advantages
Excellent energy efficiency thanks to state-of-the-art hydraulics and GB3 motors
Versatile application range due to various impeller materials, motor options, and mechanical seal types
Easy installation via monobloc design and integrated pump feet
Stainless steel hydraulics offer high corrosion resistance and long service life
Product Characteristics
Steel fan cowl
IEC motor
Terminal box made of plastic or steel
PN 10 flanges compliant with EN 1092
Casing and impeller made of pressed stainless steel
Connections compliant with EN 733
Construction
Monobloc dry-rotor pump with flange connections
Applications
Suitable for pumping hot water (compliant with VDI 2035), water-glycol mixtures, cooling water, and cold water in heating, cooling, and chilled water systems (fluids must be free of abrasive substances).
Model code
|
Example |
Atmos BST 32/160-1,5/2 G-V19 |
|
Atmos |
Wilo Product Range |
|
BST |
Horizontal close-coupled end-suction pump |
|
32 |
Nominal diameter (DN) of the pipe connection |
|
160 |
Nominal impeller diameter |
|
1,5 |
Motor rated power P2, in kW |
|
2 |
Number of poles |
|
G |
Second generation |
|
-V19 |
3~220 V/380 V, 50 Hz |
|
-V20 |
3~380 V/660V, 50 Hz |
|
-V29 |
1~220 V, 50 Hz |
Technical data
Permissible temperature range: -20 °C to +105 °C
Mains connection: 1~220 V, 3~380 V, 50 Hz (other options available upon request)
Protection class: IP55
Nominal diameter: DN 32 to DN 80
Max. operating pressure: 10 bar
Materials
Pump housing: 1.4301, 1.4404
Impeller: 1.4301, 1.4404
Shaft: 1.4301, 1.4404
Mechanical seal: AQ7EGG, Q7Q7EGG; other mechanical seals available upon customer request
Type
Single-stage low-pressure centrifugal pump in block design, with axial suction port and radially arranged discharge port; features:
Mechanical seal
Flanged connection with pressure gauge connection R 1/8
Pump housing with feet
IEC standard motor
Scope of delivery
Pump
Installation and operating instructions
