Features/Product Advantages

Wide range of pump head material options suitable for various operating conditions

Multiple mechanical seal flushing schemes

Equipped with a spacer coupling between the pump and motor for easy maintenance

Construction

Horizontal, end-suction stainless steel centrifugal pump compliant with EN 733 standards

Applications

Suitable for transporting fresh water, seawater, brine, brackish water, and other fluids with high ion content. Also suitable for light oils or process fluids that are water-like but mildly corrosive or require contamination prevention; fluids must be free of solid particles and not prone to crystallization.

Used in seawater desalination, pure water systems, and general or heavy industrial sectors.

Equipment/Functions

Single-stage, low-pressure centrifugal pump featuring a modular design; includes coupling, coupling guard, motor, and baseplate.

Mechanical seal

Technical Data

Permissible temperature range: -20°C to +120°C

Power supply: 3~380 V ±10%, 50 Hz

Protection class: IP55

Nominal diameter: DN 32 – DN 300

Max. operating pressure: 13 bar (up to 140°C), 16 bar (up to 120°C)

Materials

Stainless steel spiral volute casing.

Axial inlet, radial outlet.

Standard mechanical seal permissible water temperature: -10°C to +80°C; temperatures outside this range require separate verification.

Type

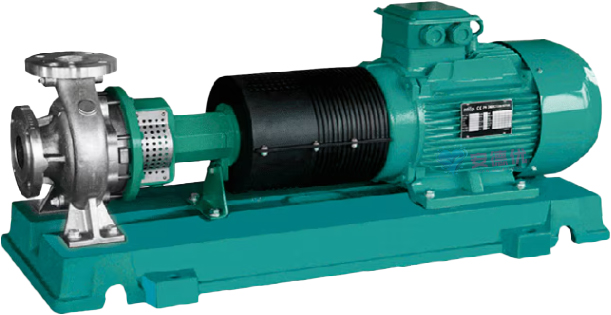

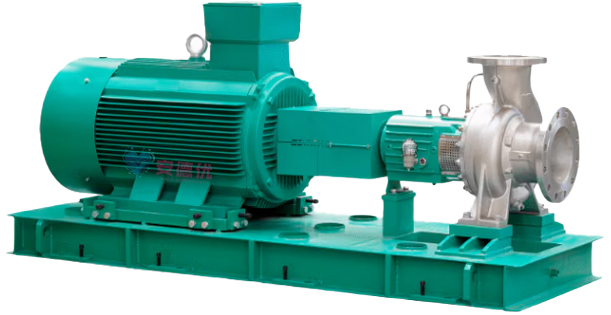

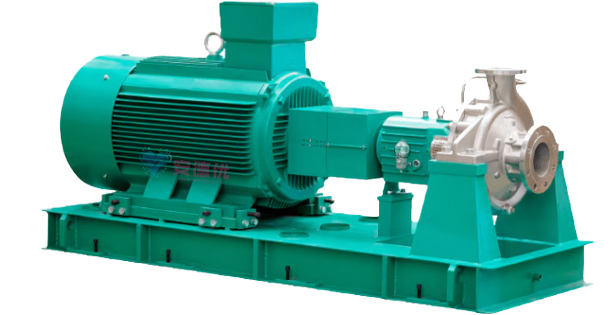

Horizontal, single-stage, low-head, end-suction stainless steel centrifugal pump with bearing housing and flexible coupling, mounted on a baseplate.

Selected models feature a spacer coupling, providing sufficient clearance to remove the rotating assembly without moving the motor.

Shaft deflection meets ISO 5199 requirements.

Scope of Supply

Complete pump unit comprising pump head, motor, and baseplate

Installation, operation, and maintenance manual

Accessories

Accessories must be ordered separately

Counter-flanges

Anchor bolts for pump baseplate

Commissioning

This pump series is designed for installation and operation within enclosed spaces. Typical installation sites include equipment rooms inside buildings housing other building services equipment. Before the trial run, the pump and electrical modules must have acclimatized to the ambient temperature.

Properly fill the entire system with liquid and vent it.

Dry running damages the mechanical seal; ensure the pump does not run dry.
