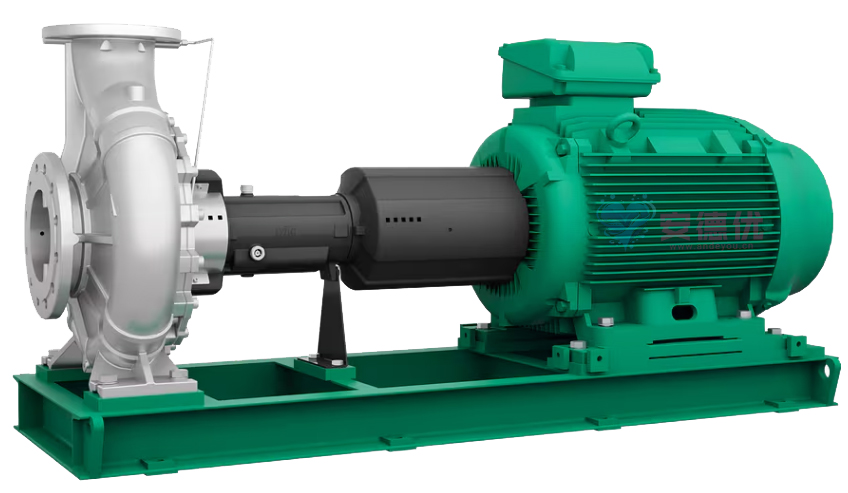

A reliable, robust, and durable standard pump for industrial applications.

The Wilo-Atmos GIGA-NX is available in various models featuring different motor and material options, with an operating temperature range of -20 to +140°C. These features make this dry-rotor pump a configurable, versatile solution suitable for a wide range of industrial applications.

Designed for continuous operation, the pump features corrosion-resistant stainless steel hydraulics and maintenance-free ball bearings to ensure a long service life. A spacer coupling facilitates quick mechanical seal replacement during maintenance. The Wilo-Atmos GIGA-NX supports speed control via the Wilo-EFC frequency converter and can be equipped with temperature and vibration monitoring systems for the early detection of potential faults.

Wilo also offers the "WiloCare" after-sales service package, covering the entire product lifecycle from commissioning to maintenance. Wilo's remote monitoring system ensures reliable operation and peace of mind.

Features/Product Advantages

Improved hydraulics and GB2/GB3 motors enhance overall efficiency, resulting in energy savings
Complies with relevant ISO standards (2858, 5199) to meet industrial requirements
Configurable hydraulics and mechanical seals allow for versatile application
Electrophoretic coating on all castings ensures high corrosion resistance and long service life
Standardized dimensions combined with application-specific materials for motors and impellers allow for customization
User-friendly spacer coupling with "back pull-out" design simplifies maintenance
Optimized impeller design reduces pressure loads, ensuring high operational reliability

Construction

Single-stage, low-pressure centrifugal pump with axial suction, designed for baseplate mounting. Standardized design featuring a spacer coupling.

Applications

Pumping of heating water (in accordance with VDI 2035), cold water, and water-glycol mixtures in heating, cold water, and cooling systems (free of abrasive substances).
Applications include irrigation, building services, general industry, power plants, etc.

Equipment/Function

Single-stage low-pressure centrifugal pump in a block-unit design, featuring a coupling, coupling guard, motor, and baseplate.

Mechanical seal

Model code

Technical data

Permissible temperature range: -20 °C to +140 °C
Mains connection: 3~380 V, 50 Hz
Protection class: IP55
Nominal diameter: DN 32 to DN 150
Max. operating pressure: 16/25 bar

Materials

Pump housing and lantern: Standard: 304; others available upon request
Impeller: Standard: 304; others available upon request
Mechanical seal: AQEGG; other mechanical seals available upon customer request

Type

Single-stage low-pressure centrifugal pump designed as a baseplate-mounted unit with an axial suction port, flanged bearing bracket, and shaft assembly for flexible connection to the drive unit.
Standard configuration includes a spacer coupling (sleeve coupling), allowing the rotor unit to be removed without moving the motor.
Variant ...-P5 without spacer coupling (reduced price; see price list).

Scope of delivery

Pump
Installation and operating instructions
Pump with bare shaft, or
Baseplate-mounted pump with coupling and coupling guard (without motor), or
Complete baseplate-mounted pump unit with motor

Options

Version ...-P5 without spacer coupling (reduced price)
Other materials and models available upon request
Other voltages and frequencies available upon request

Accessories

Automatic speed control:

Wilo pump control system for automatic, stepless speed regulation of pump output. Please contact Wilo for more information regarding "control switches and controllers."

Commissioning

When pumps operating at 2900 rpm are installed in residential buildings, appropriate noise insulation and noise reduction measures must be implemented.
Pump performance curves and specific motor power requirements depend on the fluid being pumped. Variations in the concentration and/or viscosity of the pumped fluid significantly affect pump performance curves and motor power requirements. Please refer to the "Recommended configuration limits" table! Recommended configuration limits are calculated as follows: Qoptimum (flow rate at peak pump efficiency) derived from the specific pump performance curve; and Qmin and Qmax coefficients derived from the "Recommended configuration limits" table. Qmin configuration = Qmin x Qoptimum; Qmax configuration = Qmax x Qoptimum. Example: Model Atmos GIGA-NX 032-125: Qmin = 0.3 x 8 = 2.4 m³/h; Qmax = 1.2 x 8 = 9.6 m³/h.
Load-dependent pump power: All standard Wilo pumps are equipped with IEC standard motors. Wilo controllers are suitable for automatic, load-dependent speed control of pumps driven by standard motors.
Duty/standby operation
