Save valuable time during installation and commissioning.

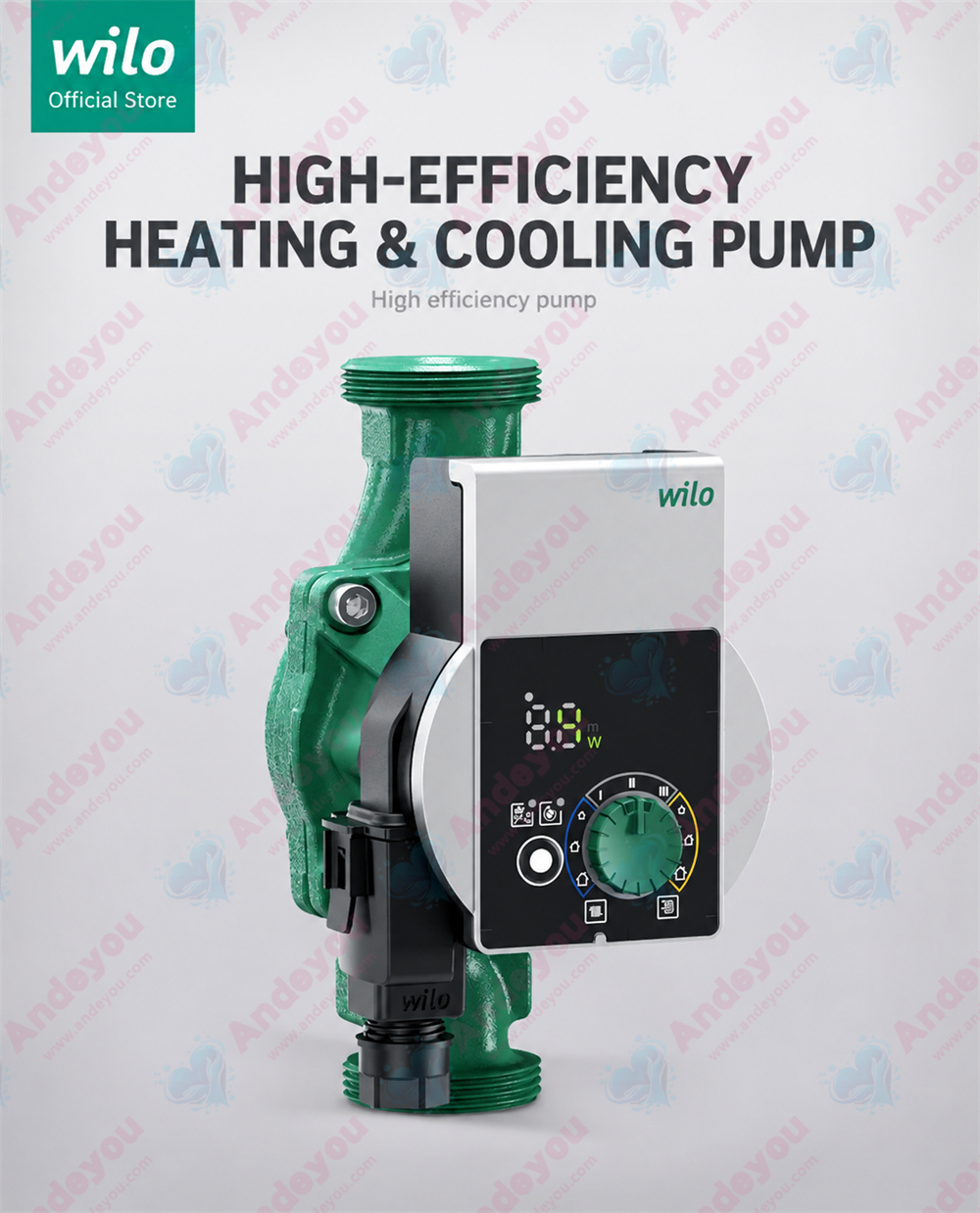

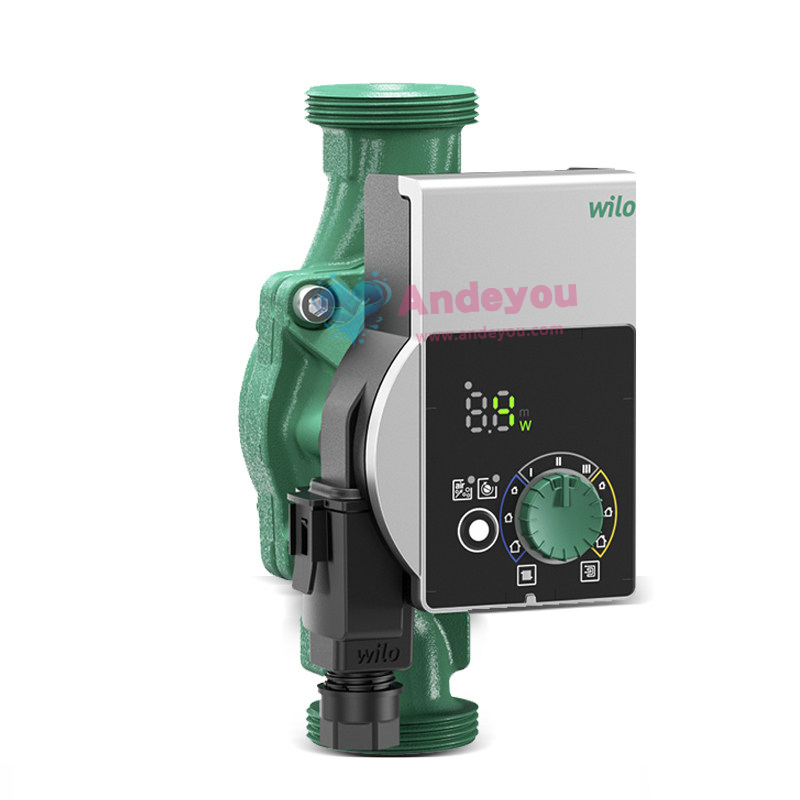

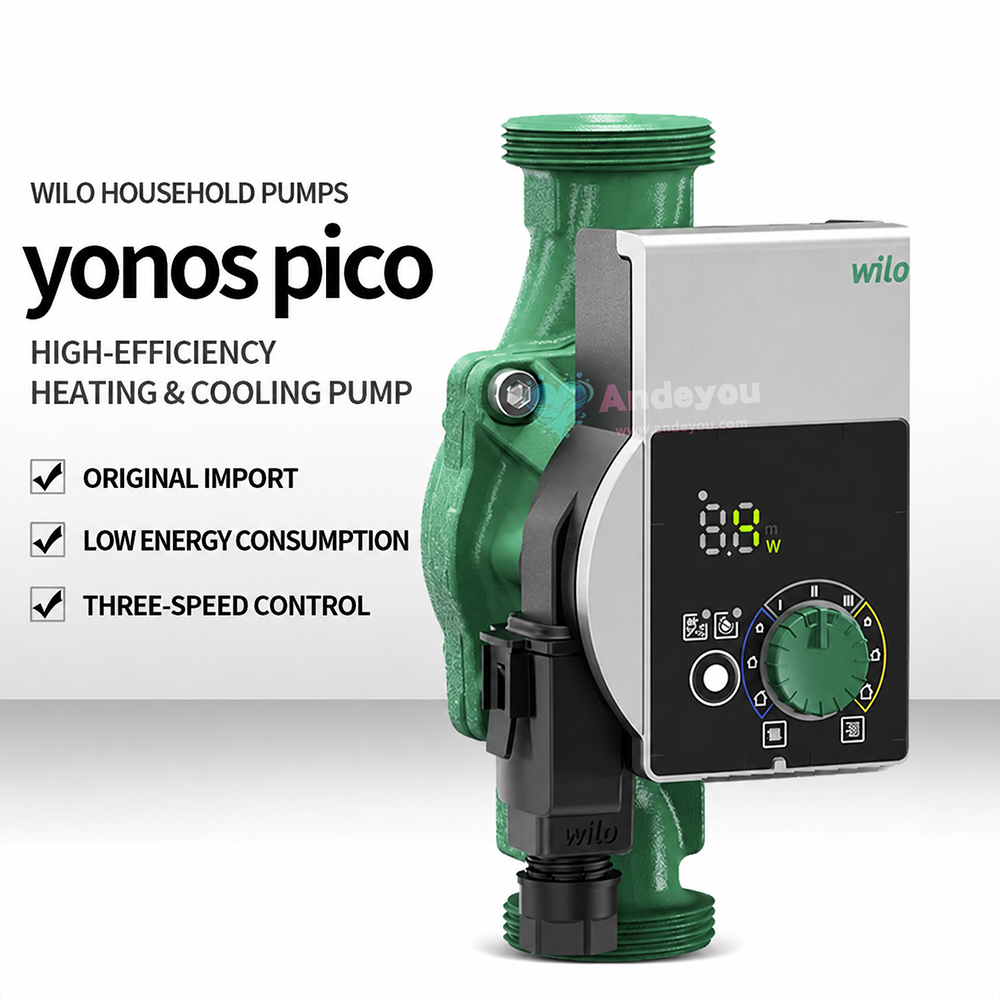

This new generation of high-efficiency pumps for heating and air-conditioning applications in single- and two-family homes features the "Green Button" design, offering maximum convenience during installation and maintenance. Standard settings for radiators and underfloor heating—clearly illustrated via intuitive graphics—save time during commissioning. Enhanced energy efficiency reduces power consumption, which can be monitored and controlled at any time via the LED display. A more compact design makes pump replacement easier than ever.
Features/Product Advantages
Maximum ease of use thanks to "Green Button" technology and an intuitive user interface
Optimized energy efficiency through EC motor technology, precise settings (0.1 m increments), and real-time power consumption display
Quick, simple installation and seamless replacement due to a new, optimized design
High operational reliability and easy maintenance, featuring protective functions such as automatic restart and manual pump venting
Maximum operational reliability based on proven technology

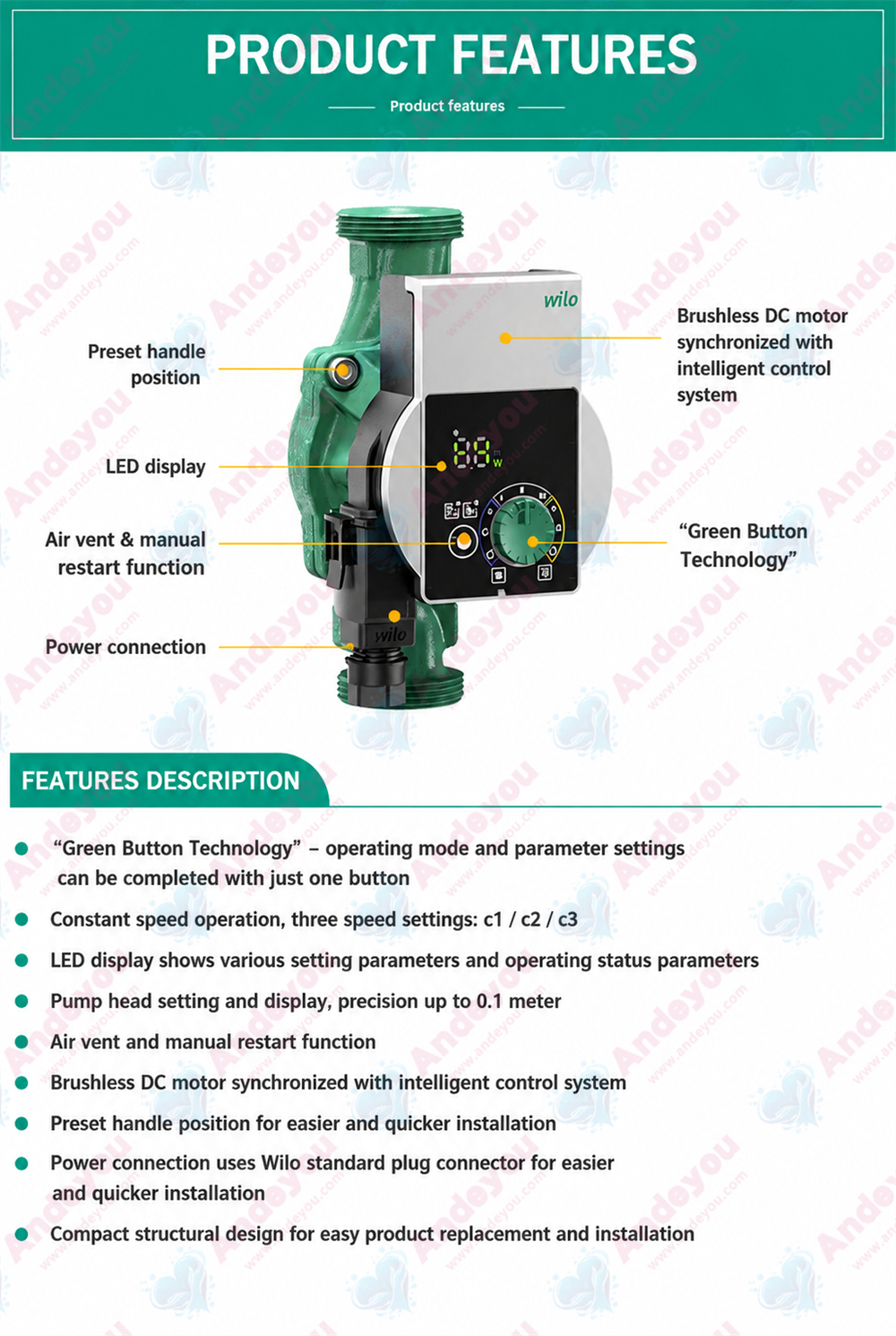

Product Features
7-segment LED display
Self-protection routines
EC motor
"Green Button" technology
Direct access to motor screws
Easy access to the Wilo-Connector
Design
Glandless circulation pump with threaded connection, blocking-current-proof EC motor, and integrated electronic power control.
Applications
All hot-water heating systems, air-conditioning applications, and industrial circulation systems.
Equipment/Functions

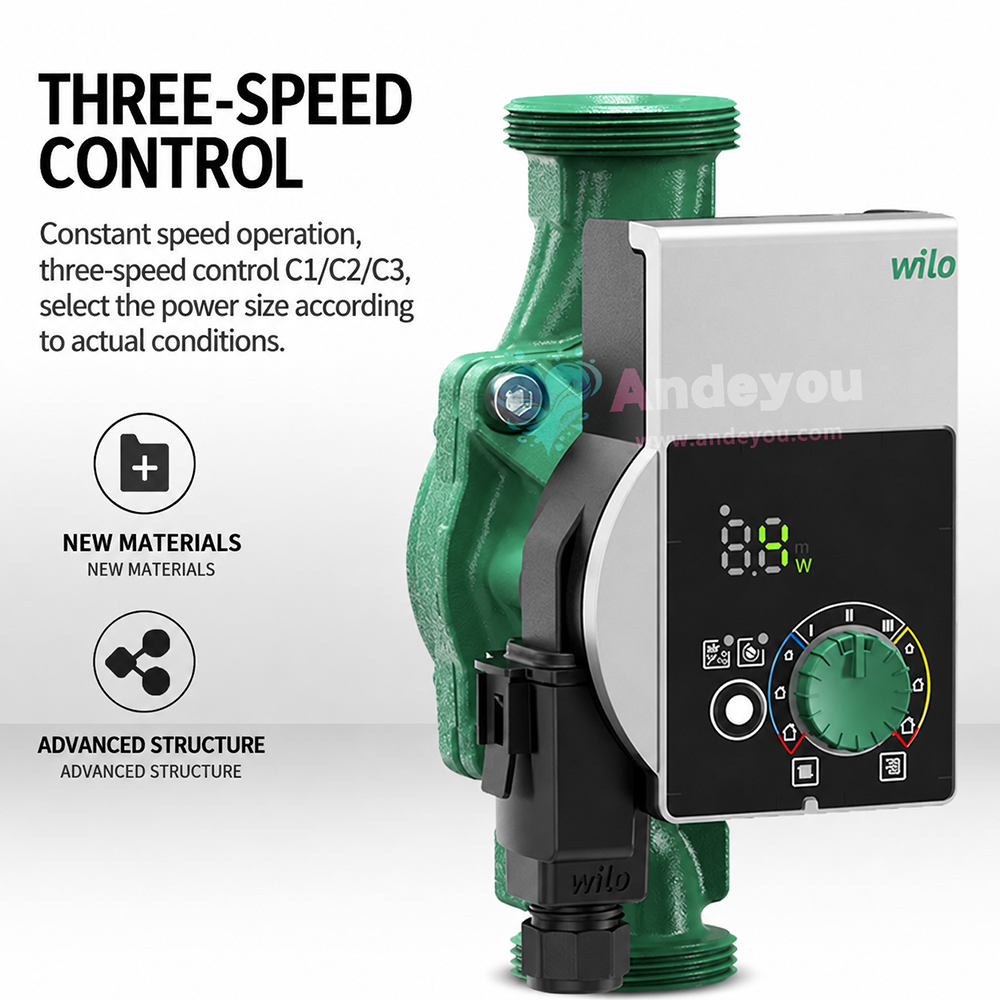

Control modes
Δp-c for constant differential pressure
Δp-v for variable differential pressure
Manual functions
Control mode setting
Pump power (head) setting
Pump venting function
Automatic functions
Continuous power adjustment based on control mode
Automatic unblocking function
Reporting and display functions
Display of power consumption (W)
Display of current head during setting
Display of fault messages (error codes)
Display of activated pump venting function
Equipment
Wrench attachment points on the pump housing
Quick electrical connection via Wilo-Connector
Blocking-current-proof motor
Particle filter
Type key
|
Example: |
Wilo-Yonos PICO1.0 25/1-4-130 |
|
Yonos PICO1.0 |
High-Efficiency CNC Pump (Screw Pump) |
|
25/ |
Nominal connection diameter |
|
1-4 |
Nominal head range [m] |
|
130 |
Installation length |

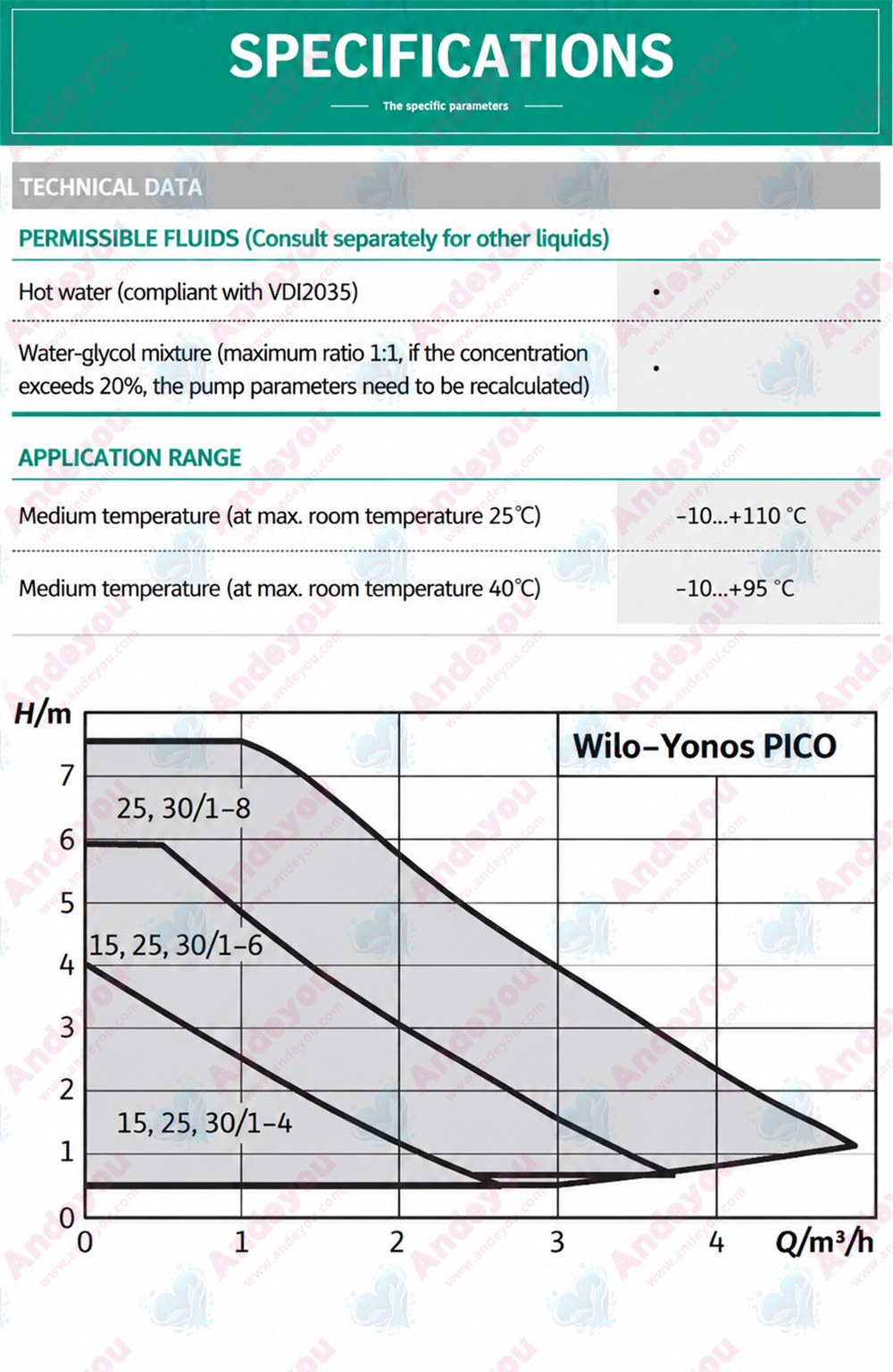

Technical data
Fluid temperature: -10 °C to +95 °C
Mains connection: 1~230 V, 50 Hz
Protection class: IPX4D
Threaded connections: G1, G1½, G2
Max. operating pressure: 10 bar
Materials
Pump housing: Grey cast iron (EN-GJL-200)
Impeller: Plastic (PP - 40% GF)
Pump shaft: Stainless steel
Bearing: Carbon, metal-impregnated
Scope of delivery
Pump
Wilo-Connector
Gaskets for threaded connection
Installation and operating instructions
Options
Yonos PICO1.0...130 models with shorter installation length (130 mm)
Accessories
Screw connections
Adapter fittings
Thermal insulation
Wilo-Connector with 2 m connecting cable and plug with earthing contact
Angled plug with 2 m connecting cable
