Upgrade to energy-efficient hot water circulation in residential buildings more quickly.

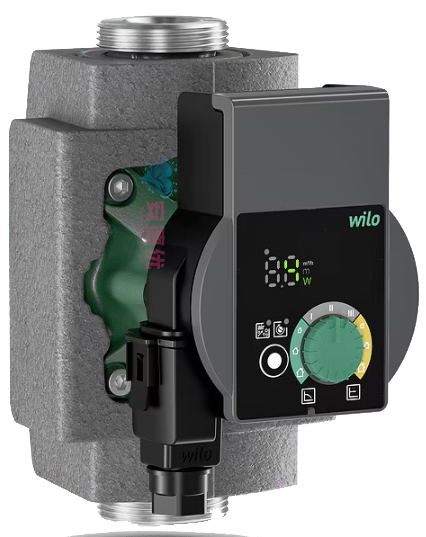

The compact Wilo-Yonos PICO-Z is the ideal replacement pump for upgrading domestic hot water systems in single-, two-, and multi-family homes to energy-efficient circulation pumps. This high-efficiency pump features a thermal insulation shell and offers a high level of hygienic safety thanks to its stainless steel housing. Electrical installation is quick and easy using the Wilo-Connector. Replacing the Wilo-Star-Z is straightforward, thanks to equivalent pump models and the "n-cst" continuous control mode for selecting the correct performance curve. With automatic and manual restart functions and a pump venting function, the Wilo-Yonos PICO-Z ensures all standard features required for reliable operation.

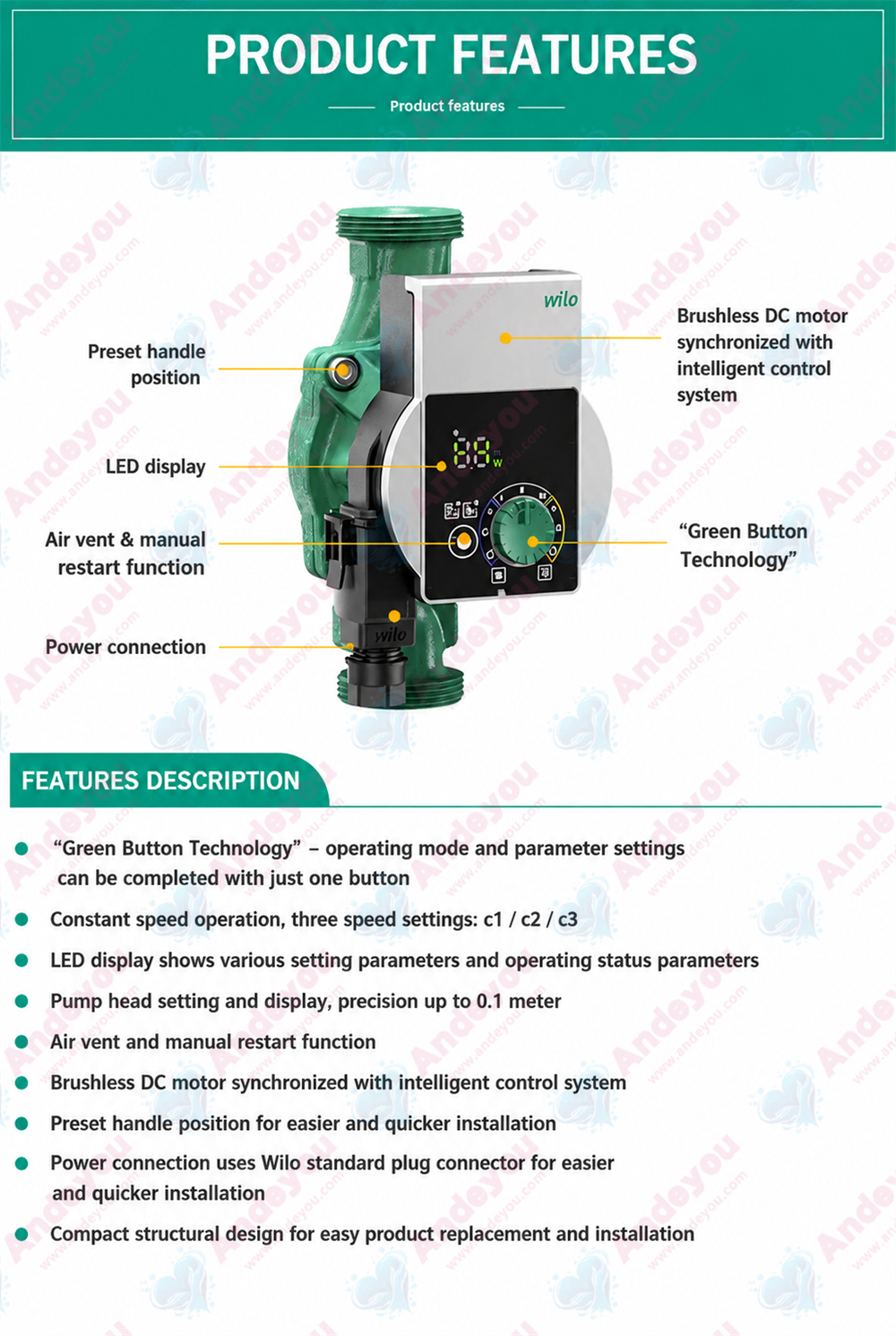

Features/Product Advantages
Stainless steel pump housing ensures hygienic safety
EC motor ensures energy-efficient operation
Green Button Technology, intuitive user interface with LED display, and continuously adjustable control functions ensure high operating convenience
Simple electrical installation via Wilo-Connector
Easier maintenance and high operational reliability through automatic and manual restart or pump venting functions
Current parameters such as flow rate and power consumption are visible at a glance via the LED display
Product Characteristics
Stainless steel pump housing
Thermal insulation shell
Direct access to motor screws
EC motor
Green Button Technology
Easily accessible Wilo-Connector
Eco-friendly Attributes
High-efficiency pump with automatic power adjustment
Sustainable and carbon-neutral production and processes at our European plants
Construction
Glandless circulation pump with threaded connection, blocking-current-proof EC motor, and integrated electronic power control.
Application
Domestic hot water circulation systems in industrial and building services applications.
Equipment/Functions
Operating modes
Δ p-c (constant differential pressure)
Constant speed (3 fixed speed stages)
Constant speed (continuously adjustable)
Manual functions
Setting the operating mode
Setting pump power (head)
Setting constant speed (continuous or fixed stages)
Pump venting function
Manual restart
Automatic functions
Stepless power adjustment based on operating mode
Automatic restart
Automatic dry-running detection
Reporting and display functions
Display of current power consumption (W)
Display of current flow rate (m³/h)
Display during setting:
Head (m)
Constant speed stage (c1, c2, c3)
Speed when set to continuous mode (n/100)
Display of fault messages (error codes)
Display of manually activated restart or pump venting functions
Equipment
Wrench attachment points on the pump housing
Quick electrical connection via Wilo-Connector
Blocking-current-proof motor
Particle filter
Thermal insulation as standard
Type key
|
Example: |
Wilo-Yonos PICO-Z 20/0.5-4 150 |
|
Yonos PICO |
High-Efficiency CNC Pump (Screw Pump) |
|
-Z |
Drinking water circulation |
|
20/ |
Nominal connection diameter |
|
0.5-4 |
Nominal head range [m] |
|
150 |
Installation length [mm] |

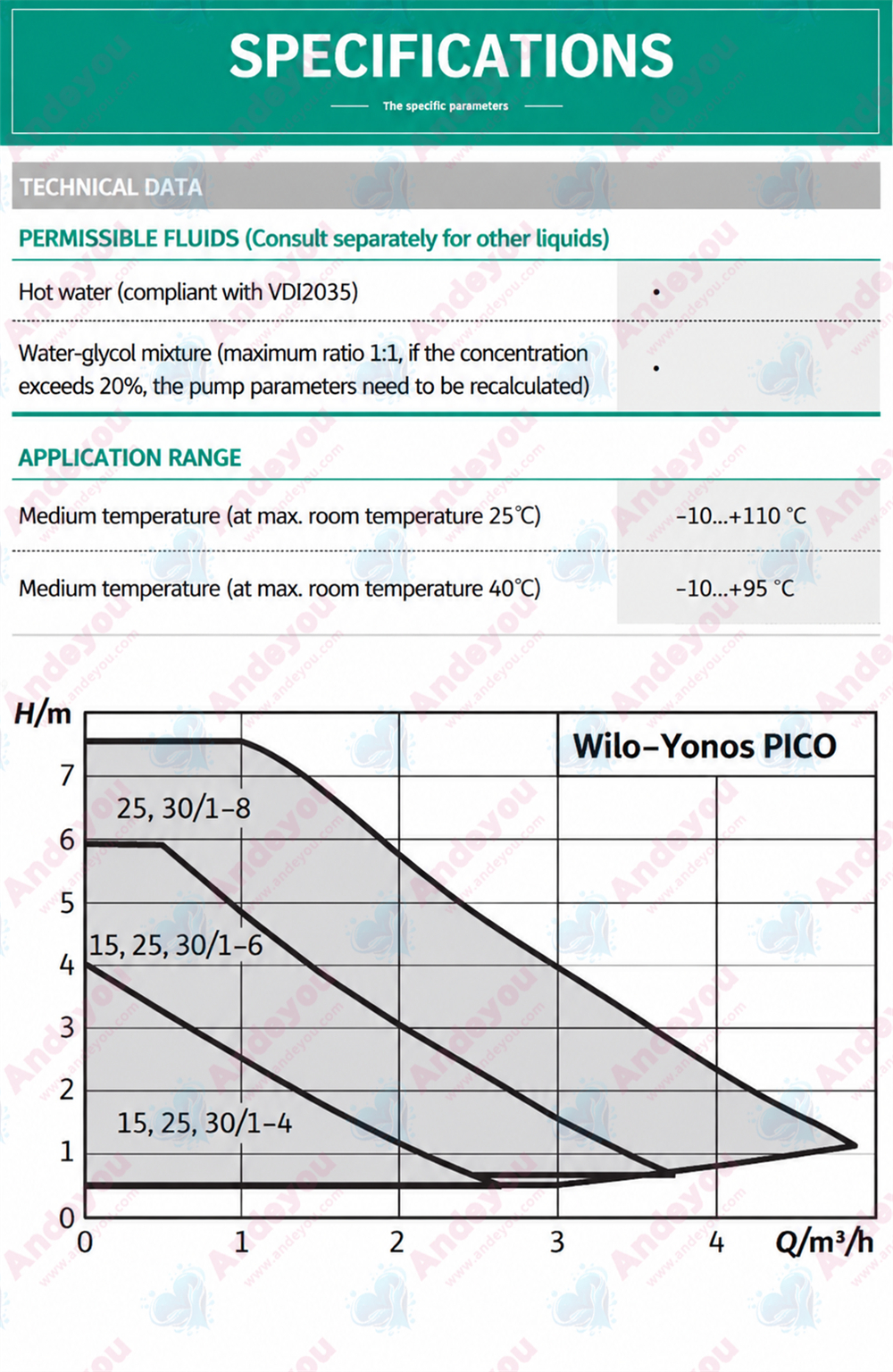

Technical data
Fluid temperature: +2 °C to +95 °C
Mains connection: 1~230 V, 50 Hz
Protection class: IPX4D
Threaded connections: G1, G1½, G1¼
Max. operating pressure: 10 bar
Materials
Pump housing: Stainless steel
Impeller: Plastic
Shaft: Oxide ceramic
Bearings: Carbon, synthetic resin-impregnated
Scope of delivery
Pump
Thermal insulation
Wilo-Connector
Gaskets for threaded connections
Installation and operating instructions
Accessories
Screw connections
Adapter fittings
Wilo-Connector incl. 2 m cable Connecting cable and plug with earthing contact
Angled plug with 2 m connecting cable
