Standard high-efficiency pump for domestic hot water circulation in large buildings.

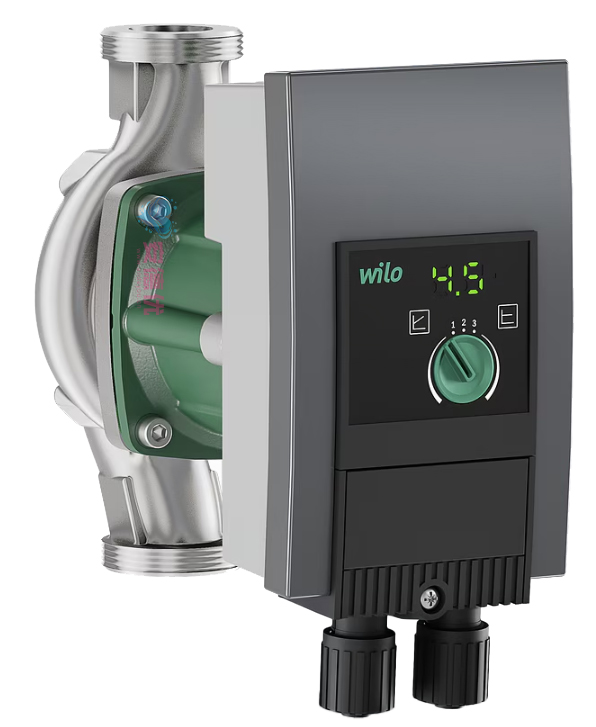

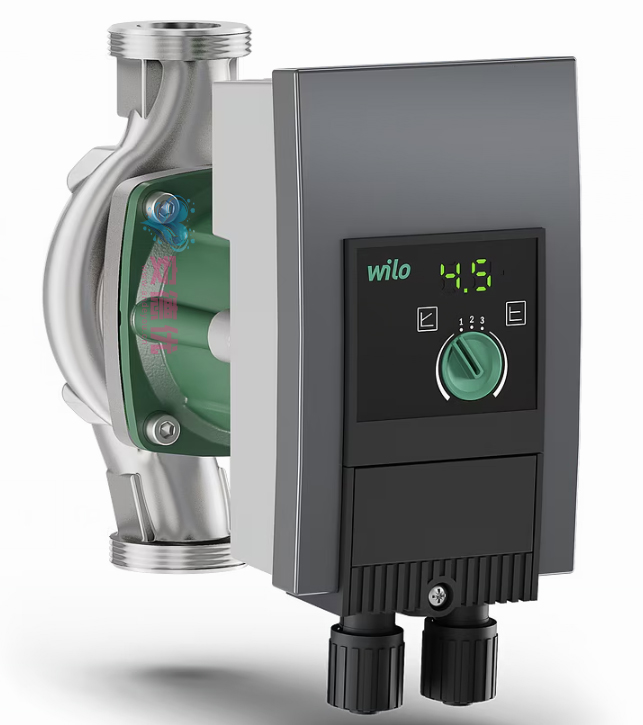

The Wilo-Yonos MAXO-Z is a high-efficiency circulation pump designed to provide hygienic domestic hot water in rental properties, administrative buildings, and commercial real estate. It features an LED display that allows users to intuitively monitor status indicators such as delivery head, speed stage, and fault codes. Its compact design and the included Wilo electrical connection plug simplify installation, while "Green Button Technology" makes operation exceptionally easy.
Features/Product Advantages
Energy-efficient pump
LED display shows the set delivery head, speed stage, and any potential errors
Compact design and Wilo plug connection allow for easy replacement of standard pumps lacking smart controls
Easy selection of control modes (∆p-v, ∆p-c) and three speed stages via Green Button Technology
Reliable operation ensured by system fault signal

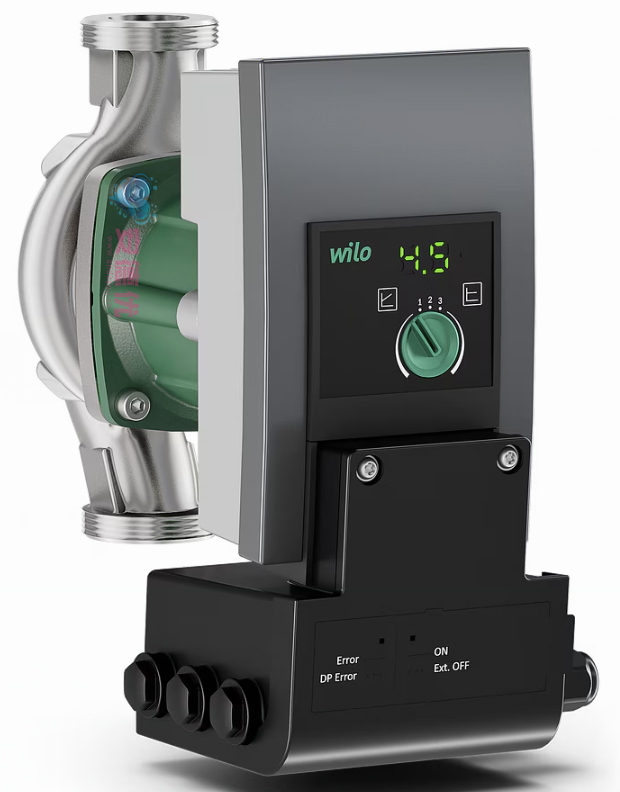

Optional: Wilo-Connect module for Yonos MAXO adds smart functions and enables integration into building management systems
Product Characteristics
Stainless steel hydraulics
LED display
Three control modes selectable via Green Button
Compact design
System fault signal
Electrical connection via Wilo plug
Eco-friendly Attributes
High-efficiency pump with automatic power adjustment
Extensive range of spare parts facilitates maintenance
Sustainable and carbon-neutral production and processes at our European factories
Construction
Glandless circulation pump with threaded or flanged connection, EC motor, and automatic power adjustment.
Application
Domestic hot water circulation systems in industrial and building services applications.
Equipment/Functions
Operating modes
∆p-c (constant differential pressure)
∆p-v (variable differential pressure)
n = constant (3 speed stages)
Manual functions
Setting the operating mode
Setting the pump output (head)
Setting the speed stage
Automatic functions
Stepless power adjustment based on operating mode
Unblocking function
Soft start
Integrated comprehensive motor protection
Signal and display functions
Collective fault signal (potential-free NC contact)
Fault signal light
LED segment display showing head and fault codes
Display of configured speed stage (C1, C2, or C3)
Equipment
Wrench flats on the pump housing (for pumps with threaded connections)
Quick electrical connection via Wilo-Connector. For power supply and SSM (collective fault signal) connection; features integrated strain relief

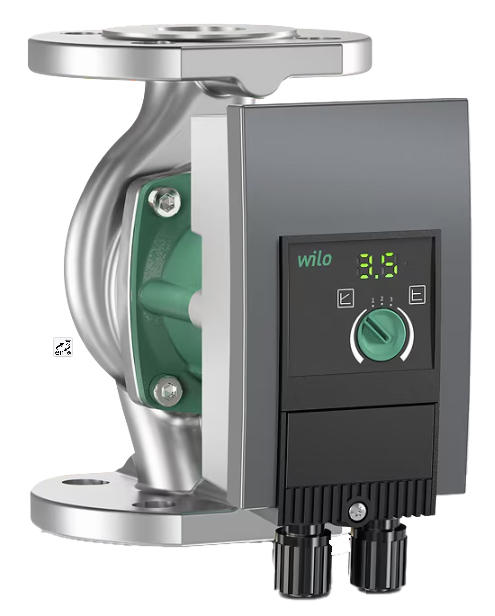

For flanged pumps: flange types
Standard version for DN 40 to DN 65 pumps: combination flange PN 6/10 (fits PN 6 and PN 10 counter-flanges)
Type key
|
Example: |
Wilo-Yonos MAXO-Z 30/0,5-12 |
|
Yonos MAXO |
High-efficiency pump (threaded or flanged connection), CNC-controlled |
|
Z |
Single-head pump for drinking water circulation |
|
30/ |
Nominal connection diameter |
|
0.5-12 |
Nominal head range [m] |
Technical data
Permissible temperature range for potable water with hardness up to 3.57 mmol/l (20 °dH): 0 °C to +80 °C
Mains connection: 1~230 V, 50/60 Hz
Protection class: IPX4D
Threaded or flanged connection (depending on model): Rp 1 to DN 65
Max. operating pressure for standard version: 6/10 bar or 6 bar (special version: 10 bar)
Materials
Pump housing: Stainless steel
Shaft: Stainless steel
Bearing: Carbon, synthetic resin-impregnated
Impeller: Plastic
Scope of delivery
Pump
Seals for threaded connection
Washers for flange bolts (for nominal connection diameters DN 32 – DN 65)
Installation and operating instructions
Accessories
Screw connections for threaded connection
Thermal insulation
