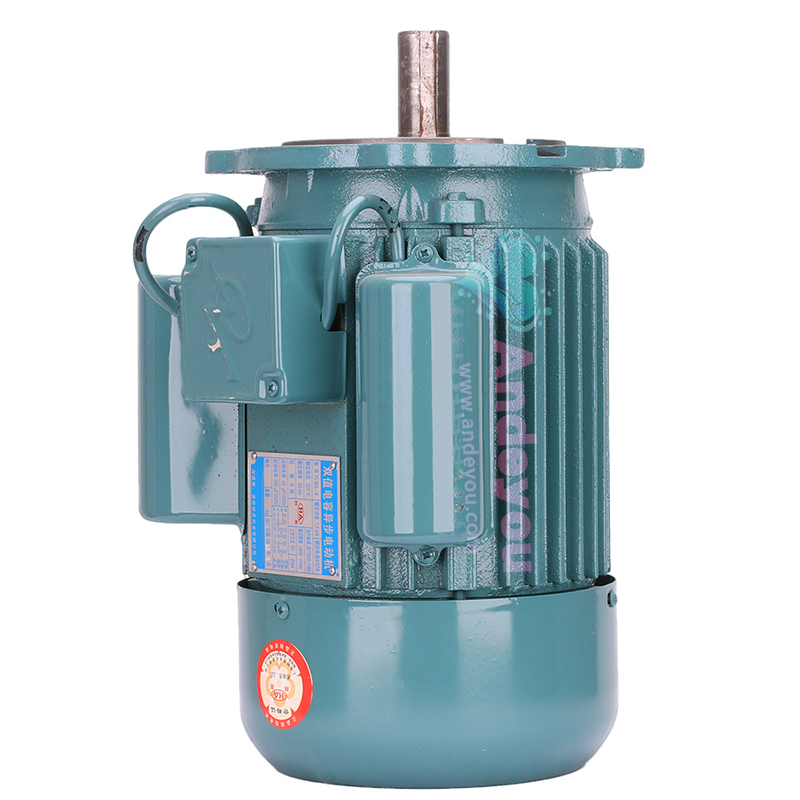

Product Overview

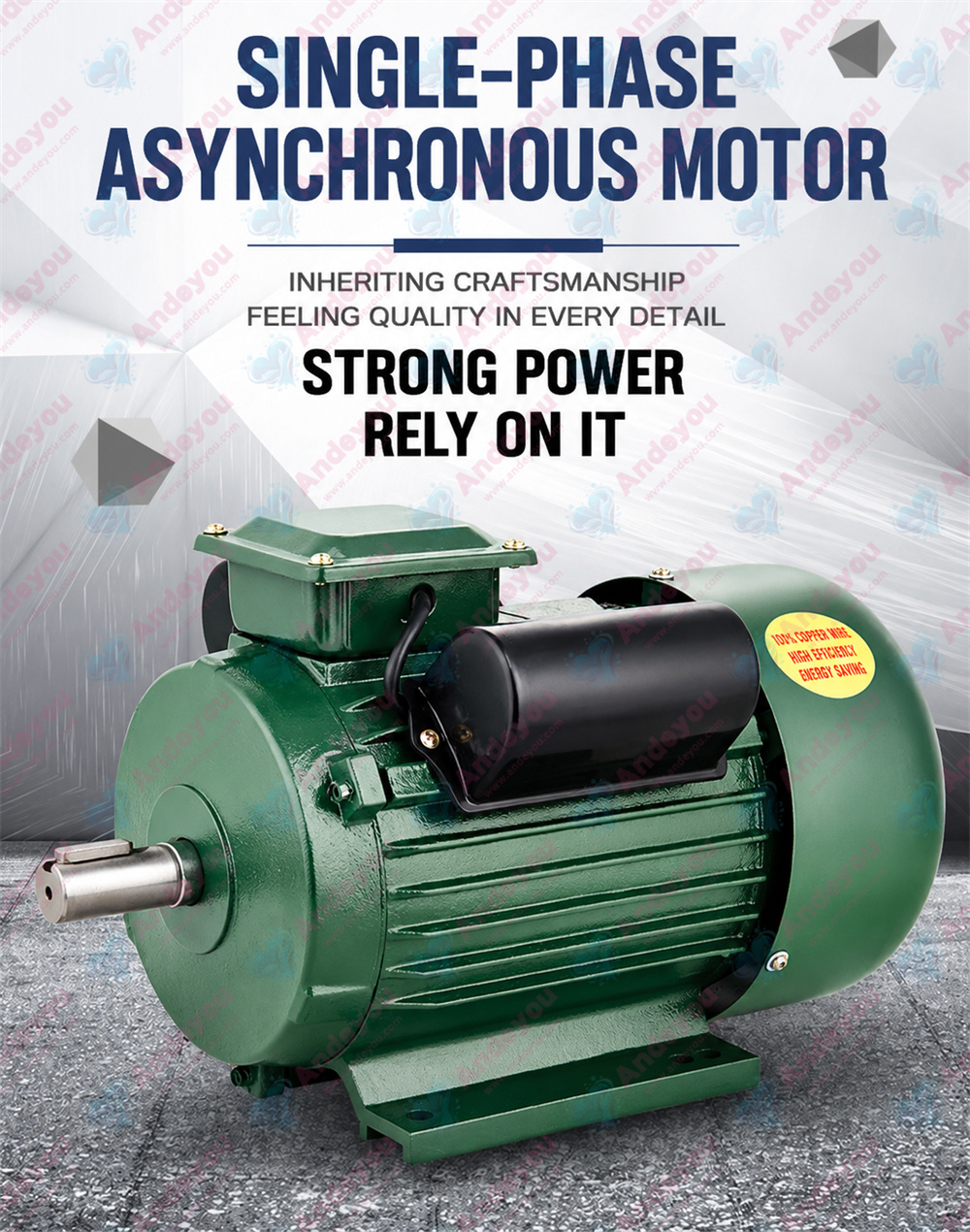

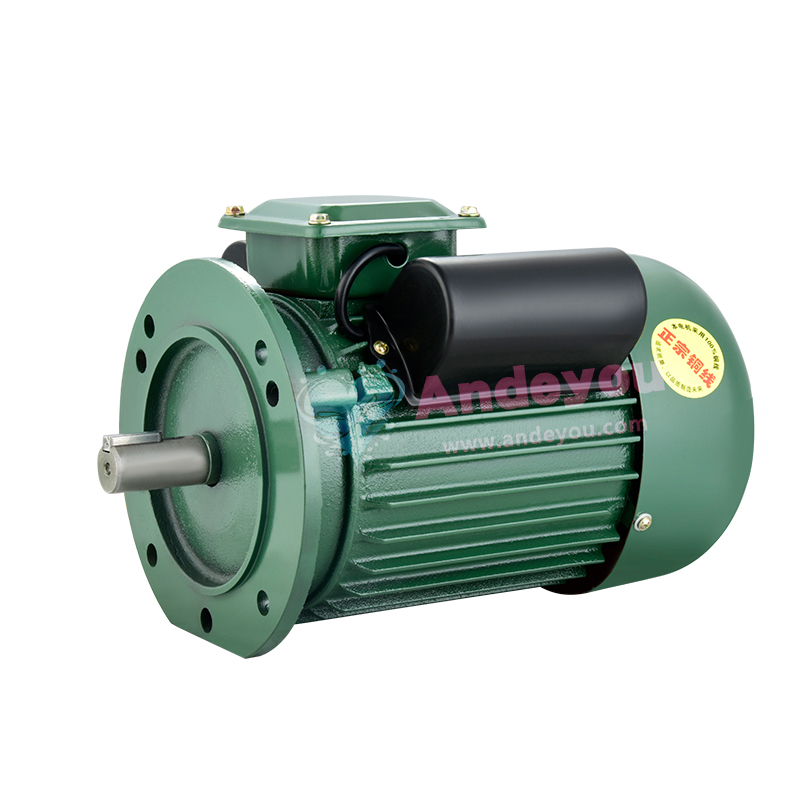

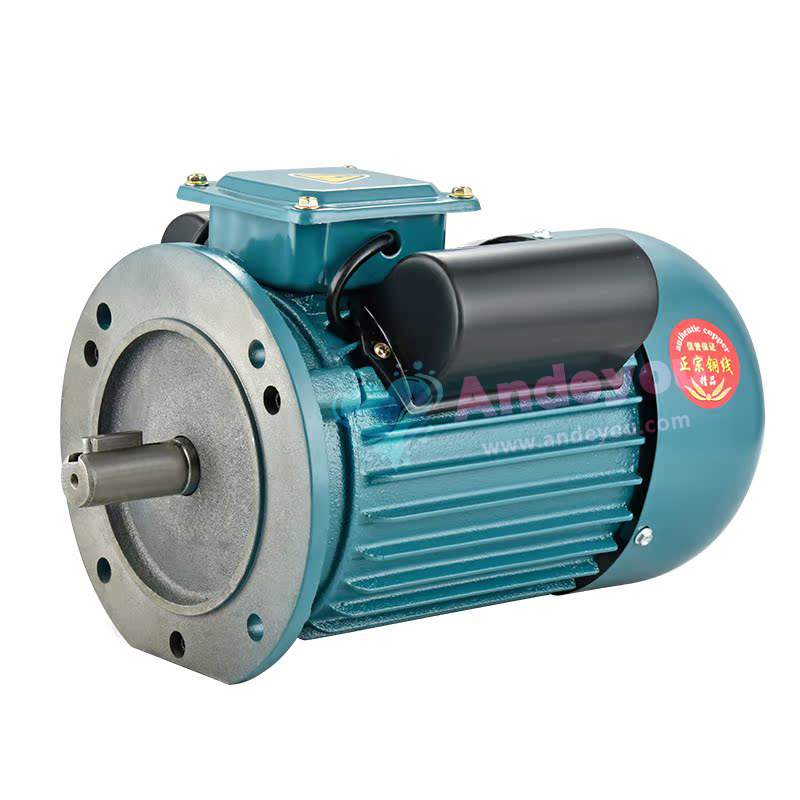

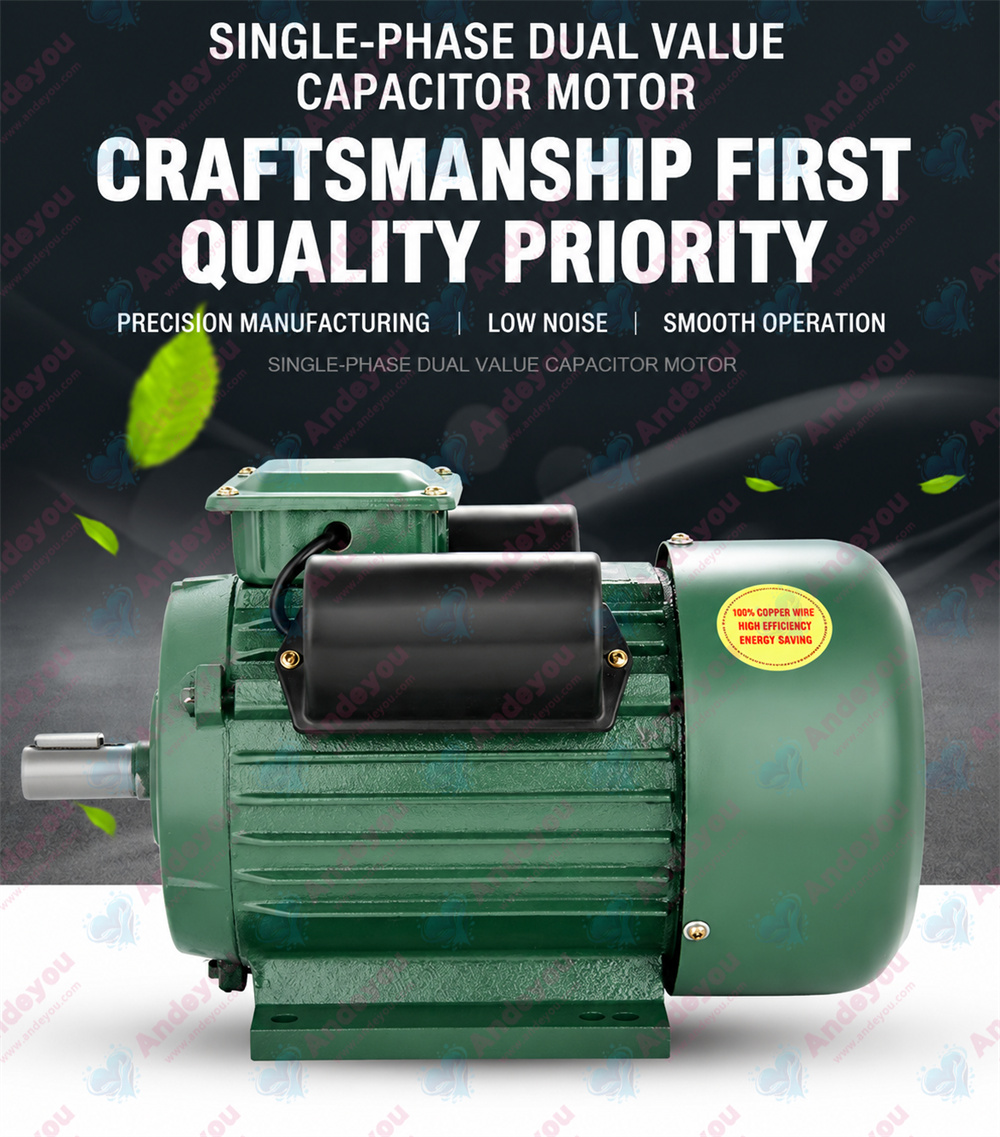

The Fushen YL series vertical motor is a single-phase 220V AC motor designed specifically for industrial applications. Manufactured using high-quality materials and advanced processes, it features a compact structure, stable operation, and easy maintenance. Widely used in equipment such as water pumps, fans, compressors, food processing machinery, and packaging machinery, this series serves as an ideal power source for small-to-medium power industrial equipment.

Key Features

1. High-Efficiency and Energy-Saving Design

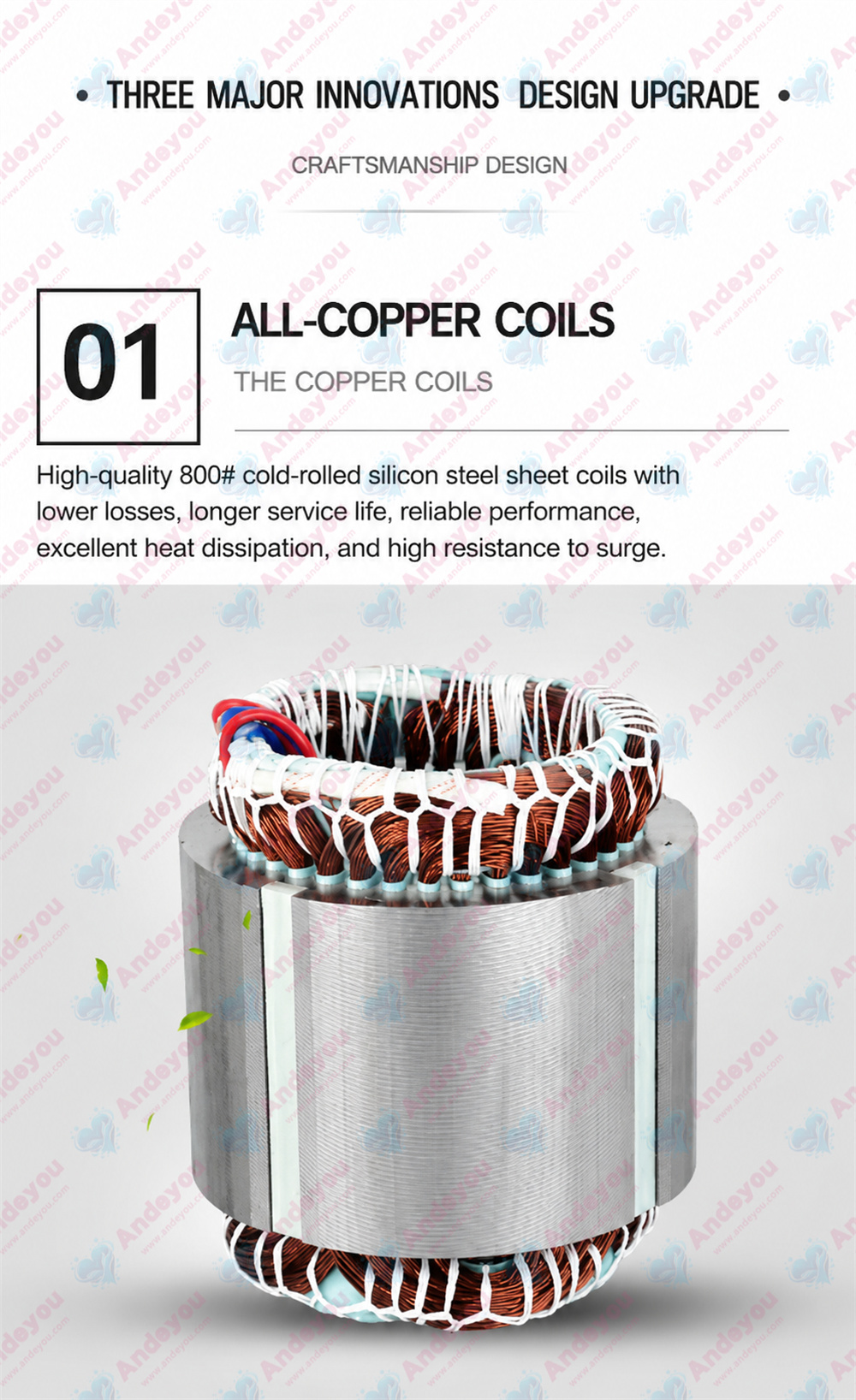

Utilizes high-permeability silicon steel sheets and an optimized electromagnetic design to meet national Grade 2 energy efficiency standards.

Features low-loss copper windings to minimize energy waste, offering over 15% greater energy efficiency than standard motors.

High power factor effectively reduces line losses and improves grid utilization.

2. Superior Operational Performance

High starting torque—exceeding 2.2 times the rated torque—enables easy startup under heavy loads.

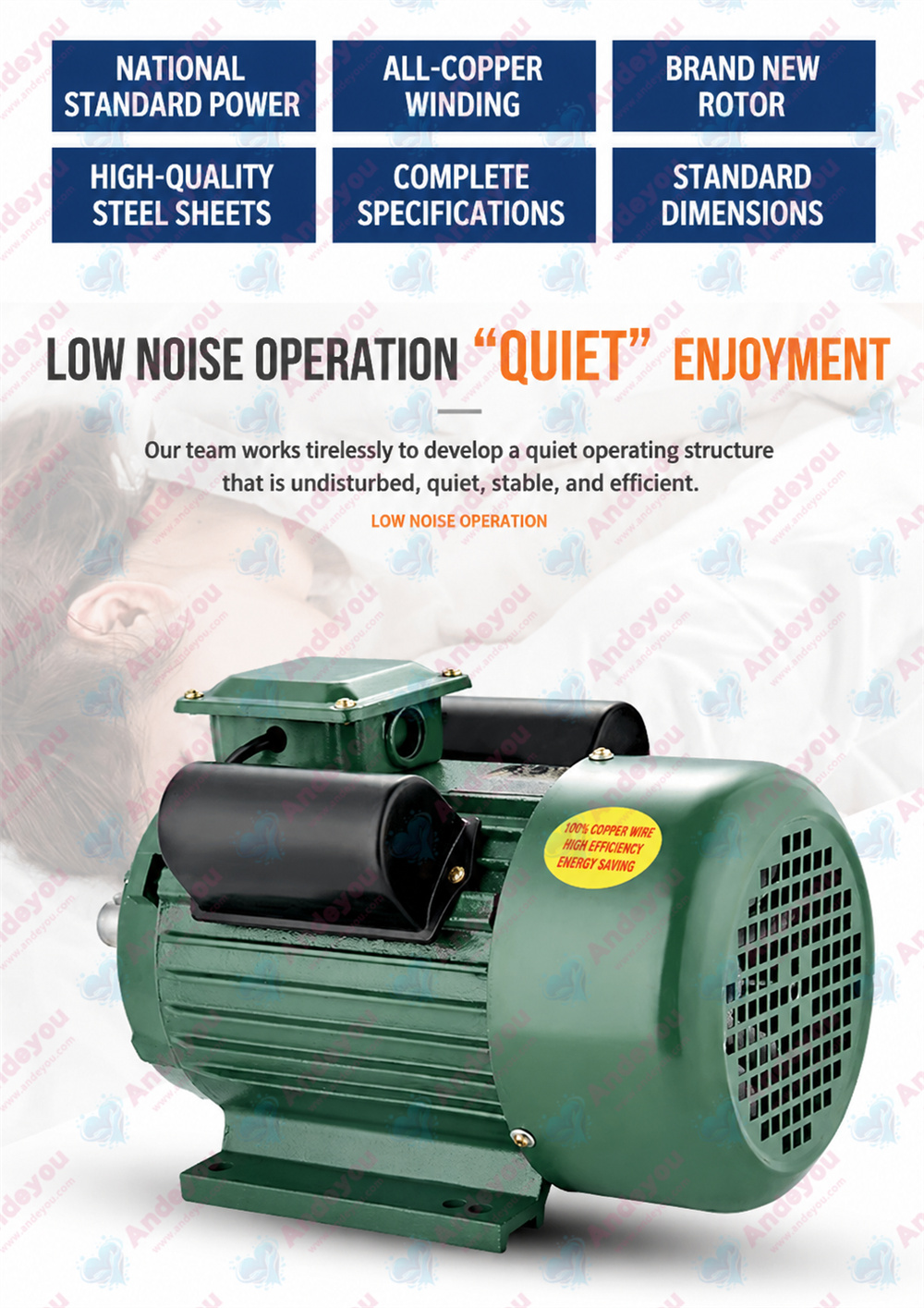

Operates smoothly with minimal vibration and low noise, ensuring a quiet working environment.

Wide voltage tolerance (200V–240V) ensures stable operation even amidst voltage fluctuations.

Built-in overheat protection automatically cuts off power if temperatures exceed safe limits.

3. Robust and Durable Structural Design

Totally Enclosed Fan-Cooled (TEFC) structure.

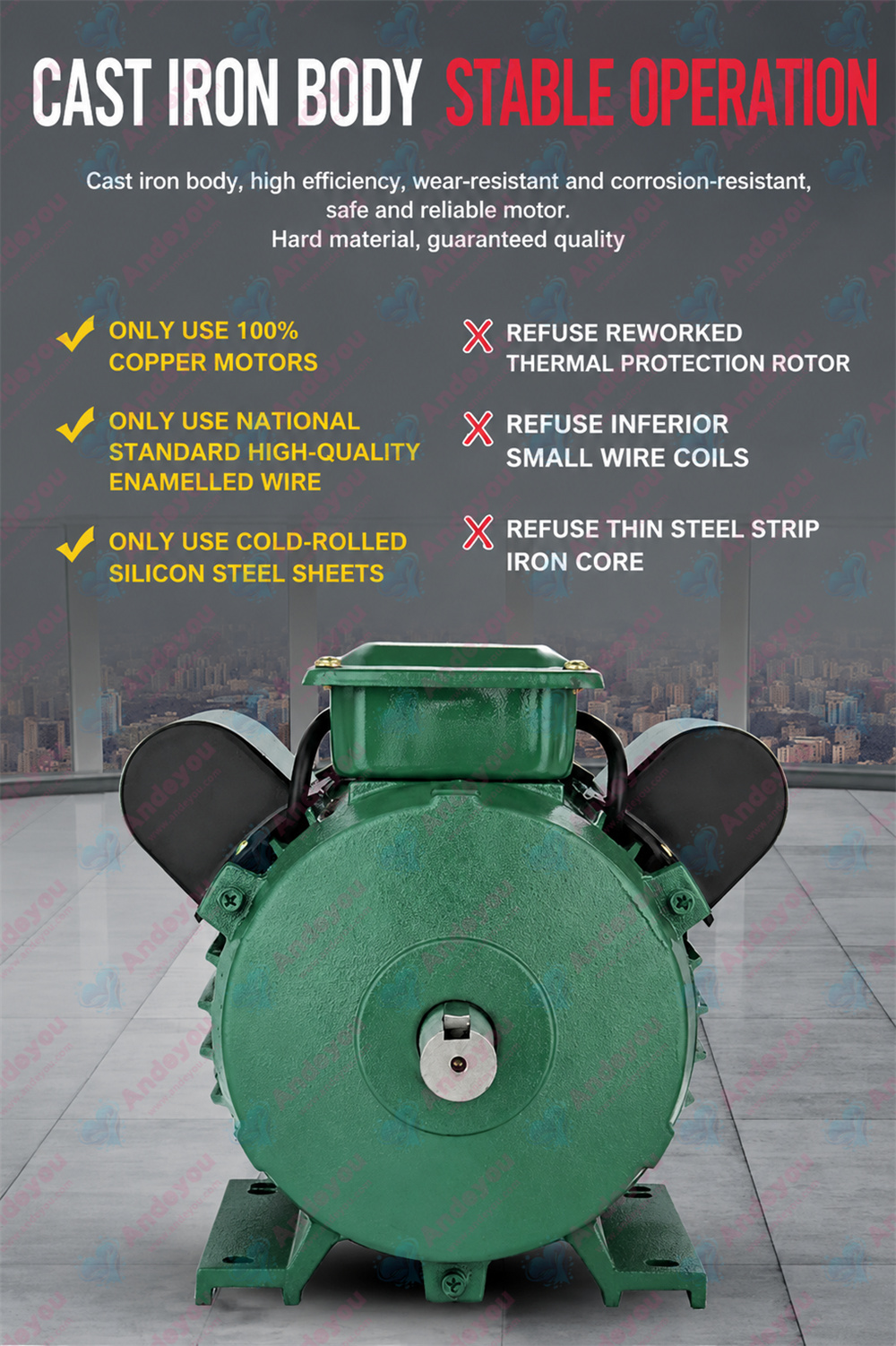

High-strength cast iron frame offers excellent heat dissipation and mechanical durability.

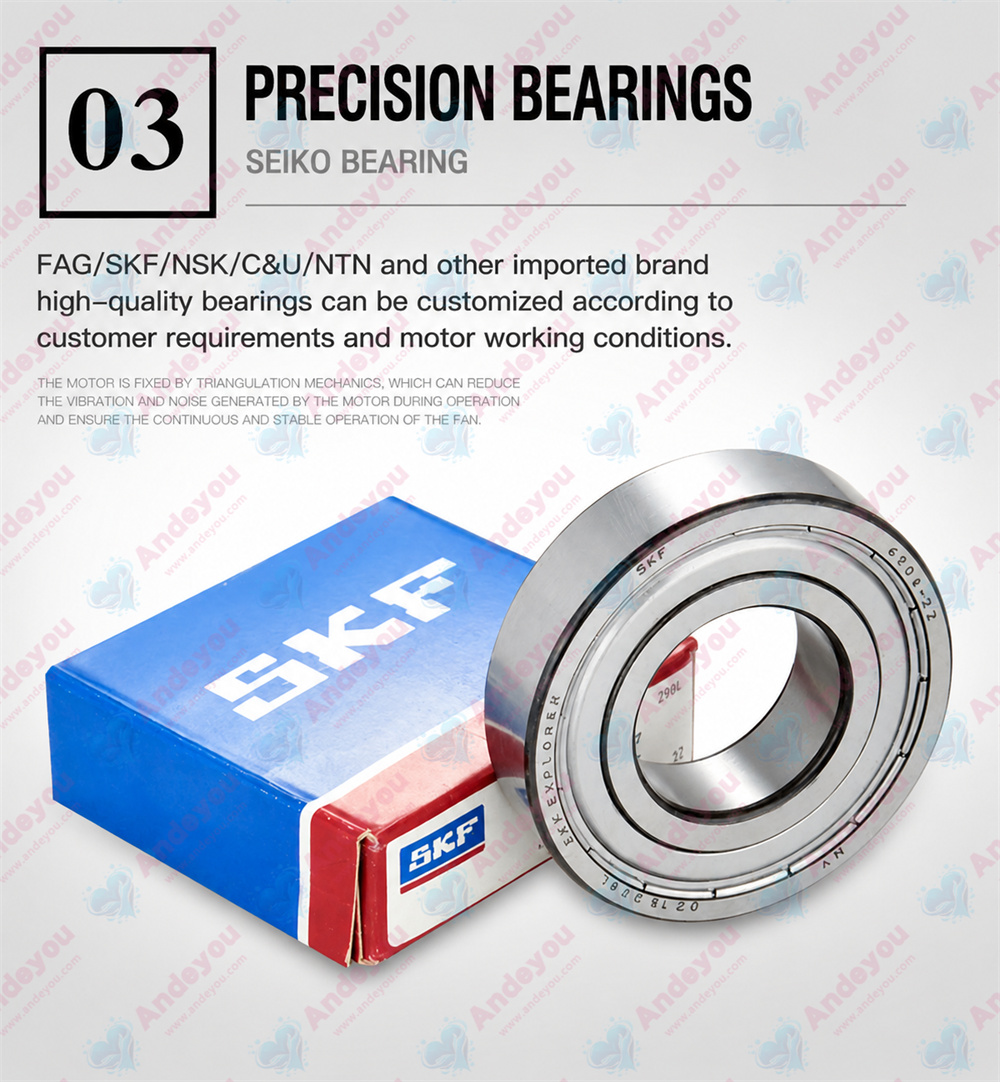

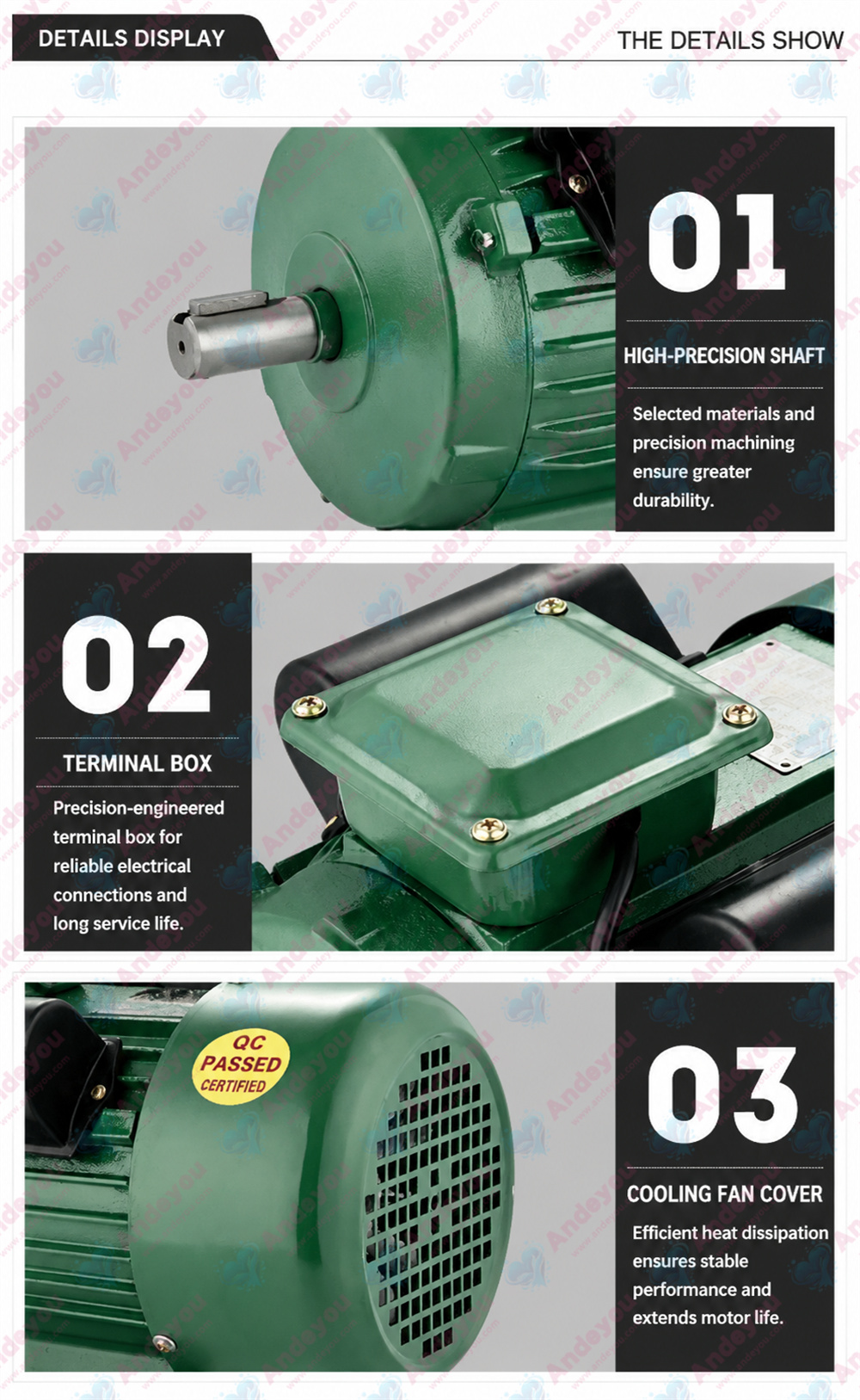

Precision-machined bearing housings paired with high-quality bearings ensure long-term, secure operation.

4. User-Friendly Design

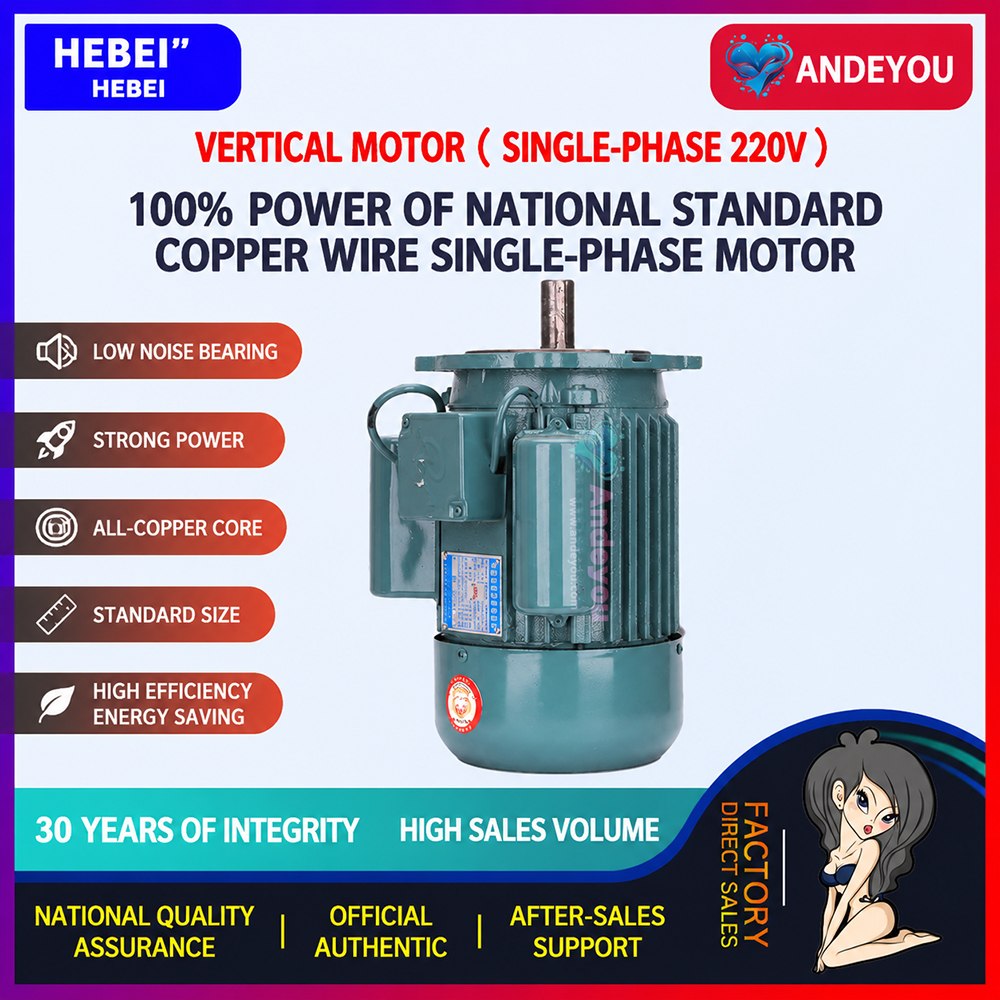

Vertical mounting design saves space and allows for direct connection to equipment.

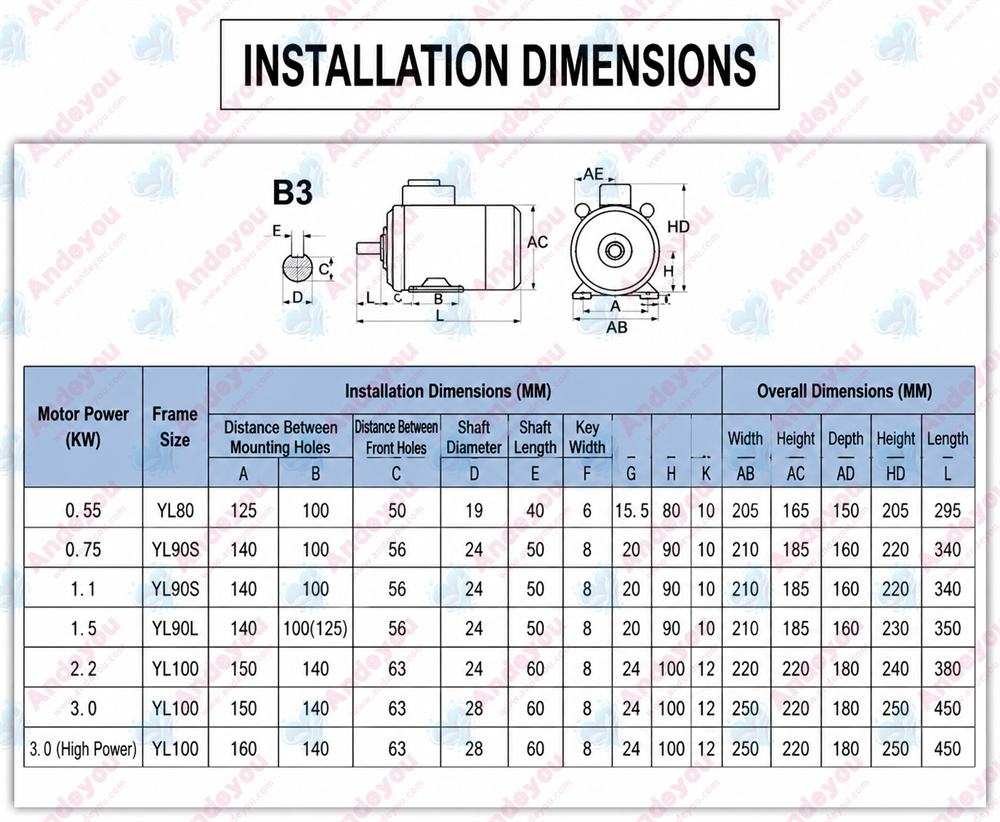

Standardized flange and shaft extension dimensions ensure high interchangeability and easy equipment integration.

Rotatable terminal box facilitates cable entry from various directions.

Long maintenance intervals.

5. Safe and Reliable Protection

Built-in thermal protector prevents motor damage due to overheating.

Double insulation design ensures operator safety.

Strong overload capacity; capable of withstanding 150% of rated load for short periods.

Complies with national electrical safety standards and holds CCC certification.

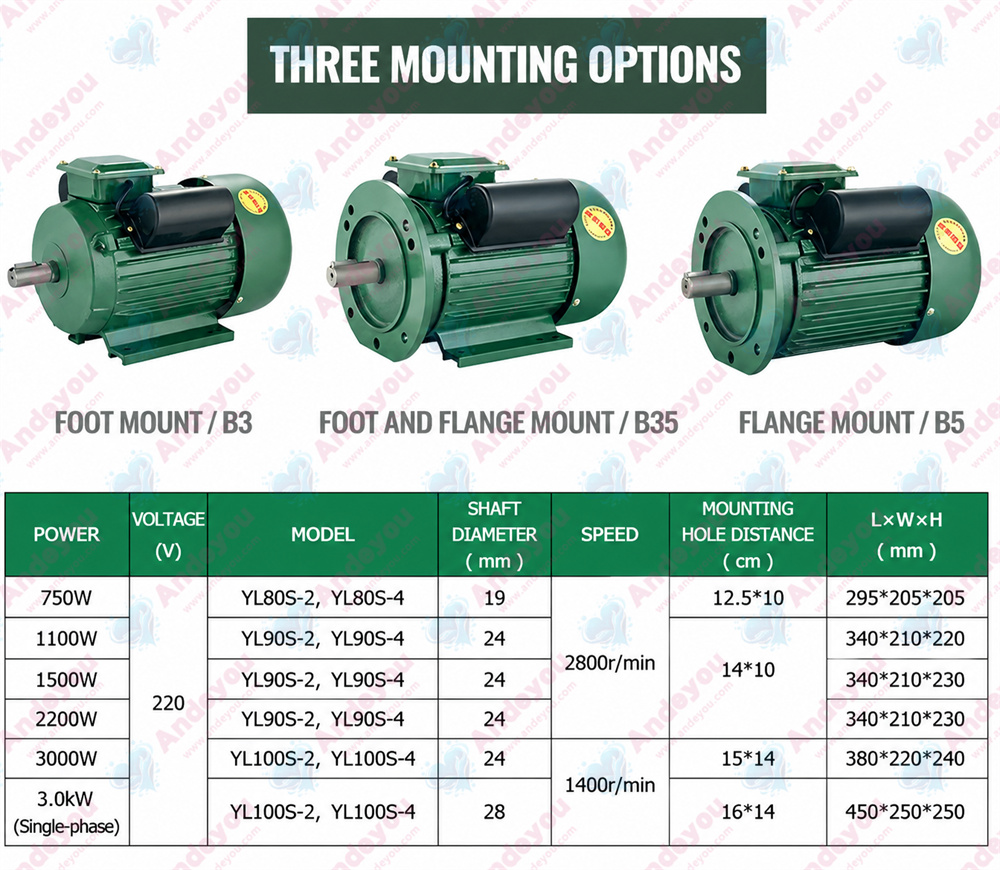

Technical Specifications

Rated Voltage: Single-phase 220V ±10% 50Hz

Power range: 0.18 kW – 3.0 kW

Number of poles: 2-pole or 4-pole options

Insulation class: Class B or Class F

Duty type: Continuous duty (S1)

Ambient temperature: -15°C to +40°C

Applications

Thanks to their excellent performance, Fushen YL vertical motors are widely used in:

Various clean water pumps, sewage pumps, and booster pump systems

Ventilation equipment, smoke exhaust fans, and air conditioning systems

Food processing machinery, packaging machinery, and conveying equipment

Small machine tools, woodworking machinery, and printing equipment

Agricultural machinery, irrigation systems, etc.
